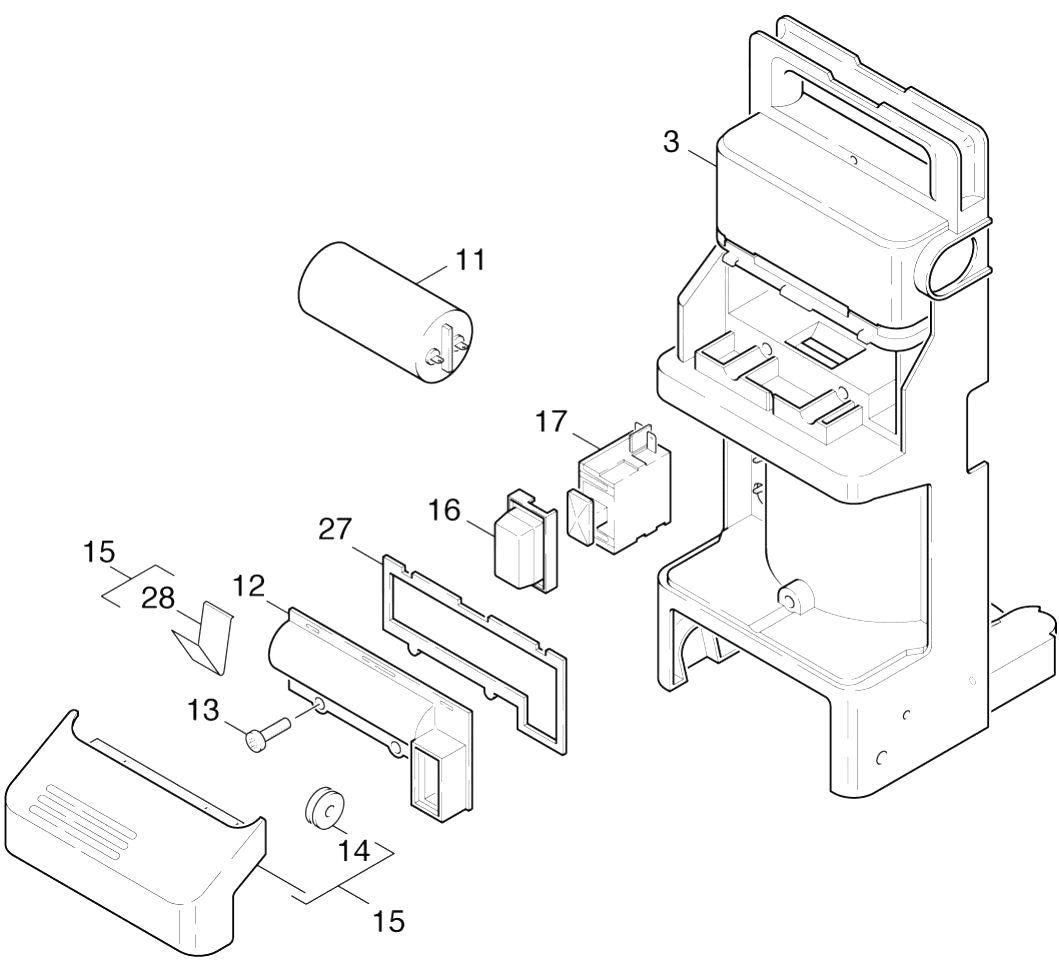

Karcher (Керхер) Выключатель (0.101-597.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-155.0 |
Мотор комплектный только для замены |
|
| 0 |
4.623-286.0 |
Motor complete only for replacement |
|
| 1 |
5.015-044.0 |
Ring |
|
| 1 |
5.321-366.0 |
Handhold |
|
| 1 |
5.600-060.0 |
Blower wheel |
|
| 1 |
5.550-269.0 |
Cylinder head KAERCHER 720 MXS |
|
| 1 |
5.321-463.0 |
Handhold |
|
| 1 |
5.030-967.0 |
Handhold few |
|
| 2 |
6.401-141.0 |
Deep groove ball thrust bearing |
|
| 2 |
5.030-620.0 |
Moulded part |
|
| 2 |
7.306-320.0 |
Oval head screw M 5x40-A2-70 ISO 7045 |
|
| 2 |
5.093-041.0 |
Bearing cover B |
|
| 2 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 2 |
5.042-840.0 |
Holder hose |
|
| 2 |
6.303-122.0 |
M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO |
|
| 3 |
2.889-027.0 |
Spare part set KAERCHER 720 |
|
| 3 |
4.120-149.0 |
Wobble plate |
|
| 3 |
4.582-008.0 |
Valve disc complete |
|
| 3 |
6.362-365.0 |
O-Ring seal complete 1ST.-R.- 7,65X 1,7 |
|
| 3 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 3 |
5.584-091.0 |
Valve pin check valve |
|
| 3 |
5.387-620.0 |
Warning sticker-Prevent from freezing |
|
| 3 |
5.481-052.0 |
Lever |
|
| 4 |
6.343-016.0 |
Tolerance ring 20X14 |
|
| 4 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 4 |
4.291-008.0 |
Шпиндель комплектный только для замены |
|
| 4 |
7.401-105.0 |
Ball bearing 6003-2RS W?lzl.St DIN 625 |
|
| 4 |
4.769-032.0 |
Nozzle insert |
|
| 4 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 4 |
6.421-205.0 |
Pressure gauge 0-150 BAR |
|
| 5 |
6.401-142.0 |
Ball bearing 7305 B |
|
| 5 |
6.362-658.0 |
O-Ring seal 7 X 1,5-NBR 90 |
|
| 5 |
5.550-191.0 |
Cylinder head |
|
| 5 |
5.332-258.0 |
Helical spring |
|
| 5 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 5 |
2.883-782.0 |
O-Ring kit |
|
| 6 |
7.367-018.0 |
Radial shaft seal ring A26x37x7 -NBR DI |
|
| 6 |
5.332-248.0 |
Helical spring |
|
| 6 |
6.414-252.0 |
Strainer |
|
| 6 |
5.767-005.0 |
Rubber buffer |
|
| 6 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 6 |
5.427-186.0 |
Manifold |
|
| 7 |
6.465-031.0 |
Connection 3/4 |
|
| 7 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 7 |
4.042-839.0 |
Holder pistol complete |
|
| 7 |
7.362-502.0 |
O-Ring seal 2,8x1,6-NBR 70 DIN 3770 |
|
| 8 |
5.769-087.0 |
Nozzle insert black PVDF |
|
| 8 |
5.443-367.0 |
Nipple chemistry |
|
| 8 |
5.605-224.0 |
Housing chassis |
|
| 8 |
5.107-147.0 |
Bar |
|
| 9 |
5.063-418.0 |
Cover A |
|
| 9 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 9 |
7.306-148.0 |
Screw M8x60 -8.8-R3R (In6Rd) |
|
| 9 |
5.031-087.0 |
Moulded part |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 10 |
5.332-247.0 |
Helical spring |
|
| 10 |
7.306-154.0 |
Screw M8x75 -8.8-A3R (In6Rd) |
|
| 10 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 10 |
6.303-125.0 |
Screw 5x20-Sonder In6Rd+Spitze |
|
| 10 |
5.332-157.0 |
Helical spring |
|
| 11 |
6.661-298.0 |
Capacitor 40µf |
|
| 11 |
6.303-122.0 |
M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO |
|
| 11 |
4.030-114.0 |
Throttle complete |
|
| 11 |
6.388-216.0 |
Hose DN 5 |
|
| 11 |
5.481-140.0 |
Lever |
|
| 12 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 12 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 12 |
4.071-088.0 |
Tank complete |
|
| 12 |
5.314-082.0 |
Pin -BONEZZI 12.022.706 |
|
| 13 |
6.389-555.0 |
High pressure hose 9/16MPa 60G MU=50,E |
|
| 13 |
5.110-714.0 |
Sleeve |
|
| 13 |
6.362-479.0 |
O-Ring seal 7,59X 2,62 |
|
| 14 |
5.124-015.0 |
Cam |
|
| 14 |
2.880-154.0 |
O-Ring kit |
|
| 14 |
5.731-652.0 |
Filter with weight |
|
| 14 |
5.110-539.0 |
Sleeve |
|
| 15 |
4.324-006.0 |
Push button |
|
| 15 |
7.383-004.0 |
Union nut B1 LL15 -Ms DIN3870 |
|
| 15 |
5.337-026.0 |
Plate spring |
|
| 16 |
6.631-606.0 |
Cover water shield |
|
| 16 |
4.421-563.0 |
Трубопровод комплектный K 720 MXS |
|
| 16 |
6.362-526.0 |
O-Ring seal 29,1 X 2,55 -NBR 70 |
|
| 16 |
5.332-247.0 |
Helical spring |
|
| 17 |
6.631-596.0 |
Switch |
|
| 17 |
4.411-006.0 |
Screw plug |
|
| 17 |
5.105-191.0 |
Axle |
|
| 17 |
6.363-031.0 |
O-Ring seal complete 1ST.-R. NBR 90 |
|
| 18 |
4.421-571.0 |
Pipelines complete |
|
| 18 |
6.435-196.0 |
Wheel D 180 |
|
| 18 |
6.390-264.0 |
High pressure hose 12,5/16MPa,DN6,neutr. |
|
| 19 |
6.288-050.0 |
Engine oil 1L |
|
| 19 |
5.311-205.0 |
Union nut |
|
| 19 |
6.435-197.0 |
Wheel cap zinc yellow |
|
| 20 |
5.066-944.0 |
Cover |
|
| 20 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 21 |
4.063-224.0 |
Cap of a tank only for replacement |
|
| 22 |
6.303-200.0 |
Screw 5x25-IN6RD |
|
| 23 |
5.044-081.0 |
Holder for hose reel |
|
| 24 |
6.303-150.0 |
Screw 4,2x 22 |
|
| 25 |
5.063-793.0 |
Cover left |
|
| 26 |
5.063-792.0 |
Cover right |
|
| 28 |
5.337-020.0 |
Plate spring |
|
