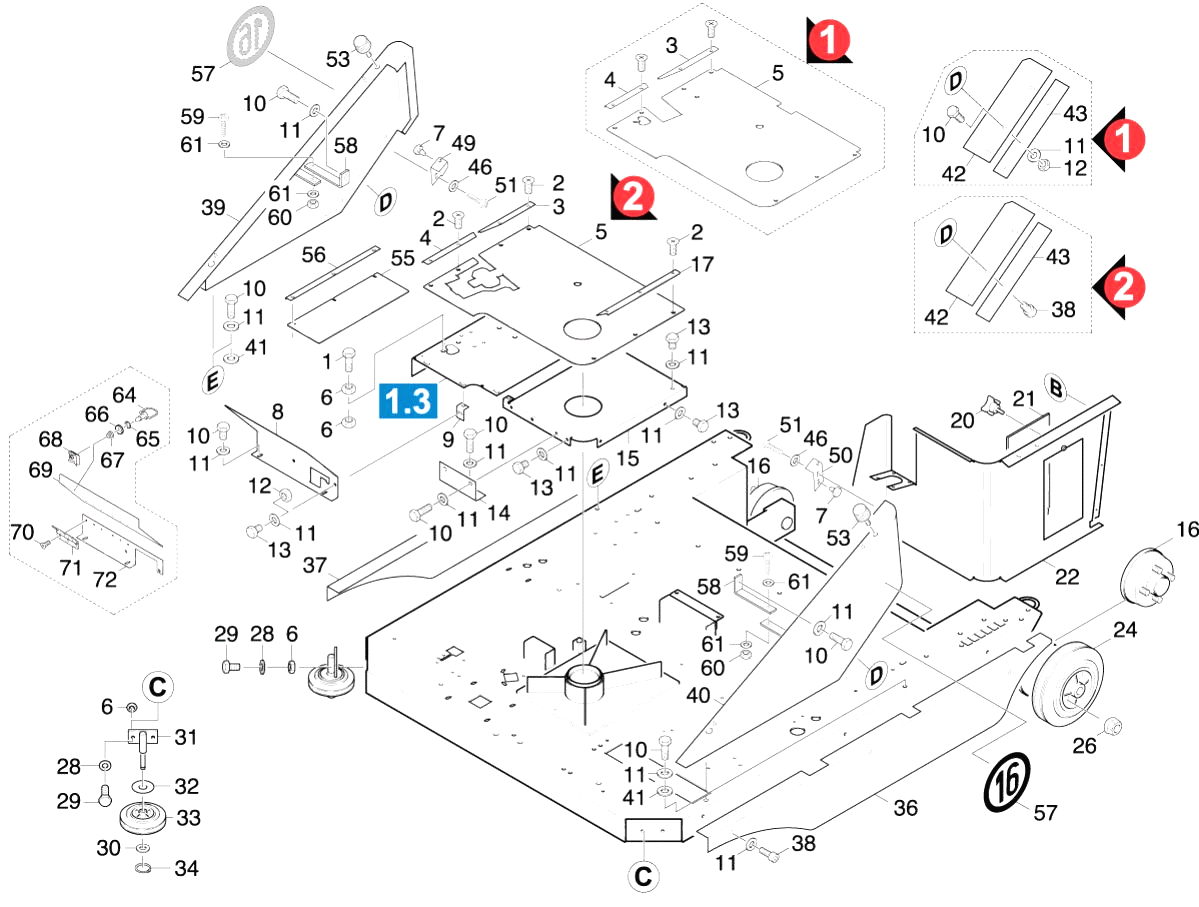

Karcher (Керхер) Устройство (0.206-023.0)

Karcher (Керхер) Устройство (0.206-023.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 7.304-406.0 Hexagonal head screw M 8x35-8.8-A2E IS
2 7.305-599.0 Countersunk screw M 5x10-A2-70-sw ISO 7
3 5.190-072.0 Strip
3 5.190-096.0 Strip
4 5.190-095.0 Strip
4 5.190-071.0 Strip
5 5.006-027.0 Plate rubber
6 7.311-004.0 Hexagon nut M8 -8-A3E ISO 4032
7 6.437-380.0 Damper -ALPHA 620002A005
9 4.021-125.0 Angle
10 7.306-090.0 Screw M6x16 -8.8-R3R (In6Rd)
11 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
12 7.311-003.0 Hexagon nut M6 -8-A2E ISO 4032
13 7.304-382.0 Hexagonal head screw M 6x12-8.8-A2E ISO
14 4.021-121.0 Angle
15 4.033-014.0 Bottom
16 6.467-018.0 Wheel brake
17 5.190-070.0 Strip
20 6.321-069.0 Handhold M6x20
21 4.063-595.0 Cover complete
22 4.500-241.0 Covering
22 4.500-143.0 Covering
24 6.435-408.0 Колесо комплектный
26 7.311-012.0 Wheel nut A M12X1,5-8-A2E DIN74361
28 7.312-004.0 Washer 8 -200HV-A3E ISO 7090
29 7.304-397.0 Hexagonal head screw M8x20-8.8-A2E ISO
30 7.312-008.0 Washer 12-200HV-A3E ISO 7090
31 4.042-763.0 Holder
32 5.115-717.0 Washer
33 6.435-305.0 Wheel D125
34 7.343-003.0 Locking ring 12x1-Rf-St DIN 471
36 5.047-430.0 Side part left (SP)
37 5.047-429.0 Side part right (SP)
38 7.303-047.0 Screw M6x16 -St-R3R (In6Rd)
39 4.038-530.0 Sheet metal component
40 4.038-531.0 Sheet metal component
41 7.312-262.0 Washer 10 -100HV-A3E ISO 7094
42 5.394-448.0 Splash guard
43 5.190-073.0 Strip
46 7.312-001.0 Washer 4 -200HV-A3E ISO 7089
49 5.047-443.0 Sheet metal component
50 5.047-437.0 Sheet metal component
51 7.303-062.0 Sheet metal screw ST3,5X 9,5-ST-A2R (IN
53 6.961-538.0 Screw M 8X 20
55 5.003-947.0 Plate rubber
56 5.190-090.0 Strip
57 5.382-654.0 Label 16 KM
58 5.047-431.0 Sheet metal component
59 7.306-031.0 Screw M 6x16-A2-70 DIN 7984
60 7.311-425.0 Hexagon nut M6 -04-A2E ISO 10511
61 7.312-291.0 Washer 6-200HV-A2R ISO7093-1
62 6.412-709.0 Valve
63 6.412-710.0 Cap valve
64 6.375-240.0 Closure
65 6.313-016.0 Locking ring
66 6.312-068.0 Washer
67 6.330-102.0 Pressure spring
68 6.375-242.0 Closure
69 5.059-580.0 Sheet metal component
70 7.303-057.0 Countersunk screw M4x8 -St-A2R (In6Rd)
71 6.372-073.0 Hinge
72 5.059-579.0 Sheet metal component
