Karcher (Керхер) Ручной тормоз установленный (0.207-084.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

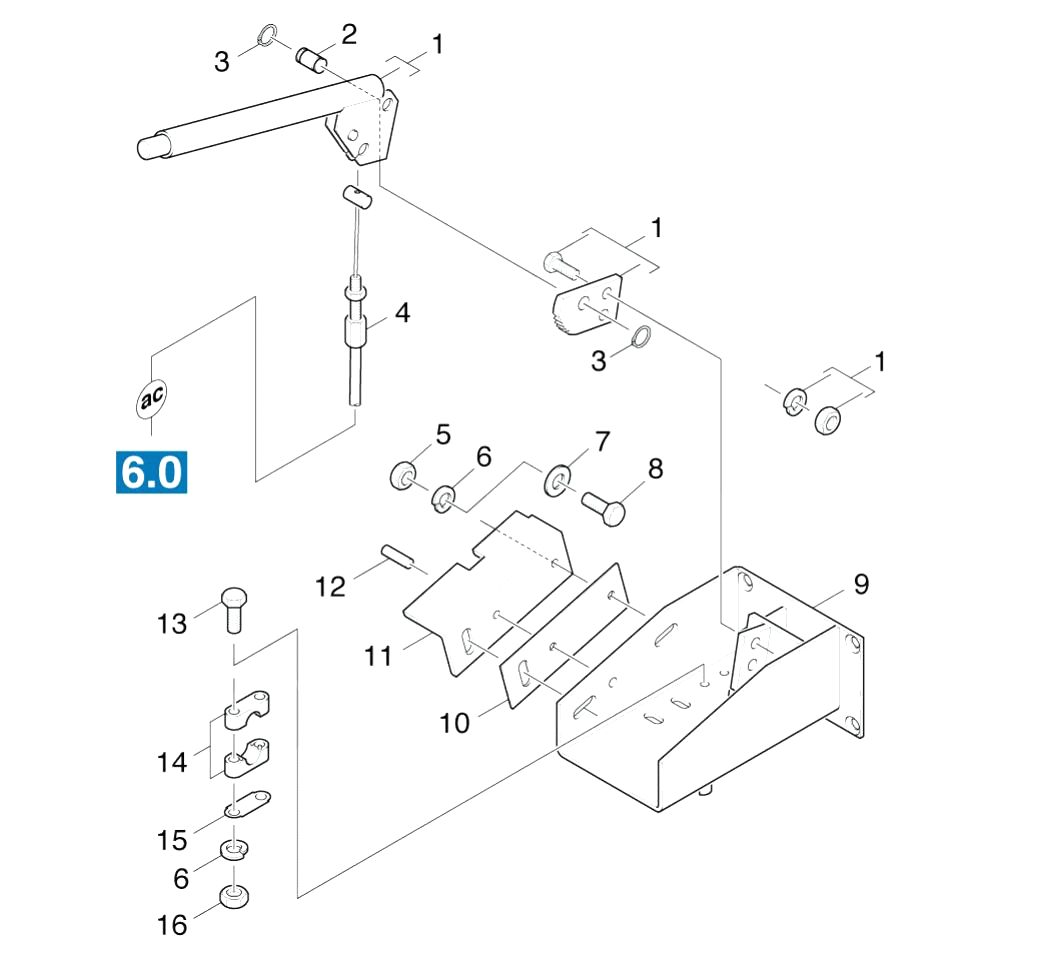

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.905-693.0	Hand brake complete
1	6.321-080.0	Handhold D35
1	6.905-668.0	Axle
1	6.906-029.0	Reversing rolling mill Profi KMR 1200
2	6.905-695.0	Bolt
2	6.368-180.0	Protecting cap
2	7.312-159.0	Toothed lock washer A8,4-FST-PH DIN 679
2	7.343-031.0	Locking ring 14x1-FST-PHR DIN 471
3	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
3	7.306-023.0	Cylinder head screw M6x25 -8.8-A2E ISO4
3	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
3	6.310-070.0	Nut
4	6.467-008.0	Brake hand rope
4	7.312-165.0	Toothed lock washer A6,4-FST-PH DIN 679
4	6.437-463.0	Damper
4	6.905-639.0	Bearing neck
5	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
5	6.321-100.0	Lever
5	6.905-679.0	Washer
5	6.347-048.0	Sleeve
6	7.312-165.0	Toothed lock washer A6,4-FST-PH DIN 679
6	6.905-644.0	Spring washer
6	6.437-380.0	Damper -ALPHA 620002A005
6	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
7	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
7	7.305-041.0	Countersunk screw M5x10 -4.8-A2E ISO 20
7	6.905-633.0	Washer
8	7.304-383.0	Hexagonal head screw M 6X 16-8.8-A2E IS
8	6.370-139.0	Flange
8	6.905-660.0	Leverage
8	7.401-133.0	Ball bearing 6004-2RS -W?lzl.St DIN 625
9	6.905-692.0	Bracket
9	6.347-052.0	Bush
9	7.312-005.0	Washer 10-200HV-A3E ISO 7090
9	6.437-453.0	Hub
10	6.322-014.0	Crank
10	7.343-001.0	Locking ring 10x1-Rf-St DIN 471
10	7.343-040.0	Locking ring 20x1,2 -St-ph DIN 471
11	6.316-061.0	Bolt
11	7.311-436.0	Hexagon nut M10x1,25-6-A2E ISO 10512
12	7.314-099.0	Straight pin 5m6x20-St ISO 2338
12	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
12	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
12	7.312-005.0	Washer 10-200HV-A3E ISO 7090
13	7.306-118.0	Screw M 6x35 -8.8-R3R (In6Rd)
13	6.393-701.0	Bracket
13	6.905-667.0	Shaft
13	7.343-004.0	Locking ring 15x1-FST-PHR DIN 471
14	6.905-674.0	Clamp
14	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
14	7.305-048.0	Countersunk screw M5x12 -A2-70 (In6Rd)
14	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
15	6.905-673.0	Strap
15	6.905-643.0	Threaded rod
15	6.905-663.0	Frame
15	6.435-190.0	Roller D38
16	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
16	6.414-555.0	Air filter
16	6.905-631.0	Sleeve
17	6.905-670.0	Tube
17	6.905-616.0	Tension roller complete
18	6.310-066.0	Star grip M 8
18	6.905-632.0	Screw
19	6.905-658.0	Filter vibrator
19	7.306-406.0	Cylinder head screw M3x16-4.8-A2E ISO 1
20	6.641-402.0	Wire protecting sleeve
20	6.905-641.0	Parallel key
21	6.903-435.0	Bush
21	7.348-228.0	Narrow V-belt XPZ 862 DIN 7753-1
22	6.905-665.0	Shaft complete
22	6.348-215.0	Belt pulley
23	7.306-443.0	Винт с цилиндрической головкой М4х12
23	7.318-003.0	Parallel key 5X 5X 18-C45R DIN 6885
24	7.312-172.0	Toothed lock washer A5,3-FSt-A3E DIN 67
26	6.905-666.0	Sheet metal component
27	6.905-809.0	Sheet metal component complete
28	6.905-812.0	Screw
29	6.315-050.0	Blind rivet 4,0X12-VA
30	6.905-766.0	Cable clamp
31	6.905-808.0	Bowden wire
32	6.362-266.0	Seal filter box
33	6.273-071.0	Strap cellularrubber 19X5
