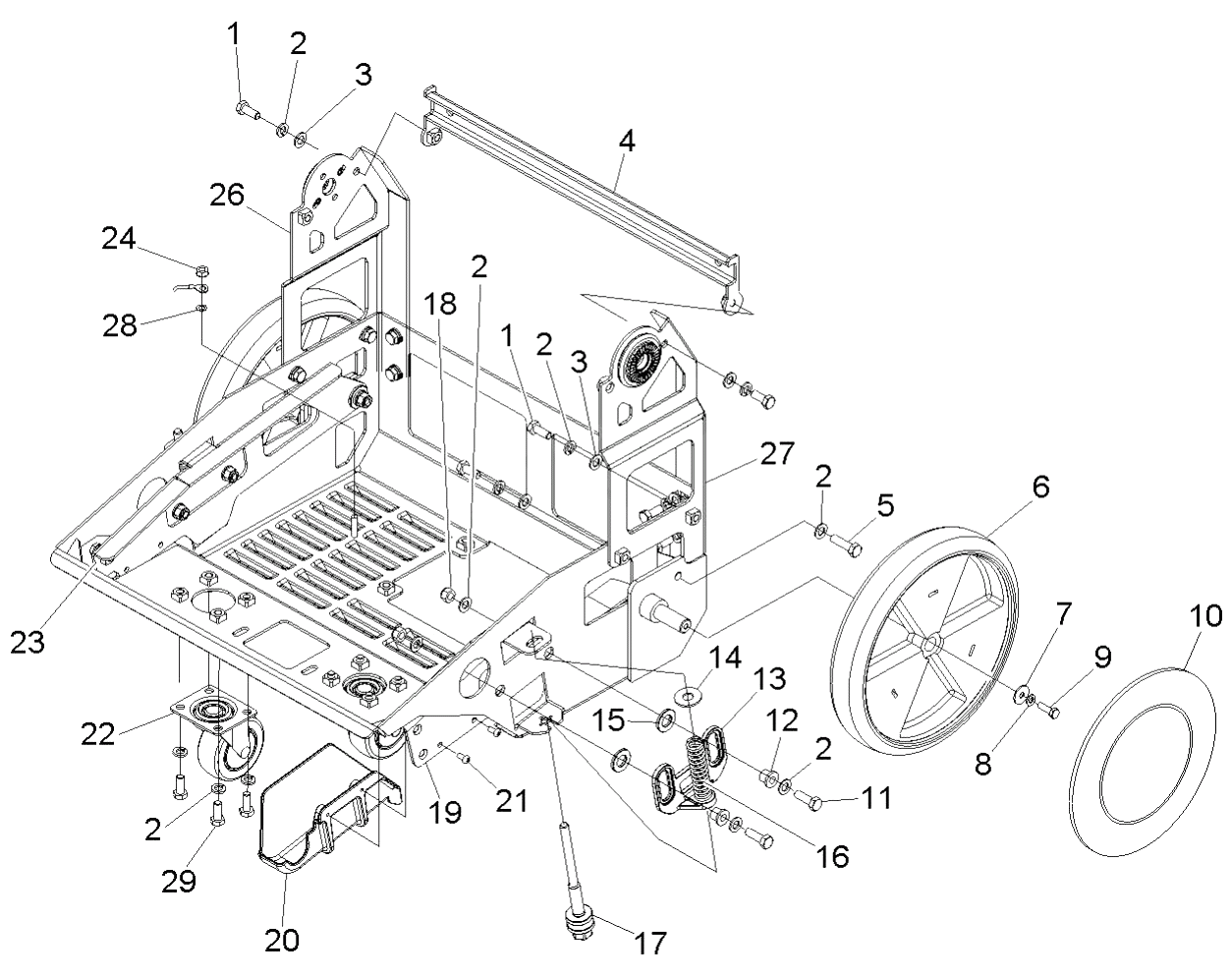

Karcher (Керхер) Рамка (0.164-852.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	8.627-486.0	SCR, M8X20 HHMS
2	8.613-731.0	WASHER, M8 SPLIT LOCK
3	8.613-728.0	WASHER, M8 FLAT DIN125A PLT
4	8.629-566.0	WELDMENT, HANDLE BRACE
5	8.629-578.0	SCREW, M8-1.25 X 40 HHCS GR8.8 ZNPLT
6	8.622-605.0	"""WHEEL, 9.75"""" X 1.5"""" """
7	8.622-573.0	WASHER, M6 (20.5 ODX1.6T) PLT
8	8.617-331.0	WASHER,SPRNG LK,M6,DIN127B,SST
9	8.629-343.0	SCREW, M6-1 X 15 HHCS GR10.9 BLKOX
10	8.630-007.0	"""HUBCAP, 9.75"""" WHEEL, BLACK """
11	8.629-344.0	SCREW, M8-1.25 X 25 HHCS GR8.8 ZNPLT
12	8.622-884.0	Bearing FLANGED.314IDX.502OD
13	8.621-589.0	BRKT, SPRING ADJUST
14	8.601-072.0	Washer M10 X 30 PLTD
15	8.625-940.0	Washer THRUST.51 ID X 1 ODBRO
16	8.622-469.0	SPRING, .718OD X 3.41L X .091W
17	8.622-381.0	SCR, ADJUSTMENT DECK SPRING
18	8.619-661.0	NUT, M8 HEX NYLOCK
19	8.621-602.0	BRKT, DECK LINKAGE, LEFT
20	8.621-843.0	GUARD, BELT BRUSH DRIVE
26	6.286-573.0	Protecting cap
27	5.332-082.0	Helical spring
