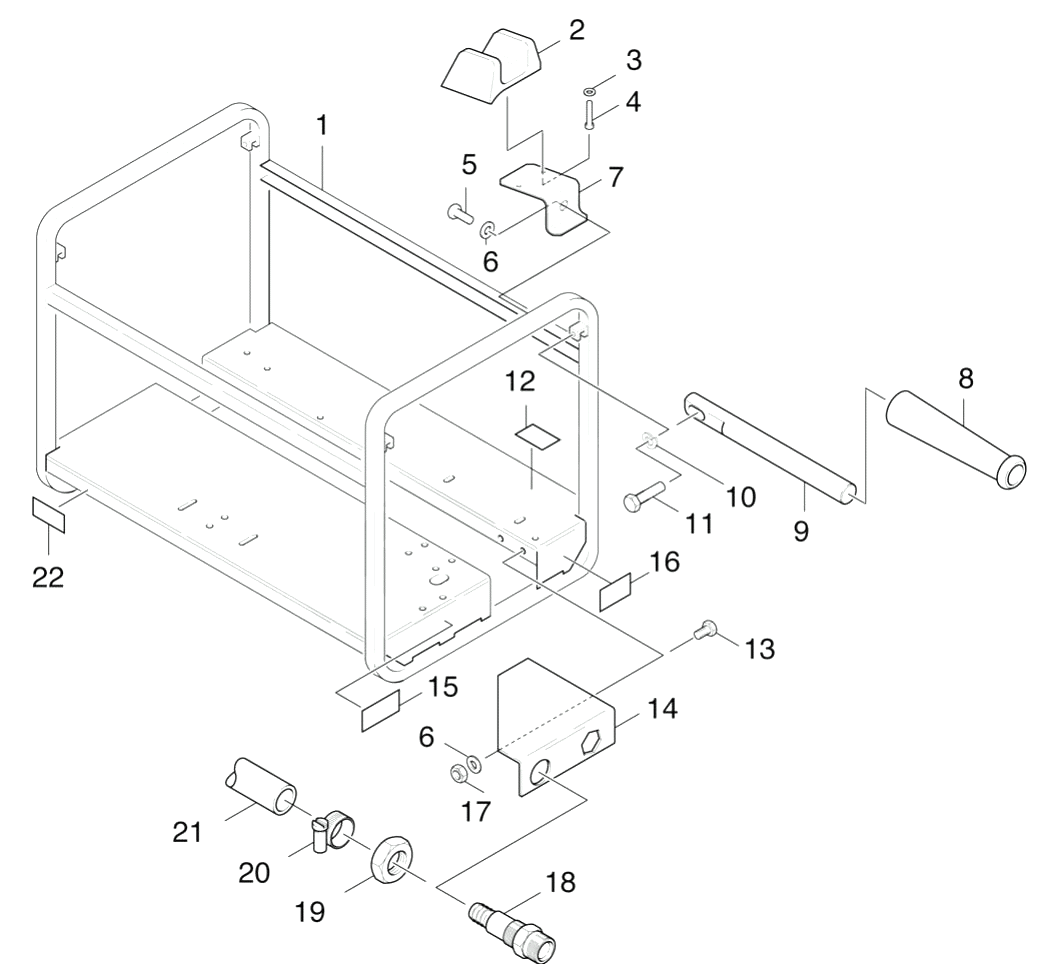

Karcher (Керхер) Рамка (0.101-791.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.050-256.0	Рамка
2	5.042-402.0	Holder
3	5.600-021.0	Impeller
3	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
4	6.343-166.0	Tolerance ring D14X8
4	7.303-071.0	Sheet metal screw ST4,2X9,5 -St-A2K (In
5	5.100-096.0	Shaft
5	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
6	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
6	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
7	6.343-031.0	Tolerance ring 15X12
7	5.018-888.0	Angle
8	5.625-225.0	Belt pulley
8	6.321-042.0	Pучка резина
9	6.388-608.0	Tightening strap
9	5.321-189.0	Рычаг
10	5.178-031.0	Cloth collar
10	7.313-004.0	Spring washer B 8-FSt-A3E DIN 127
11	6.303-320.0	Screw M 5x 20-St-R2R
11	7.304-011.0	Конусный болт M8 x40-8.8-A2E DIN 609
12	7.312-264.0	Washer 5-100HV-A3E ISO 7094
12	5.388-813.0	Label
13	5.110-306.0	Sleeve
13	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
14	5.379-011.0	Rubber ring
14	5.042-483.0	Holder
15	6.472-363.0	Coupler
15	5.386-349.0	Label
16	6.472-377.0	Coupling element
17	7.303-077.0	Sheet metal screw ST4,8X16-ST-A2R (IN6R
17	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
18	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
18	5.402-316.0	Screw union
19	5.606-002.0	Air flap
19	7.311-162.0	Hexagon nut M24x1,5-CuZn DIN 936
20	5.605-143.0	Housing
20	6.388-547.0	Hose clip
21	6.388-719.0	FLEX HOSE(CUT TO REQD LENGTH-M'S)
