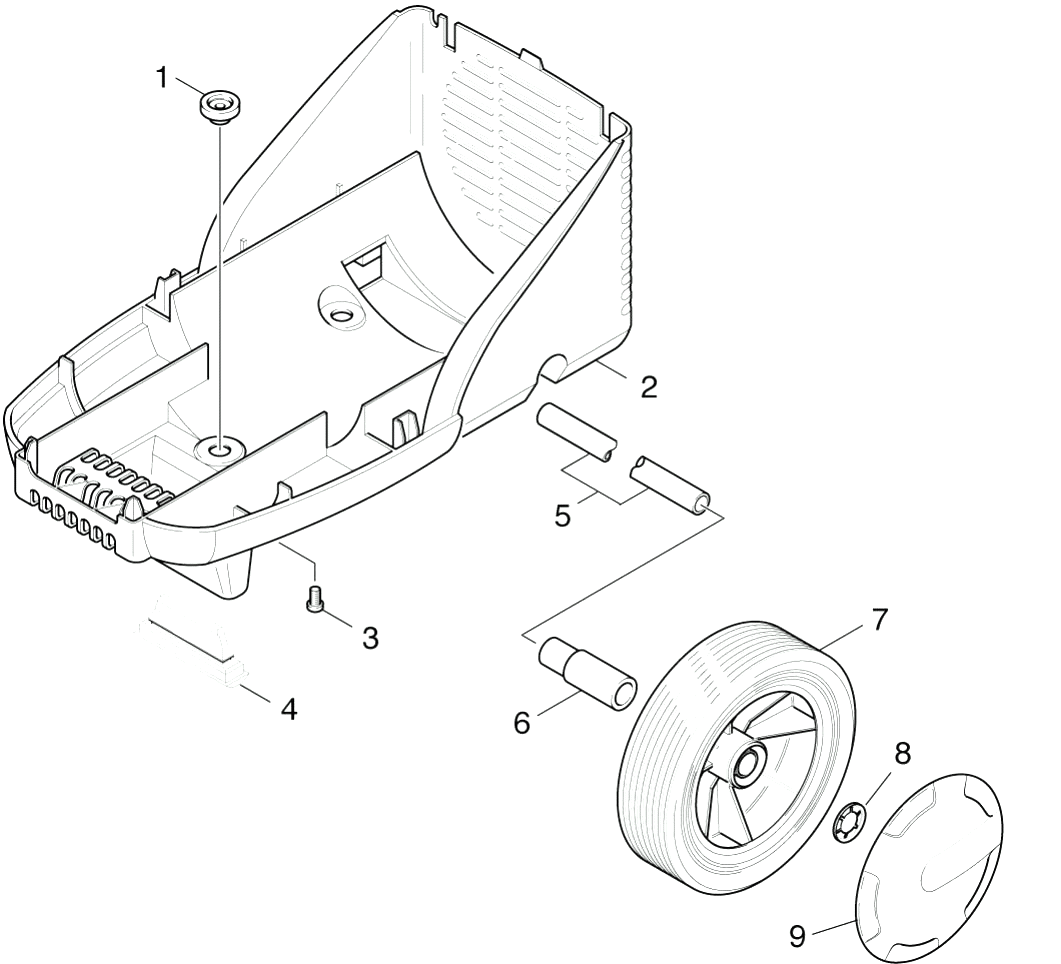

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.057-053.0 | Support | |
| 1 | 7.303-026.0 | Screw 4x16 -A2-70 (In6Rd) | |
| 2 | 5.066-500.0 | Cover bottom part | |
| 2 | 5.030-780.0 | Moulded part | |
| 3 | 6.303-075.0 | Screw M5x18-ST-A2R (KOMB-IN6RD) | |
| 3 | 6.631-469.0 | Protective cover (Y30600101) | |
| 4 | 5.057-054.0 | Support | |
| 4 | 6.630-118.0 | Rocker switch | |
| 5 | 5.028-336.0 | Tube | |
| 5 | 4.063-194.0 | Cover complete | |
| 6 | 5.110-453.0 | Sleeve | |
| 6 | 6.273-117.0 | Ring cellular rubber | |
| 7 | 6.435-196.0 | Wheel D 180 | |
| 7 | 6.303-153.0 | Screw M5x15-ST-R2R (IN6RD) | |
| 8 | 6.343-168.0 | Lock washer | |
| 8 | 6.647-122.0 | Cable with plug | |
| 9 | 6.435-216.0 | Wheel cap neutrally grey | |
| 9 | 7.303-031.0 | Screw M4x10 -St-P2R (In6Rd) | |
| 11 | 6.343-170.0 | Retaining clip | |
| 13 | 4.066-202.0 | Top part cover only for replacement | |
| 15 | 6.661-298.0 | Capacitor 40µf | |
| 16 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 17 | 6.303-149.0 | Oval head screw 5,0X40 | |
| 18 | 5.031-088.0 | Moulded part | |
| 19 | 6.362-254.0 | Washer 12X5X2,0 |
