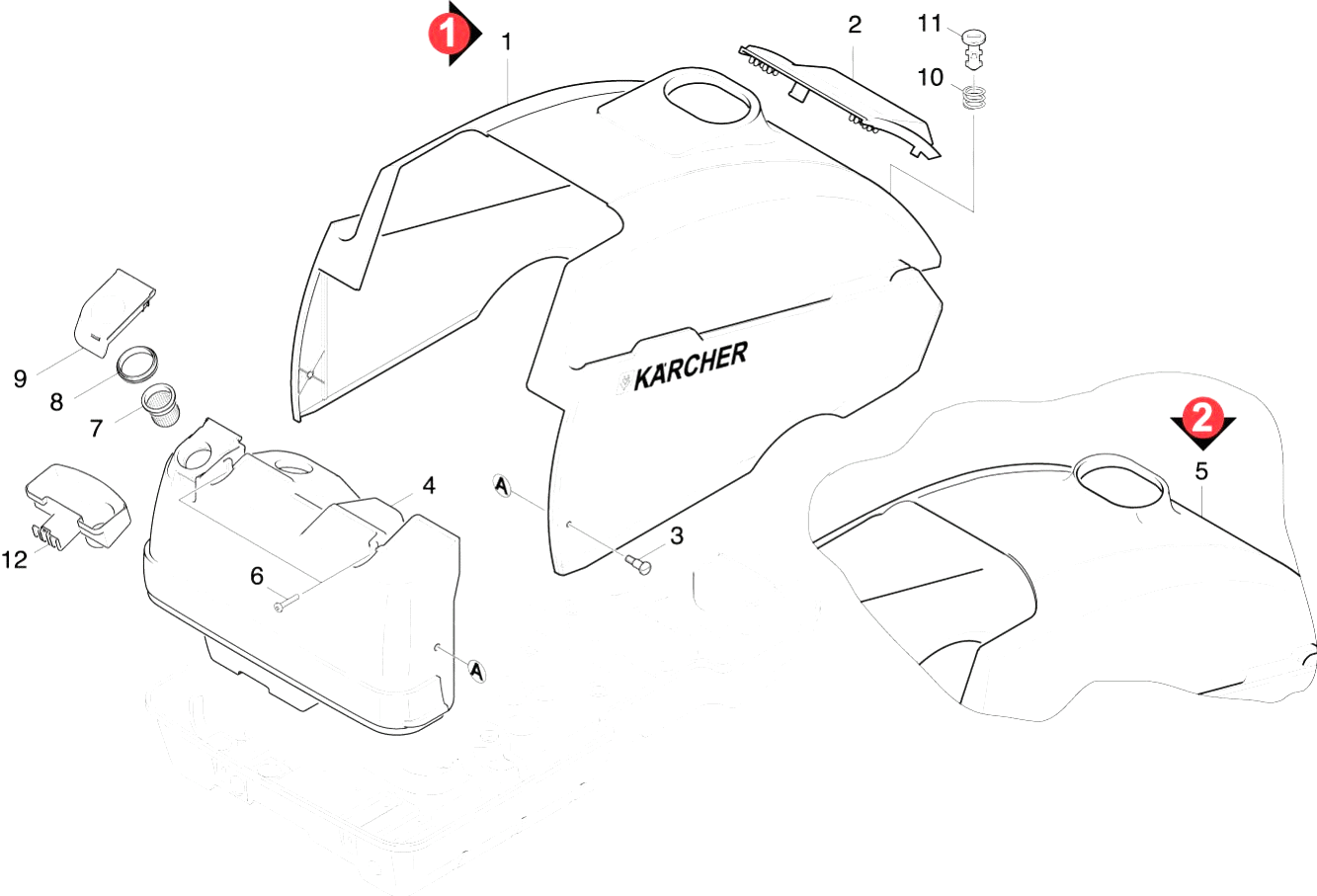

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.066-384.0 | Cover Ersatz-alte HDS-M nieder o. Blech | |
| 1 | 5.305-162.0 | Shaped screw | |
| 1 | 4.553-281.0 | Piston complete only for replacement | |
| 2 | 6.362-482.0 | O-Ring seal 10 x 1,5-NBR 70 | |
| 2 | 5.030-834.0 | Flap | |
| 2 | 6.472-331.0 | Snap ring 20 | |
| 3 | 5.332-057.0 | Helical spring | |
| 3 | 5.305-204.0 | Shaped screw | |
| 3 | 6.362-365.0 | O-Ring seal complete 1ST.-R.- 7,65X 1,7 | |
| 4 | 4.553-022.0 | Piston | |
| 4 | 5.071-048.0 | Tank fuel | |
| 4 | 5.110-220.0 | Sleeve ceramic | |
| 5 | 5.041-076.0 | Clamp | |
| 5 | 4.066-385.0 | Cover Ersatz alte HDS-M klasse mit VA-B | |
| 5 | 5.115-358.0 | Washer | |
| 6 | 6.303-172.0 | Oval head screw M 6X 34 | |
| 6 | 6.305-004.0 | Countersunk screw M 5X 20-A2-70-sw | |
| 7 | 4.427-202.0 | Соединительный элемент | |
| 7 | 5.731-039.0 | Filter | |
| 7 | 5.115-539.0 | Washer | |
| 8 | 6.414-566.0 | Strainer WMS | |
| 8 | 5.363-290.0 | Joint ring | |
| 8 | 5.332-289.0 | Helical spring | |
| 9 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 9 | 5.063-957.0 | Cover | |
| 9 | 6.362-796.0 | O-Ring seal 107,62X 2,62 | |
| 10 | 5.332-236.0 | Helical spring | |
| 10 | 5.060-432.0 | Housing | |
| 11 | 5.316-318.0 | Bolt | |
| 11 | 7.306-105.0 | Screw M6x30 -8.8-R3R (In6Rd) | |
| 12 | 5.013-075.0 | Funnel | |
| 12 | 6.365-052.0 | Grooved ring 20X28X6/8 | |
| 13 | 5.115-537.0 | Washer | |
| 14 | 6.365-053.0 | Compact seal 20X30X6 | |
| 15 | 5.112-420.0 | Bush | |
| 16 | 5.115-538.0 | Washer | |
| 17 | 6.362-092.0 | O-Ring seal 36,0 X 2,0-NBR 70 | |
| 18 | 6.365-330.0 | Grooved ring | |
| 19 | 4.550-535.0 | Cylinder head complete only for replacem | |
| 20 | 7.306-155.0 | Cylinder head screw M12x100 -8.8-A3E IS | |
| 21 | 6.288-016.0 | Gear oil 1L |
