Karcher (Керхер) Крышка (0.102-650.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

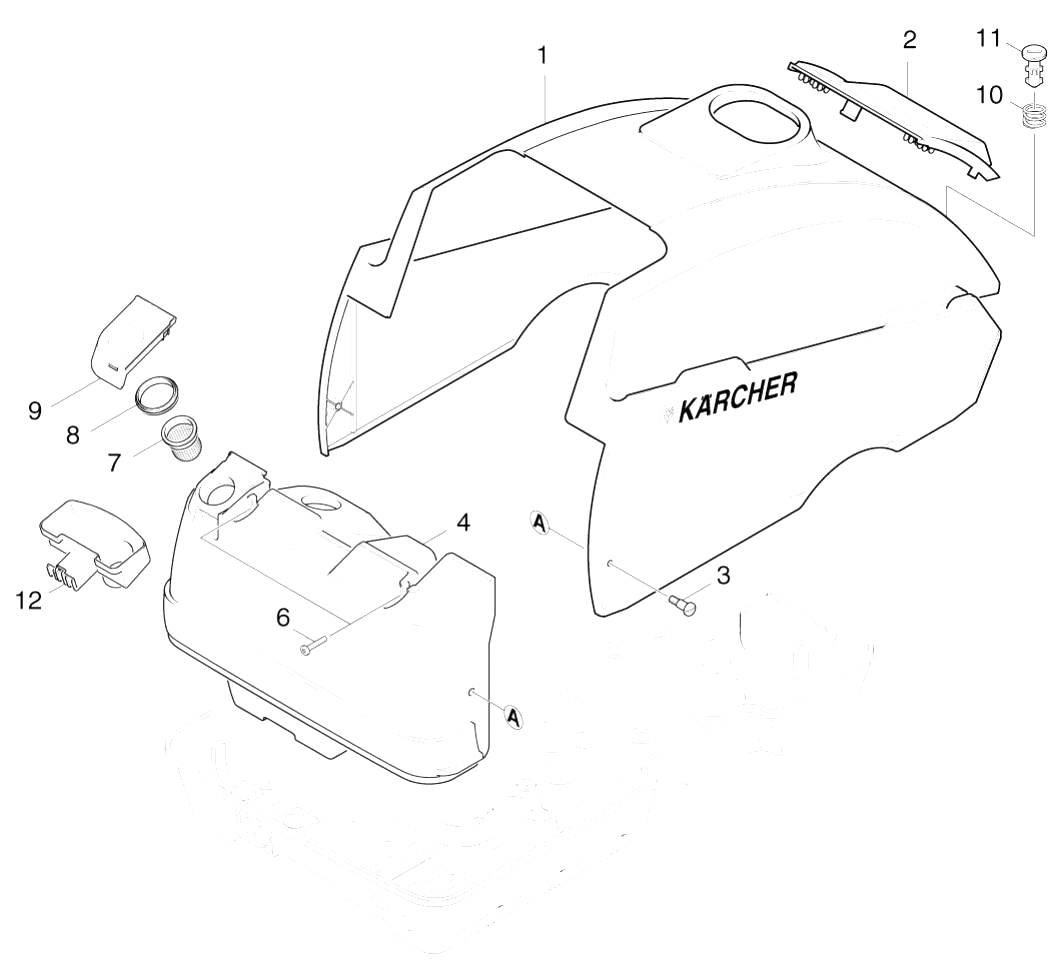

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-244.0 |
Motor complete only for replacement |
|
| 1 |
4.066-384.0 |
Cover Ersatz-alte HDS-M nieder o. Blech |
|
| 1 |
6.273-070.0 |
Seal string cellular rubber 4 |
|
| 1 |
4.553-124.0 |
Piston complete |
|
| 2 |
5.030-834.0 |
Flap |
|
| 2 |
5.066-581.0 |
Cover |
|
| 2 |
5.060-326.0 |
Housing |
|
| 3 |
5.031-914.0 |
Flap |
|
| 3 |
5.305-204.0 |
Shaped screw |
|
| 3 |
5.442-832.0 |
Piece of tube |
|
| 3 |
6.362-613.0 |
O-Ring seal 101,27X 2,62-NBR 70 |
|
| 4 |
5.100-335.0 |
Shaft switch CONDOR |
|
| 4 |
5.071-048.0 |
Tank fuel |
|
| 4 |
6.641-613.0 |
Cable gland PG13,5 |
|
| 4 |
5.030-602.0 |
Moulded part |
|
| 5 |
5.044-412.0 |
Holder (CONDOR-SCHAER) |
|
| 5 |
7.309-016.0 |
Screw M4x22-Z7-1 -4.8-A2E DIN6900 |
|
| 5 |
5.332-139.0 |
Helical spring |
|
| 6 |
7.303-045.0 |
Screw M5X 55-ST-A2R (IN6RD) |
|
| 6 |
6.303-172.0 |
Oval head screw M 6X 34 |
|
| 6 |
7.303-039.0 |
Screw M5x16 -St-A2R (In6Rd) |
|
| 6 |
7.306-023.0 |
Cylinder head screw M6x25 -8.8-A2E ISO4 |
|
| 7 |
6.631-196.0 |
Motor protecting switch |
|
| 7 |
5.731-039.0 |
Filter |
|
| 7 |
6.631-190.0 |
Motor protecting switch |
|
| 7 |
6.641-708.0 |
Clamping washer 5 |
|
| 7 |
6.365-334.0 |
Grooved ring 18X26X6/8 |
|
| 8 |
5.363-290.0 |
Joint ring |
|
| 8 |
6.686-173.0 |
Thermostat |
|
| 8 |
4.820-602.0 |
Cable green/yellow 2,5mm?x550mm |
|
| 8 |
5.115-432.0 |
Washer |
|
| 9 |
5.063-957.0 |
Cover |
|
| 9 |
6.651-421.0 |
Lens housing green |
|
| 9 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 9 |
6.365-332.0 |
Compact seal 18x28x5,8 |
|
| 10 |
5.332-236.0 |
Helical spring |
|
| 10 |
7.303-125.0 |
Countersunk screw 4x16 -10.9-R2R (In6Rd |
|
| 10 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 10 |
5.112-340.0 |
Bush |
|
| 11 |
5.316-318.0 |
Bolt |
|
| 11 |
7.306-236.0 |
Screw M4x6 -8.8-R2R (In6Rd) |
|
| 11 |
6.339-060.0 |
Rubber buffer M8 |
|
| 11 |
6.362-406.0 |
O-Ring seal 33,05X 1,78-NBR 70 |
|
| 12 |
5.013-075.0 |
Funnel |
|
| 12 |
5.365-152.0 |
Profile gasket |
|
| 12 |
7.303-067.0 |
Screw M8x16-ST-A3R (IN6RD) |
|
| 12 |
5.115-431.0 |
Washer |
|
| 13 |
6.368-076.0 |
Ornamental hub cap D10/D12 |
|
| 13 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 13 |
6.365-333.0 |
Grooved ring 18X26X5,4 |
|
| 14 |
6.651-316.0 |
Lens housing red |
|
| 14 |
5.051-030.0 |
Base plate |
|
| 14 |
7.343-473.0 |
Snap ring A18-FST DIN 7993 |
|
| 15 |
6.630-368.0 |
Switch |
|
| 15 |
6.641-369.0 |
Locknut PG13,5 |
|
| 15 |
6.288-016.0 |
Gear oil 1L |
|
| 19 |
5.110-495.0 |
Sleeve |
|
| 28 |
5.731-587.0 |
Water filter |
|
