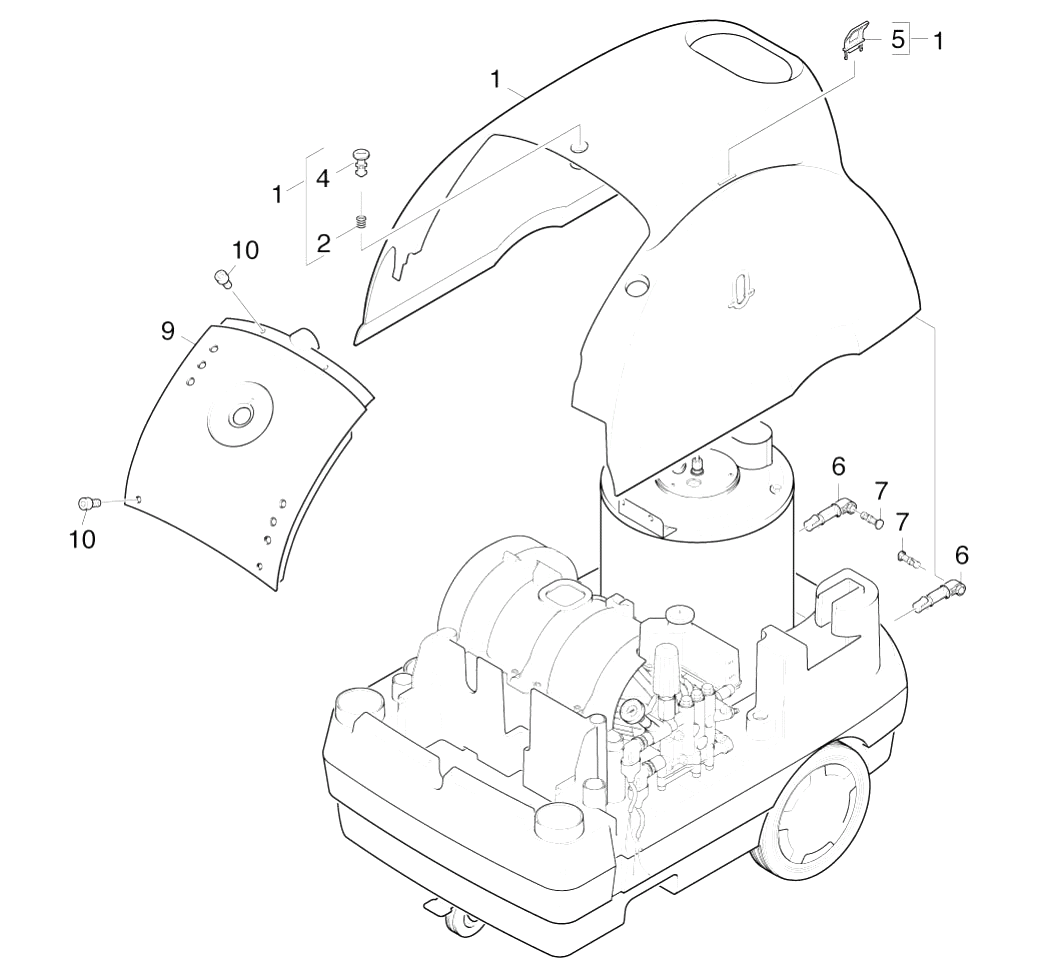

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.067-048.0 | Device cover complete | |
| 2 | 5.332-236.0 | Helical spring | |
| 3 | 5.034-494.0 | Retaining bracket | |
| 4 | 5.411-148.0 | Screw plug | |
| 4 | 5.316-318.0 | Bolt | |
| 5 | 5.332-268.0 | Helical spring | |
| 5 | 5.044-216.0 | Holder | |
| 6 | 5.583-161.0 | Valve screw | |
| 6 | 5.044-196.0 | Holder | |
| 7 | 5.317-291.0 | Bolt | |
| 7 | 6.362-481.0 | O-Ring seal 14,0 x 2,0 NBR 80 | |
| 8 | 4.580-262.0 | Valve complete | |
| 9 | 5.841-381.0 | Control panel | |
| 9 | 5.115-796.0 | Washer | |
| 10 | 7.303-086.0 | Screw 5x30 -10.9-R2R (K-In6Rd) | |
| 10 | 4.553-197.0 | Piston complete only for replacement | |
| 11 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 12 | 6.362-853.0 | O-Ring seal 4,47x1,78 | |
| 13 | 6.421-215.0 | Pressure gauge 0-300 BAR | |
| 14 | 6.362-101.0 | O-Ring seal 8 X 2 | |
| 15 | 5.411-070.0 | Screw plug | |
| 16 | 7.311-002.0 | Hexagon nut M5 -8-A2E ISO 4032 | |
| 17 | 7.307-017.0 | Threaded pin M5x40 -St-45H-A2E ISO 4026 | |
| 18 | 5.304-070.0 | Hexagonal head screw | |
| 19 | 7.401-931.0 | Sphere 5 Kl3 -1.4401 DIN 5401 |
