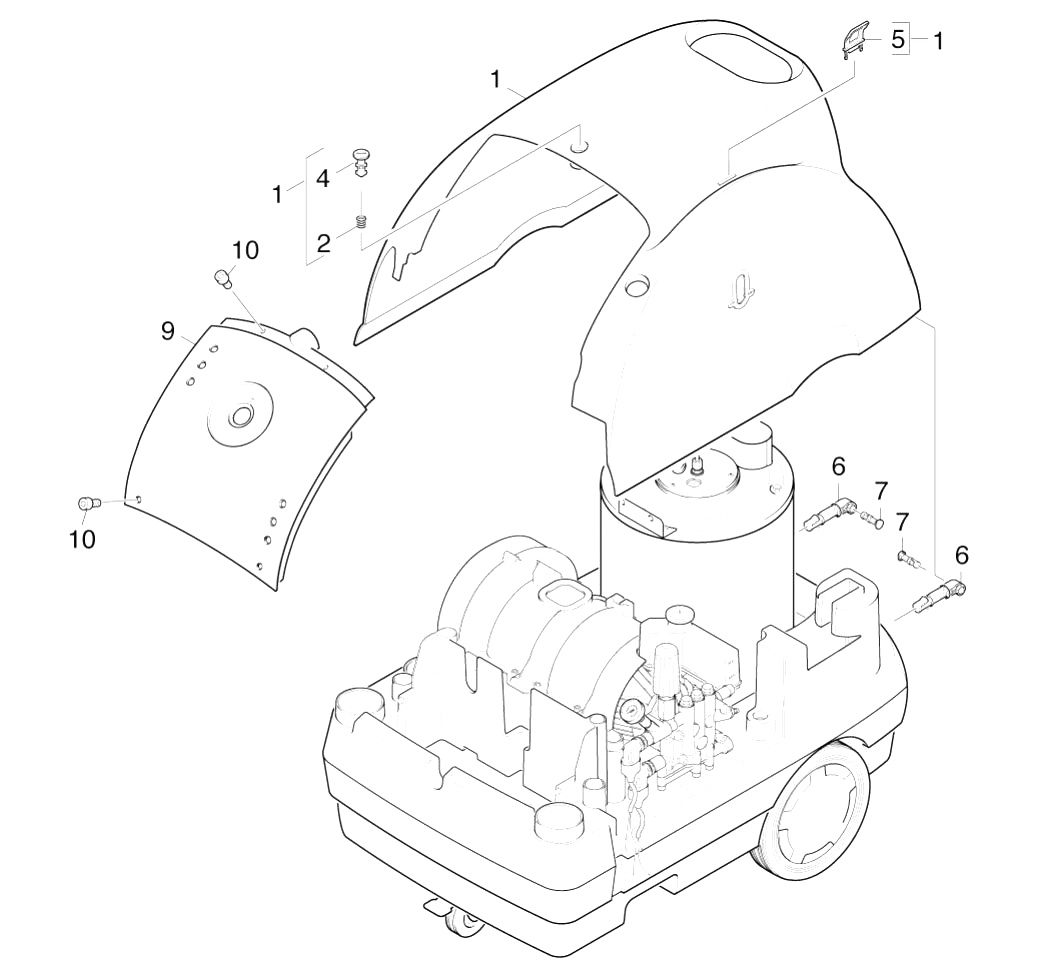

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.067-048.0 | Device cover complete | |
| 2 | 5.332-236.0 | Helical spring | |
| 4 | 5.316-318.0 | Bolt | |
| 5 | 5.044-216.0 | Holder | |
| 6 | 6.472-123.0 | Filter housing complete | |
| 6 | 5.044-196.0 | Holder | |
| 7 | 6.472-122.0 | Protecting cap | |
| 7 | 5.317-291.0 | Bolt | |
| 8 | 6.472-109.0 | Housing spring | |
| 9 | 5.841-410.0 | Material 3. | |
| 9 | 5.841-365.0 | Control panel | |
| 10 | 6.472-108.0 | Pin | |
| 10 | 7.303-086.0 | Screw 5x30 -10.9-R2R (K-In6Rd) | |
| 12 | 6.472-128.0 | Diaphragm | |
| 14 | 6.472-340.0 | Knurled nut | |
| 17 | 6.472-125.0 | O-Ring seal 12,0 X 1,5 | |
| 18 | 6.472-411.0 | Solenoid valve | |
| 19 | 6.472-120.0 | O-Ring seal 28,5 X 1,6 | |
| 22 | 6.472-105.0 | Seal axle |
