| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|

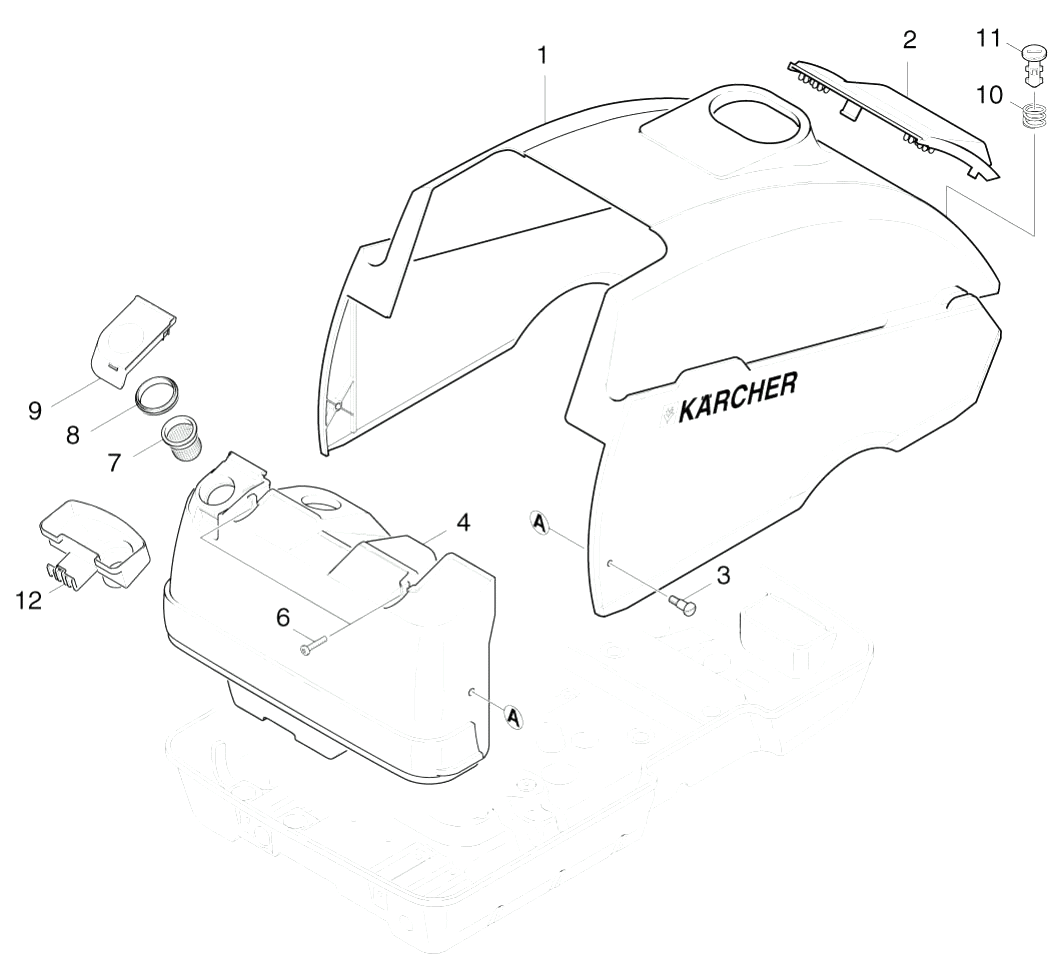

| 0 | 4.749-110.0 | Safety system | |
| 0 | 4.623-202.0 | Motor complete | |
| 0 | 3.593-082.0 | Float valve | |
| 1 | 5.066-719.0 | Cover | |
| 1 | 4.066-384.0 | Cover Ersatz-alte HDS-M nieder o. Blech | |
| 1 | 5.066-721.0 | Cover | |
| 1 | 5.060-440.0 | Housing | |
| 1 | 6.273-070.0 | Seal string cellular rubber 4 | |
| 1 | 4.553-124.0 | Piston complete | |
| 1 | 5.585-004.0 | Float | |
| 2 | 5.030-834.0 | Flap | |
| 2 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 2 | 5.066-581.0 | Cover | |
| 2 | 5.060-326.0 | Housing | |
| 2 | 7.303-104.0 | Screw 5x16 -A2-70 (IN6RD) | |
| 3 | 5.305-204.0 | Shaped screw | |
| 3 | 4.553-025.0 | Piston | |
| 3 | 5.442-832.0 | Piece of tube | |
| 3 | 6.362-613.0 | O-Ring seal 101,27X 2,62-NBR 70 | |
| 3 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 4 | 5.071-048.0 | Tank fuel | |
| 4 | 5.115-147.0 | Washer | |
| 4 | 6.641-613.0 | Cable gland PG13,5 | |
| 4 | 5.030-602.0 | Moulded part | |
| 4 | 5.481-118.0 | Lever | |
| 5 | 7.309-016.0 | Screw M4x22-Z7-1 -4.8-A2E DIN6900 | |
| 5 | 5.332-139.0 | Helical spring | |
| 5 | 5.587-147.0 | Valve housing | |
| 6 | 6.303-172.0 | Oval head screw M 6X 34 | |
| 6 | 7.303-039.0 | Screw M5x16 -St-A2R (In6Rd) | |
| 6 | 7.306-023.0 | Cylinder head screw M6x25 -8.8-A2E ISO4 | |
| 6 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 7 | 5.731-039.0 | Filter | |
| 7 | 5.107-192.0 | Bar | |
| 7 | 6.641-708.0 | Clamping washer 5 | |
| 7 | 6.365-334.0 | Grooved ring 18X26X6/8 | |
| 7 | 5.443-285.0 | Hose stem | |
| 8 | 5.363-290.0 | Joint ring | |
| 8 | 5.332-070.0 | Helical spring | |
| 8 | 4.820-602.0 | Cable green/yellow 2,5mm?x550mm | |
| 8 | 5.115-432.0 | Washer | |
| 8 | 5.310-062.0 | Nut | |
| 9 | 5.063-957.0 | Cover | |
| 9 | 5.332-069.0 | Helical spring | |
| 9 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 9 | 6.365-332.0 | Compact seal 18x28x5,8 | |
| 9 | 6.388-547.0 | Hose clip | |
| 10 | 5.332-236.0 | Helical spring | |
| 10 | 5.112-110.0 | Bush | |
| 10 | 7.312-166.0 | Toothed lock washer A8,4-FSt-A3E DIN 67 | |
| 10 | 5.112-340.0 | Bush | |
| 10 | 5.364-095.0 | Flat gasket | |
| 11 | 5.316-318.0 | Bolt | |
| 11 | 6.362-169.0 | O-Ring seal 12,0 X 2,0 | |
| 11 | 6.339-060.0 | Rubber buffer M8 | |
| 11 | 6.362-406.0 | O-Ring seal 33,05X 1,78-NBR 70 | |
| 11 | 5.584-085.0 | Valve pin | |
| 12 | 5.013-075.0 | Funnel | |
| 12 | 5.553-265.0 | Piston | |
| 12 | 7.303-067.0 | Screw M8x16-ST-A3R (IN6RD) | |
| 12 | 5.115-431.0 | Washer | |
| 12 | 5.070-140.0 | Tank | |
| 13 | 5.332-293.0 | Helical spring | |
| 13 | 7.303-069.0 | Screw M 8x25-ST-R3R (IN6RD) | |
| 13 | 6.365-333.0 | Grooved ring 18X26X5,4 | |
| 13 | 6.388-548.0 | Hose clip | |
| 14 | 5.316-278.0 | Bolt spring | |
| 14 | 5.051-030.0 | Base plate | |
| 14 | 7.343-473.0 | Snap ring A18-FST DIN 7993 | |
| 14 | 6.389-556.0 | Hose 19x4 | |
| 15 | 5.060-414.0 | Housing | |
| 15 | 6.641-369.0 | Locknut PG13,5 | |
| 15 | 6.288-016.0 | Gear oil 1L | |
| 15 | 5.443-312.0 | Hose stem | |
| 16 | 5.037-080.0 | Hook | |
| 16 | 6.303-174.0 | Screw 6,0X20-ST-A2R | |
| 17 | 5.042-618.0 | Holder | |
| 17 | 5.427-154.0 | Manifold | |
| 18 | 4.744-079.0 | Switch safety system | |
| 18 | 6.388-719.0 | FLEX HOSE(CUT TO REQD LENGTH-M'S) | |
| 19 | 5.042-728.0 | Holder | |
| 19 | 5.110-495.0 | Sleeve | |
| 20 | 5.316-284.0 | Bolt | |
| 20 | 5.112-189.0 | Bush | |
| 21 | 7.303-117.0 | Screw 4x20 -A2-70 (In6Rd) | |
| 22 | 6.647-234.0 | Contact | |
| 23 | 6.647-235.0 | Sealing cable |
