Karcher (Керхер) Крышка (0.101-254.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

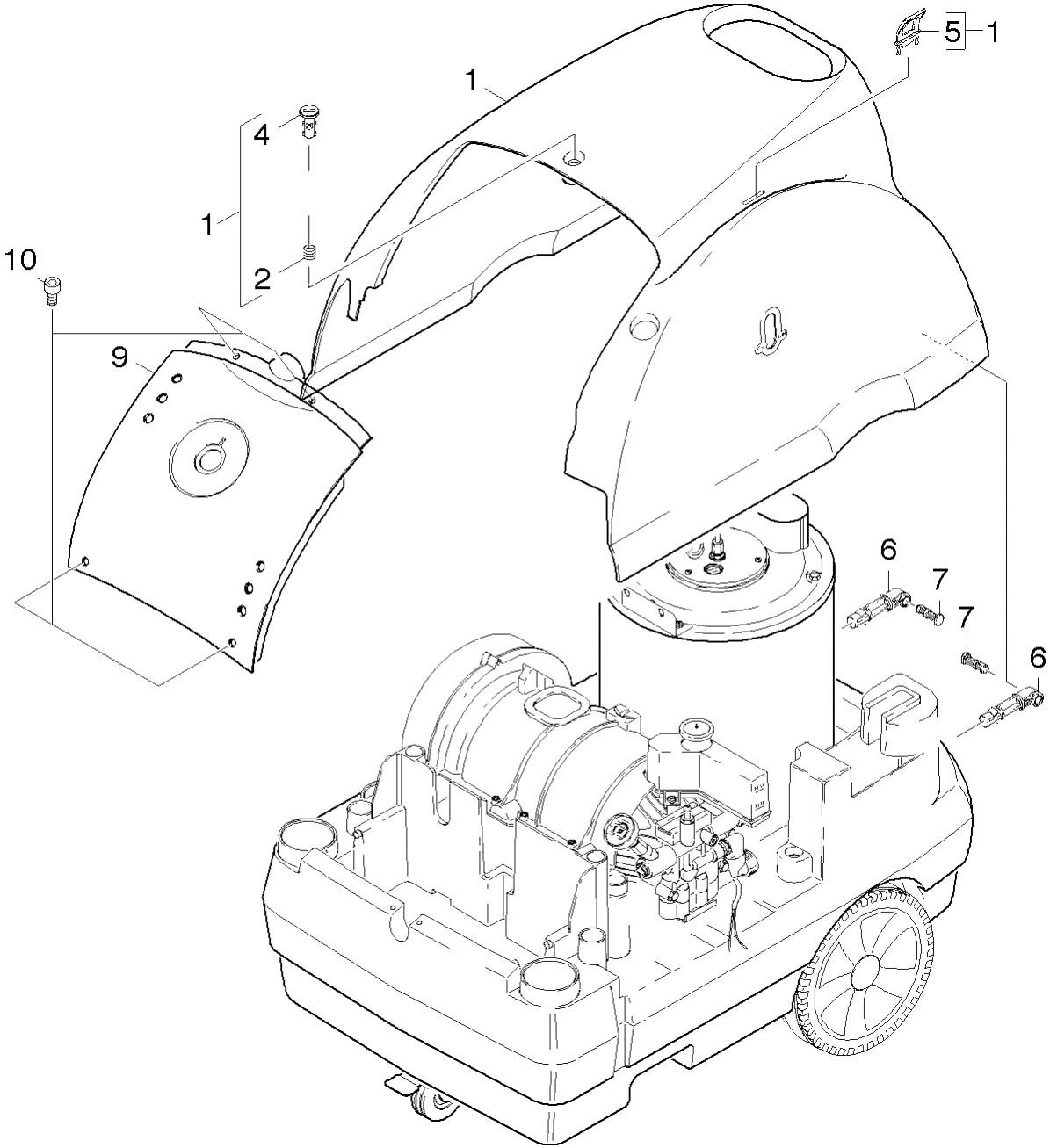

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.067-048.0	Device cover complete
1	5.305-162.0	Shaped screw
2	5.332-236.0	Helical spring
2	6.362-482.0	O-Ring seal 10 x 1,5-NBR 70
3	5.332-057.0	Helical spring
4	5.316-318.0	Bolt
4	4.553-022.0	Piston
5	7.303-026.0	Screw 4x16 -A2-70 (In6Rd)
5	6.362-768.0	O-Ring seal 88.0X 2.2
5	5.044-216.0	Holder
5	5.041-076.0	Clamp
6	6.641-270.0	Plug
6	5.060-677.0	Thrust guidance
6	5.044-196.0	Holder
6	2.883-384.0	Reed switch replacement
7	6.303-317.0	Screw M4x10-St-A2G
7	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
7	5.317-291.0	Bolt
7	4.427-198.0	Узловая деталь
8	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
8	6.365-340.0	Grooved ring 14X22X5/7
8	6.414-566.0	Strainer WMS
9	5.112-604.0	Bush
9	5.841-475.0	Control panel
9	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
10	5.801-136.0	Mounting plate
10	5.115-465.0	Washer
10	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
11	6.643-249.0	Strip terminal
11	6.365-432.0	Grooved ring 14x22x5.3
13	6.630-118.0	Rocker switch
14	6.647-275.0	Cable with plug *GB
14	6.647-251.0	Cable with plug
14	6.647-127.0	Cable with plug *AU
14	6.648-252.0	Cable with plug *RA
15	6.343-170.0	Retaining clip
16	6.661-092.0	Interference suppressor
17	6.641-458.0	Cable tape
18	6.661-298.0	Capacitor 40µf
19	5.802-261.0	Mounting part
21	6.632-175.0	Contactor 4 KW /230V
22	6.622-167.0	Ignition transformer 230V
22	6.622-232.0	Преобразователь (HDS 551 C)
22	4.622-033.0	Ignition transformer only for replacemen
23	7.303-111.0	Screw 5x50 -10.9-R2R (K-In6Rd)
24	5.030-954.0	Clamping part
25	7.306-207.0	Screw M4x12 -A2-70 (In6Rd)
26	7.312-163.0	Toothed lock washer A4,3-FST-PH DIN 679
30	7.312-264.0	Washer 5-100HV-A3E ISO 7094
