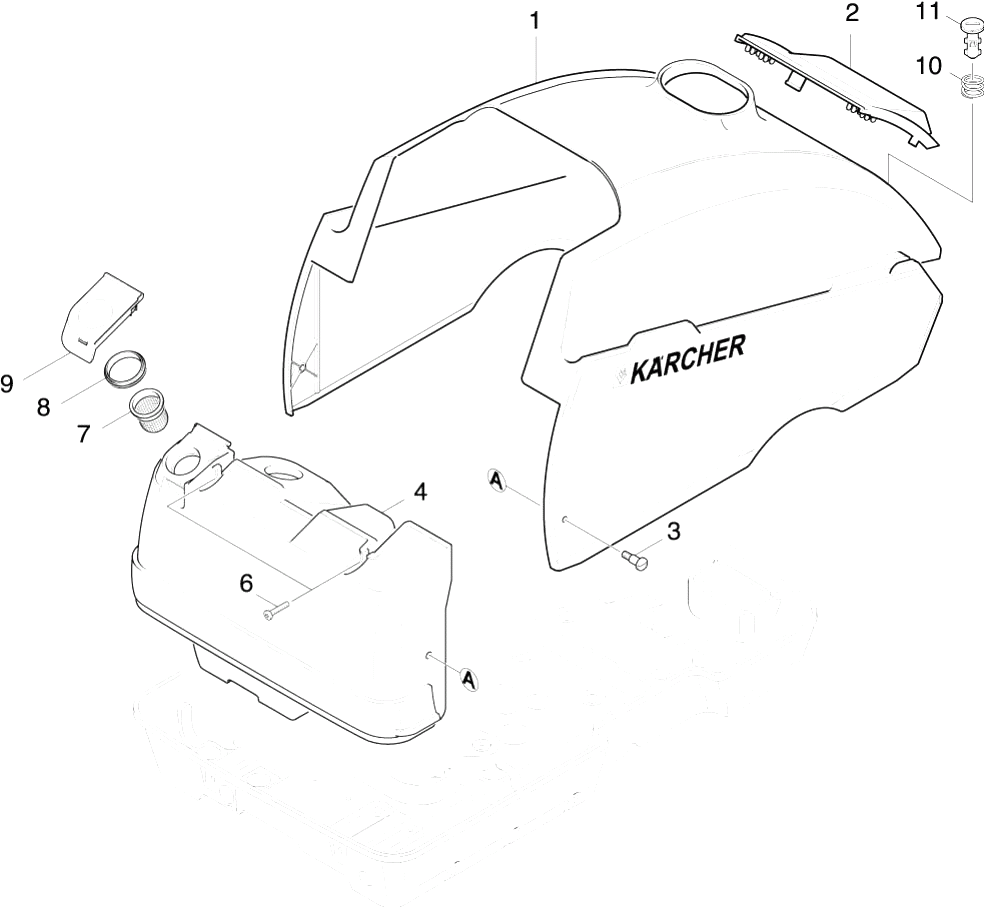

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 6.472-925.0 | Pump oil burner only for replacement | |
| 1 | 4.066-385.0 | Cover Ersatz alte HDS-M klasse mit VA-B | |
| 1 | 4.066-384.0 | Cover Ersatz-alte HDS-M nieder o. Blech | |
| 1 | 5.321-448.0 | Handhold | |
| 1 | 5.069-333.0 | Cover anthracite alte M-klasse | |
| 1 | 5.305-162.0 | Shaped screw | |
| 1 | 6.472-107.0 | Screw ventilation | |
| 2 | 6.313-014.0 | Spring element | |
| 2 | 5.030-834.0 | Flap | |
| 2 | 5.033-769.0 | Крышка антрацит | |
| 2 | 6.362-482.0 | O-Ring seal 10 x 1,5-NBR 70 | |
| 2 | 6.472-106.0 | O-Ring seal 5,0 X 1,8 | |
| 3 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 3 | 5.305-204.0 | Shaped screw | |
| 3 | 5.332-057.0 | Helical spring | |
| 3 | 6.472-111.0 | O-Ring seal 32,0 X 1,6 | |
| 4 | 5.321-449.0 | HANDLE SWITCHES | |
| 4 | 5.071-048.0 | Tank fuel | |
| 4 | 4.553-022.0 | Piston | |
| 4 | 6.472-112.0 | O-Ring seal 10,0 x 2,4 NBR 70 | |
| 5 | 5.321-450.0 | HANDLE SWITCHES | |
| 5 | 5.041-076.0 | Clamp | |
| 5 | 6.472-113.0 | Filter cartridge | |
| 6 | 5.337-021.0 | Plate spring | |
| 6 | 6.303-172.0 | Oval head screw M 6X 34 | |
| 7 | 6.303-155.0 | Screw 5x16 | |
| 7 | 5.731-039.0 | Filter | |
| 7 | 4.427-202.0 | Соединительный элемент | |
| 8 | 7.303-033.0 | Screw M4x16-ST-A2R (KOMBI-IN6RD | |
| 8 | 5.363-290.0 | Joint ring | |
| 8 | 6.414-566.0 | Strainer WMS | |
| 9 | 5.841-305.0 | Панель инструментов | |
| 9 | 5.063-958.0 | Cover | |
| 9 | 5.063-957.0 | Cover | |
| 9 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 10 | 5.332-028.0 | Helical spring | |
| 10 | 5.332-236.0 | Helical spring | |
| 11 | 5.581-178.0 | Valve seat | |
| 11 | 5.316-318.0 | Bolt | |
| 12 | 6.362-712.0 | O-Ring seal 25,3 X 2,4 | |
| 13 | 6.362-386.0 | O-Ring seal 5,0 x 1,5-NBR 80 | |
| 14 | 5.587-054.0 | Valve housing | |
| 15 | 6.388-515.0 | Hose clip | |
| 16 | 6.388-559.0 | Hose clip | |
| 17 | 6.388-194.0 | Hose DN 7 | |
| 18 | 6.388-225.0 | Hose DN 7 | |
| 19 | 6.414-028.0 | Filter | |
| 20 | 6.651-316.0 | Lens housing red |
