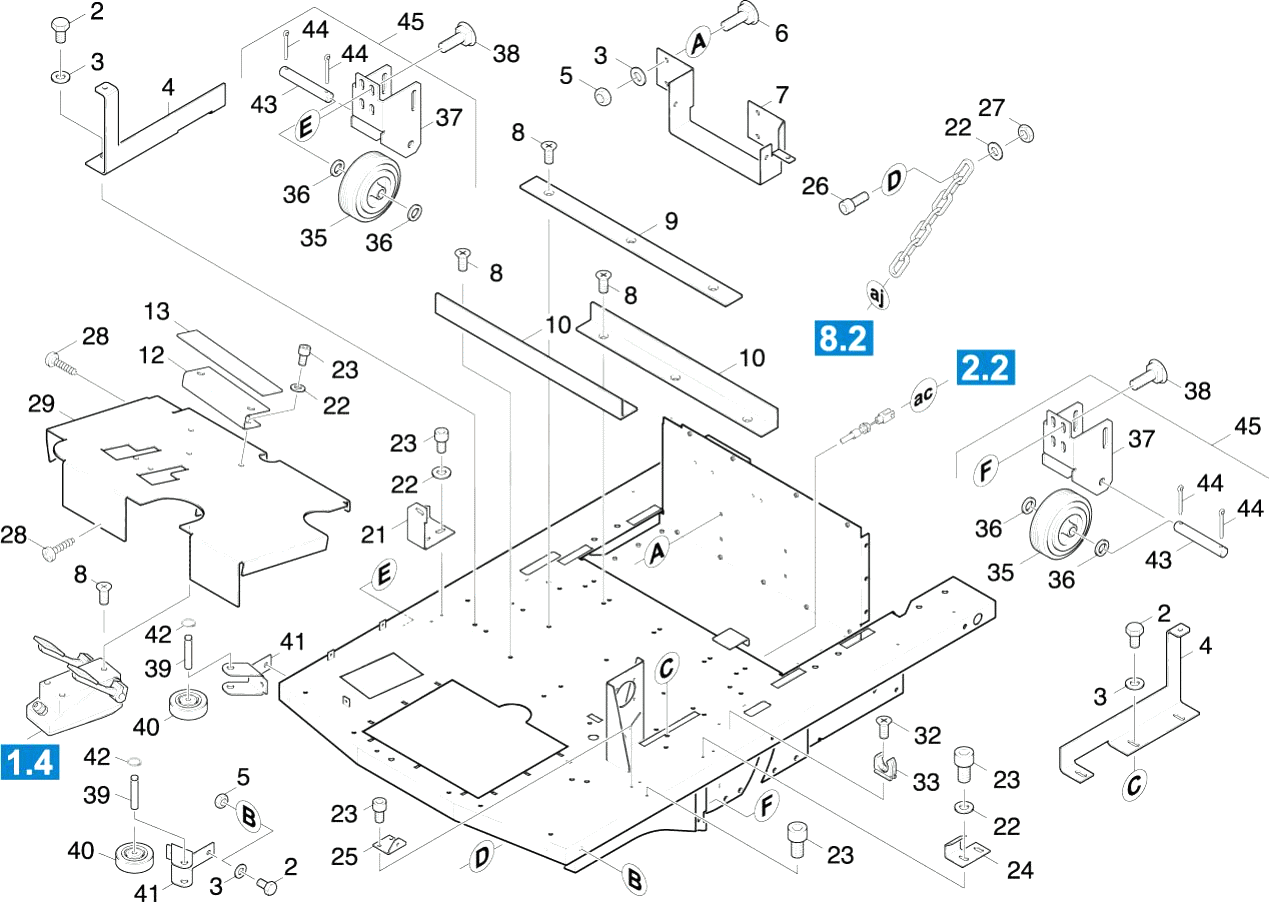

Karcher (Керхер) Детали впереди (0.207-074.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.033-643.0	Front component
1	4.070-226.0	Sweep tank
1	5.031-359.0	Front component
1	6.368-217.0	Cap
1	5.001-797.0	Cover plate
2	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
2	5.105-234.0	Axle
2	5.062-264.0	Cover KMR 1250
2	7.305-637.0	Countersunk screw M8x16-A2-70 ISO 10642
2	5.060-698.0	Cover
2	7.311-015.0	Hexagon nut M18x1,5-04-A2E ISO 8675
3	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
3	7.312-025.0	Washer 27-200HV-A3E ISO7090
3	5.031-471.0	Covering right
3	7.343-007.0	Locking ring 20x1,2-FST-RF DIN 471
3	6.435-299.0	Рулевое колесо
3	7.306-206.0	Screw M4x10 -A2-70 (In6Rd)
4	5.017-019.0	Angle
4	7.343-045.0	Lock washer 24-FST-A2E DIN 6799
4	5.031-284.0	Covering left
4	6.403-031.0	Plain bearing 20/28
4	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
4	6.682-430.0	Control system complete
5	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
5	5.122-189.0	Flange cast
5	6.651-382.0	Headlight
5	5.037-115.0	Hook
5	6.439-164.0	Steering pillar
5	6.682-432.0	Control system 24V
6	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
6	7.401-105.0	Ball bearing 6003-2RS W?lzl.St DIN 625
6	7.651-002.0	Lamp HS3-6V-2,4W DIN 49848-2
6	6.432-113.0	Chain wheel Z10
6	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
7	5.048-034.0	Sheet metal component
7	7.343-029.0	Locking ring 17x1-FST-RF DIN 471
7	5.031-441.0	Screen headlight
7	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
7	4.038-489.0	Steering
7	7.312-232.0	Serrated lock washer A6,4-FSt-A3E DIN 6
8	7.305-637.0	Countersunk screw M8x16-A2-70 ISO 10642
8	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
8	4.038-582.0	Sheet metal component complete
8	7.306-061.0	Cylinder head screw M10X 20-8.8-A2R ISO
8	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
9	5.003-986.0	Strap
9	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
9	7.312-005.0	Washer 10-200HV-A3E ISO 7090
9	5.034-631.0	Retaining bracket
10	5.017-018.0	Angle
10	6.906-018.0	Reversing rolling mill hard
10	6.905-982.0	Reversing rolling mill Profi
10	6.906-019.0	Reversing rolling mill soft
10	5.392-874.0	Label side Professional 355 x 133
10	7.306-071.0	Screw M5x10 -8.8-R2R (In6Rd)
10	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
10	7.303-036.0	Screw M5x8 -St-A2R (In6Rd)
11	5.625-297.0	Belt pulley KW3
11	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
11	6.401-260.0	Angular contact ball bearing
11	6.652-022.0	Isolator
12	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
12	7.312-025.0	Washer 27-200HV-A3E ISO7090
12	6.401-263.0	Slip ring
12	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
13	6.348-304.0	V-Belt X/10-812
13	5.392-907.0	Label signet gel 102 x 113
13	7.312-005.0	Washer 10-200HV-A3E ISO 7090
13	7.312-010.0	Washer 24 -200HV-A3E ISO 7090
13	7.304-382.0	Hexagonal head screw M 6x12-8.8-A2E ISO
14	5.474-018.0	Carrier
14	7.316-346.0	Cotter 3,2x18 -St-A2E ISO 1234
14	7.311-122.0	Hexagon nut M24X1,5-22H-A2E DIN 936
14	6.633-389.0	Power relay
15	7.318-004.0	Parallel key 6x6x12 -C45R DIN 6885-1
15	7.316-223.0	Bolt B10,0X 28-ST-A2E ISO 2341
15	6.368-215.0	Cap
15	5.364-212.0	Edge protection
16	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
16	7.311-426.0	Hexagon nut M16-04-A2E ISO 10511
16	6.652-023.0	Isolator
17	7.462-013.0	Fork head G8x32 -St-A2E DIN71752
17	7.312-019.0	Washer 16-200HV-A3E ISO7090
17	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
18	6.316-054.0	Bolt
18	5.115-726.0	Washer
18	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
19	7.306-206.0	Screw M4x10 -A2-70 (In6Rd)
19	5.105-229.0	Axle
20	7.312-281.0	Washer 4 -200HV-A2E ISO7093-1
20	4.520-037.0	Wheel fork
20	6.632-319.0	Contactor two-pole 24 V
21	5.047-719.0	Sheet metal component
21	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
21	6.432-118.0	Roller chain 1/2X3/16
21	5.049-366.0	Sheet metal component Sicherungsautomat
22	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
22	6.373-644.0	Magnet
22	6.432-128.0	Locking link
22	6.635-388.0	Protecting cap
23	7.303-047.0	Screw M6x16 -St-R3R (In6Rd)
23	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
23	6.401-272.0	Angular contact ball bearing 7306B-2RS
23	6.644-313.0	Safety cutout 4130-G411-K4M1-50A
24	5.047-158.0	Sheet metal component
24	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
24	6.644-276.0	Plate
25	5.018-816.0	Angle
25	5.047-338.0	Sheet metal component
25	7.304-401.0	Hexagonal head screw M 8x60-8.8-A2E ISO
25	6.303-125.0	Screw 5x20-Sonder In6Rd+Spitze
26	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
26	7.305-058.0	Countersunk screw M6x40-ST-8.8-R2R (IN6
26	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
26	6.644-299.0	Fuse insert
27	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
27	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
27	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
27	6.644-246.0	Fuse 40A-SAE J 1888
28	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
28	6.339-156.0	Gas-pressurized spring
28	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
28	7.644-013.0	Fuse insert C 5 DIN 72581-3
29	4.038-651.0	Sheet metal component complete
29	4.040-059.0	Sheet metal component complete
29	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
29	6.348-297.0	Deflection pulley
30	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
30	7.304-404.0	Hexagonal head screw M8x40-8.8-A2E ISO
31	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
31	6.273-163.0	Rubber mating step tread
32	7.305-255.0	Countersunk screw M 4x12-A2-70-sw ISO70
32	6.600-093.0	Signal horn
33	6.373-339.0	Clamp clip DN11
33	5.110-552.0	Bush
33	6.435-853.0	Wheel solid rubber
34	5.048-209.0	Sheet metal component holder brake cable
34	4.038-600.0	Hinge
34	5.047-159.0	Sheet metal component
35	7.305-013.0	Countersunk screw M8x20-8.8-A3R ISO1064
35	6.435-305.0	Wheel D125
35	7.312-028.0	Washer 14-200HV-A3E ISO7090
35	6.321-142.0	Handhold
36	7.312-040.0	Washer 12-CuZn ISO 7090
36	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
36	6.631-993.0	Switch
37	5.049-323.0	Sheet metal component support wheel KMR
37	6.303-111.0	Screw SPAX4,5X40-ST-A2E
37	6.435-299.0	Рулевое колесо
38	7.303-194.0	Saucer-head screw M8x25-St-A0P DIN 603
38	5.385-271.0	Adhesive label Professional 100x110
38	6.640-353.0	Cap steering wheel K?RCHER
39	5.105-322.0	Axle
39	6.640-354.0	Handle
40	6.435-144.0	Wheel
41	5.007-089.0	Sheet metal component
42	7.343-001.0	Locking ring 10x1-Rf-St DIN 471
43	5.316-135.0	Bolt
44	7.316-342.0	Cotter 3,2x20 -St-A2E ISO 1234
45	4.038-885.0	Support roller
