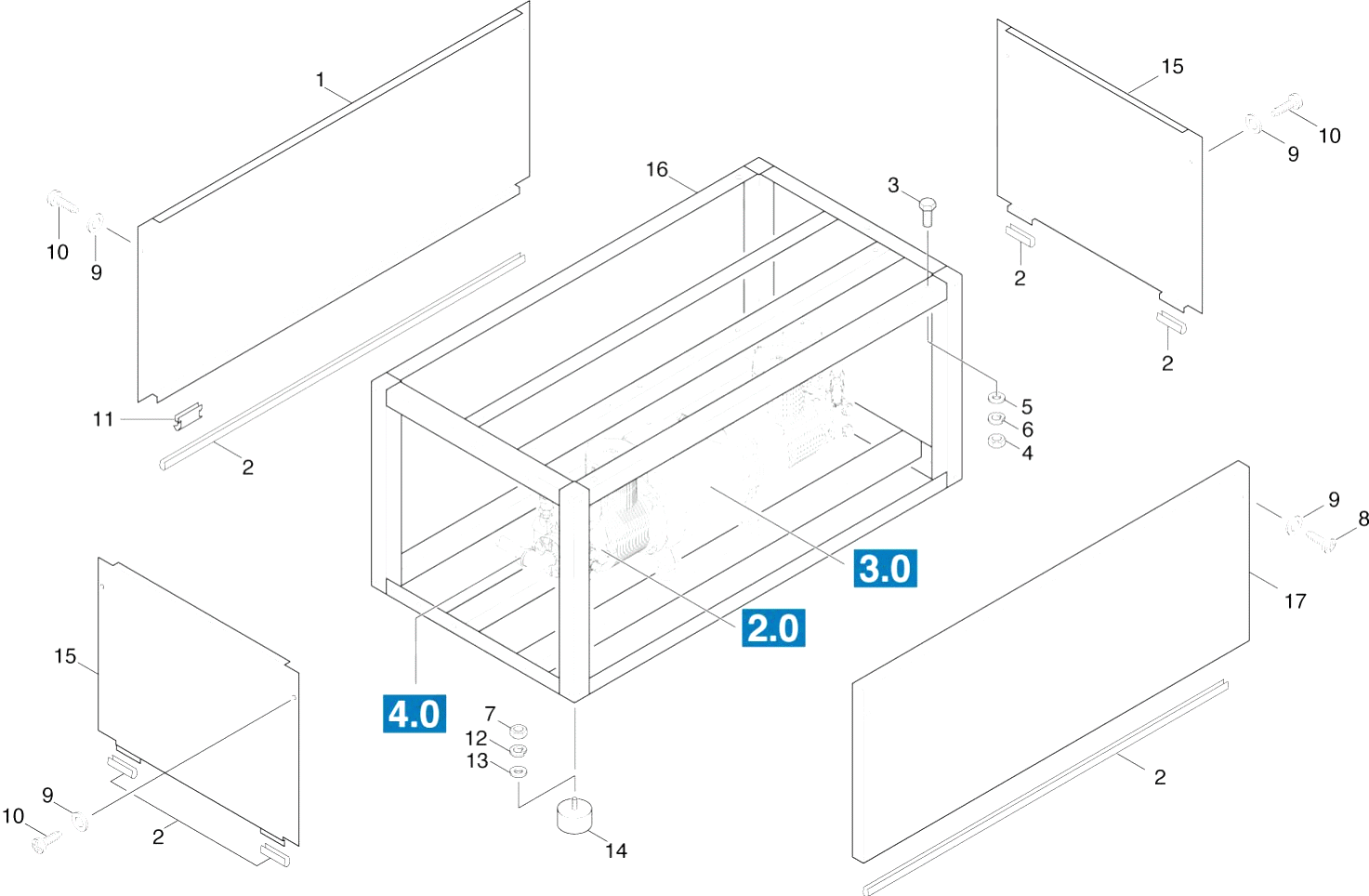

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.040-767.0 | Sheet metal component | |
| 2 | 6.368-018.0 | Edge protection | |
| 3 | 7.304-397.0 | Hexagonal head screw M8x20-8.8-A2E ISO | |
| 4 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 5 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 6 | 7.313-004.0 | Spring washer B 8-FSt-A3E DIN 127 | |
| 7 | 7.311-006.0 | Hexagon nut M10 -8-A3E ISO 4032 | |
| 8 | 7.303-042.0 | Screw M5x25 -St-R2R (In6Rd) | |
| 9 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 10 | 7.303-036.0 | Screw M5x8 -St-A2R (In6Rd) | |
| 11 | 6.373-077.0 | Ledge fixation | |
| 12 | 7.313-005.0 | Spring washer B10-FSt-A3E DIN 127 | |
| 13 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 14 | 6.339-090.0 | Rubber buffer D70X40 | |
| 15 | 5.040-769.0 | Sheet metal component | |
| 16 | 4.050-146.0 | Frame | |
| 17 | 5.040-766.0 | Sheet metal component |
