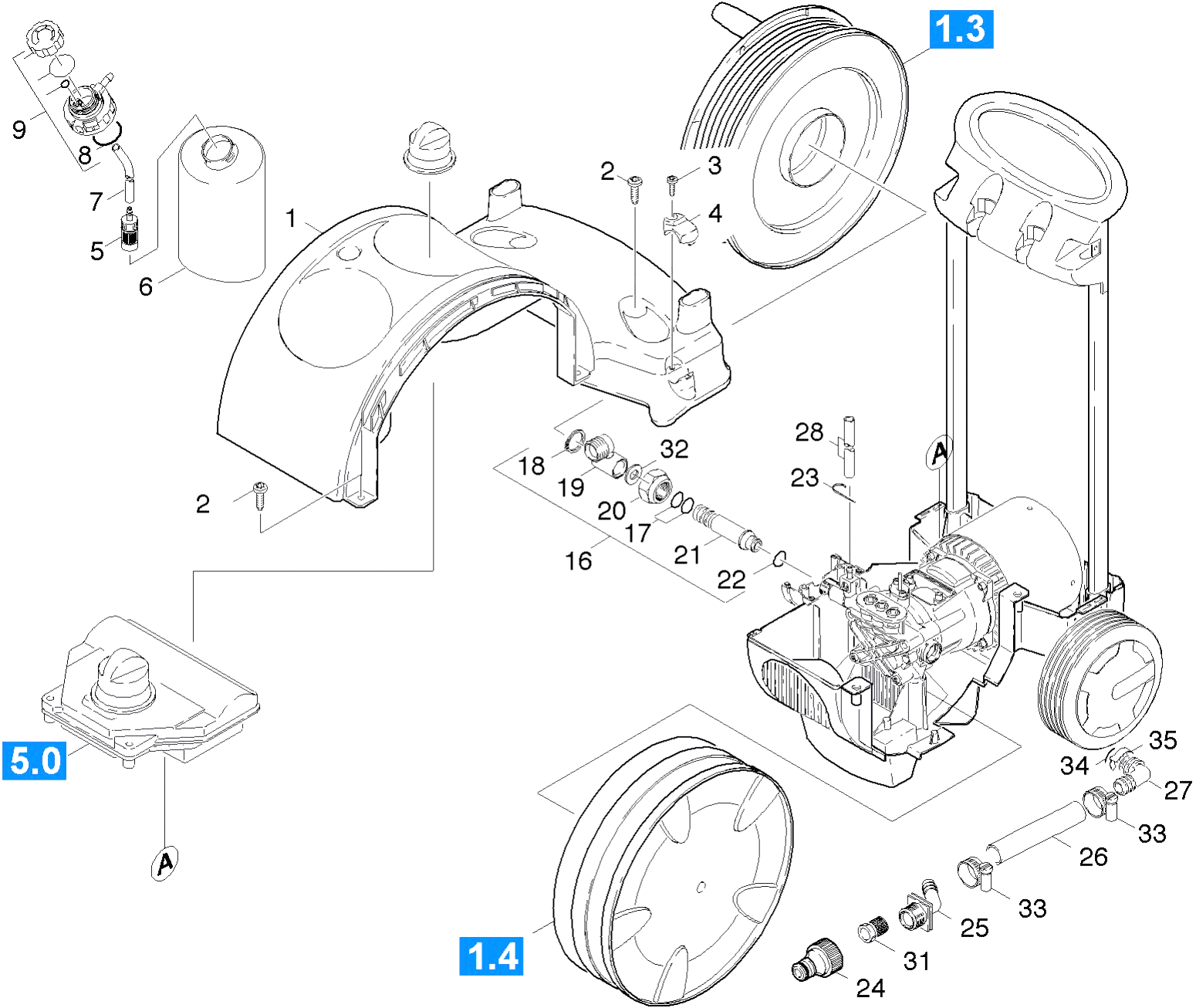

Karcher (Керхер) Детали крышка (0.102-710.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.033-318.0	Chassis top part neutrally
1	6.363-273.0	O-Ring seal 11,0 x 2,0
2	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
2	4.132-010.0	Valve plug complete
3	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
3	2.884-873.0	Valve (3 Stueck)
4	5.394-521.0	Covering cap E-KABEL
4	4.132-011.0	Valve plug complete
5	5.731-652.0	Filter with weight
6	5.071-115.0	Tank cleaning agents
6	4.769-034.0	Nozzle insert only for replacement
6	4.769-043.0	Nozzle insert only for replacement
7	6.388-216.0	Hose DN 5
7	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
8	6.362-740.0	O-Ring seal 34,60X 2,62
8	4.584-022.0	Valve pin complete
9	4.063-807.0	Cover tank cleaning agents
9	6.362-851.0	O-Ring seal 4 x 2 NBR 90
11	4.030-070.0	Throttle complete
12	4.030-125.0	Joining piece only for replacement
13	2.884-877.0	Valve (3 Stueck)
16	4.401-080.0	Rotary bushing
16	5.550-331.0	Cylinder head
17	6.363-027.0	O-Ring seal complete 1ST.-R.
17	2.883-258.0	Spare part set neutrally
18	7.343-306.0	Lock washer 12-St-A2E DIN 6799
19	5.401-240.0	Rotary bushing
20	7.383-113.0	Union nut BLL-15-St-A2K DIN3870
21	5.105-288.0	Hollow shaft
22	6.362-151.0	O-Ring d. 10 x 2 NBR 70
23	6.641-463.0	Cable tape
24	6.465-031.0	Connection 3/4
25	5.789-007.0	Connection piece
26	6.390-456.0	Piece of tube DN15
27	5.443-452.0	Angle bushing
28	6.390-426.0	Hose DN 5
31	6.414-252.0	Strainer
32	7.343-052.0	Shim ring 16x22x1-St2K50 DIN 988
33	6.388-547.0	Hose clip
34	6.363-038.0	Кольцо круглого сечения 13 х 3 NBR 70
35	5.048-915.0	Clamp
