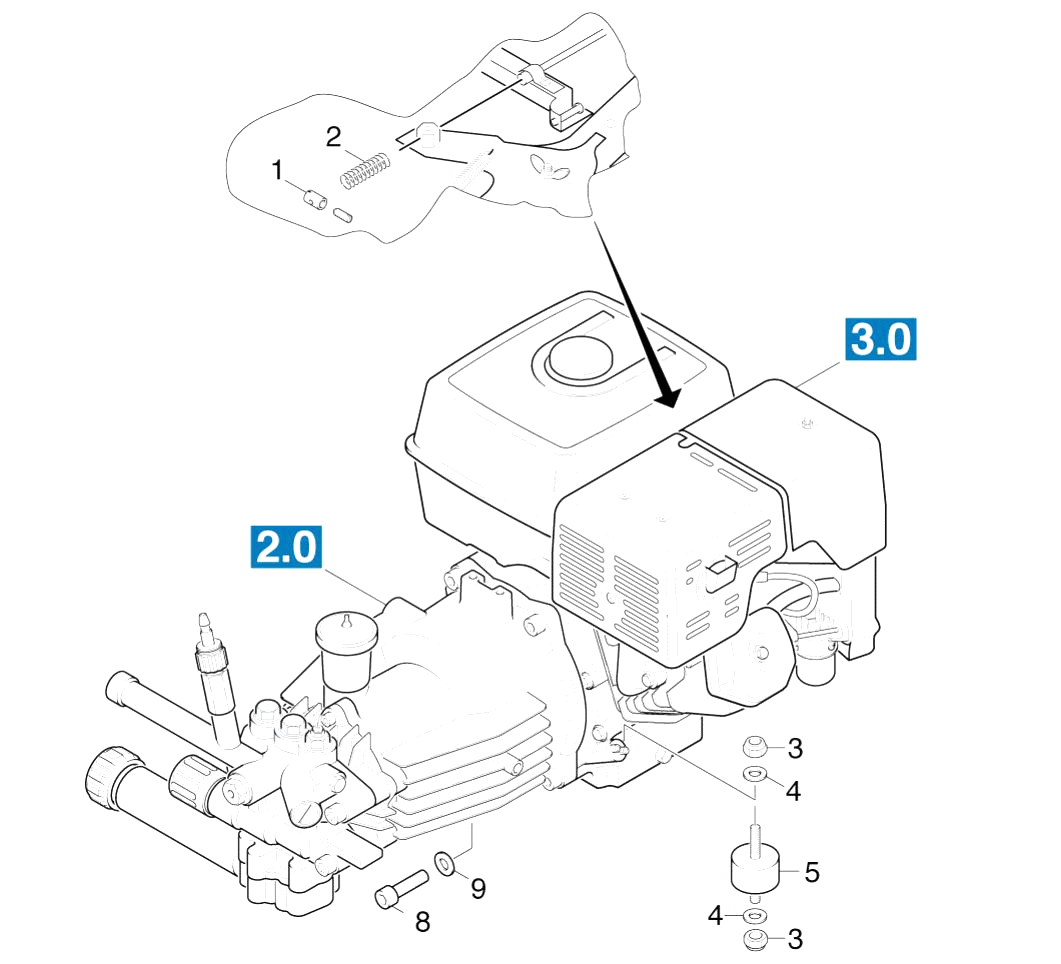

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.775-026.0 | Hand trigger gun | |
| 1 | 6.431-053.0 | Clamping bolt | |
| 2 | 5.321-174.0 | Handhold few | |
| 2 | 6.491-176.0 | Parallel key 6,3X36 | |
| 2 | 6.362-151.0 | O-Ring d. 10 x 2 NBR 70 | |
| 3 | 5.411-057.0 | Screw plug | |
| 4 | 5.322-006.0 | Hand wheel | |
| 4 | 6.618-090.0 | Ignition plug | |
| 4 | 6.362-113.0 | O-Ring seal 6,0 x 2,0 NBR 70 | |
| 5 | 6.362-175.0 | O-Ring seal 5,28x 1,78 | |
| 6 | 5.553-118.0 | Piston | |
| 6 | 6.491-350.0 | Starter rope complete | |
| 6 | 7.401-908.0 | Sphere 7 G300 -1.4301 DIN 5401 | |
| 7 | 5.332-258.0 | Helical spring | |
| 8 | 5.107-062.0 | Bar | |
| 8 | 6.661-190.0 | Spark arrester | |
| 8 | 5.110-714.0 | Sleeve | |
| 10 | 5.481-039.0 | Lever | |
| 10 | 6.362-384.0 | O-Ring seal 9x1,5 - NBR 70 | |
| 12 | 6.362-468.0 | O-Ring seal complete 1ST.-R. | |
| 12 | 6.362-658.0 | O-Ring seal 7 X 1,5-NBR 90 | |
| 14 | 4.550-297.0 | Цилиндрическая головка в компл. | |
| 14 | 6.362-478.0 | O-Ring seal 12,42X 1,78 | |
| 16 | 6.313-003.0 | Locking spring | |
| 16 | 4.581-049.0 | Valve seat | |
| 18 | 6.362-479.0 | O-Ring seal 7,59X 2,62 | |
| 20 | 6.362-496.0 | O-Ring seal 17,12X 2,62-NBR 70 | |
| 22 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 23 | 5.030-459.0 | Moulded part |
