Karcher (Керхер) Детали GP 60 (0.164-718.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

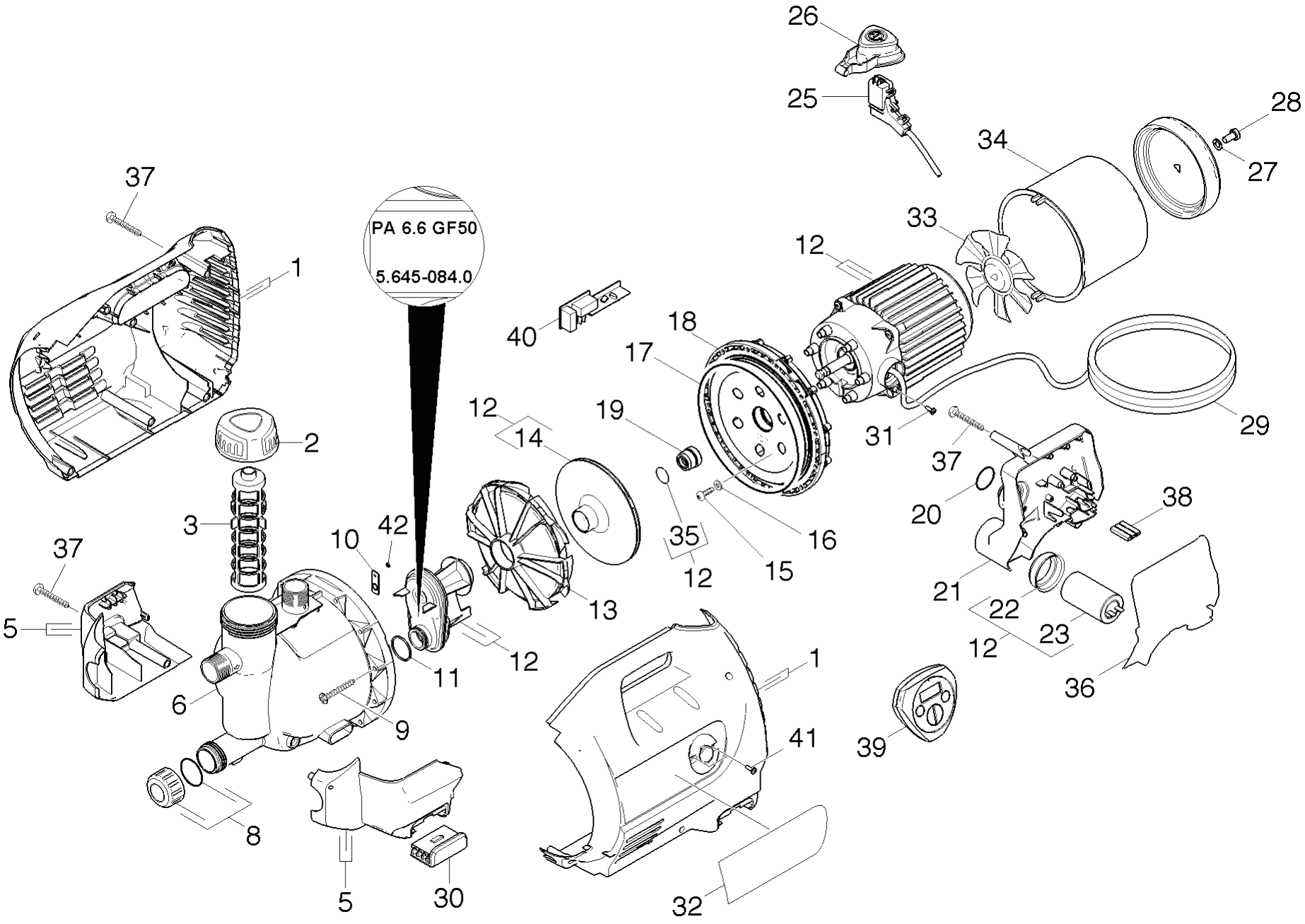

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.645-132.0	Housing replacement /housing cpl.
2	4.645-110.0	Cover filter complete / filter cap cpl.
3	4.645-126.0	Filter replacement /filter
5	4.645-122.0	Housing front replacement /housing fron
6	5.645-079.0	Pump head /pump head
8	4.645-111.0	Cover dehydration complete /drainage plu
9	7.303-209.0	Screw 6x50 -10.9-R2R (K-In6Rd)
10	6.645-346.0	Rubber ventilation
11	6.363-225.0	O-Ring seal 30x2
12	2.882-664.0	Conversion kit Motor and Injector
13	5.645-598.0	Guide wheel GP/BPE
14	4.645-028.0	Impeller complete (better)
15	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
16	6.363-404.0	Flat gasket / flat gasket
17	6.645-078.0	O-Ring seal 160x5
18	5.645-080.0	Flange for pump /pump flange
19	6.645-108.0	Floating ring seal /rot. mechanical seal
20	6.363-403.0	O-Ring seal 26x3
21	5.645-108.0	Electric box / e-box D40
22	9.080-420.0	Уплотнительное кольцо конденсатор d.40,
23	6.645-380.0	Capacitor 18µF P2
25	4.645-134.0	Switch replacement /switch cpl.
26	5.645-112.0	Switch faceplate /button on/off
27	7.312-233.0	Serrated lock washer A8,4-FSt-A3E DIN67
28	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
29	4.645-144.0	Кабель на замену /сетевой шнур
29	4.645-127.0	Cable replacement *EU /supply cord
29	4.645-145.0	Cable replacement *GB /supply cord
30	5.645-122.0	Pedestal /rubber foot
31	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
32	4.645-148.0	Foil replacement /lamination BEST
33	9.039-188.0	Blower wheel
34	6.964-090.0	Housing blower
35	6.362-169.0	O-Ring seal 12,0 X 2,0
36	6.273-037.0	Seal string cellular rubber 3
37	9.086-173.0	Винт 4x22 Torx-d.7,5
38	6.645-151.0	Connector / wire connector triple
39	4.645-131.0	Remote control replacement /remote cont
40	4.645-133.0	Circuit board replacement /PCB GP recei
41	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
