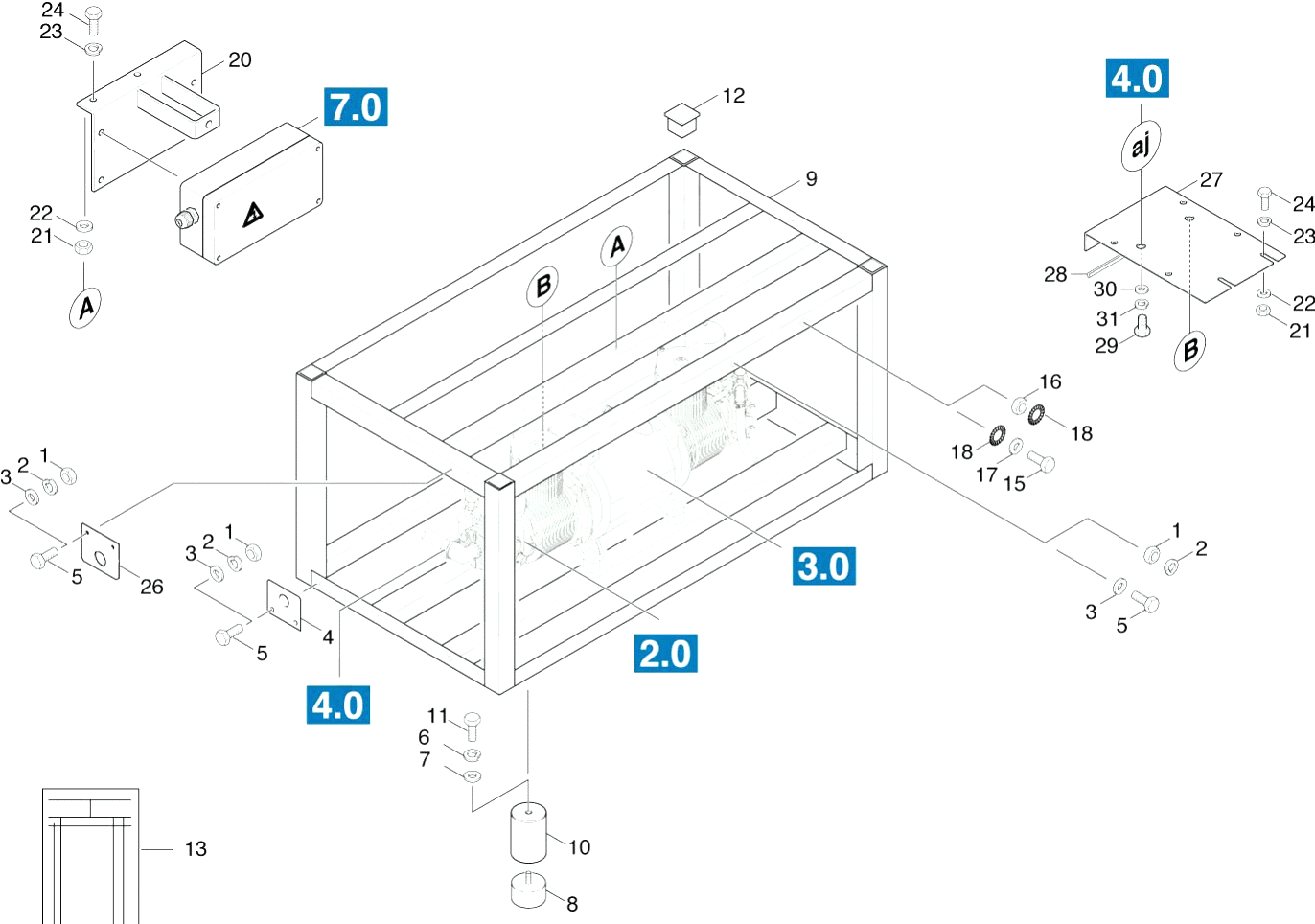

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
2	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
3	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
4	5.001-048.0	Plate
5	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
6	7.313-005.0	Spring washer B10-FSt-A3E DIN 127
7	7.312-005.0	Washer 10-200HV-A3E ISO 7090
8	6.339-090.0	Rubber buffer D70X40
9	4.050-146.0	Frame
10	5.378-097.0	Spacer
11	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
12	6.368-179.0	Protecting cap 40X40
13	5.389-321.0	Inspection card
15	7.306-194.0	Screw M6x20 -A2-70 (In6Rd)
16	7.311-039.0	Hexagon nut M 6-CU 2 ISO 4032
17	7.312-033.0	Washer 6-CuZn-E2E ISO7090
18	7.312-232.0	Serrated lock washer A6,4-FSt-A3E DIN 6
20	4.042-488.0	Holder
21	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
22	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
23	7.313-004.0	Spring washer B 8-FSt-A3E DIN 127
24	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
26	5.001-123.0	Plate
27	5.018-425.0	Angle
28	6.368-018.0	Edge protection
29	7.304-263.0	Hexagonal head screw M12x12-A4-70 ISO 4
30	7.312-008.0	Washer 12-200HV-A3E ISO 7090
31	7.313-007.0	Spring washer B12-FSt-A3E DIN 127
