Karcher (Керхер) Детали (0.173-130.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

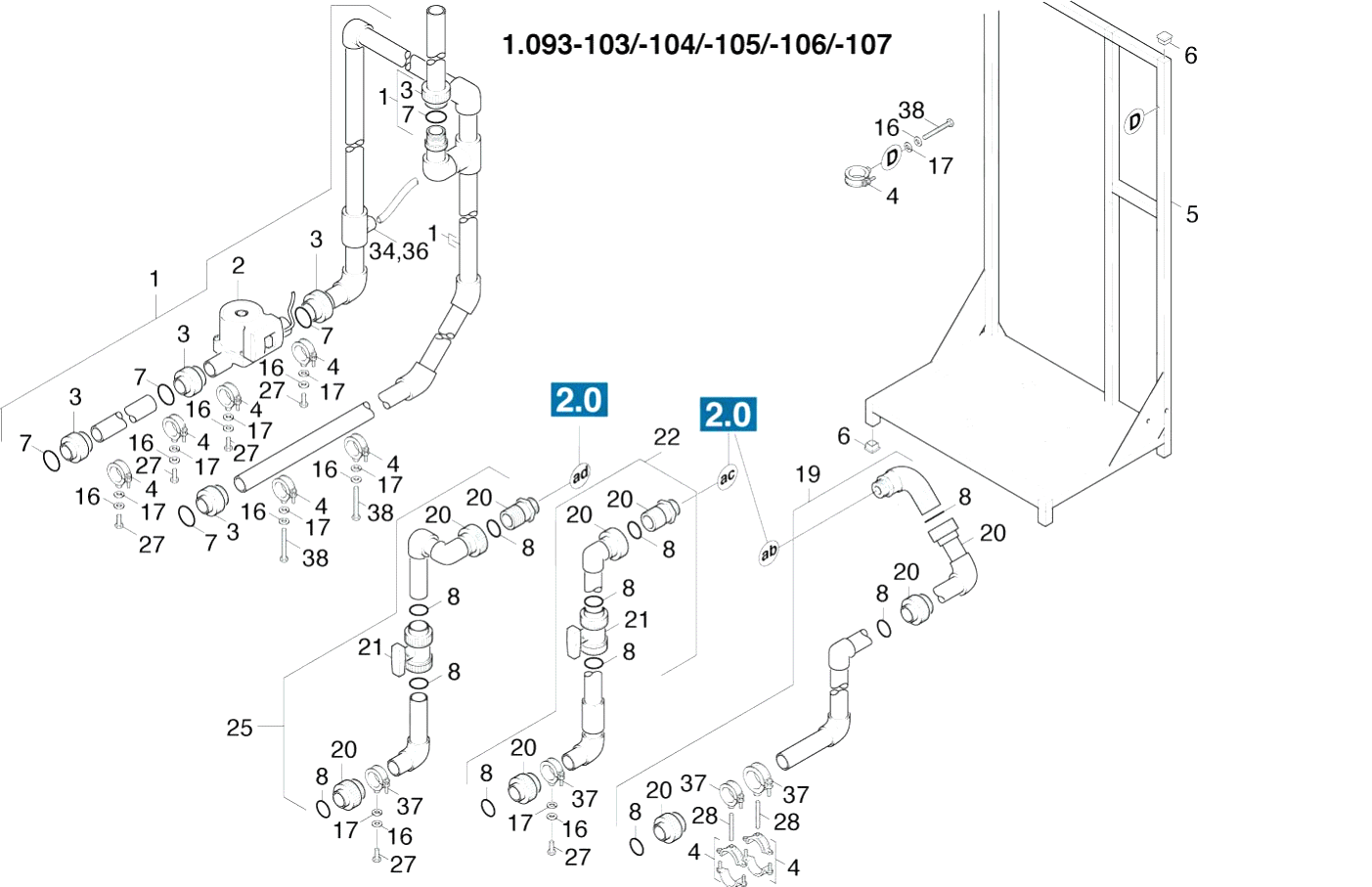

REF.	АРТИКУЛ	ОПИСАНИЕ
0	2.638-913.0	Add-on kit immersion pump 50Hz
1	4.025-563.0	Tube circulation
1	6.641-464.0	Cable tie
2	6.470-068.0	Circulation pump
2	6.631-129.0	Float regulator
3	6.386-089.0	Screw connector PVC32
3	6.470-070.0	Immersion pump
4	6.373-220.0	Pipe clamp 1 Z ST
4	6.431-013.0	Thimble NENNGR.5
5	4.050-482.0	Frame ARS 5 + ARS10
5	6.431-024.0	Wire rope fastener GR5
6	6.368-179.0	Protecting cap 40X40
6	7.310-063.0	Ring nut M10-1.0401-A2E DIN 582
7	6.362-917.0	O-Ring seal 32,5 X 3,5
7	7.311-202.0	Hexagon nut M10-04-A2E ISO 4035
8	6.363-106.0	O-Ring seal 47,0 X 5,3 EPDM
8	7.307-302.0	Threaded pin M10x25-A2-21H ISO 4028
9	6.373-229.0	Dowel M10 ST
11	6.385-036.0	"""Double nipple 1 1/2""""x120 """
12	6.385-219.0	"""Reducing nipple N4-2""""x1 1/2""""-ZN-B EN 10"""
13	6.470-041.0	Flap trap
14	6.388-713.0	Hose clip
15	6.390-163.0	"""Hose 2"""" """
16	7.312-017.0	Washer 8-A2 ISO 7089
16	6.387-325.0	"""Double nipple 2""""x60-St-vz Aehn.DIN 2982 """
17	7.312-022.0	Serrated lock washer A8,4-1.4310 DIN679
17	7.545-006.0	"""Solid coupling C-2""""-3.2315.61P DIN14307 """
18	7.545-040.0	Hose coupling C52-AL DIN 14321
19	6.431-026.0	Wire rope 4mm
20	6.387-082.0	Screw connector 2 1/4
21	6.413-136.0	Ball valve D 50
22	4.025-561.0	Tube barrel recoil
25	4.025-658.0	Труба вход клапан
27	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
28	7.307-521.0	Threaded bolt M8x1000-A -A2-70 DIN 976
34	6.413-174.0	"""Nipple 3/8"""" """
36	6.470-018.0	Pressure hose 4X6
37	6.373-260.0	Pipe clamp 2 Z ST
38	7.304-504.0	Hexagonal head screw M8x50-A2-70 ISO 40
