Karcher (Керхер) Детали (0.164-602.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

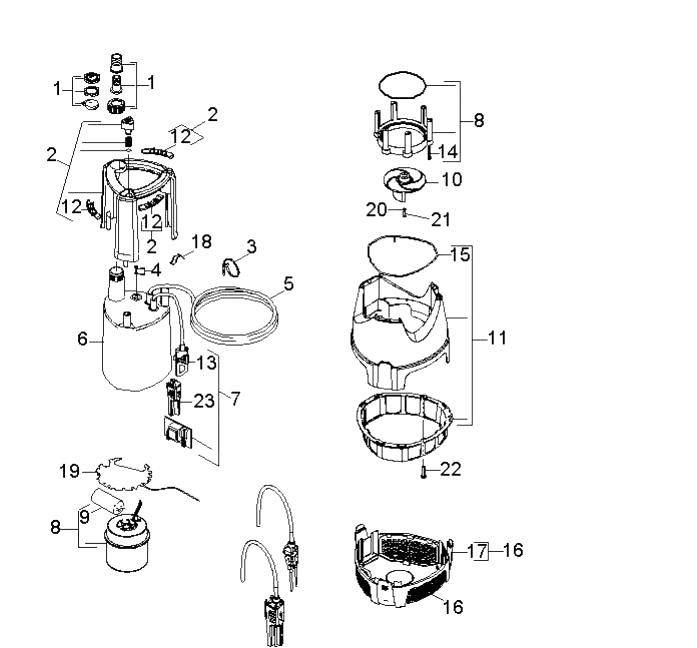

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.997-418.0	"""Connection for suction hose 1 1/4"""" """
2	4.645-070.0	Handhold complete for replacement
3	6.375-479.0	Strap /Velcro-Strap
4	4.645-061.0	Screw with O-Ring seal f.Ersatz
5	4.645-238.0	Cable for replacement *MX
5	4.645-241.0	Cable complete for replacement *AU
5	4.645-085.0	Cable with fixing GB-f.Ersatz
5	4.645-072.0	Cable with fixing f.Ersatz
5	4.645-084.0	Кабель с крепление CH-f.Ersatz
6	4.645-068.0	Housing neutrally for replacement
7	4.645-270.0	Sensor for replacement MEX
7	4.645-253.0	Sensor for replacement
8	4.645-212.0	Motor complete for replacement SxP *MX
8	4.645-071.0	Motor complete for replacement
9	4.645-276.0	Capacitor for replacement 16µF
10	6.645-346.0	Rubber ventilation
10	5.645-075.0	Impeller /impeller dirt better
10	5.645-281.0	Impeller 60Hz SDP14000
11	6.363-225.0	O-Ring seal 30x2
11	4.645-069.0	Chamber with covering cap f.Ersatz
12	2.882-667.0	Conversion kit Motor and Injector
12	2.882-663.0	Conversion kit Motor and Injector
12	4.645-021.0	Cover handhold complete / handle cap cpl
13	5.645-598.0	Guide wheel GP/BPE
13	4.645-156.0	Clamp replacement /clamp sensor
14	4.645-027.0	Impeller complete (good)
14	4.645-028.0	Impeller complete (better)
14	6.303-496.0	Screw 3,5x30
15	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
15	5.645-592.0	Seal SxP better/best
16	6.363-404.0	Flat gasket / flat gasket
16	6.997-353.0	Prefilter immersion pumps Better
17	6.645-078.0	O-Ring seal 160x5
17	5.645-025.0	Clamp /filter clamp
18	5.645-080.0	Flange for pump /pump flange
18	4.645-196.0	Clamp replacement /clamp bypass
19	6.645-108.0	Floating ring seal /rot. mechanical seal
19	4.645-030.0	Plate complete / sheet metal earth w. wi
20	6.363-403.0	O-Ring seal 26x3
20	9.086-023.0	Зубчатый диск и5 A2
21	5.645-108.0	Electric box / e-box D40
21	9.086-207.0	Винт M5x10 A2
22	9.080-420.0	Уплотнительное кольцо конденсатор d.40,
22	6.645-543.0	Oval head screw 3,5x12-10.9-R2R
23	6.645-380.0	Capacitor 18µF P2
23	5.645-421.0	Housing Levelsensor
25	4.645-128.0	Switch replacement /switch cpl.
26	5.645-112.0	Switch faceplate /button on/off
27	7.312-233.0	Serrated lock washer A8,4-FSt-A3E DIN67
28	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
29	4.645-127.0	Cable replacement *EU /supply cord
29	4.645-144.0	Кабель на замену /сетевой шнур
29	4.645-145.0	Cable replacement *GB /supply cord
30	5.645-122.0	Pedestal /rubber foot
31	7.303-032.0	Screw M4x12 -St-R2R (In6Rd)
32	4.645-147.0	Foil replacement /lamination BETTER
33	9.039-188.0	Blower wheel
34	6.964-090.0	Housing blower
35	6.362-169.0	O-Ring seal 12,0 X 2,0
36	6.273-037.0	Seal string cellular rubber 3
37	9.086-173.0	Винт 4x22 Torx-d.7,5
38	6.645-151.0	Connector / wire connector triple
39	6.343-139.0	Lock washer
