Karcher (Керхер) Детали (0.164-601.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

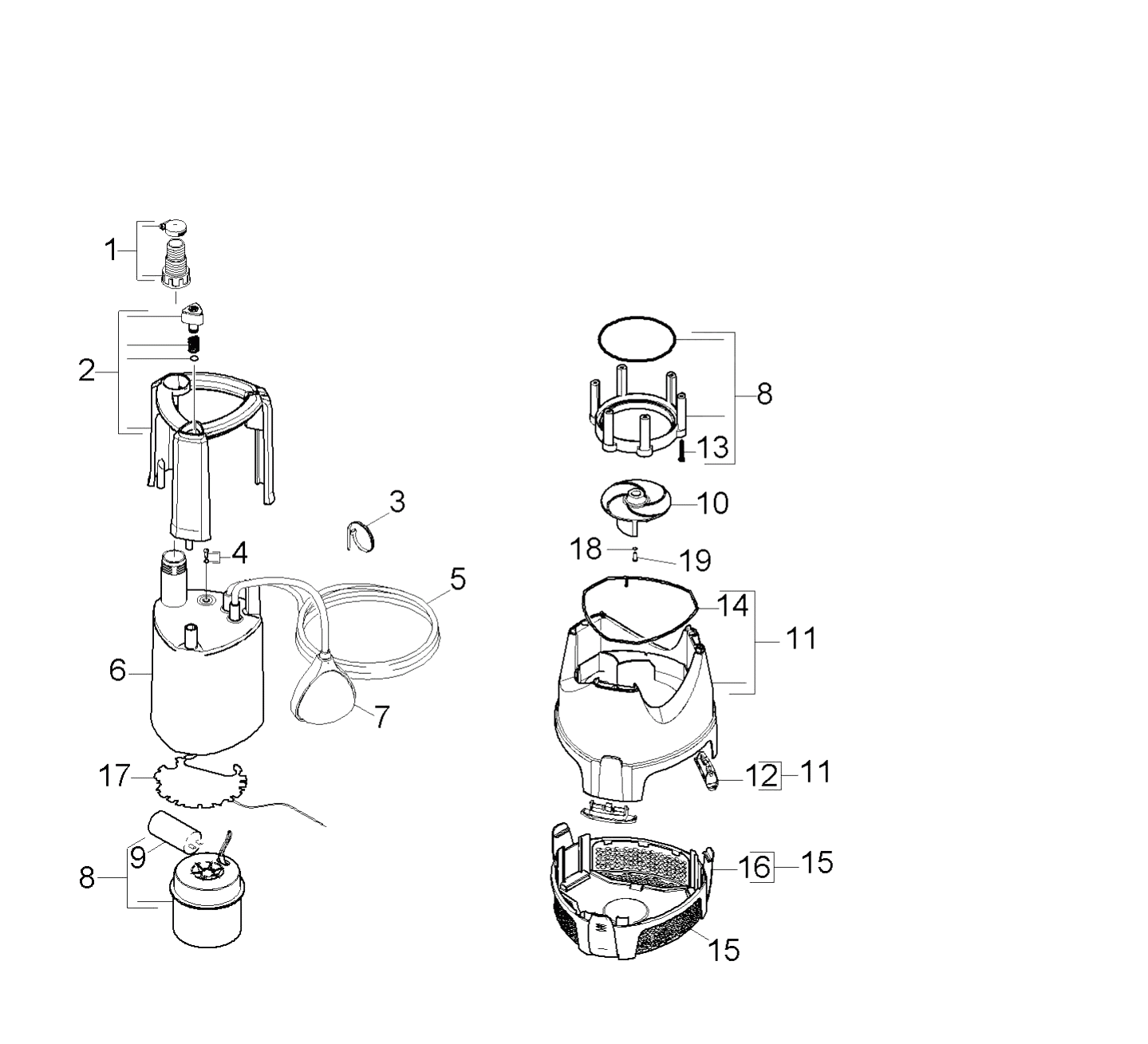

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.997-359.0	"""Connection for suction hose 3/4""""+ 1"""" """
2	4.645-067.0	Handhold complete for replacement
3	6.375-479.0	Strap /Velcro-Strap
4	4.645-061.0	Screw with O-Ring seal f.Ersatz
5	4.645-077.0	Cable with fixing f.Ersatz
5	4.645-083.0	Cable with fixing GB-f.Ersatz
5	4.645-082.0	Кабель с крепление CH-f.Ersatz
5	4.645-059.0	Cable with fixing f.Ersatz
5	4.645-240.0	Cable complete for replacement *AU
6	4.645-068.0	Housing neutrally for replacement
6	4.645-065.0	Housing neutrally for replacement
7	4.645-253.0	Sensor for replacement
7	4.645-060.0	Float regulator set for replacement
8	4.645-076.0	Motor complete for replacement
8	4.645-195.0	Motor complete for replacement (300W)
9	4.645-276.0	Capacitor for replacement 16µF
9	4.645-352.0	Capacitor complete replacement GP40 P2
10	5.645-039.0	Impeller /impeller clean best
10	5.645-011.0	Impeller /impeller clean
11	4.645-311.0	Chamber for replacement /clean
11	4.645-066.0	Chamber with covering cap f.Ersatz
12	6.997-353.0	Prefilter immersion pumps Better
12	5.645-004.0	Pedestal /foot
13	5.645-025.0	Clamp /filter clamp
13	6.303-496.0	Screw 3,5x30
14	4.645-156.0	Clamp replacement /clamp sensor
14	5.645-591.0	Seal SxP good
15	4.645-157.0	Switch replacement /switch
15	6.997-351.0	Prefilter immersion pumps Good
16	6.303-496.0	Screw 3,5x30
16	5.645-019.0	Clamp /filter clamp
17	5.645-592.0	Seal SxP better/best
17	4.645-024.0	Plate complete / sheet metal earth w. wi
18	4.645-030.0	Plate complete / sheet metal earth w. wi
18	9.086-023.0	Зубчатый диск и5 A2
19	4.645-305.0	Штепсель для заменитель *CH
19	9.086-207.0	Винт M5x10 A2
20	9.086-023.0	Зубчатый диск и5 A2
21	9.086-207.0	Винт M5x10 A2
22	5.645-421.0	Housing Levelsensor
