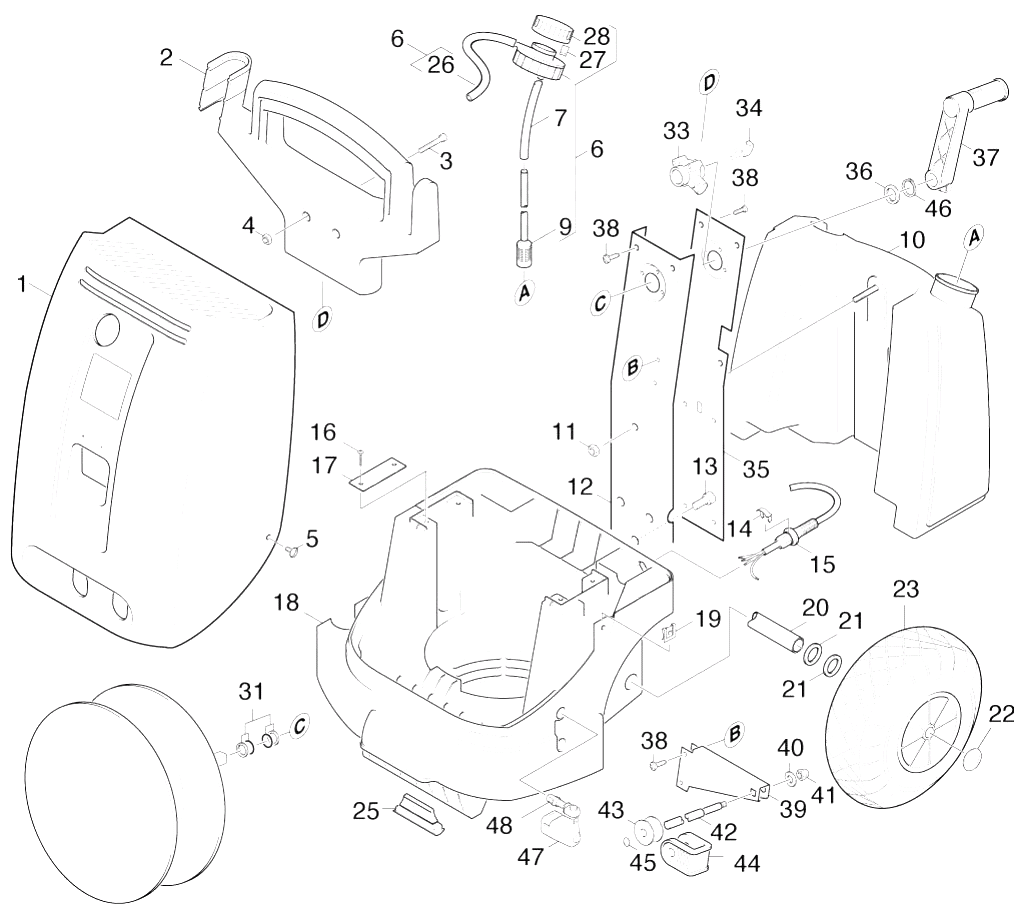

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.067-031.0 | Device cover for replacement | |
| 1 | 5.583-125.0 | Valve screw | |
| 2 | 5.321-546.0 | Handhold | |
| 2 | 6.362-500.0 | O-Ring seal complete /1ST.-R. | |
| 3 | 7.306-133.0 | Screw M6x50 -8.8-R3R (In6Rd) | |
| 4 | 7.311-003.0 | Hexagon nut M6 -8-A2E ISO 4032 | |
| 5 | 6.304-099.0 | Saucer-head screw M 6x 18-4.8-R2R | |
| 6 | 4.580-238.0 | Proportioning valve chemistry | |
| 7 | 6.388-216.0 | Hose DN 5 | |
| 9 | 5.731-652.0 | Filter with weight | |
| 10 | 5.071-069.0 | Tank | |
| 11 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 12 | 5.023-334.0 | C-Profile | |
| 13 | 7.309-015.0 | Screw assembly M8x16-8.8-A2E-S4-N ISO106 | |
| 14 | 6.343-186.0 | Locking ring | |
| 14 | 6.343-170.0 | Retaining clip | |
| 15 | 6.647-401.0 | Cable complete |
