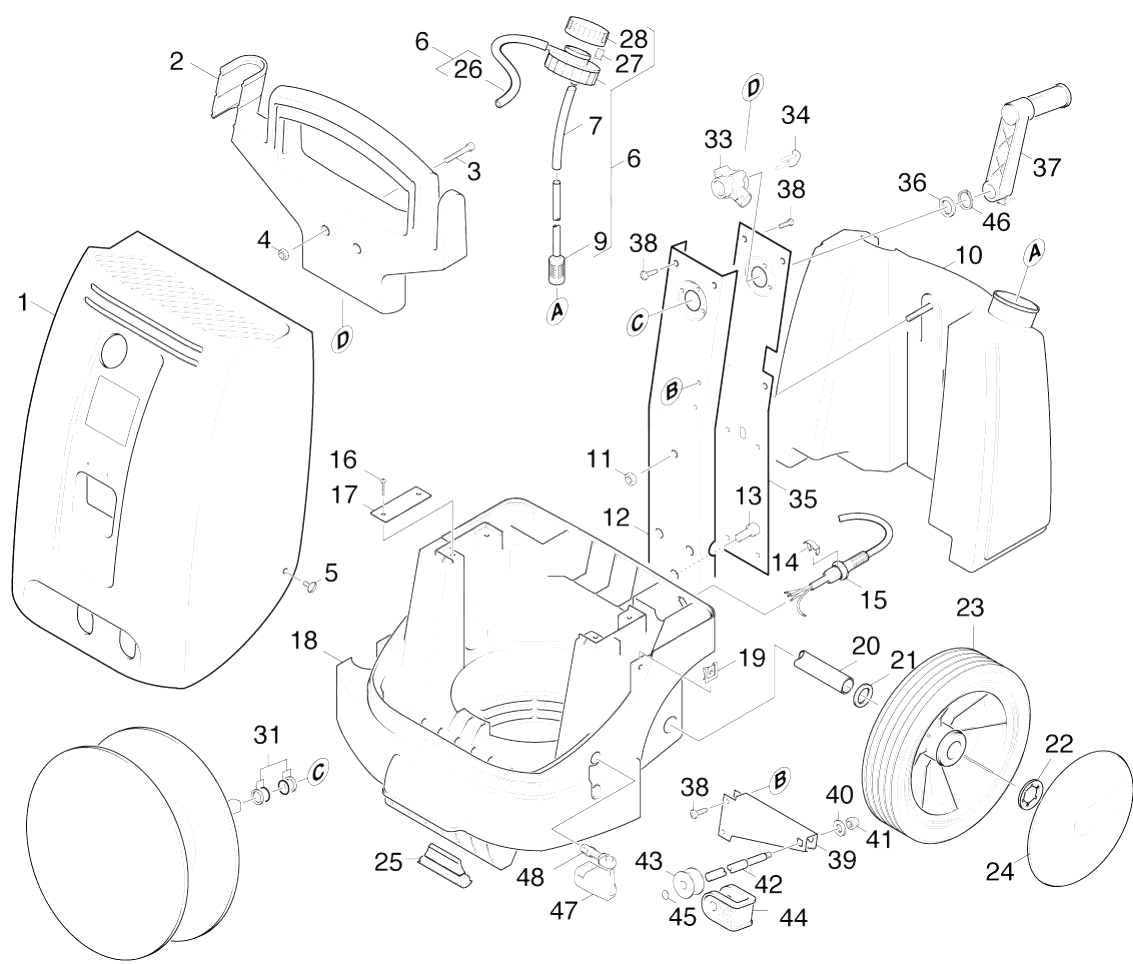

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.067-031.0 | Device cover for replacement | |
| 1 | 5.583-125.0 | Valve screw | |
| 2 | 5.321-546.0 | Handhold | |
| 2 | 6.362-500.0 | O-Ring seal complete /1ST.-R. | |
| 3 | 7.306-133.0 | Screw M6x50 -8.8-R3R (In6Rd) | |
| 3 | 6.362-381.0 | O-Ring seal 13x2 - NBR 70 | |
| 4 | 7.311-003.0 | Hexagon nut M6 -8-A2E ISO 4032 | |
| 4 | 4.580-262.0 | Valve complete | |
| 5 | 6.304-099.0 | Saucer-head screw M 6x 18-4.8-R2R | |
| 5 | 7.306-091.0 | Cylinder head screw M12x90- 8.8-A3E ISO | |
| 6 | 4.580-238.0 | Proportioning valve chemistry | |
| 6 | 6.388-547.0 | Hose clip | |
| 7 | 6.388-216.0 | Hose DN 5 | |
| 7 | 5.411-117.0 | Screw plug | |
| 8 | 7.362-004.0 | Joint ring A12x15,5 -Cu DIN 7603 | |
| 9 | 5.731-652.0 | Filter with weight | |
| 9 | 5.442-833.0 | Piece of tube | |
| 10 | 5.071-069.0 | Tank | |
| 10 | 5.550-187.0 | Cylinder head | |
| 11 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 11 | 5.332-999.0 | Helical spring | |
| 12 | 5.023-334.0 | C-Profile | |
| 12 | 7.401-907.0 | Sphere 3/8 G200-1.4301 DIN 5401 | |
| 13 | 7.309-015.0 | Screw assembly M8x16-8.8-A2E-S4-N ISO106 | |
| 13 | 4.581-019.0 | Valve seat | |
| 14 | 6.343-186.0 | Locking ring | |
| 14 | 6.343-170.0 | Retaining clip | |
| 15 | 6.647-400.0 | Cable complete | |
| 15 | 6.647-401.0 | Cable complete | |
| 15 | 6.647-379.0 | Cable with plug | |
| 16 | 6.303-174.0 | Screw 6,0X20-ST-A2R | |
| 17 | 5.004-641.0 | Strap | |
| 18 | 5.605-230.0 | Housing | |
| 18 | 5.605-226.0 | Housing | |
| 19 | 6.310-053.0 | Putting nut | |
| 20 | 5.029-229.0 | Tube | |
| 21 | 5.040-480.0 | Sheet metal component | |
| 21 | 7.312-060.0 | Washer 24-100HV-A3E ISO 7091 | |
| 22 | 5.335-013.0 | Spiral spring | |
| 22 | 6.343-217.0 | Clamping washer D25 | |
| 23 | 5.325-010.0 | Lever | |
| 23 | 6.435-312.0 | Wheel D250 | |
| 24 | 5.325-009.0 | Lever | |
| 24 | 6.435-197.0 | Wheel cap zinc yellow | |
| 25 | 6.303-025.0 | Oval head screw 4,2x16-St-vz | |
| 25 | 5.057-054.0 | Support | |
| 26 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 26 | 6.388-194.0 | Hose DN 7 | |
| 27 | 5.030-321.0 | Moulded part | |
| 27 | 5.337-021.0 | Plate spring | |
| 28 | 5.040-479.0 | Sheet metal component | |
| 28 | 5.321-430.0 | Handhold | |
| 29 | 6.391-354.0 | Hose assembly only for replacement DN8 4 | |
| 31 | 6.362-993.0 | O-Ring seal complete | |
| 33 | 4.251-031.0 | Bearing support complete | |
| 34 | 4.037-013.0 | Hook | |
| 35 | 5.801-122.0 | Cover plate | |
| 36 | 5.115-758.0 | Washer | |
| 37 | 4.321-102.0 | Crank complete | |
| 38 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 39 | 5.031-462.0 | Guide | |
| 40 | 7.312-017.0 | Washer 8-A2 ISO 7089 | |
| 41 | 7.311-620.0 | Cap nut M8 -A2 DIN 986 | |
| 42 | 5.105-264.0 | Axle |
