Karcher (Керхер) Детали (0.102-004.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

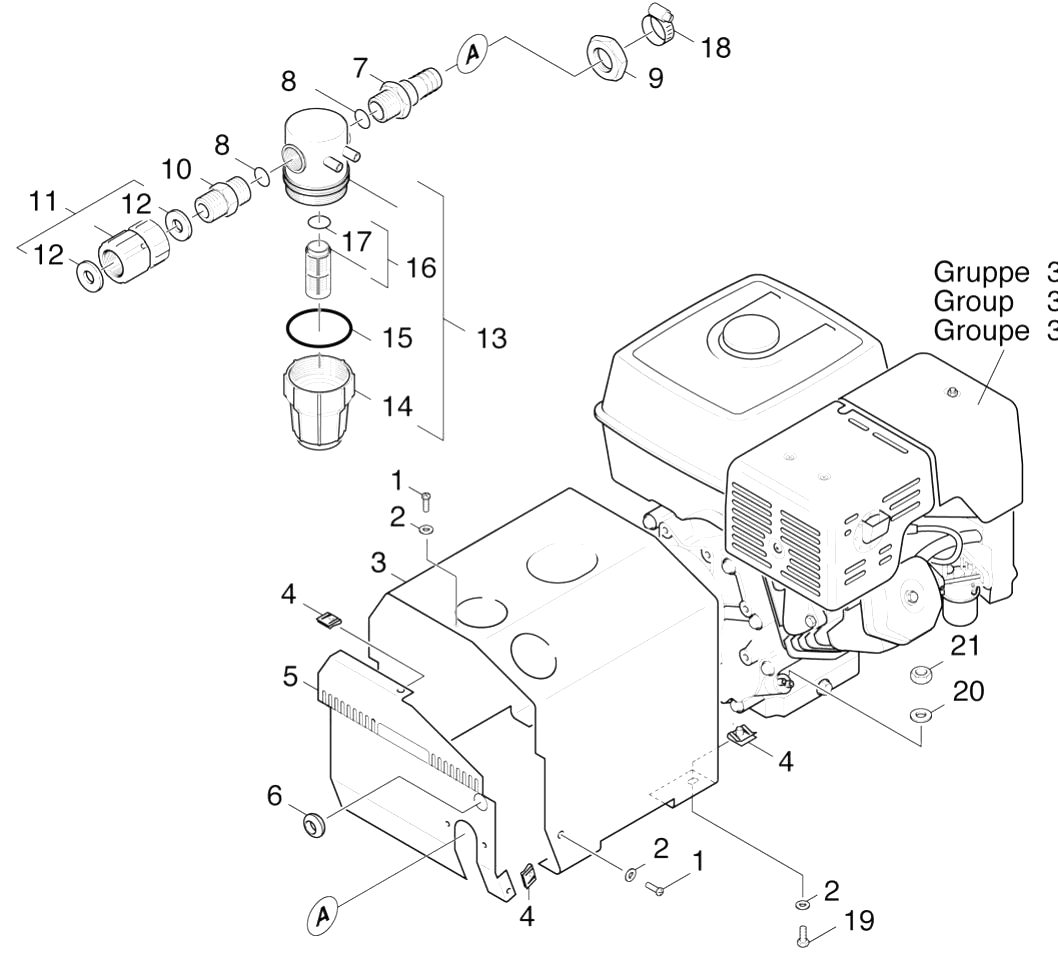

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
2	7.312-002.0	Washer 5-200HV-A3E ISO 7090
4	6.310-051.0	Putting nut M 5
5	5.841-335.0	Панель инструментов
5	5.581-160.0	Valve seat
6	6.641-640.0	Wire protecting sleeve D21
7	5.409-229.0	"""Double nipple 3/4"""" """
7	6.362-079.0	O-Ring seal 18,0 X 2,5
8	6.362-428.0	O-Ring seal 26,0 X 1,5 -NBR 70
9	5.311-096.0	"""Hexagon nut 3/4"""" """
9	6.412-049.0	Excess-current -FA. SUTTNER
10	5.409-221.0	"""Double nipple 3/4"""" """
11	4.401-059.0	Screw connector part
11	7.382-301.0	"""Screw plug R 1/4""""-St-A2E DIN 906 """
12	5.364-129.0	Flat gasket
13	6.414-458.0	Water filter complete
13	7.311-439.0	Hexagon nut M 8x1,0-6-A2E ISO 10512
15	6.362-893.0	O-Ring seal 51,0 X 3,5
15	6.385-786.0	Reducing nipple
17	6.362-738.0	O-Ring seal 28,24X 2,62
18	6.388-548.0	Hose clip
20	7.312-005.0	Washer 10-200HV-A3E ISO 7090
21	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
