Karcher (Керхер) Детали (0.101-643.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

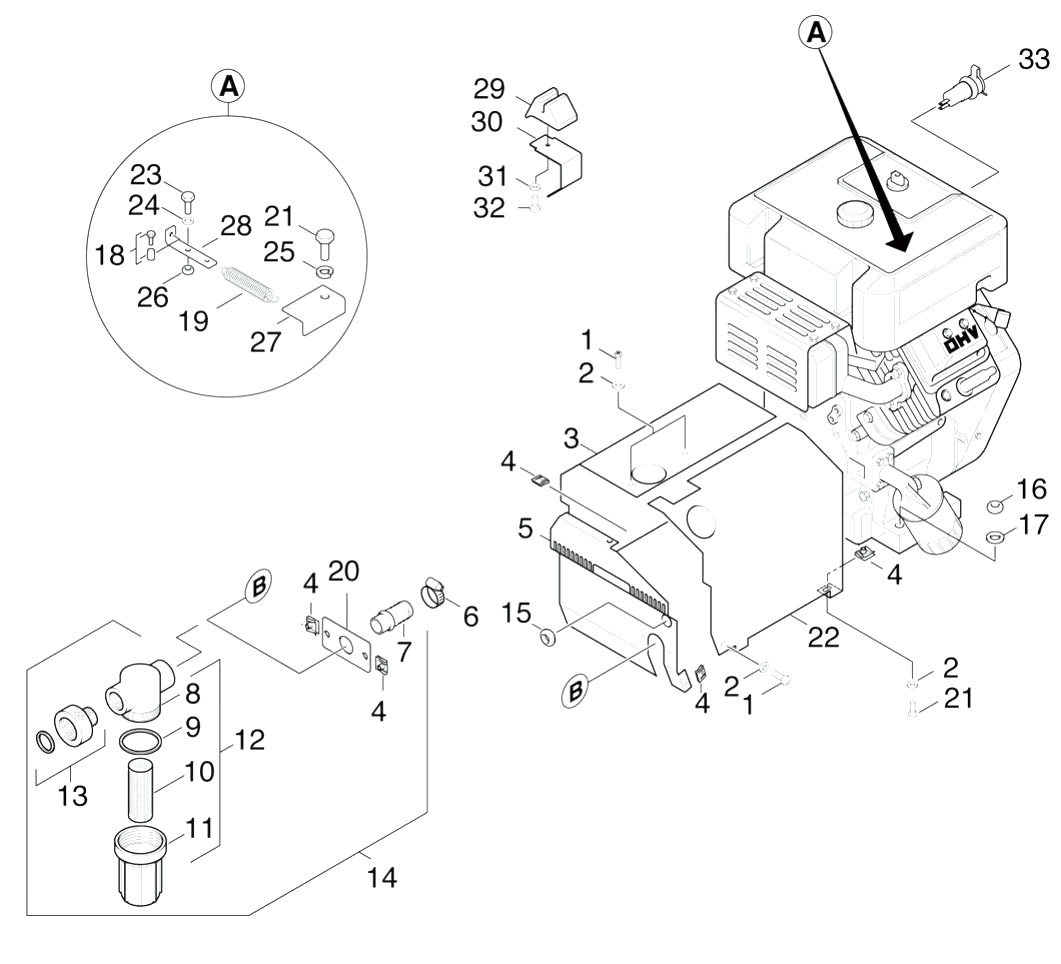

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
1	6.412-043.0	Spare part set C
2	5.332-066.0	Helical spring
2	7.367-018.0	Radial shaft seal ring A26x37x7 -NBR DI
2	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
3	9.135-001.0	Корпус
4	6.310-051.0	Putting nut M 5
4	6.362-481.0	O-Ring seal 14,0 x 2,0 NBR 80
4	5.322-006.0	Hand wheel
5	6.362-471.0	O-Ring seal 80,0 X 3,0 -NBR 70
5	4.030-125.0	Joining piece only for replacement
5	5.030-283.0	Moulded part
6	6.362-799.0	O-Ring seal 18,0 X 1,0
6	5.553-118.0	Piston
7	6.401-289.0	Wobble plate
7	4.580-330.0	Suction valve complete
7	6.362-477.0	O-Ring seal complete 1ST.-R.
8	6.491-260.0	Handhold for pull cord
8	5.305-193.0	Shaped screw
9	5.115-656.0	Washer
9	5.003-062.0	Plate
9	5.115-227.0	Washer
10	6.491-296.0	Spark plug connector
10	6.421-214.0	Pressure gauge 0-300 BAR
10	9.196-033.0	Винт с цилиндрической головкой 5/16-24UN
11	9.194-881.0	Призматическая шпонка 3/16 x 1 47/64
11	6.363-273.0	O-Ring seal 11,0 x 2,0
11	6.362-468.0	O-Ring seal complete 1ST.-R.
12	6.414-364.0	Water filter *
12	7.382-300.0	Screw plug M10x1-St-A2E DIN 906
12	5.115-260.0	Washer
13	6.491-285.0	Oil filter cartridge
14	2.638-092.0	Water filter
14	6.412-045.0	Hand wheel cap
15	6.641-640.0	Wire protecting sleeve D21
15	6.491-295.0	Seal exhaust
17	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
19	6.330-011.0	Extension spring
19	7.304-408.0	Hexagonal head screw M 8x80-8.8-A2E ISO
20	6.491-298.0	Screw exhaust
22	5.066-521.0	Крышка HD 1200 BXE
22	6.288-050.0	Engine oil 1L
24	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
24	6.388-278.0	Hose DN10
26	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
27	6.491-307.0	Ignition key
29	5.042-406.0	Holder
31	7.312-281.0	Washer 4 -200HV-A2E ISO7093-1
33	6.646-203.0	Plug socket two-pole 12V-8A
