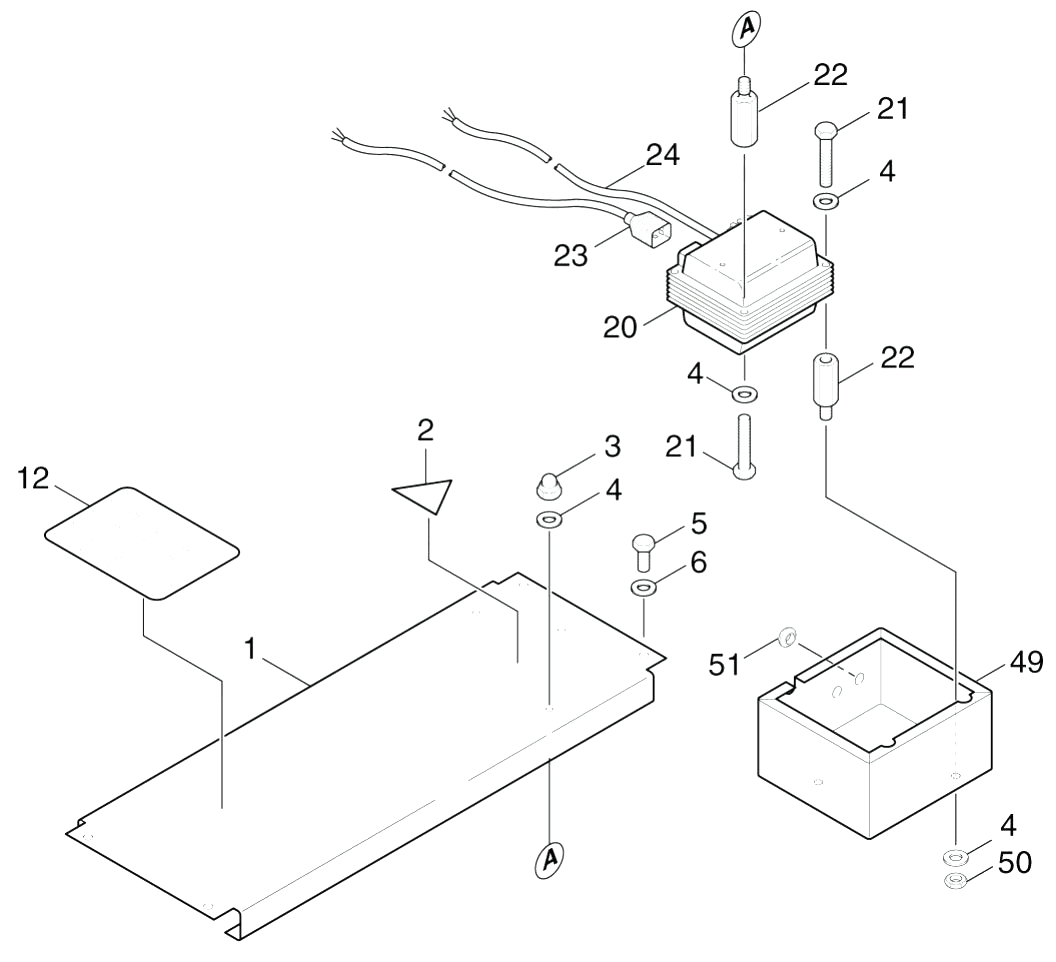

Karcher (Керхер) Детали (0.101-520.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.063-417.0	Крышка
2	5.386-007.0	Label
3	7.311-623.0	Cap nut M5 -A2 DIN 986
4	6.343-166.0	Tolerance ring D14X8
4	7.312-002.0	Washer 5-200HV-A3E ISO 7090
5	5.100-096.0	Shaft
5	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
6	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
6	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
7	6.343-031.0	Tolerance ring 15X12
8	5.625-225.0	Belt pulley
9	6.388-608.0	Tightening strap
10	5.178-025.0	Cloth collar
11	6.303-320.0	Screw M 5x 20-St-R2R
12	7.312-264.0	Washer 5-100HV-A3E ISO 7094
13	5.110-306.0	Sleeve
14	5.379-011.0	Rubber ring
15	6.472-363.0	Coupler
16	6.472-377.0	Coupling element
17	7.303-077.0	Sheet metal screw ST4,8X16-ST-A2R (IN6R
18	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
19	5.606-002.0	Air flap
20	5.605-143.0	Housing
21	7.304-455.0	Hexagonal head screw M 5x35-8.8-A2E ISO
22	6.316-031.0	Bolt
23	6.641-997.0	Cable with plug
24	6.641-180.0	Ignition cable
25	4.622-017.0	Ignition transformer -nur f?r Ersatz-
50	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
51	6.641-874.0	Wire protecting sleeve D7
