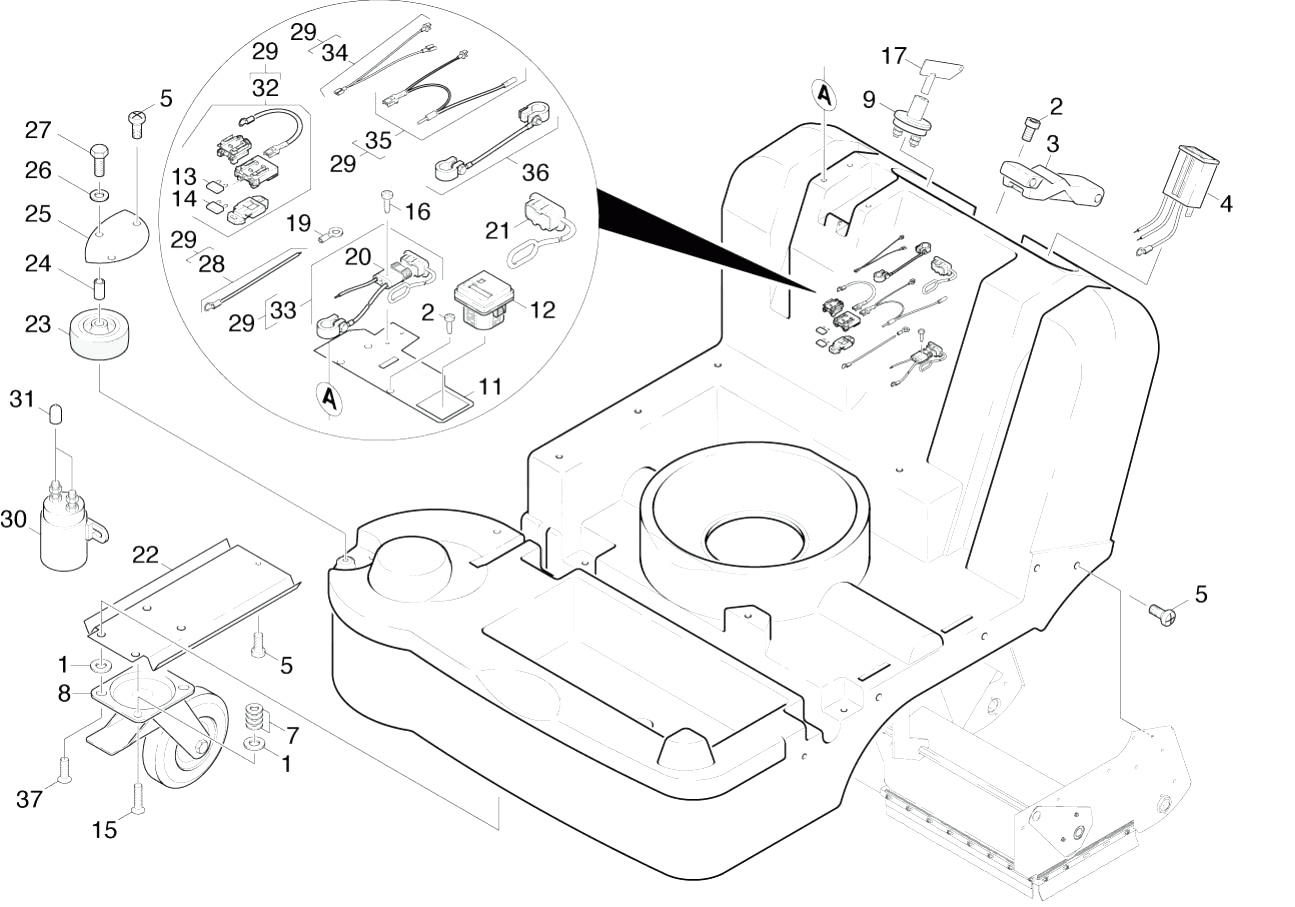

Karcher (Керхер) Основная рамка (0.206-997.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.312-078.0	U-Washer 9-St-vz DIN 434
2	6.303-155.0	Screw 5x16
3	6.375-338.0	Snap fastener
4	6.682-383.0	Battery monitoring 24 V KSM 750 PROFI
4	6.682-393.0	Battery monitoring 12V KSM 750 BAT USA
5	6.303-174.0	Screw 6,0X20-ST-A2R
6	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
7	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
8	6.435-322.0	Castor
9	6.634-196.0	Key switch
11	5.048-160.0	Sheet metal component
12	6.681-081.0	Hour counter
13	6.644-272.0	Blade type fuse MEGA 50A
13	6.644-246.0	Fuse 40A-SAE J 1888
14	7.644-006.0	Fuse insert C 3 DIN 72581-3
15	7.305-639.0	Countersunk screw M8x20-A2-70 ISO 10642
16	7.303-501.0	Self-tapping screw M3x20-ST-A2E DIN 7500
17	6.634-201.0	Key
18	6.641-238.0	Receptacles for tabs
19	6.641-259.0	Cable lug M8 x 6, gelb
20	6.646-140.0	Plug two-pole 50A-
20	6.646-345.0	Plug two-pole grey 50A--SB50
21	6.368-278.0	Protecting cap
22	5.047-714.0	Sheet metal component
23	6.435-373.0	Wheel traceless grey D50
24	5.029-334.0	Tube
25	5.001-849.0	Plate
26	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
27	7.304-386.0	Hexagonal head screw M 6x25-8.8-A2E ISO
28	6.647-879.0	Cable complete -KSM 750 BAT PROFI 7
29	6.648-003.0	Cable set KSM 750 USA/KAP/JAP
30	6.633-411.0	Power relay
30	6.633-235.0	Relay 24 V
31	6.368-294.0	"""Protecting cap black 1/4"""" PVC """
32	6.647-875.0	Cable complete 100V / 3POL
33	6.647-876.0	Cable complete -KSM 750 BAT PROFI 5
34	6.647-877.0	Cable complete -KSM 750 BAT PROFI 6
36	6.647-874.0	Cable complete
37	7.305-637.0	Countersunk screw M8x16-A2-70 ISO 10642
