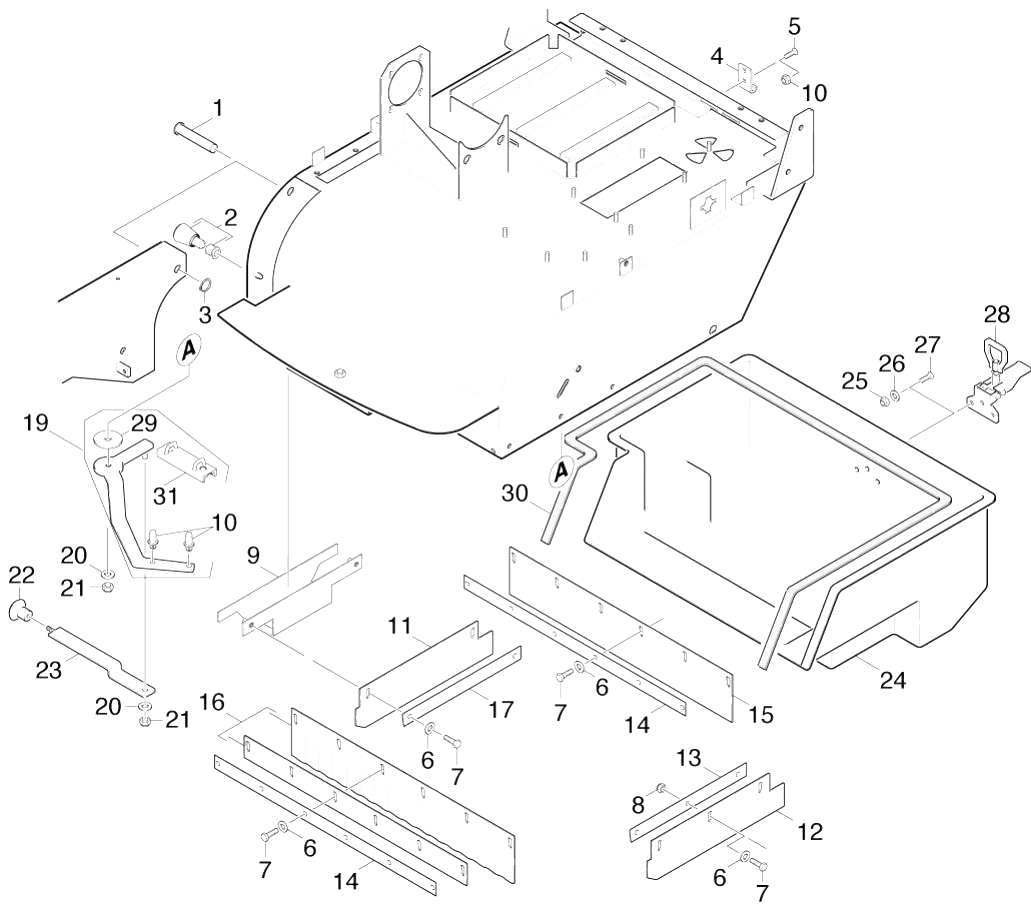

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 2 | 6.993-015.0 | Handhold locking part | |
| 3 | 7.343-001.0 | Locking ring 10x1-Rf-St DIN 471 | |
| 5 | 7.305-022.0 | Countersunk screw M4x12 -4.8-A2E ISO 20 | |
| 6 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 7 | 7.306-182.0 | Pan head screw M5x16 -A2-70 ISO 14583 | |
| 8 | 7.311-029.0 | Hexagon nut M 5-A4-70 ISO 7042 | |
| 9 | 6.984-533.0 | Protection part | |
| 10 | 6.315-068.0 | Rivet | |
| 11 | 6.984-534.0 | Side strip right | |
| 12 | 6.984-535.0 | Side strip left | |
| 13 | 6.984-536.0 | Strip side strip | |
| 14 | 6.984-537.0 | Strip | |
| 15 | 6.984-538.0 | Skirting rear | |
| 16 | 6.984-539.0 | Skirting front | |
| 17 | 6.984-545.0 | Strip left | |
| 20 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 21 | 7.311-425.0 | Hexagon nut M6 -04-A2E ISO 10511 | |
| 22 | 6.993-024.0 | Handhold srcaper | |
| 23 | 6.984-541.0 | Lever srcaper | |
| 24 | 6.993-026.0 | Dirt box | |
| 25 | 7.311-431.0 | Hexagon nut M 5-1.4305 ISO 10511 | |
| 26 | 7.312-282.0 | Washer 5 -A2 ISO 7093-1 | |
| 27 | 7.305-048.0 | Countersunk screw M5x12 -A2-70 (In6Rd) | |
| 29 | 6.984-543.0 | Washer | |
| 30 | 6.984-546.0 | Seal | |
| 31 | 5.030-900.0 | Stripper |
