Karcher (Керхер) Управление аккумулятор (0.208-924.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

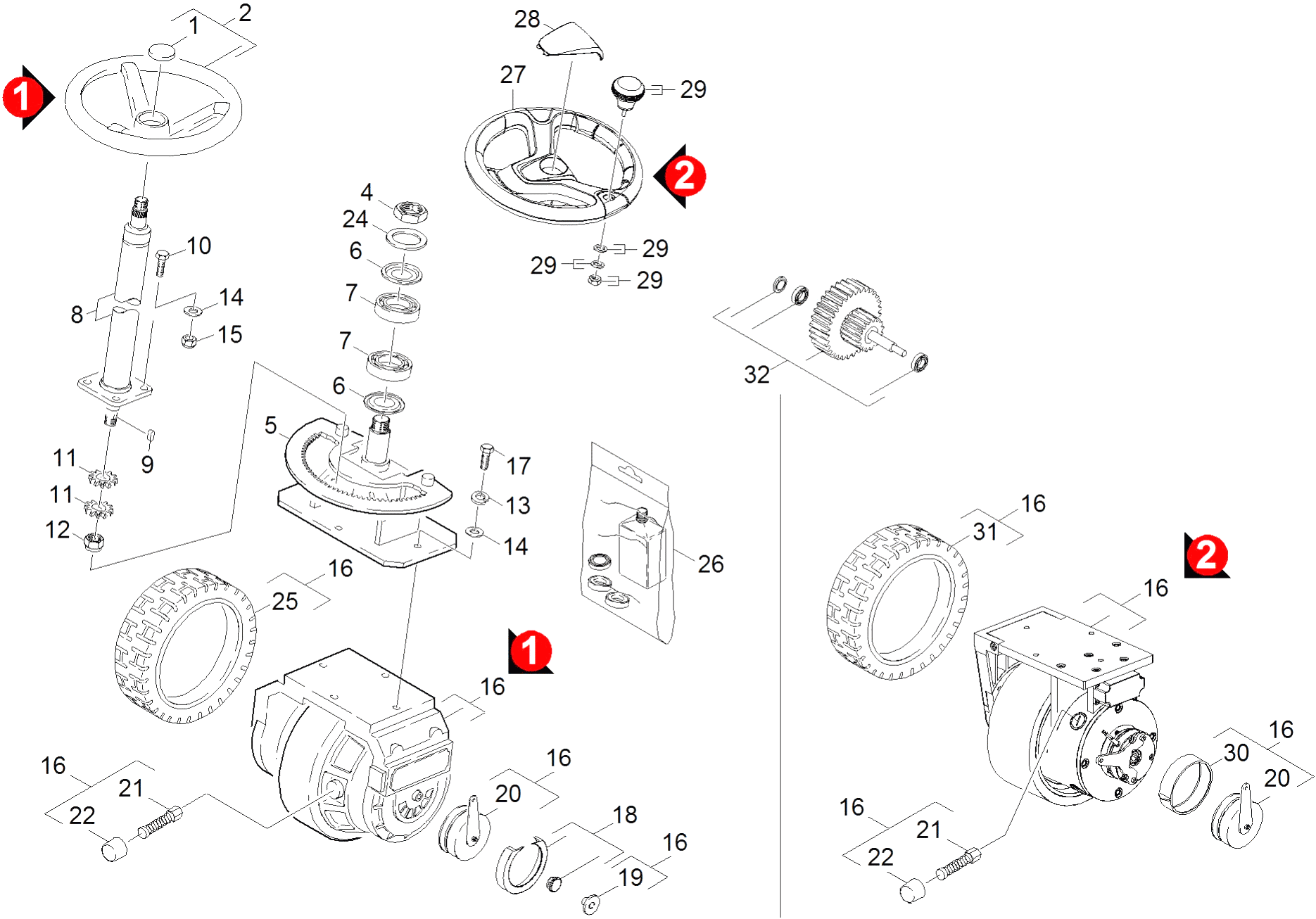

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.368-217.0	Cap
2	6.435-253.0	Рулевое колесо
4	7.311-122.0	Hexagon nut M24X1,5-22H-A2E DIN 936
5	4.520-164.0	Wheel fork complete Bp
6	6.401-263.0	Slip ring
7	6.401-260.0	Angular contact ball bearing
8	6.439-201.0	Steering KM 90/60 R
9	7.318-090.0	Parallel key A5x5x10-C45R DIN 6885
10	7.304-414.0	Hexagonal head screw M10x20-8.8-A3E ISO
11	5.352-000.0	Gear wheel
12	7.311-059.0	Hexagon nut M16x1,5 -8-A2E ISO10512
13	7.313-030.0	Spring washer A10-FST DIN 128
14	7.312-005.0	Washer 10-200HV-A3E ISO 7090
15	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
16	6.613-206.0	Wheel drive motor 600W
16	6.613-315.0	Wheel drive motor
17	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
18	4.040-645.0	Set dust protection KM 100/100
19	6.394-391.0	Coupler brake BR/BD TRIKE
20	4.467-002.0	Brake adjustable complete
21	6.613-231.0	Carbon brush set
21	6.610-211.0	Carbon brush set
22	6.961-901.0	Cap with bayonet
22	6.961-924.0	Cover closure
24	7.312-010.0	Washer 24 -200HV-A3E ISO 7090
25	6.435-402.0	Tire Trike
26	4.641-045.0	Spare part set bearing
27	6.435-795.0	Steering wheel
28	6.640-353.0	Cap steering wheel K?RCHER
29	6.640-354.0	Handle
30	6.467-039.0	Retrofit kit brake
31	6.435-854.0	Wheel drive wheel motor
32	6.550-040.0	Set armature shaft fuer Fahrmotor
