Подметальная машина Karcher (Керхер) KM 35/5 C *EU (1.327-320.0)

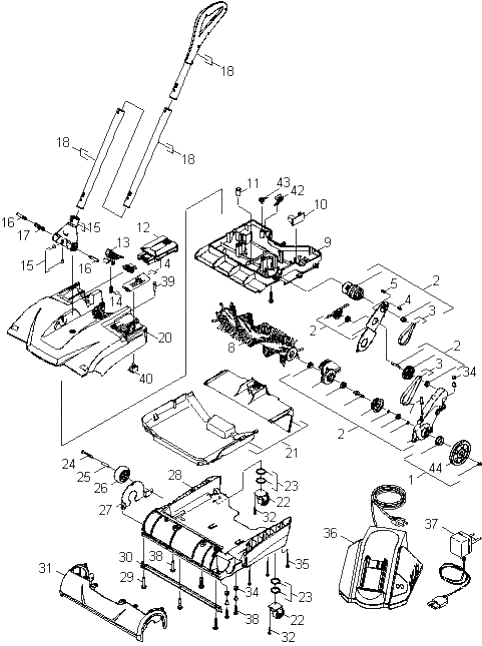

Karcher (Керхер) Детали (0.209-259.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 4.515-309.0 Wheel complete packaged
2 4.454-002.0 Transmission complete
3 4.348-451.0 Toothed belt set
4 7.306-205.0 Screw M4x8 -A2-70 (In6Rd)
5 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd)
7 6.635-552.0 Kink-protection sleeve
8 4.762-462.0 Roller brush complete packaged KM 35/5
9 5.033-426.0 Moulded part covering cap
10 4.633-041.0 Electronics circuit board packaged KM 35
11 4.110-013.0 Thrust piece springy
12 4.654-279.0 Accumulator packaged KM 35/5
13 5.324-126.0 Pushbutton sweep tank
14 4.324-024.0 Pushbutton with spring
15 4.605-112.0 Joint complete packaged KM 35/5
16 5.100-578.0 Bolt bearing
17 5.332-986.0 Pressure spring
18 4.070-662.0 Handle complete
20 5.080-024.0 Верхняя часть KM 35/5 C
21 4.070-697.0 Sweep tank complete
22 6.435-798.0 Castor
23 6.362-539.0 Уплотнительное кольцо 27,0 x 3,0.
24 7.303-234.0 Screw 5x60 -10.9-A2K (K-In6Rd)
25 5.112-853.0 Bush wheel
26 5.515-341.0 Roller D60
27 5.094-363.0 Sheet metal component bearing
28 5.081-031.0 Bottom part
29 6.303-200.0 Screw 5x25-IN6RD
30 4.070-718.0 Rubber lip complete packaged KM 35/5
31 5.044-911.0 Bumper
32 7.303-106.0 Screw 4x12 -10.9-R2R (IN6RD)
34 6.641-874.0 Wire protecting sleeve D7
35 6.303-294.0 Screw 5x65-10.9-A2K (Kombi-IN6RD)
36 6.654-190.0 Rechargeable battery changer *EU BC 1/1.
37 6.649-817.0 Battery charger KM 35*EUR
38 7.303-108.0 Screw 5x20 -10.9-R2R (In6Rd)
39 6.633-570.0 Optical fibre 5x8,2
40 6.630-462.0 Pushbutton
41 6.987-394.0 Relay 12V 30/40 A - 4200230
42 6.987-395.0 Relay 12V 30/40 A - 4201029
42 5.324-088.0 Pushbutton locking part accumulator
43 6.987-398.0 Time relay 12V - 4201796
43 6.330-442.0 Leg spring
44 6.987-401.0 Electric box 3007978
44 5.318-013.0 Thrust piece bearing
45 6.987-926.0 Cable set KM 150/500 Bat - 2108860
46 7.305-541.0 Countersunk screw M4x16-A2-70 ISO 7046-
47 6.632-508.0 Switch blower
48 5.033-756.0 Фасонная деталь шайба символов
49 5.321-738.0 Handhold operational concept
50 6.635-563.0 Switch control panel
51 7.305-019.0 Countersunk screw M4x16 -8.8-R2R (In6Rd
