Karcher (Керхер) Дифференциальный клапан (0.210-403.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

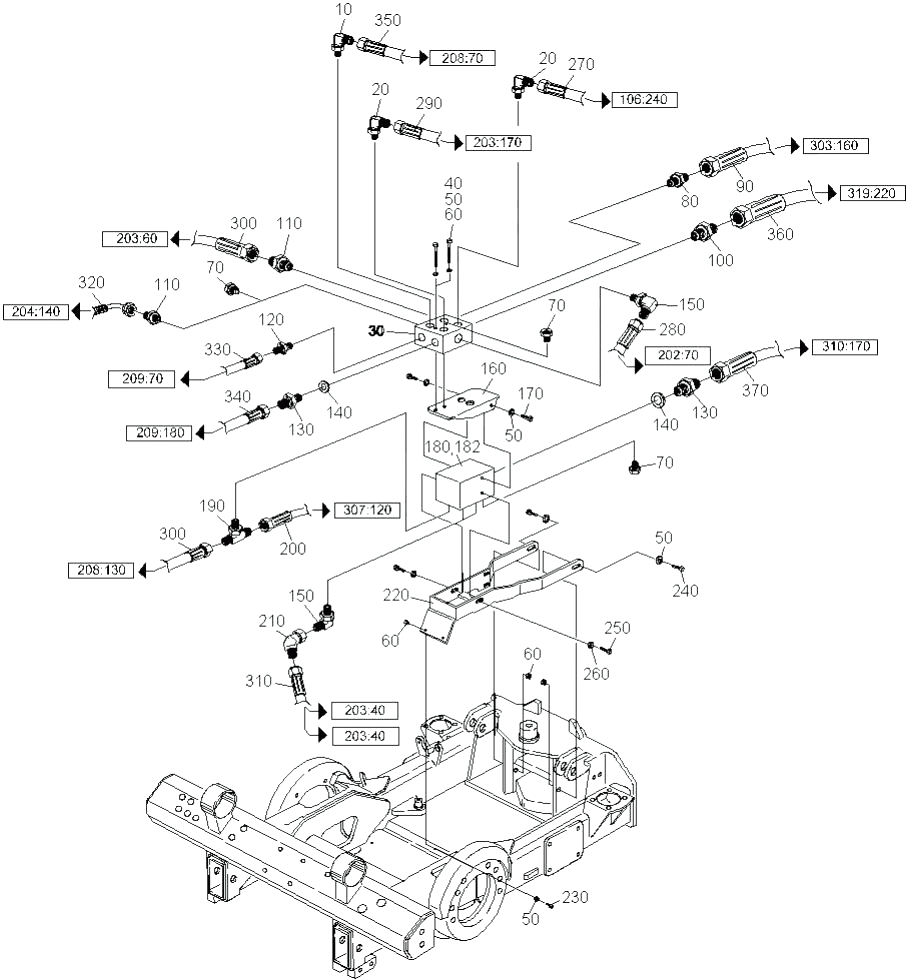

REF.	АРТИКУЛ	ОПИСАНИЕ
20	9.655-733.0	Elbow screw connector 90STB JIC 3/4-R3/8
30	9.659-417.0	HYDRAULIC VALVE 2009
40	9.654-557.0	Hexagonal head screw M 8x 75-FZB 8.8
50	7.312-017.0	Washer 8-A2 ISO 7089
60	7.311-060.0	Hexagon nut M 8-A2-70 EN 1661
70	9.654-607.0	Plug VSTI R3/8-ED
80	9.655-680.0	Double nipple JIC 7/8-R1/2
90	9.655-712.0	"""Hydraulic hose 1/2"""" 21MPa """
100	9.656-162.0	HYDRAULIC CONNECTOR 2009
110	6.989-899.0	Adapter 081-951-01
120	6.989-192.0	Hose stem 1134-7161-01
130	9.656-154.0	ADAPTER 2011
140	9.654-729.0	"""GUMMIST?LBRICKA R1"""" (A4 2009 """
150	9.654-737.0	Nipple 90 JIC 1 1/16-R3/4
160	9.659-409.0	ATTACHMENT 2009
170	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
180	9.656-152.0	DIFF.VALVE 2009
182	9.655-406.0	GASKET SET 4-410 2009
190	9.656-161.0	T-COUPLING 2009
200	9.655-659.0	"""Hydraulic hose 3/8"""" 10MPa """
210	9.656-158.0	ADAPTER 2011
220	9.659-408.0	ATTACHMENT 2009
230	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
240	9.654-494.0	SCREW M6S 8X30 FZB 8.8 2009
250	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
260	9.654-888.0	Washer 9x28x2-FZB
270	9.655-908.0	"""Hydraulic hose 3/8"""" 21MPa """
280	9.655-776.0	"""Hydraulic hose 3/4"""" 10MPa """
290	9.655-648.0	"""HYDRAULIC HOSE 3/8"""" 160 BAR 2009 """
300	9.655-663.0	"""Hydraulic hose 3/8"""" 10MPa """
310	9.666-520.0	"""Hydraulic hose 3/4"""" 450bar """
320	9.655-668.0	"""Hydraulic hose 3/8"""" 33MPa """
330	9.655-665.0	"""Hydraulic hose 3/8"""" 33MPa """
340	9.656-182.0	"""HYDRAULIC TUBE 1"""" 2009 """
350	9.655-635.0	"""Hydraulic hose 1/4"""" 21MPa """
360	9.656-178.0	"""HYDRAULIC TUB 1 1/4"""" 2009 """
370	9.656-183.0	"""HYDRAULIC TUBE 1"""" 2009 """
