Karcher (Керхер) Аккумулятор (0.210-417.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

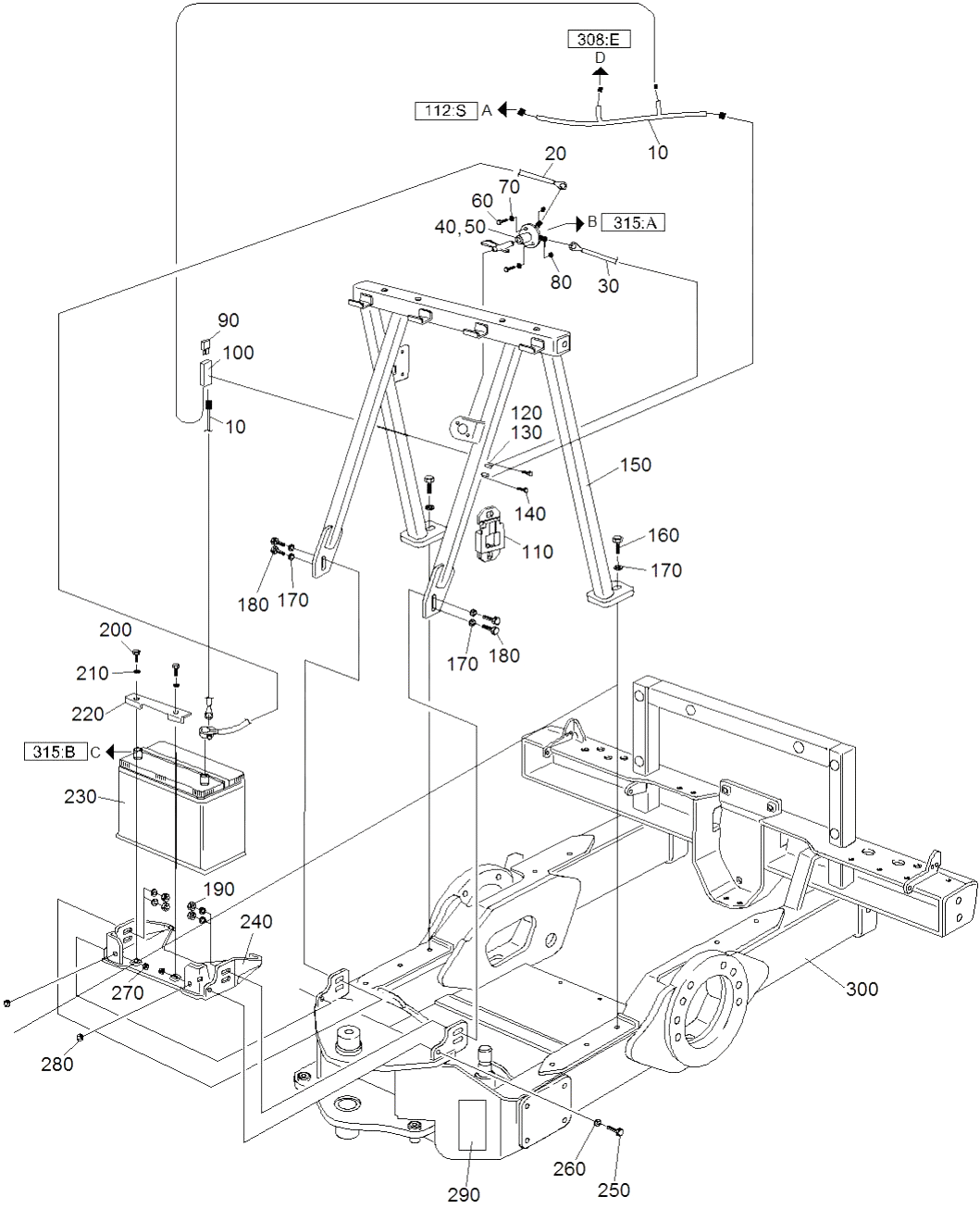

REF.	АРТИКУЛ	ОПИСАНИЕ
10	9.659-376.0	KABELB?NDEL 2009
20	9.667-070.0	BATTERY CABLE +
30	9.667-065.0	BATTERY CABLE FEEDING
40	9.659-683.0	MAIN SWITCH 2011
50	6.989-479.0	Coating cooling water sensor
60	9.659-844.0	SCREW M6S M6X16 2011
70	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
80	7.311-541.0	Hexagon nut M 6-8-A2E EN 1661
90	9.667-077.0	BLADE FUSE MINI 7,5A BROWN
90	9.655-445.0	Предохранитель 7,5A TG
100	9.655-452.0	FUSE HOLDER TG 2009
100	9.666-986.0	Fuse holder MINI
110	9.667-066.0	FIXING PLATE FUSE HOLDER
120	9.655-784.0	Fuse holder
120	9.667-064.0	Fuse holder MAXI
130	9.667-071.0	BLADE FUSE MAXI 60A BLUE
130	9.655-785.0	Safety fuse 156 5610 5501
140	9.655-769.0	Screw MRT-TT M5X10
150	9.659-469.0	ARCH-FRONT 2009
160	7.304-419.0	Hexagonal head screw M10x35-8.8-A3E ISO
170	9.654-784.0	Washer BRB 13x24x2-FZB
180	9.654-486.0	Hexagonal head screw M12x 40-8.8
190	9.656-208.0	POP RIVET 2011
200	9.663-555.0	WATER TANK 2011
200	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
210	9.659-806.0	FLAT WASHER 2009
220	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
220	9.659-308.0	BRACKET 2009
230	9.654-469.0	Hose clamp
230	9.656-093.0	Battery
240	9.658-938.0	AIR HOSE 2009
240	9.659-412.0	BATTERY SHELF 2009
250	9.659-463.0	AIR INTAKE HOSE 2009
250	9.656-285.0	SCREW 2009
260	9.657-769.0	AIR FILTER, OUTER 2010
260	7.312-005.0	Washer 10-200HV-A3E ISO 7090
270	9.657-770.0	AIR FILTER, INNER 2010
270	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
280	9.657-776.0	ASSY FILTER, LUFT 2010
280	6.989-448.0	Rubber buffer 084-305-01
290	9.655-541.0	Label danger of crushing
300	9.659-187.0	FRAME, REAR (B) 2009
