Karcher (Керхер) Компоненты (0.210-521.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

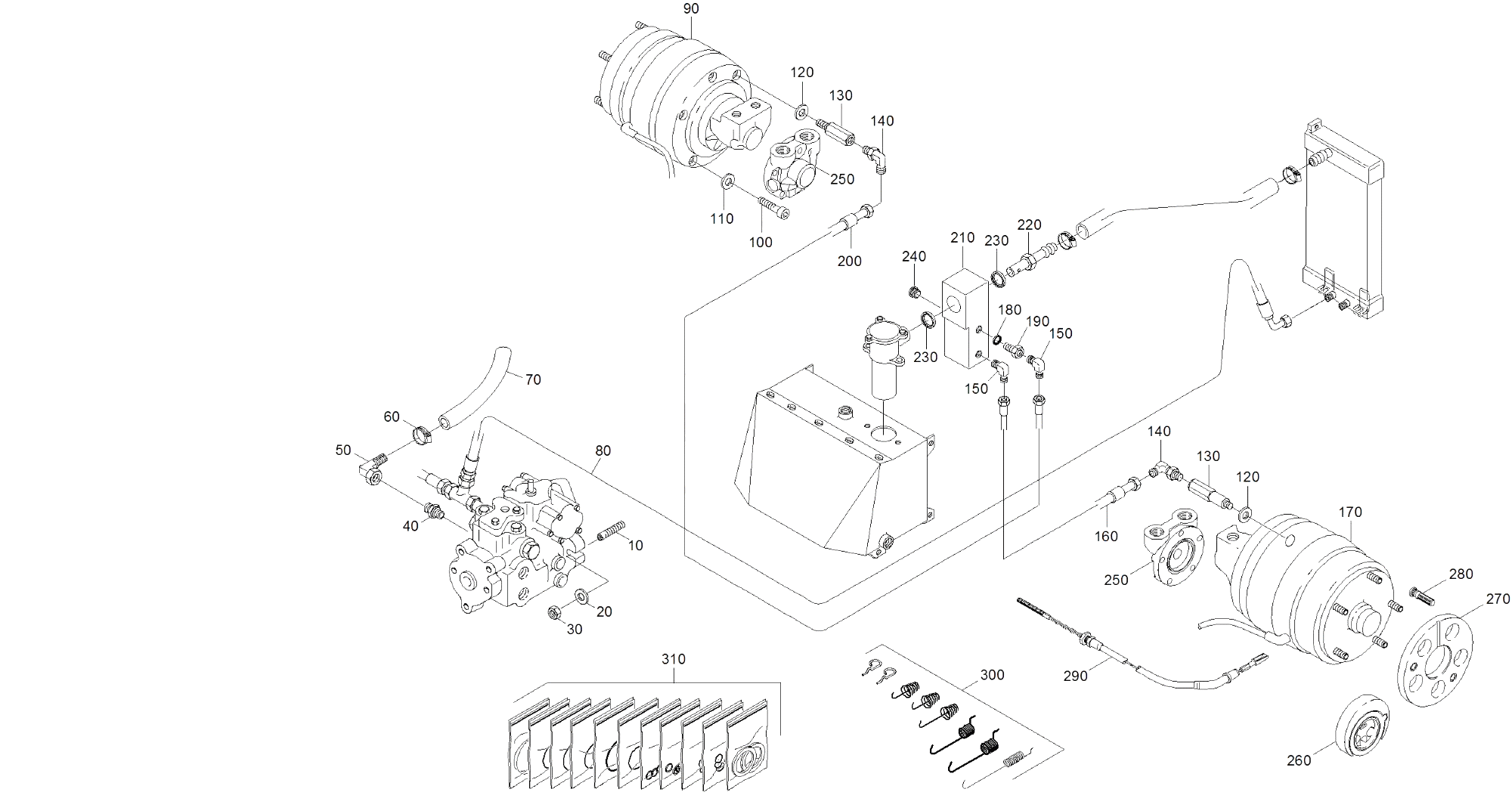

REF.	АРТИКУЛ	ОПИСАНИЕ
10	9.656-297.0	PINSCREW PS M12X40 2009
20	9.654-784.0	Washer BRB 13x24x2-FZB
30	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
40	9.656-012.0	Connector straight UNF 1 5/16-12-JIC 1 5
50	9.656-013.0	Elbow screw connector 90° JIC 1 5/16-12
60	6.989-537.0	Hose clamp D26-38 085-520-01
70	9.655-735.0	"""Hydraulic hose 1"""" -0,07MPa """
80	9.655-770.0	"""HYDRAULIC HOSE 3/4"""" 10 BAR 2009 """
90	9.655-301.0	BRAKE SHOE, RIGHT 2009
90	9.658-854.0	WHEEL MOTOR 250 CC RIGHT (B) 2009
100	9.656-010.0	Screw MC6S 14x80 OBH 12.9
110	9.655-797.0	Washer BRB 15X26X2 FZB
120	6.989-065.0	Joint ring 1134-4948-01
130	9.658-709.0	EXTENSION NIPPLE FZC2 2009
140	6.989-068.0	Coupler hydraulical 1135-2703-01
150	6.989-209.0	Hose stem angle 1135-7073-01
160	9.655-864.0	"""HYDRAULIK HOSE 1/4"""" 10 BAR 2009 """
170	9.658-853.0	WHEEL MOTOR 250 cc L W.BR 2009
170	9.655-300.0	BRAKE SHOE, LEFT
180	6.989-238.0	Seal washer 1134-4948-02
190	9.655-114.0	Adapter straight R3/8-R3/8 U/I
200	9.655-584.0	"""Hydraulic hose 1/4"""" 160bar """
210	9.659-099.0	RETURBLOCK
220	9.659-098.0	H?LSKRUV (FZC2) 2009
230	9.654-729.0	"""GUMMIST?LBRICKA R1"""" (A4 2009 """
240	9.654-607.0	Plug VSTI R3/8-ED
250	9.655-309.0	HOUSE (B) 2010
260	9.663-054.0	DISTRIBUTOR KIT (B) 2010
