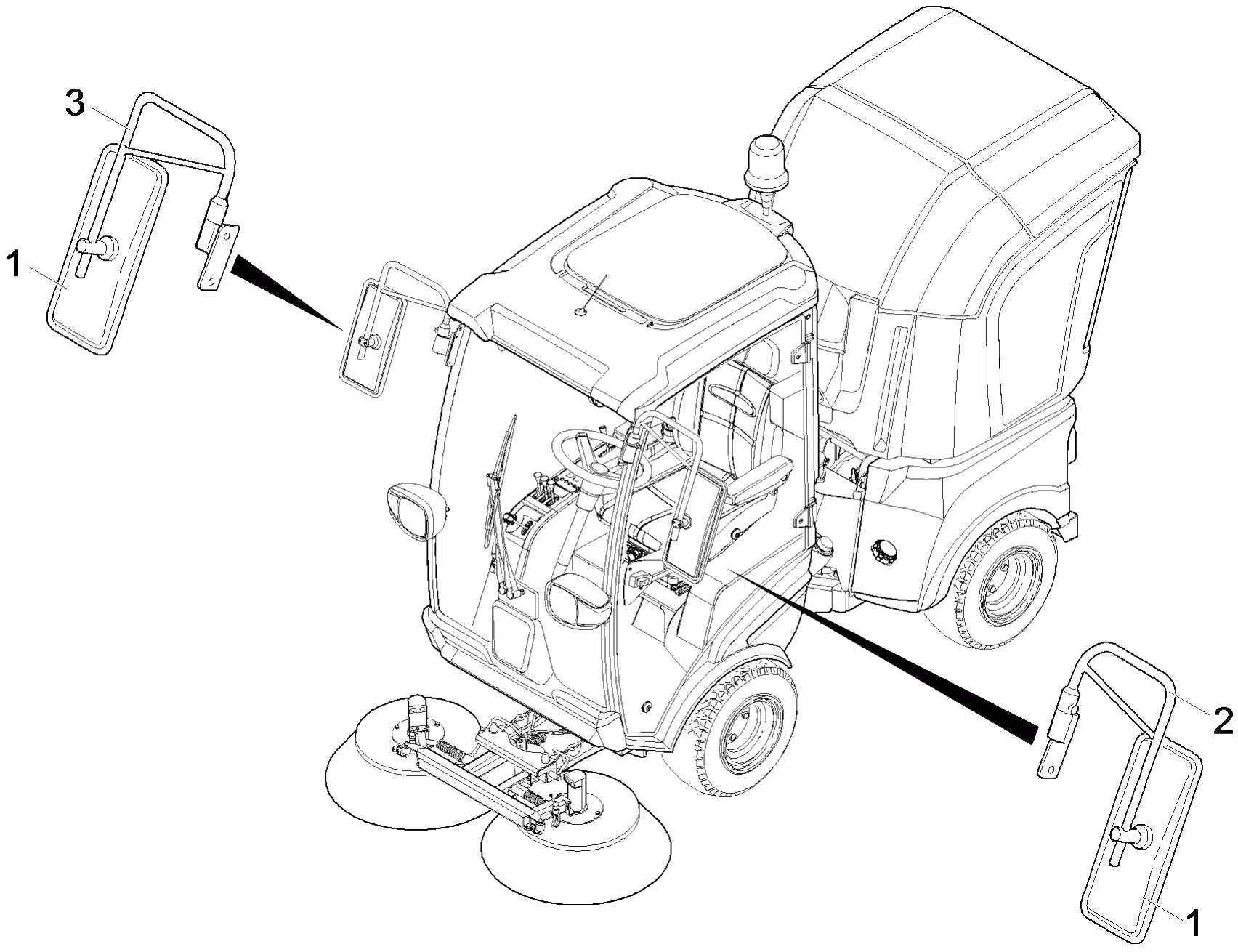

Karcher (Керхер) МК боковое зеркало (0.210-627.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.990-032.0	Mirror standard
2	6.990-031.0	Holder mirror right
3	6.990-030.0	Holder mirror left
4	5.095-191.0	Sheet metal component strap bottom
5	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
6	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
7	6.373-682.0	Holder for broom
8	6.315-047.0	Blind rivet 3,0
30	7.312-005.0	Washer 10-200HV-A3E ISO 7090
31	5.095-134.0	Sheet metal component Stabilisator Kehrb
32	5.394-866.0	Rubber lip rear
33	5.095-023.0	Strip rubber lip rear
34	5.095-076.0	Angle rubber lip rear
35	7.305-013.0	Countersunk screw M8x20-8.8-A3R ISO1064
38	5.095-132.0	Sheet metal component holder water tank
39	7.305-105.0	Countersunk screw M10x16 -8.8-A2K ISO 1
40	5.095-090.0	Plate holder-up
41	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
42	7.304-514.0	Hexagonal head screw M10x50-A2-70 ISO 4
43	6.989-118.0	Power switch 1134-3399-01
44	5.095-139.0	Sheet metal component safety switch
45	5.095-062.0	Holder box bottom
46	6.365-453.0	Edge protection
51	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
52	5.033-544.0	Support
