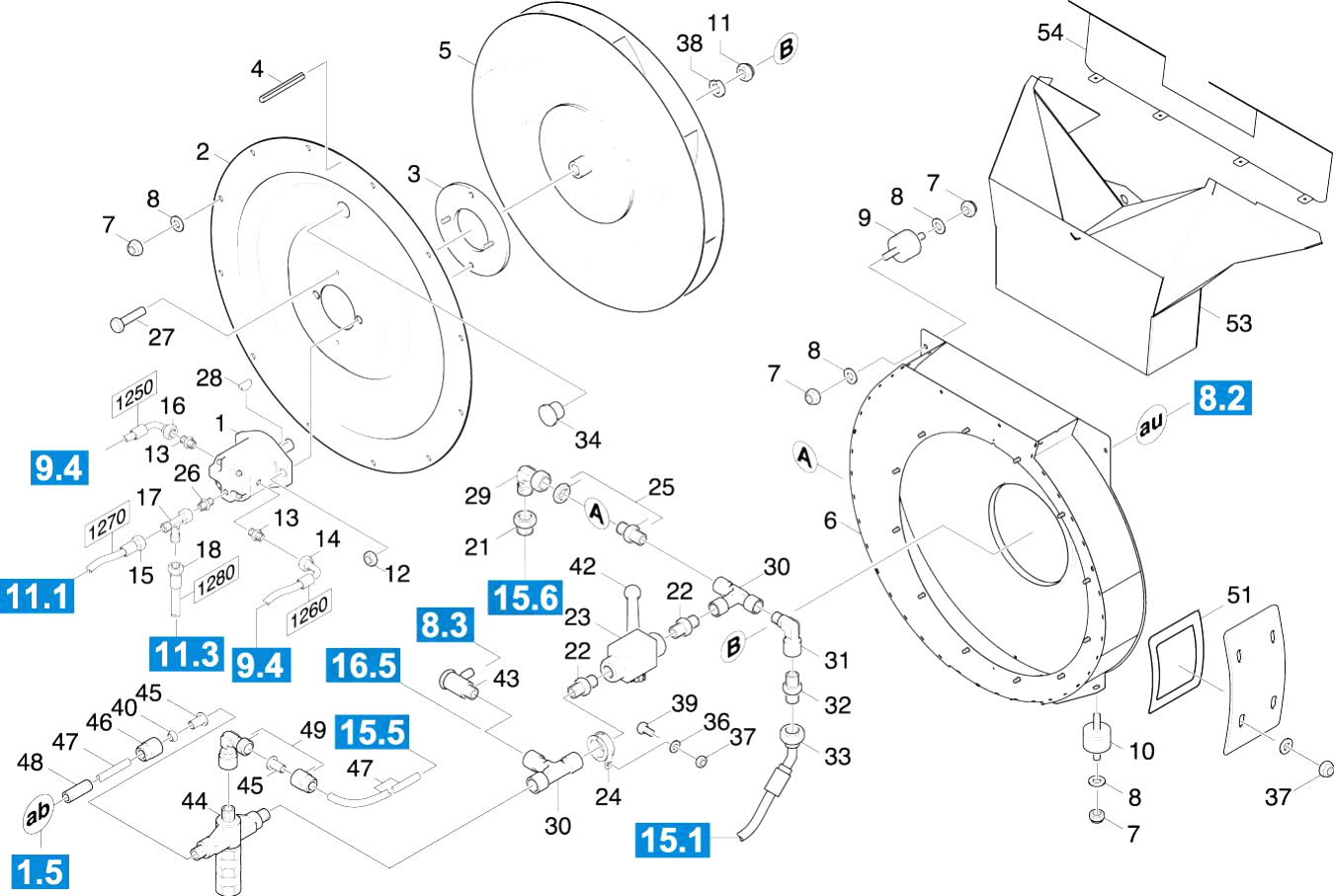

Karcher (Керхер) Воздуходувка (0.207-916.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
6.996-236.0 |
Hydraulic motor |
|
| 1 |
4.040-290.0 |
Sheet metal component suction mouth comp |
|
| 1 |
6.996-214.0 |
Tube aspiration complete |
|
| 1 |
4.040-187.0 |
Sheet metal component pedal |
|
| 1 |
6.366-050.0 |
Sealing profile |
|
| 1 |
5.443-040.0 |
Hose stem |
|
| 1 |
6.391-220.0 |
Hydraulic hose |
|
| 1 |
6.474-050.0 |
Pump triple |
|
| 1 |
6.686-296.0 |
Coil 12V 02000.0182 |
|
| 1 |
6.413-346.0 |
Valve block central block |
|
| 1 |
6.996-367.0 |
Hydraulic hose 1490 |
|
| 1 |
6.391-320.0 |
Hydraulic hose 1630 |
|
| 1 |
6.996-337.0 |
Pipelines |
|
| 1 |
6.439-103.0 |
Клин подставки |
|
| 1 |
4.258-005.0 |
Грязевой скребок комплектный |
|
| 1 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 1 |
2.882-624.0 |
Conversion kit central lubricating syste |
|
| 1 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 1 |
6.465-024.0 |
"""Coupler Storz A 4"""" BSP IG4"""" Al """ |
|
| 1 |
6.413-461.0 |
Valve block proportional valve |
|
| 1 |
4.040-118.0 |
Sheet metal component complete right Tue |
|
| 1 |
6.321-046.0 |
Coating pedal |
|
| 1 |
6.996-048.0 |
Housing |
|
| 1 |
6.996-026.0 |
Ignition lock |
|
| 1 |
6.996-471.0 |
Frame |
|
| 1 |
6.996-463.0 |
Frame |
|
| 1 |
6.996-009.0 |
Rear mirror |
|
| 1 |
6.996-452.0 |
Skylight |
|
| 2 |
6.996-237.0 |
Flange |
|
| 2 |
6.996-224.0 |
Heavy-duty roller |
|
| 2 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 2 |
7.304-435.0 |
Hexagonal head screw M12x30-8.8-A3E ISO |
|
| 2 |
6.996-186.0 |
Oil tank hydraulic |
|
| 2 |
6.391-251.0 |
Hydraulic hose |
|
| 2 |
7.306-062.0 |
Cylinder head screw M10x25 -8.8-A3E DIN |
|
| 2 |
6.996-324.0 |
Plug valve |
|
| 2 |
6.996-737.0 |
Screw plug |
|
| 2 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 2 |
6.996-368.0 |
Hydraulic hose 1480 |
|
| 2 |
7.304-085.0 |
Hexagonal head screw M6x55-8.8-A2E ISO |
|
| 2 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 2 |
6.386-332.0 |
Cutting ring D 6-L/S-1.4571 DIN 3861 |
|
| 2 |
6.997-133.0 |
Screw connector E212.112L |
|
| 2 |
7.304-495.0 |
Hexagonal head screw M 4x16-A4-70 ISO 4 |
|
| 2 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 2 |
6.996-882.0 |
Distributor piston |
|
| 2 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 2 |
4.040-220.0 |
Connection piece pipe 4 ZOLL |
|
| 2 |
6.996-971.0 |
Screw connector |
|
| 2 |
4.040-117.0 |
Sheet metal component complete left Tuer |
|
| 2 |
6.996-063.0 |
Brake pedal |
|
| 2 |
4.040-336.0 |
Switch set |
|
| 2 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 2 |
6.996-462.0 |
Covering cap |
|
| 2 |
6.996-011.0 |
Rear mirror heated |
|
| 2 |
6.997-231.0 |
Plate roof |
|
| 3 |
6.996-238.0 |
Fixing motor |
|
| 3 |
7.311-214.0 |
Hexagon nut M20 -04-A2E ISO 4035 |
|
| 3 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 3 |
7.304-415.0 |
Hexagonal head screw M10x25-8.8-A3E ISO |
|
| 3 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 3 |
6.996-187.0 |
Flange |
|
| 3 |
6.273-260.0 |
Sealing tape 7mmx2,5mm |
|
| 3 |
6.391-250.0 |
Hydraulic hose |
|
| 3 |
6.996-526.0 |
Serrated locking washer d.10 |
|
| 3 |
7.306-011.0 |
Cylinder head screw M 5x12-8.8-A2E DIN |
|
| 3 |
6.996-653.0 |
Valve Druckbegr. |
|
| 3 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 3 |
6.997-118.0 |
Screw connector E237.06 |
|
| 3 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 3 |
6.996-311.0 |
Bearing |
|
| 3 |
6.386-346.0 |
Union nut A 6-L |
|
| 3 |
6.996-413.0 |
Manual pump |
|
| 3 |
6.373-682.0 |
Holder for broom |
|
| 3 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 3 |
6.996-883.0 |
Receptacles for tabs 4MM |
|
| 3 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 3 |
6.391-129.0 |
Hose clip |
|
| 3 |
6.996-141.0 |
Elbow connector |
|
| 3 |
6.375-337.0 |
Closure with key Southco Serie1 |
|
| 3 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 3 |
4.040-337.0 |
Switch set |
|
| 3 |
6.996-517.0 |
Rocker switch |
|
| 3 |
6.996-472.0 |
Sliding window left |
|
| 3 |
6.996-460.0 |
Sliding window right |
|
| 3 |
6.996-013.0 |
Holder heated |
|
| 4 |
7.314-943.0 |
Spring pin 4x18-St ISO 8752 |
|
| 4 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 4 |
6.997-171.0 |
Hose clip |
|
| 4 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 4 |
7.312-005.0 |
Washer 10-200HV-A3E ISO 7090 |
|
| 4 |
6.996-188.0 |
Всасывающий фильтр |
|
| 4 |
6.391-225.0 |
Hydraulic hose |
|
| 4 |
6.413-367.0 |
Valve control system blower |
|
| 4 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 4 |
6.997-105.0 |
Countersunk screw M8-45 |
|
| 4 |
6.390-996.0 |
Hydraulic hose / Pos. 1430 |
|
| 4 |
6.996-314.0 |
Bolt bottom |
|
| 4 |
7.311-424.0 |
Hexagon nut M4 -8-A2E ISO 7040 |
|
| 4 |
6.996-694.0 |
Ram protection right |
|
| 4 |
6.996-884.0 |
Cone ring 4MM |
|
| 4 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 4 |
6.996-535.0 |
Hose |
|
| 4 |
6.997-134.0 |
Screw connector E212.106L |
|
| 4 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 4 |
6.996-052.0 |
Joystick |
|
| 4 |
6.996-473.0 |
Glass pane bottom -FHS 518226 |
|
| 4 |
6.996-461.0 |
Glass pane bottom |
|
| 4 |
6.996-015.0 |
Plate heated |
|
| 5 |
6.996-239.0 |
Wheel turbine |
|
| 5 |
4.040-412.0 |
Assembly group suction mouth |
|
| 5 |
6.996-215.0 |
Suction hose |
|
| 5 |
5.007-848.0 |
Plate |
|
| 5 |
7.305-627.0 |
Countersunk screw M8x25-A2-70 ISO 10642 |
|
| 5 |
6.391-226.0 |
Hydraulic hose |
|
| 5 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 5 |
6.996-648.0 |
Control device Menge |
|
| 5 |
6.997-104.0 |
Screw connector E212.115L |
|
| 5 |
7.304-452.0 |
Hexagonal head screw M16X 50-8.8-A3E IS |
|
| 5 |
7.316-443.0 |
Cotter 6,3x50 -A ISO 1234 |
|
| 5 |
6.390-997.0 |
Hydraulic hose |
|
| 5 |
7.304-096.0 |
Hexagonal head screw M8x60-8.8-A2E ISO |
|
| 5 |
6.996-695.0 |
Ram protection left |
|
| 5 |
6.996-885.0 |
Hollow screw 4MM |
|
| 5 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 5 |
5.470-047.0 |
"""Coupler G 3/8"""" BSP """ |
|
| 5 |
6.997-118.0 |
Screw connector E237.06 |
|
| 5 |
6.368-106.0 |
Edge protection |
|
| 5 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 5 |
4.040-276.0 |
Switch SB r/L aisschalten |
|
| 5 |
6.996-475.0 |
Lock door |
|
| 5 |
6.996-470.0 |
Lock door |
|
| 5 |
6.996-511.0 |
Spacer sleeve |
|
| 6 |
4.040-405.0 |
Housing turbine |
|
| 6 |
6.996-226.0 |
Plate fixing |
|
| 6 |
7.304-152.0 |
Hexagonal head screw M16x60-8.8-A2E ISO |
|
| 6 |
6.996-837.0 |
Plug-in connection triple-pole |
|
| 6 |
6.330-208.0 |
Spring TORSION |
|
| 6 |
6.996-189.0 |
Filter filling |
|
| 6 |
6.391-223.0 |
Hydraulic hose |
|
| 6 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 6 |
6.996-654.0 |
Valve Druckbegr. |
|
| 6 |
6.996-697.0 |
Screw connector E237.15L |
|
| 6 |
6.391-198.0 |
Hydraulic hose |
|
| 6 |
6.413-399.0 |
Valve DBV |
|
| 6 |
6.996-312.0 |
Hydraulic cylinder |
|
| 6 |
6.997-124.0 |
Screw connector E302.06L |
|
| 6 |
6.997-118.0 |
Screw connector E237.06 |
|
| 6 |
6.996-886.0 |
Screw plug |
|
| 6 |
6.997-222.0 |
Camera |
|
| 6 |
5.310-136.0 |
Nut G 3/8 BSP |
|
| 6 |
6.996-737.0 |
Screw plug |
|
| 6 |
7.304-040.0 |
Hexagonal head screw M12x100-A4-70 ISO 4 |
|
| 6 |
7.304-381.0 |
Hexagonal head screw M 6x10-8.8-A2E ISO |
|
| 6 |
6.368-217.0 |
Cap |
|
| 6 |
6.996-959.0 |
Countersunk screw M 8x40 |
|
| 7 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 7 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 7 |
7.311-426.0 |
Hexagon nut M16-04-A2E ISO 10511 |
|
| 7 |
6.996-411.0 |
Holder |
|
| 7 |
5.128-612.0 |
Tube |
|
| 7 |
6.996-575.0 |
Set of gaskets |
|
| 7 |
6.391-224.0 |
Hydraulic hose |
|
| 7 |
6.996-971.0 |
Screw connector |
|
| 7 |
6.413-347.0 |
Valve Logik |
|
| 7 |
7.304-041.0 |
Hexagonal head screw M16x100-8.8-A3E IS |
|
| 7 |
6.996-313.0 |
Bolt lifting cylinder |
|
| 7 |
6.996-339.0 |
Hydraulic hose 1320 |
|
| 7 |
6.391-231.0 |
Hydraulic hose |
|
| 7 |
6.996-887.0 |
Seal CU 8x12 |
|
| 7 |
6.997-223.0 |
Monitor 5 ZOLL |
|
| 7 |
5.409-511.0 |
"""Nipple 1/4""""-BSPT """ |
|
| 7 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 7 |
7.304-810.0 |
Hexagonal head screw M 8x45-A4-70 ISO 4 |
|
| 7 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 7 |
6.996-062.0 |
Jumper socket |
|
| 7 |
6.321-142.0 |
Handhold |
|
| 7 |
7.305-639.0 |
Countersunk screw M8x20-A2-70 ISO 10642 |
|
| 8 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 8 |
5.365-253.0 |
Rubber lip |
|
| 8 |
6.997-120.0 |
Hinge top M16X2 IN |
|
| 8 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 8 |
7.306-146.0 |
Cylinder head screw M12x70 -A4-70 ISO 4 |
|
| 8 |
6.413-366.0 |
Valve block |
|
| 8 |
6.996-141.0 |
Elbow connector |
|
| 8 |
6.996-324.0 |
Plug valve |
|
| 8 |
6.391-214.0 |
Hydraulic hose |
|
| 8 |
6.997-119.0 |
Bush |
|
| 8 |
6.413-389.0 |
Valves control system radiator |
|
| 8 |
7.304-363.0 |
Hexagonal head screw M 4X 20- 8.8-A2E I |
|
| 8 |
6.997-122.0 |
Screw connector E212.106L |
|
| 8 |
6.391-230.0 |
Hydraulic hose |
|
| 8 |
6.996-361.0 |
Rear reflector |
|
| 8 |
6.996-888.0 |
Seal CU 16X20 |
|
| 8 |
5.310-134.0 |
Nut 1/4 BSPT 521364 |
|
| 8 |
7.362-005.0 |
Joint ring A14x18 -Cu DIN 7603 |
|
| 8 |
7.312-268.0 |
Washer 8 -A2 ISO 7094 |
|
| 8 |
6.996-028.0 |
Steering wheel |
|
| 8 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 8 |
6.996-014.0 |
Retainer plate mirror |
|
| 9 |
6.996-982.0 |
Rubber buffer 30X30 M |
|
| 9 |
6.996-228.0 |
Rag fixing |
|
| 9 |
7.304-035.0 |
Hexagonal head screw M16X 50-A4-70 ISO |
|
| 9 |
7.304-406.0 |
Hexagonal head screw M 8x35-8.8-A2E IS |
|
| 9 |
6.996-190.0 |
Screw plug |
|
| 9 |
6.413-326.0 |
Valve 02000.0720 |
|
| 9 |
6.386-907.0 |
Screw connector |
|
| 9 |
6.996-650.0 |
Magnetic bobbin 17W |
|
| 9 |
6.996-965.0 |
Screw connector E212.112L |
|
| 9 |
6.391-197.0 |
Hydraulic hose |
|
| 9 |
6.386-632.0 |
Screw connector |
|
| 9 |
6.630-443.0 |
Switch with cable |
|
| 9 |
6.996-162.0 |
Limit switch |
|
| 9 |
6.630-367.0 |
Switch Cobo |
|
| 9 |
6.386-714.0 |
Screw connector |
|
| 9 |
7.306-057.0 |
Screw M4x10 -8.8-R2R (In6Rd) |
|
| 9 |
4.040-217.0 |
Coupler |
|
| 9 |
6.395-221.0 |
"""Hollow screw 1/4""""-19 """ |
|
| 9 |
7.311-514.0 |
Hexagon nut M 8-A2-70 ISO 7040 |
|
| 9 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 9 |
6.996-029.0 |
Выключатель качалки |
|
| 9 |
6.996-465.0 |
Angle hinge |
|
| 10 |
6.996-984.0 |
Rubber buffer 30x20 |
|
| 10 |
6.996-229.0 |
Slide part |
|
| 10 |
6.996-216.0 |
Holder suction mouth |
|
| 10 |
6.996-162.0 |
Limit switch |
|
| 10 |
6.630-367.0 |
Switch Cobo |
|
| 10 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 10 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 10 |
6.996-735.0 |
Valve Druckbegr. |
|
| 10 |
6.996-747.0 |
Valve Druckbegr. |
|
| 10 |
6.391-221.0 |
Hydraulic hose |
|
| 10 |
6.996-645.0 |
Valve insert 2/2 |
|
| 10 |
6.996-144.0 |
Hydraulic hose 1180 |
|
| 10 |
6.390-995.0 |
Tube complete |
|
| 10 |
6.391-249.0 |
Hydraulic hose |
|
| 10 |
7.311-424.0 |
Hexagon nut M4 -8-A2E ISO 7040 |
|
| 10 |
6.996-222.0 |
Filter |
|
| 10 |
6.386-197.0 |
Screw connector GE 6-LR1/2 |
|
| 10 |
6.996-889.0 |
Hose assembly |
|
| 10 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 10 |
4.040-216.0 |
Holder |
|
| 10 |
6.996-319.0 |
T-Screw connection |
|
| 10 |
5.110-987.0 |
Sleeve |
|
| 10 |
6.996-055.0 |
Throttle cable |
|
| 10 |
6.996-030.0 |
Выключатель качалки |
|
| 10 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 10 |
6.996-508.0 |
Holder |
|
| 11 |
6.996-990.0 |
Nut M18 |
|
| 11 |
6.997-169.0 |
Blind rivet 6,4X16,7 |
|
| 11 |
7.311-213.0 |
Hexagon nut M16 -04-A2E ISO 4035 |
|
| 11 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 11 |
6.996-982.0 |
Rubber buffer 30X30 M |
|
| 11 |
6.996-738.0 |
Manifold block |
|
| 11 |
6.686-295.0 |
Coil 12V 02000.0122 |
|
| 11 |
6.413-333.0 |
Valve 3/2 02000.0534 |
|
| 11 |
6.996-971.0 |
Screw connector |
|
| 11 |
6.391-229.0 |
Hydraulic hose |
|
| 11 |
6.391-196.0 |
Hydraulic hose |
|
| 11 |
6.996-965.0 |
Screw connector E212.112L |
|
| 11 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 11 |
6.391-253.0 |
Hydraulic hose |
|
| 11 |
6.996-890.0 |
Hose assembly 3AD |
|
| 11 |
7.306-078.0 |
Screw M5x20 -8.8-R2R (In6Rd) |
|
| 11 |
5.470-045.0 |
Coupler 4 ZOLL 521351 |
|
| 11 |
6.630-278.0 |
Switch Kombi |
|
| 11 |
7.306-215.0 |
Screw M5x45 -8.8-R2R (In6Rd) |
|
| 11 |
6.996-033.0 |
Switch |
|
| 11 |
6.996-466.0 |
Hinge door |
|
| 11 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 12 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 12 |
6.996-217.0 |
Threaded rod |
|
| 12 |
7.343-014.0 |
Locking ring 8x0,8-FST-PHR DIN 471 |
|
| 12 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 12 |
6.273-239.0 |
Strap Zellopren |
|
| 12 |
6.996-739.0 |
Screw connector |
|
| 12 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 12 |
6.391-211.0 |
Hydraulic hose |
|
| 12 |
6.996-070.0 |
Hydraulic hose 1070 |
|
| 12 |
7.312-057.0 |
Washer 16 -A2 ISO 7090 |
|
| 12 |
6.385-944.0 |
Screw connector 14/8-10/L12-DM |
|
| 12 |
6.997-125.0 |
Pipe clamp 6X15 |
|
| 12 |
6.996-891.0 |
Hose assembly 550 |
|
| 12 |
7.304-537.0 |
Hexagonal head screw M 8x30-A4-70 ISO 4 |
|
| 12 |
6.996-441.0 |
Amplifier proportional |
|
| 12 |
6.996-543.0 |
Cover D305MM |
|
| 12 |
6.316-056.0 |
Bolt |
|
| 12 |
6.996-031.0 |
Instrument panel |
|
| 12 |
6.996-474.0 |
Fixing cylinder |
|
| 12 |
6.996-467.0 |
Fixing cylinder |
|
| 12 |
6.996-016.0 |
Cap |
|
| 13 |
6.997-102.0 |
"""Pipe fitting XGE 18 LR 1/2""""-ED """ |
|
| 13 |
6.996-230.0 |
Axle suction mouth flap |
|
| 13 |
6.996-218.0 |
Gallows |
|
| 13 |
6.431-219.0 |
Bowden wire bulk waste flap ICC 2 |
|
| 13 |
5.007-689.0 |
Plate |
|
| 13 |
6.997-104.0 |
Screw connector E212.115L |
|
| 13 |
6.997-155.0 |
O-Ring seal 70SHORE NBR |
|
| 13 |
7.306-138.0 |
Screw M6x60 -8.8-R3R (In6Rd) |
|
| 13 |
6.391-252.0 |
Hydraulic hose |
|
| 13 |
6.997-120.0 |
Hinge top M16X2 IN |
|
| 13 |
6.997-134.0 |
Screw connector E212.106L |
|
| 13 |
6.386-193.0 |
Screw connector -ST-A3K DIN 2353 |
|
| 13 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 13 |
6.997-162.0 |
Cable bushing 27x22 |
|
| 13 |
4.040-307.0 |
Assembly group holder LBS |
|
| 13 |
6.996-518.0 |
Potentiometer |
|
| 13 |
7.462-012.0 |
Fork head G 6x24-ST-A2E DIN 71752 |
|
| 13 |
6.996-057.0 |
Switch 2-level |
|
| 13 |
6.996-037.0 |
Switch |
|
| 13 |
6.316-089.0 |
Bolt |
|
| 13 |
6.996-017.0 |
Viewing hood |
|
| 14 |
6.391-228.0 |
Hydraulic hose |
|
| 14 |
4.040-267.0 |
Sheet metal component suction mouth comp |
|
| 14 |
6.996-219.0 |
Extension spring -FHS 516857 |
|
| 14 |
5.128-539.0 |
Bolt pedal A3699 |
|
| 14 |
5.007-849.0 |
Plate blower |
|
| 14 |
6.391-206.0 |
Hydraulic hose |
|
| 14 |
7.306-235.0 |
Cylinder head screw M10x120 -12.9-dac. |
|
| 14 |
6.391-214.0 |
Hydraulic hose |
|
| 14 |
6.391-198.0 |
Hydraulic hose |
|
| 14 |
6.996-619.0 |
Temperature probe |
|
| 14 |
7.311-213.0 |
Hexagon nut M16 -04-A2E ISO 4035 |
|
| 14 |
6.391-194.0 |
Hydraulic hose |
|
| 14 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 14 |
6.996-893.0 |
Screw connector |
|
| 14 |
6.997-220.0 |
Connecting cable |
|
| 14 |
5.363-595.0 |
Seal 180/114/4 |
|
| 14 |
5.553-545.0 |
Piston |
|
| 14 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 14 |
6.996-054.0 |
Bowden wire |
|
| 14 |
7.462-006.0 |
Fork head G8x16 -St-A2E DIN71752 |
|
| 14 |
6.996-018.0 |
Windscreen wiper |
|
| 15 |
6.391-229.0 |
Hydraulic hose |
|
| 15 |
6.431-219.0 |
Bowden wire bulk waste flap ICC 2 |
|
| 15 |
6.996-220.0 |
Hydraulic cylinder |
|
| 15 |
7.462-013.0 |
Fork head G8x32 -St-A2E DIN71752 |
|
| 15 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 15 |
7.312-023.0 |
Serrated lock washer A10,5-1.4310 DIN 6 |
|
| 15 |
6.997-129.0 |
Screw connector E212.122L |
|
| 15 |
6.391-200.0 |
Hydraulic hose |
|
| 15 |
6.997-104.0 |
Screw connector E212.115L |
|
| 15 |
6.391-206.0 |
Hydraulic hose |
|
| 15 |
6.401-275.0 |
Hinge top M16 |
|
| 15 |
6.391-192.0 |
Hydraulic hose |
|
| 15 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 15 |
6.996-414.0 |
Holder |
|
| 15 |
6.996-894.0 |
Hose assembly 2AD |
|
| 15 |
6.641-464.0 |
Cable tie |
|
| 15 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 15 |
6.365-536.0 |
Set of gaskets |
|
| 15 |
6.996-065.0 |
Threaded rod |
|
| 15 |
6.368-103.0 |
Cap 19 |
|
| 15 |
6.996-034.0 |
Switch |
|
| 15 |
6.996-464.0 |
Gas spring |
|
| 15 |
6.996-019.0 |
Wiper arm complete |
|
| 16 |
6.391-227.0 |
Hydraulic hose |
|
| 16 |
6.996-233.0 |
Clamping part |
|
| 16 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 16 |
5.515-193.0 |
Roller A3677 |
|
| 16 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 16 |
6.391-209.0 |
Hydraulic hose |
|
| 16 |
6.413-335.0 |
Valve 3/2 02000.0604 |
|
| 16 |
6.996-972.0 |
Drain plug |
|
| 16 |
6.996-348.0 |
Screw connector |
|
| 16 |
6.391-195.0 |
Hydraulic hose |
|
| 16 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 16 |
6.996-415.0 |
Tube |
|
| 16 |
6.996-895.0 |
Tube red 4mm |
|
| 16 |
7.644-006.0 |
Fuse insert C 3 DIN 72581-3 |
|
| 16 |
6.997-186.0 |
Elbow connector 8MM |
|
| 16 |
6.391-665.0 |
Hydraulic hose |
|
| 16 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 16 |
6.385-896.0 |
Elbow screw connector |
|
| 16 |
6.996-039.0 |
Steering pillar |
|
| 16 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 16 |
6.996-020.0 |
Wiper motor |
|
| 17 |
6.996-515.0 |
T-Piece |
|
| 17 |
7.304-143.0 |
Hexagonal head screw M12x60-8.8-A2E ISO |
|
| 17 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 17 |
4.040-188.0 |
Sheet metal component operation |
|
| 17 |
6.997-129.0 |
Screw connector E212.122L |
|
| 17 |
6.997-152.0 |
Screw connector E707.22-18 |
|
| 17 |
6.996-913.0 |
Check valve |
|
| 17 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 17 |
6.996-143.0 |
Double nipple |
|
| 17 |
6.390-968.0 |
Hydraulic hose |
|
| 17 |
6.391-231.0 |
Hydraulic hose |
|
| 17 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 17 |
6.996-896.0 |
Clamp |
|
| 17 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 17 |
7.304-085.0 |
Hexagonal head screw M6x55-8.8-A2E ISO |
|
| 17 |
6.996-770.0 |
Bellows |
|
| 17 |
6.996-034.0 |
Switch |
|
| 17 |
6.996-035.0 |
Covering left |
|
| 17 |
7.312-073.0 |
Washer 8 -CuZn ISO 7092 |
|
| 17 |
6.996-021.0 |
Tank complete |
|
| 18 |
6.391-230.0 |
Hydraulic hose |
|
| 18 |
6.390-471.0 |
Hose |
|
| 18 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 18 |
7.311-029.0 |
Hexagon nut M 5-A4-70 ISO 7042 |
|
| 18 |
6.316-089.0 |
Bolt |
|
| 18 |
6.391-216.0 |
Hydraulic hose |
|
| 18 |
6.391-228.0 |
Hydraulic hose |
|
| 18 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 18 |
6.996-141.0 |
Elbow connector |
|
| 18 |
6.390-967.0 |
Hydraulic hose |
|
| 18 |
6.996-319.0 |
T-Screw connection |
|
| 18 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 18 |
6.996-897.0 |
Swivel joint M8 |
|
| 18 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 18 |
6.996-066.0 |
Bowden wire |
|
| 18 |
6.413-285.0 |
Ball valve |
|
| 18 |
6.996-040.0 |
Lever |
|
| 19 |
6.386-909.0 |
"""Screw connector 1/8"""" """ |
|
| 19 |
6.997-122.0 |
Screw connector E212.106L |
|
| 19 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 19 |
6.391-222.0 |
Hydraulic hose |
|
| 19 |
6.391-193.0 |
Hydraulic hose |
|
| 19 |
6.996-220.0 |
Hydraulic cylinder |
|
| 19 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 19 |
6.997-282.0 |
Connecting piece M8 |
|
| 19 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 19 |
7.304-363.0 |
Hexagonal head screw M 4X 20- 8.8-A2E I |
|
| 19 |
6.996-635.0 |
Valve water |
|
| 19 |
6.996-805.0 |
Switch |
|
| 19 |
5.873-007.0 |
Key |
|
| 19 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 20 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 20 |
6.391-199.0 |
Hydraulic hose |
|
| 20 |
4.040-168.0 |
Sheet metal component |
|
| 20 |
7.306-075.0 |
Cylinder head screw M 8x 40-8.8-A2E ISO |
|
| 20 |
7.306-042.0 |
Cylinder head screw M8x25 -8.8-A2E ISO4 |
|
| 20 |
6.997-134.0 |
Screw connector E212.106L |
|
| 20 |
6.997-123.0 |
Screw connector E231 .210L |
|
| 20 |
6.413-330.0 |
Valve 2/2 02000.0501 |
|
| 20 |
7.304-446.0 |
Hexagonal head screw M12x70-8.8-A3E ISO |
|
| 20 |
6.996-544.0 |
Clamp |
|
| 20 |
6.996-067.0 |
Lever valve |
|
| 20 |
6.996-636.0 |
Magnetic bobbin |
|
| 20 |
6.391-201.0 |
Hydraulic hose |
|
| 20 |
6.439-163.0 |
Doorhandle external |
|
| 21 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 21 |
6.996-222.0 |
Filter |
|
| 21 |
6.996-196.0 |
Крышка |
|
| 21 |
6.996-319.0 |
T-Screw connection |
|
| 21 |
6.391-200.0 |
Hydraulic hose |
|
| 21 |
6.997-126.0 |
Hexagonal head screw M12X50 |
|
| 21 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 21 |
6.996-900.0 |
Hose assembly |
|
| 21 |
4.040-218.0 |
Strap |
|
| 21 |
6.996-068.0 |
Throttle |
|
| 21 |
6.996-324.0 |
Plug valve |
|
| 21 |
6.996-182.0 |
Hydraulic hose 1560 |
|
| 21 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 22 |
6.996-989.0 |
"""Double nipple 3/8"""" """ |
|
| 22 |
6.997-240.0 |
Washer 8.4X20X1.2 |
|
| 22 |
5.115-711.0 |
Washer |
|
| 22 |
6.996-197.0 |
Filter cartridge |
|
| 22 |
6.391-199.0 |
Hydraulic hose |
|
| 22 |
5.128-527.0 |
Bush A9199 |
|
| 22 |
6.997-127.0 |
Ball joint M12 |
|
| 22 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 22 |
6.996-901.0 |
Elbow 8X1 |
|
| 22 |
5.128-556.0 |
Tube |
|
| 22 |
6.996-069.0 |
Holder valve |
|
| 22 |
7.306-056.0 |
Screw M4x8 -8.8-R2R (In6Rd) |
|
| 22 |
7.304-382.0 |
Hexagonal head screw M 6x12-8.8-A2E ISO |
|
| 23 |
6.997-089.0 |
Ball valve |
|
| 23 |
6.997-185.0 |
T-Piece 8-8MM |
|
| 23 |
6.996-198.0 |
Seal rubber |
|
| 23 |
6.391-203.0 |
Hydraulic hose |
|
| 23 |
7.312-019.0 |
Washer 16-200HV-A3E ISO7090 |
|
| 23 |
6.996-324.0 |
Plug valve |
|
| 23 |
7.311-220.0 |
Hexagon nut M12-04-A2E ISO 4035 |
|
| 23 |
6.996-577.0 |
Valve insert |
|
| 23 |
6.996-840.0 |
Valve insert |
|
| 23 |
6.996-902.0 |
Pipe clamp rubber |
|
| 23 |
5.058-485.0 |
Sheet metal component 521145 |
|
| 23 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 23 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 23 |
6.349-001.0 |
Steering OSPC-125-LS |
|
| 23 |
6.996-766.0 |
Sleeve complete |
|
| 23 |
6.996-476.0 |
Spacer sleeve |
|
| 23 |
6.996-022.0 |
Plate |
|
| 24 |
6.997-217.0 |
Pipe clamp 22X20 |
|
| 24 |
6.996-199.0 |
O-Ring seal |
|
| 24 |
6.391-227.0 |
Hydraulic hose |
|
| 24 |
6.997-104.0 |
Screw connector E212.115L |
|
| 24 |
6.997-122.0 |
Screw connector E212.106L |
|
| 24 |
6.996-576.0 |
Choker valve |
|
| 24 |
6.996-903.0 |
Joining piece |
|
| 24 |
4.040-221.0 |
Sheet metal component |
|
| 24 |
6.996-071.0 |
Connection nipple |
|
| 24 |
6.996-791.0 |
Hose plastics |
|
| 24 |
6.996-184.0 |
Hydraulic hose 1570 |
|
| 24 |
7.306-187.0 |
Screw M5x50 -A2-70 (In6Rd) |
|
| 24 |
7.306-207.0 |
Screw M4x12 -A2-70 (In6Rd) |
|
| 25 |
6.997-106.0 |
Bulkhead screw connection 3/8 |
|
| 25 |
6.996-876.0 |
Reducing nipple |
|
| 25 |
6.997-102.0 |
"""Pipe fitting XGE 18 LR 1/2""""-ED """ |
|
| 25 |
6.996-697.0 |
Screw connector E237.15L |
|
| 25 |
6.391-253.0 |
Hydraulic hose |
|
| 25 |
5.006-879.0 |
Cord rubber |
|
| 25 |
7.304-509.0 |
Hexagonal head screw M 6x25-A4-70 ISO 4 |
|
| 25 |
6.996-582.0 |
Belt fixing |
|
| 25 |
6.391-252.0 |
Hydraulic hose |
|
| 25 |
7.306-209.0 |
Screw M 4X 20-A2-70 (In6Rd) |
|
| 25 |
7.313-032.0 |
Spring washer A 5-Edelstahl DIN 128 |
|
| 26 |
6.997-107.0 |
Double nipple E212 |
|
| 26 |
6.413-344.0 |
"""Choker valve 1/4"""" """ |
|
| 26 |
6.997-130.0 |
Screw connector E212.115L |
|
| 26 |
6.997-118.0 |
Screw connector E237.06 |
|
| 26 |
6.504-052.0 |
Hydraulic cylinder |
|
| 26 |
6.391-232.0 |
Hydraulic hose |
|
| 26 |
6.437-543.0 |
Bellows |
|
| 26 |
6.996-586.0 |
Nozzle |
|
| 26 |
7.306-075.0 |
Cylinder head screw M 8x 40-8.8-A2E ISO |
|
| 26 |
6.310-089.0 |
Rivet nut M 5 |
|
| 26 |
7.306-062.0 |
Cylinder head screw M10x25 -8.8-A3E DIN |
|
| 26 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 27 |
6.996-791.0 |
Hose plastics |
|
| 27 |
6.997-104.0 |
Screw connector E212.115L |
|
| 27 |
6.391-475.0 |
Protection hose |
|
| 27 |
6.386-908.0 |
Screw connector |
|
| 27 |
7.306-031.0 |
Screw M 6x16-A2-70 DIN 7984 |
|
| 27 |
6.997-189.0 |
Hose nozzle 8mm |
|
| 27 |
7.306-208.0 |
Screw M 4x16-A2-70 (IN6RD) |
|
| 27 |
6.997-187.0 |
Y-Piece 8-8MM |
|
| 27 |
6.996-038.0 |
Covering bottom |
|
| 27 |
6.996-468.0 |
Closure |
|
| 28 |
5.064-115.0 |
Cover tank hydraulic |
|
| 28 |
6.391-218.0 |
Hydraulic hose |
|
| 28 |
7.311-426.0 |
Hexagon nut M16-04-A2E ISO 10511 |
|
| 28 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 28 |
6.997-190.0 |
Cable tie 775MM |
|
| 28 |
6.996-073.0 |
Throttle pedal |
|
| 28 |
6.996-960.0 |
Tube plastics 8X6 |
|
| 28 |
6.996-036.0 |
Covering right |
|
| 28 |
7.306-040.0 |
Cylinder head screw M8x16 -8.8-A2E ISO4 |
|
| 29 |
6.997-108.0 |
"""Elbow connector 3/8"""" """ |
|
| 29 |
6.391-207.0 |
Hydraulic hose |
|
| 29 |
6.391-217.0 |
Hydraulic hose |
|
| 29 |
6.996-580.0 |
Fuse burst pipe |
|
| 29 |
6.373-682.0 |
Holder for broom |
|
| 29 |
6.390-218.0 |
Hose clip 13,8 |
|
| 29 |
6.996-027.0 |
Ignition key |
|
| 30 |
6.997-109.0 |
T-Screw connection 3/8 |
|
| 30 |
6.996-964.0 |
Screw nipple |
|
| 30 |
6.996-203.0 |
Inspection glass |
|
| 30 |
6.387-178.0 |
"""Elbow D4-1""""-ZN-A EN 10242 """ |
|
| 30 |
6.321-160.0 |
Handhold foamed material |
|
| 30 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 30 |
6.388-192.0 |
Hose DN 6 |
|
| 30 |
6.996-516.0 |
Hydraulic hose 1380 |
|
| 31 |
6.997-110.0 |
Elbow screw connector |
|
| 31 |
6.386-769.0 |
Screw connector straight |
|
| 31 |
6.391-208.0 |
Hydraulic hose |
|
| 31 |
6.997-154.0 |
Screw connector E722.16-12 |
|
| 31 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 31 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 31 |
6.996-587.0 |
Nipple |
|
| 31 |
6.996-070.0 |
Hydraulic hose 1070 |
|
| 31 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 32 |
6.997-111.0 |
"""Double nipple 3/8"""" """ |
|
| 32 |
6.413-184.0 |
Check valve |
|
| 32 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 32 |
6.390-093.0 |
"""Hose stem 1"""" / D32 CuZn """ |
|
| 32 |
6.997-174.0 |
Washer 28X0.5X0.5 |
|
| 32 |
6.996-588.0 |
Coupler |
|
| 32 |
6.996-515.0 |
T-Piece |
|
| 32 |
6.996-061.0 |
Switch |
|
| 32 |
6.996-798.0 |
Bonding agent |
|
| 33 |
6.996-101.0 |
High pressure hose |
|
| 33 |
6.366-050.0 |
Sealing profile |
|
| 33 |
6.961-611.0 |
Hydraulic oil 20L |
|
| 33 |
6.391-208.0 |
Hydraulic hose |
|
| 33 |
5.112-702.0 |
Bush sweep tank lifting cylinder 521714 |
|
| 33 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 33 |
6.996-589.0 |
Screw connector |
|
| 33 |
6.996-514.0 |
Reduction |
|
| 33 |
6.996-062.0 |
Jumper socket |
|
| 33 |
6.286-443.0 |
Silicon Primer 206G+P |
|
| 33 |
6.869-035.0 |
Special cleansing agent |
|
| 33 |
6.996-767.0 |
Activator |
|
| 34 |
6.368-075.0 |
Drain plug |
|
| 34 |
4.070-306.0 |
Hydraulic oil 1,5 L |
|
| 34 |
6.401-381.0 |
SEALING SET |
|
| 34 |
6.996-905.0 |
Nipple metering 0.05 |
|
| 34 |
5.310-135.0 |
Nut G4 374 521353 |
|
| 34 |
6.997-104.0 |
Screw connector E212.115L |
|
| 34 |
6.996-923.0 |
Plate without threaded |
|
| 35 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 35 |
6.996-763.0 |
Screw connector |
|
| 35 |
6.391-209.0 |
Hydraulic hose |
|
| 35 |
5.378-151.0 |
Spacer lifting cylinder |
|
| 35 |
6.996-906.0 |
Nipple metering 0.20 |
|
| 35 |
6.996-847.0 |
Spacer rubber |
|
| 35 |
6.996-973.0 |
Screw connector |
|
| 35 |
6.996-924.0 |
Plate with threaded |
|
| 36 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 36 |
5.409-504.0 |
Nipple 519994 |
|
| 36 |
6.996-324.0 |
Plug valve |
|
| 36 |
5.116-373.0 |
Spacer washer lifting cylinder |
|
| 36 |
6.996-909.0 |
Screw plug |
|
| 36 |
6.996-169.0 |
Switch |
|
| 36 |
7.304-399.0 |
Hexagonal head screw M 8x25-8.8-A2E ISO |
|
| 37 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 37 |
6.997-132.0 |
Screw connector E336.112 |
|
| 37 |
6.465-025.0 |
Coupler |
|
| 37 |
6.996-170.0 |
Switch |
|
| 38 |
6.997-113.0 |
Spring washer 18 FORM B |
|
| 38 |
6.996-640.0 |
Pressure ring |
|
| 38 |
6.391-319.0 |
Hydraulic hose 1620 |
|
| 38 |
6.997-298.0 |
Nipple connection |
|
| 38 |
6.996-848.0 |
Base |
|
| 38 |
6.996-171.0 |
Switch |
|
| 39 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 39 |
6.997-284.0 |
O-Ring seal 85X4 70SHORE |
|
| 39 |
6.386-983.0 |
Screw connector XEW 22 L |
|
| 39 |
6.997-299.0 |
Screw connector adjustable |
|
| 39 |
6.641-458.0 |
Cable tape |
|
| 40 |
6.996-920.0 |
Ring 8mm, FHS 503071 |
|
| 40 |
5.363-597.0 |
Seal D40*27*2 NBR 70 |
|
| 40 |
6.996-763.0 |
Screw connector |
|
| 40 |
6.964-093.0 |
Viscous oil 1kg |
|
| 40 |
5.132-164.0 |
Threaded part 521357 |
|
| 40 |
6.996-172.0 |
Jumper socket |
|
| 41 |
5.363-598.0 |
Seal D32*21*2 NBR 70 |
|
| 41 |
5.443-040.0 |
Hose stem |
|
| 41 |
6.996-932.0 |
Valve |
|
| 41 |
6.996-774.0 |
Covering bottom right |
|
| 42 |
6.996-873.0 |
Handhold Gekroepft |
|
| 42 |
5.409-503.0 |
Nipple 519993 |
|
| 42 |
6.286-442.0 |
Adhesiv cloth tape Cellopren 50mm x 10m |
|
| 42 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 43 |
6.997-114.0 |
Elbow screw connector |
|
| 43 |
6.286-448.0 |
Silicon seal |
|
| 43 |
5.409-512.0 |
"""Screw connector 8-3/8"""" """ |
|
| 43 |
7.303-367.0 |
Sheet metal screw ST4,2X19,0-ST-A2E ISO |
|
| 44 |
6.996-874.0 |
Pressure controller |
|
| 44 |
6.386-983.0 |
Screw connector XEW 22 L |
|
| 44 |
6.996-791.0 |
Hose plastics |
|
| 44 |
7.312-293.0 |
Washer 4-A2 ISO 7093-1 |
|
| 45 |
6.997-115.0 |
Support sleeve 8-5.5 |
|
| 45 |
6.386-989.0 |
Screw connector XGE18LR3/4-ED |
|
| 45 |
7.311-235.0 |
Castle nut M12X1,5-8-A3E DIN 935 |
|
| 46 |
7.462-013.0 |
Fork head G8x32 -St-A2E DIN71752 |
|
| 46 |
6.997-116.0 |
"""Armature 8-3/8"""" """ |
|
| 46 |
6.387-178.0 |
"""Elbow D4-1""""-ZN-A EN 10242 """ |
|
| 46 |
6.996-989.0 |
"""Double nipple 3/8"""" """ |
|
| 47 |
6.316-089.0 |
Bolt |
|
| 47 |
6.996-791.0 |
Hose plastics |
|
| 47 |
6.997-311.0 |
Vacuum filter barrel recoil |
|
| 47 |
4.040-222.0 |
Tube |
|
| 48 |
5.057-916.0 |
Angle pivot point bulk waste flap |
|
| 48 |
6.997-117.0 |
Plug nipple 8MM |
|
| 48 |
6.997-312.0 |
Filter element |
|
| 48 |
5.007-723.0 |
Sheet metal component |
|
| 48 |
6.996-518.0 |
Potentiometer |
|
| 49 |
6.997-214.0 |
Elbow screw connector |
|
| 49 |
6.997-313.0 |
Set of gaskets |
|
| 49 |
5.470-046.0 |
Coupler 4 ZOLL 521355 |
|
| 49 |
6.996-526.0 |
Serrated locking washer d.10 |
|
| 50 |
6.997-314.0 |
Screw connector |
|
| 50 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 51 |
6.997-216.0 |
Strap PVC 15x4,5 |
|
| 51 |
6.997-420.0 |
Filter element |
|
| 51 |
7.304-415.0 |
Hexagonal head screw M10x25-8.8-A3E ISO |
|
| 52 |
5.008-419.0 |
Plate cleaning |
|
| 52 |
5.058-526.0 |
Sheet metal component |
|
| 53 |
4.040-428.0 |
Sheet metal component canal blower |
|
| 53 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 54 |
5.057-080.0 |
Sheet metal component cover exhaust air |
|
| 54 |
7.303-046.0 |
Screw M6x12 -St-R3R (In6Rd) |
|
| 55 |
5.384-966.0 |
Inscription windscreen wiper |
|
| 56 |
6.391-202.0 |
Hydraulic hose |
|
