Karcher (Керхер) Воздуходувка (0.207-190.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

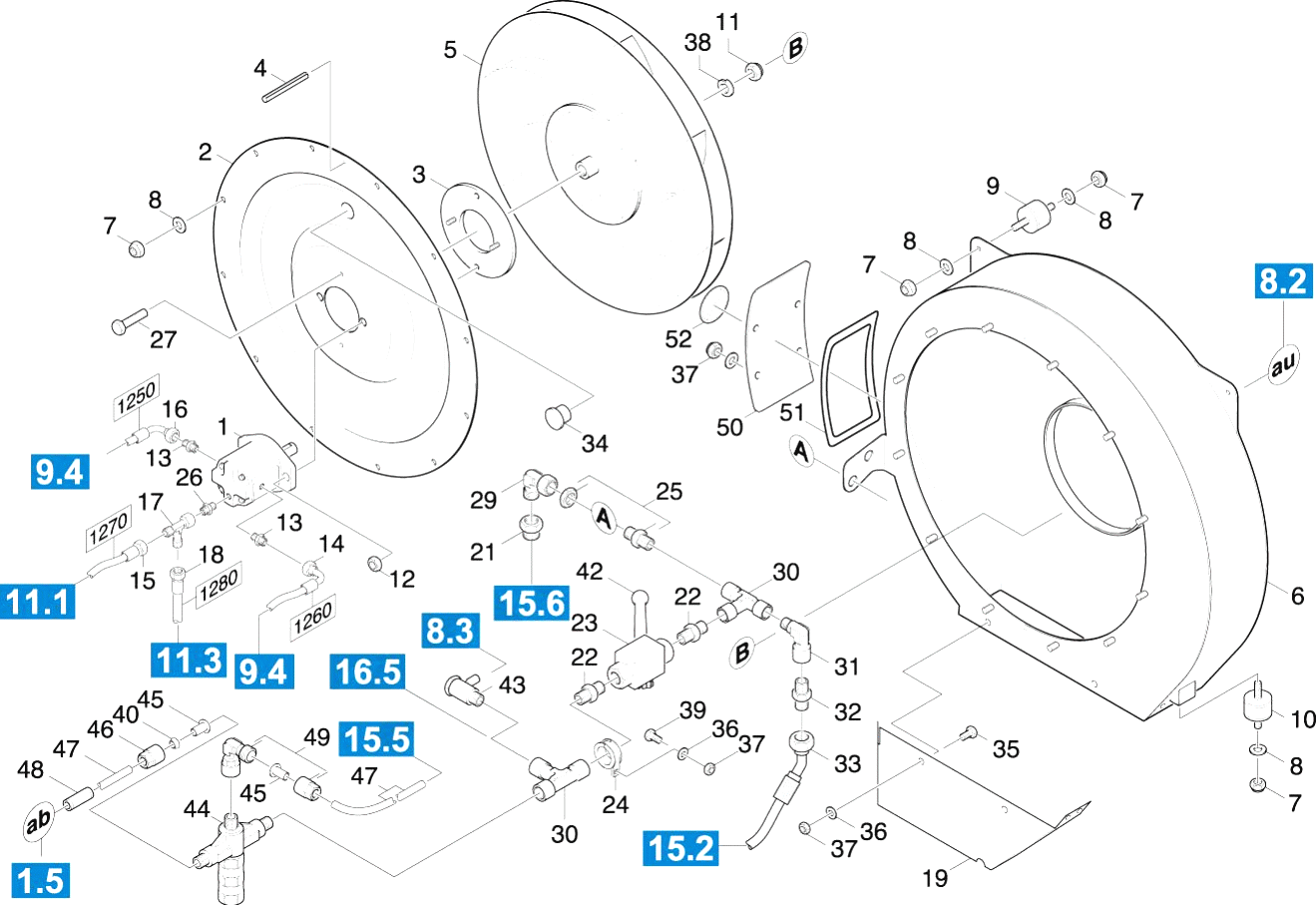

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.996-236.0	Hydraulic motor
1	6.996-223.0	Holder suction mouth complete
1	4.040-290.0	Sheet metal component suction mouth comp
1	2.850-491.0	Pedal bulk waste flap
1	6.996-214.0	Tube aspiration complete
1	4.040-187.0	Sheet metal component pedal
1	6.366-050.0	Sealing profile
1	6.997-094.0	Screw connector E287.15L
1	5.443-040.0	Hose stem
1	6.385-895.0	Screw connector
2	6.996-237.0	Flange
2	6.996-224.0	Heavy-duty roller
2	6.437-532.0	Bush 520896
2	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
2	7.304-435.0	Hexagonal head screw M12x30-8.8-A3E ISO
2	6.996-234.0	Canal aspiration turbine
2	6.997-095.0	Screw connector E707.18-15L
2	6.996-839.0	Tank grey
2	6.996-186.0	Oil tank hydraulic
2	6.996-733.0	Valve block flushing
3	6.996-238.0	Fixing motor
3	7.311-214.0	Hexagon nut M20 -04-A2E ISO 4035
3	6.321-046.0	Coating pedal
3	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
3	7.312-008.0	Washer 12-200HV-A3E ISO 7090
3	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
3	6.373-212.0	Pipe clamp
3	6.996-187.0	Flange
3	6.996-735.0	Valve Druckbegr.
4	7.314-943.0	Spring pin 4x18-St ISO 8752
4	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
4	6.330-208.0	Spring TORSION
4	6.997-171.0	Hose clip
4	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
4	7.312-005.0	Washer 10-200HV-A3E ISO 7090
4	7.386-804.0	Болтовое соединение SWEC-L18 -SS ISO843
4	6.996-188.0	Всасывающий фильтр
4	6.996-734.0	Valve flushing
4	6.413-326.0	Valve 02000.0720
5	6.996-239.0	Wheel turbine
5	4.040-412.0	Assembly group suction mouth
5	6.339-094.0	Rubber buffer
5	6.996-215.0	Suction hose
5	5.007-848.0	Plate
5	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
5	6.996-297.0	Hydraulic hose 1050
5	7.305-627.0	Countersunk screw M8x25-A2-70 ISO 10642
5	6.997-155.0	O-Ring seal 70SHORE NBR
6	6.996-240.0	Housing turbine
6	6.996-226.0	Plate fixing
6	4.040-160.0	Assembly group pipe
6	7.304-152.0	Hexagonal head screw M16x60-8.8-A2E ISO
6	6.330-208.0	Spring TORSION
6	6.996-837.0	Plug-in connection triple-pole
6	6.996-138.0	Hydraulic hose 1190
6	6.996-189.0	Filter filling
6	6.996-736.0	Coupler MESS
7	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
7	6.996-530.0	Serrated locking washer D8
7	6.437-531.0	Bush 520895
7	7.311-426.0	Hexagon nut M16-04-A2E ISO 10511
7	5.128-612.0	Tube
7	6.996-411.0	Holder
7	6.997-096.0	Screw connector E211
7	6.996-575.0	Set of gaskets
7	6.997-118.0	Screw connector E237.06
8	6.996-530.0	Serrated locking washer D8
8	5.365-253.0	Rubber lip
8	5.365-260.0	Rubber lip
8	7.462-023.0	Angle joint CS13 -A2E DIN 71802
8	6.997-120.0	Hinge top M16X2 IN
8	7.306-146.0	Cylinder head screw M12x70 -A4-70 ISO 4
8	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
8	6.996-436.0	Tube hydraulic
8	6.997-134.0	Screw connector E212.106L
9	6.996-982.0	Rubber buffer 30X30 M
9	6.996-228.0	Rag fixing
9	5.625-427.0	Belt pulley 520879
9	7.304-035.0	Hexagonal head screw M16X 50-A4-70 ISO
9	7.304-406.0	Hexagonal head screw M 8x35-8.8-A2E IS
9	6.997-097.0	Screw connector E261
9	6.996-190.0	Screw plug
9	6.996-737.0	Screw plug
10	6.996-984.0	Rubber buffer 30x20
10	6.996-229.0	Slide part
10	6.996-054.0	Bowden wire
10	6.996-216.0	Holder suction mouth
10	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
10	6.996-162.0	Limit switch
10	6.630-367.0	Switch Cobo
10	6.997-098.0	Screw connector E237
10	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
10	6.996-971.0	Screw connector
11	6.996-990.0	Nut M18
11	6.997-169.0	Blind rivet 6,4X16,7
11	5.116-041.0	Bolt 520893
11	7.311-213.0	Hexagon nut M16 -04-A2E ISO 4035
11	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
11	7.306-208.0	Screw M 4x16-A2-70 (IN6RD)
11	6.997-099.0	Screw connector E701
11	6.996-982.0	Rubber buffer 30X30 M
11	6.996-738.0	Manifold block
12	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
12	5.116-044.0	Bolt 520892
12	6.996-217.0	Threaded rod
12	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
12	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
12	6.373-656.0	Pipe clamp D40
12	6.273-239.0	Strap Zellopren
12	6.997-156.0	Screw connector E212.120S
13	6.997-102.0	"""Pipe fitting XGE 18 LR 1/2""""-ED """
13	6.996-230.0	Axle suction mouth flap
13	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
13	6.996-218.0	Gallows
13	6.431-219.0	Bowden wire bulk waste flap ICC 2
13	5.007-689.0	Plate
13	6.996-098.0	Check valve
13	6.997-104.0	Screw connector E212.115L
13	6.996-139.0	Hydraulic hose 1200
14	6.996-241.0	Hydraulic hose 1260
14	6.996-231.0	Flap suction mouth complete
14	4.040-267.0	Sheet metal component suction mouth comp
14	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
14	6.996-219.0	Extension spring -FHS 516857
14	5.128-539.0	Bolt pedal A3699
14	5.007-849.0	Plate blower
14	6.996-412.0	Hydraulic hose 1100
14	6.390-993.0	Hydraulic hose
14	6.996-137.0	Hydraulic hose 1230
15	6.996-245.0	Hydraulic hose 1270
15	6.996-054.0	Bowden wire
15	6.431-219.0	Bowden wire bulk waste flap ICC 2
15	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
15	6.996-220.0	Hydraulic cylinder
15	7.462-013.0	Fork head G8x32 -St-A2E DIN71752
15	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
15	6.996-050.0	Hydraulic hose
16	6.996-243.0	Hydraulic hose 1250
16	6.996-233.0	Clamping part
16	5.116-042.0	Washer
16	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
16	5.515-193.0	Roller A3677
16	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
16	6.996-548.0	Hydraulic hose 1150
16	6.996-193.0	Hydraulic hose 1020
17	6.996-515.0	T-Piece
17	7.304-143.0	Hexagonal head screw M12x60-8.8-A2E ISO
17	4.040-188.0	Sheet metal component operation
17	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
17	6.997-100.0	Screw connector E707
17	6.997-129.0	Screw connector E212.122L
18	6.996-242.0	Hydraulic hose 1280
18	6.997-170.0	Tube plastics D4
18	6.390-471.0	Hose
18	7.312-017.0	Washer 8-A2 ISO 7089
18	6.316-089.0	Bolt
18	7.311-029.0	Hexagon nut M 5-A4-70 ISO 7042
18	7.304-509.0	Hexagonal head screw M 6x25-A4-70 ISO 4
18	6.996-194.0	Hydraulic hose 1060
19	6.996-835.0	Air guide turbine
19	6.996-925.0	Screw connector
19	6.386-909.0	"""Screw connector 1/8"""" """
19	6.997-122.0	Screw connector E212.106L
19	7.312-002.0	Washer 5-200HV-A3E ISO 7090
19	6.997-101.0	Screw connector E287.18L
19	6.996-195.0	Hydraulic hose 1170
20	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
20	6.996-221.0	Hydraulic hose 1520
20	4.040-168.0	Sheet metal component
20	6.997-102.0	"""Pipe fitting XGE 18 LR 1/2""""-ED """
20	7.306-075.0	Cylinder head screw M 8x 40-8.8-A2E ISO
20	7.306-042.0	Cylinder head screw M8x25 -8.8-A2E ISO4
21	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
21	6.996-222.0	Filter
21	6.996-194.0	Hydraulic hose 1060
21	6.996-196.0	Крышка
22	6.996-989.0	"""Double nipple 3/8"""" """
22	6.997-240.0	Washer 8.4X20X1.2
22	5.115-711.0	Washer
22	6.996-296.0	Hydraulic hose 1130
22	6.996-197.0	Filter cartridge
23	6.997-089.0	Ball valve
23	6.996-926.0	Elbow screw connector
23	6.997-185.0	T-Piece 8-8MM
23	6.997-130.0	Screw connector E212.115L
24	6.996-979.0	Pipe clamp 28X15
24	6.997-217.0	Pipe clamp 22X20
24	6.996-875.0	Обратный клапан
24	6.997-104.0	Screw connector E212.115L
25	6.997-106.0	Bulkhead screw connection 3/8
25	6.996-876.0	Reducing nipple
25	6.996-533.0	Serrated locking washer D6
26	6.997-107.0	Double nipple E212
26	6.996-877.0	Choker valve
26	6.413-344.0	"""Choker valve 1/4"""" """
26	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
27	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
27	6.996-791.0	Hose plastics
28	6.996-920.0	Ring 8mm, FHS 503071
29	6.997-108.0	"""Elbow connector 3/8"""" """
29	6.997-115.0	Support sleeve 8-5.5
30	6.997-109.0	T-Screw connection 3/8
30	6.996-964.0	Screw nipple
31	6.997-110.0	Elbow screw connector
31	6.997-212.0	"""Plug nipple 4XG1/4"""" """
31	6.386-769.0	Screw connector straight
32	6.997-111.0	"""Double nipple 3/8"""" """
32	6.413-184.0	Check valve
33	6.996-101.0	High pressure hose
33	6.366-050.0	Sealing profile
34	6.368-075.0	Drain plug
34	7.316-344.0	Cotter 2,5x28-St-A2E ISO 1234
35	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
36	6.996-533.0	Serrated locking washer D6
36	5.515-186.0	Roller
37	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
37	4.040-127.0	Sheet metal component hinge GSK
38	6.997-113.0	Spring washer 18 FORM B
38	5.058-132.0	Sheet metal component flap 520873
39	7.304-536.0	Hexagonal head screw M 6x20-A4-70 ISO 4
39	5.100-405.0	Shaft 520883
40	6.996-920.0	Ring 8mm, FHS 503071
40	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
41	6.996-533.0	Serrated locking washer D6
42	6.996-873.0	Handhold Gekroepft
43	6.997-114.0	Elbow screw connector
43	5.007-767.0	Plate suction mouth
44	6.996-874.0	Pressure controller
45	6.997-115.0	Support sleeve 8-5.5
45	2.882-568.0	Conversion kit flap ICC2
46	6.997-116.0	"""Armature 8-3/8"""" """
46	6.431-219.0	Bowden wire bulk waste flap ICC 2
46	7.462-023.0	Angle joint CS13 -A2E DIN 71802
47	6.996-791.0	Hose plastics
48	6.997-117.0	Plug nipple 8MM
49	6.997-214.0	Elbow screw connector
50	5.007-768.0	Plate turbine
51	6.997-216.0	Strap PVC 15x4,5
