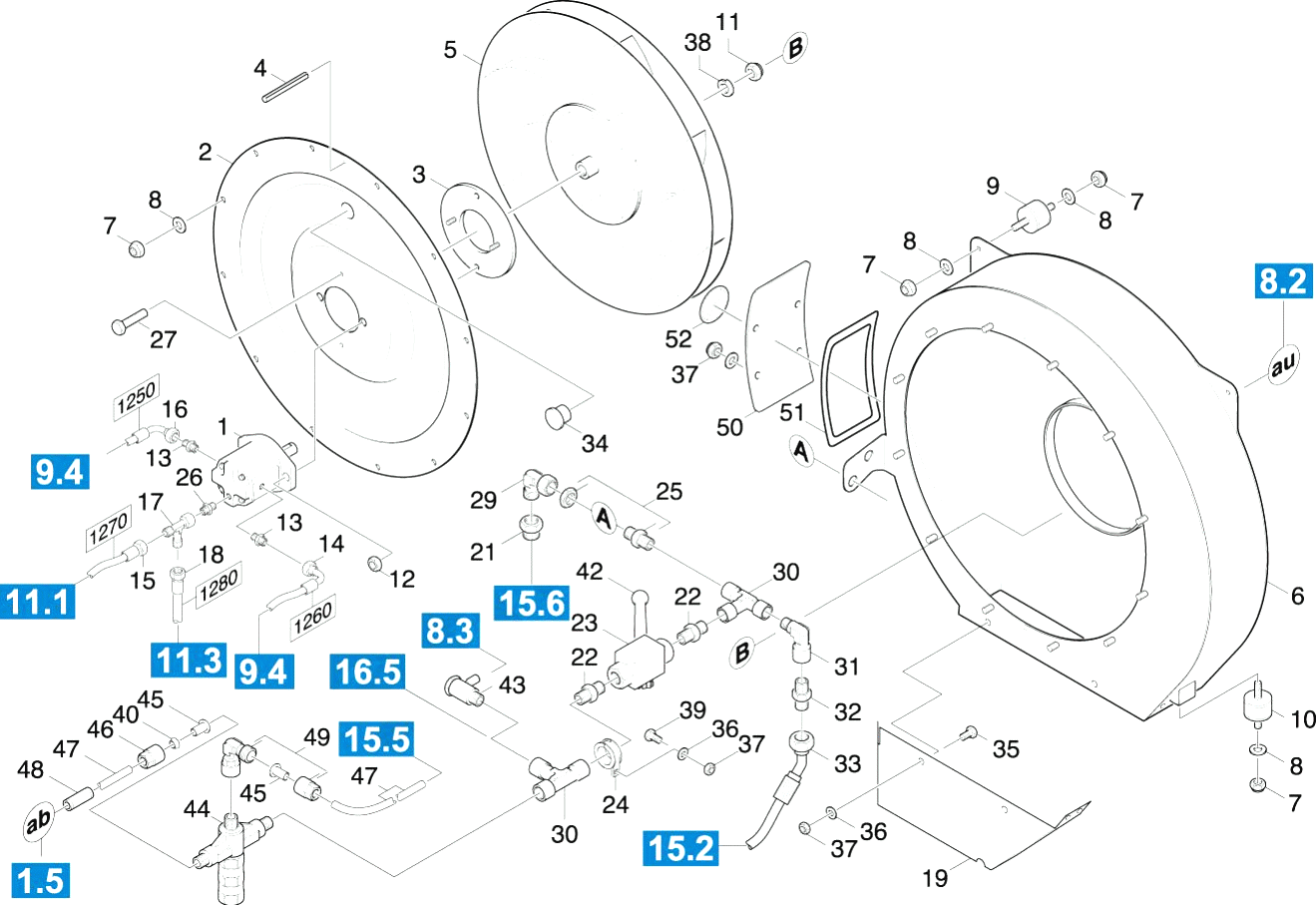

Karcher (Керхер) Воздуходувка (0.207-190.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
6.996-236.0 |
Hydraulic motor |
|
| 1 |
6.996-223.0 |
Holder suction mouth complete |
|
| 1 |
4.040-290.0 |
Sheet metal component suction mouth comp |
|
| 1 |
6.996-214.0 |
Tube aspiration complete |
|
| 1 |
2.850-491.0 |
Pedal bulk waste flap |
|
| 1 |
4.040-187.0 |
Sheet metal component pedal |
|
| 1 |
6.366-050.0 |
Sealing profile |
|
| 1 |
6.997-094.0 |
Screw connector E287.15L |
|
| 1 |
5.443-040.0 |
Hose stem |
|
| 1 |
6.996-377.0 |
Hydraulic hose 1410 |
|
| 1 |
6.996-367.0 |
Hydraulic hose 1490 |
|
| 1 |
6.385-895.0 |
Screw connector |
|
| 1 |
6.996-501.0 |
Gear pump |
|
| 1 |
6.413-346.0 |
Valve block central block |
|
| 1 |
6.996-725.0 |
Control block complete |
|
| 1 |
6.996-434.0 |
Hydraulic pump |
|
| 1 |
6.996-624.0 |
Magnetic bobbin |
|
| 1 |
6.686-296.0 |
Coil 12V 02000.0182 |
|
| 1 |
6.413-341.0 |
Valve |
|
| 1 |
6.414-701.0 |
Valve block counterbalance valve |
|
| 1 |
6.996-337.0 |
Pipelines |
|
| 1 |
4.258-005.0 |
Грязевой скребок комплектный |
|
| 1 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 1 |
6.439-103.0 |
Клин подставки |
|
| 1 |
6.439-161.0 |
Wing mirror |
|
| 1 |
2.882-624.0 |
Conversion kit central lubricating syste |
|
| 1 |
6.996-579.0 |
Seal |
|
| 1 |
6.465-024.0 |
"""Coupler Storz A 4"""" BSP IG4"""" Al """ |
|
| 1 |
4.040-118.0 |
Sheet metal component complete right Tue |
|
| 1 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 1 |
6.997-249.0 |
Комплект кабеля |
|
| 1 |
6.996-048.0 |
Housing |
|
| 1 |
6.321-046.0 |
Coating pedal |
|
| 1 |
6.996-471.0 |
Frame |
|
| 1 |
6.996-463.0 |
Frame |
|
| 1 |
6.996-026.0 |
Ignition lock |
|
| 1 |
6.996-009.0 |
Rear mirror |
|
| 1 |
6.996-477.0 |
Plate |
|
| 1 |
6.996-442.0 |
Frame cabin right |
|
| 1 |
6.996-452.0 |
Skylight |
|
| 1 |
6.388-547.0 |
Hose clip |
|
| 1 |
6.996-260.0 |
Thermostat |
|
| 2 |
6.996-237.0 |
Flange |
|
| 2 |
6.996-224.0 |
Heavy-duty roller |
|
| 2 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 2 |
6.437-532.0 |
Bush 520896 |
|
| 2 |
7.304-435.0 |
Hexagonal head screw M12x30-8.8-A3E ISO |
|
| 2 |
6.996-234.0 |
Canal aspiration turbine |
|
| 2 |
6.997-095.0 |
Screw connector E707.18-15L |
|
| 2 |
6.996-839.0 |
Tank grey |
|
| 2 |
6.996-186.0 |
Oil tank hydraulic |
|
| 2 |
6.996-376.0 |
Hydraulic hose 1420 |
|
| 2 |
6.996-368.0 |
Hydraulic hose 1480 |
|
| 2 |
6.996-733.0 |
Valve block flushing |
|
| 2 |
7.306-062.0 |
Cylinder head screw M10x25 -8.8-A3E DIN |
|
| 2 |
6.996-737.0 |
Screw plug |
|
| 2 |
6.996-743.0 |
Cap |
|
| 2 |
6.996-324.0 |
Plug valve |
|
| 2 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 2 |
7.304-085.0 |
Hexagonal head screw M6x55-8.8-A2E ISO |
|
| 2 |
6.386-332.0 |
Cutting ring D 6-L/S-1.4571 DIN 3861 |
|
| 2 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 2 |
7.304-495.0 |
Hexagonal head screw M 4x16-A4-70 ISO 4 |
|
| 2 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 2 |
6.997-133.0 |
Screw connector E212.112L |
|
| 2 |
7.311-066.0 |
Hexagon nut M10-A2-70 ISO 4032 |
|
| 2 |
6.996-882.0 |
Distributor piston |
|
| 2 |
6.391-269.0 |
Hydraulic hose |
|
| 2 |
4.040-220.0 |
Connection piece pipe 4 ZOLL |
|
| 2 |
4.040-117.0 |
Sheet metal component complete left Tuer |
|
| 2 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 2 |
6.997-250.0 |
Корпус плоский штепсель |
|
| 2 |
4.040-336.0 |
Switch set |
|
| 2 |
6.996-063.0 |
Brake pedal |
|
| 2 |
6.996-462.0 |
Covering cap |
|
| 2 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 2 |
6.996-011.0 |
Rear mirror heated |
|
| 2 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 2 |
6.997-231.0 |
Plate roof |
|
| 2 |
6.996-277.0 |
Protection hose |
|
| 2 |
6.996-249.0 |
Oil filter |
|
| 3 |
6.996-238.0 |
Fixing motor |
|
| 3 |
7.311-214.0 |
Hexagon nut M20 -04-A2E ISO 4035 |
|
| 3 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 3 |
6.321-046.0 |
Coating pedal |
|
| 3 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 3 |
7.304-415.0 |
Hexagonal head screw M10x25-8.8-A3E ISO |
|
| 3 |
6.373-212.0 |
Pipe clamp |
|
| 3 |
6.996-187.0 |
Flange |
|
| 3 |
6.997-118.0 |
Screw connector E237.06 |
|
| 3 |
6.996-735.0 |
Valve Druckbegr. |
|
| 3 |
6.996-526.0 |
Serrated locking washer d.10 |
|
| 3 |
6.996-653.0 |
Valve Druckbegr. |
|
| 3 |
6.996-657.0 |
Hydraulic hose 1040 |
|
| 3 |
7.306-011.0 |
Cylinder head screw M 5x12-8.8-A2E DIN |
|
| 3 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 3 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 3 |
6.386-346.0 |
Union nut A 6-L |
|
| 3 |
6.996-311.0 |
Bearing |
|
| 3 |
6.373-682.0 |
Holder for broom |
|
| 3 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 3 |
6.996-413.0 |
Manual pump |
|
| 3 |
7.312-066.0 |
Washer 10 -A2 ISO 7090 |
|
| 3 |
6.996-883.0 |
Receptacles for tabs 4MM |
|
| 3 |
6.997-188.0 |
Hose clip D80MM |
|
| 3 |
6.391-270.0 |
Hydraulic hose |
|
| 3 |
6.391-129.0 |
Hose clip |
|
| 3 |
6.375-337.0 |
Closure with key Southco Serie1 |
|
| 3 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 3 |
6.997-251.0 |
Штепсель |
|
| 3 |
4.040-337.0 |
Switch set |
|
| 3 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 3 |
6.996-472.0 |
Sliding window left |
|
| 3 |
6.996-460.0 |
Sliding window right |
|
| 3 |
6.996-517.0 |
Rocker switch |
|
| 3 |
6.996-013.0 |
Holder heated |
|
| 3 |
6.996-478.0 |
Cover plate |
|
| 3 |
6.996-444.0 |
Frame cabin left |
|
| 3 |
6.996-458.0 |
Holder |
|
| 3 |
6.288-050.0 |
Engine oil 1L |
|
| 3 |
6.996-261.0 |
Seal |
|
| 4 |
7.314-943.0 |
Spring pin 4x18-St ISO 8752 |
|
| 4 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 4 |
6.997-171.0 |
Hose clip |
|
| 4 |
6.330-208.0 |
Spring TORSION |
|
| 4 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 4 |
7.312-005.0 |
Washer 10-200HV-A3E ISO 7090 |
|
| 4 |
7.386-804.0 |
Болтовое соединение SWEC-L18 -SS ISO843 |
|
| 4 |
6.996-188.0 |
Всасывающий фильтр |
|
| 4 |
6.996-369.0 |
Hydraulic hose 1430 |
|
| 4 |
6.390-996.0 |
Hydraulic hose / Pos. 1430 |
|
| 4 |
6.413-326.0 |
Valve 02000.0720 |
|
| 4 |
6.996-734.0 |
Valve flushing |
|
| 4 |
6.996-745.0 |
Клапанный блок комплектный |
|
| 4 |
6.413-327.0 |
Valve block 02000.1289 |
|
| 4 |
6.997-136.0 |
Screw connector E237.06S |
|
| 4 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 4 |
6.997-105.0 |
Countersunk screw M8-45 |
|
| 4 |
6.996-314.0 |
Bolt bottom |
|
| 4 |
7.311-424.0 |
Hexagon nut M4 -8-A2E ISO 7040 |
|
| 4 |
6.996-694.0 |
Ram protection right |
|
| 4 |
7.311-071.0 |
Hexagon nut M12-A2-70 ISO 4032 |
|
| 4 |
6.996-884.0 |
Cone ring 4MM |
|
| 4 |
6.996-535.0 |
Hose |
|
| 4 |
6.391-271.0 |
Hydraulic hose |
|
| 4 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 4 |
6.996-173.0 |
Plug connection |
|
| 4 |
6.996-052.0 |
Joystick |
|
| 4 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 4 |
6.996-473.0 |
Glass pane bottom -FHS 518226 |
|
| 4 |
6.996-461.0 |
Glass pane bottom |
|
| 4 |
6.996-015.0 |
Plate heated |
|
| 4 |
6.996-445.0 |
Bottom plate cabin |
|
| 4 |
6.366-050.0 |
Sealing profile |
|
| 4 |
6.997-242.0 |
Light bulb |
|
| 4 |
6.391-118.0 |
Hose 18*10 516659 |
|
| 4 |
6.996-250.0 |
Spark plug |
|
| 5 |
6.996-239.0 |
Wheel turbine |
|
| 5 |
4.040-412.0 |
Assembly group suction mouth |
|
| 5 |
6.996-215.0 |
Suction hose |
|
| 5 |
6.339-094.0 |
Rubber buffer |
|
| 5 |
5.007-848.0 |
Plate |
|
| 5 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 5 |
6.996-297.0 |
Hydraulic hose 1050 |
|
| 5 |
7.305-627.0 |
Countersunk screw M8x25-A2-70 ISO 10642 |
|
| 5 |
7.304-452.0 |
Hexagonal head screw M16X 50-8.8-A3E IS |
|
| 5 |
6.997-155.0 |
O-Ring seal 70SHORE NBR |
|
| 5 |
6.996-746.0 |
Plug |
|
| 5 |
6.996-648.0 |
Control device Menge |
|
| 5 |
6.997-143.0 |
Screw connector E212.306S |
|
| 5 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 5 |
6.997-104.0 |
Screw connector E212.115L |
|
| 5 |
6.390-997.0 |
Hydraulic hose |
|
| 5 |
7.316-443.0 |
Cotter 6,3x50 -A ISO 1234 |
|
| 5 |
6.996-695.0 |
Ram protection left |
|
| 5 |
7.304-096.0 |
Hexagonal head screw M8x60-8.8-A2E ISO |
|
| 5 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 5 |
6.996-885.0 |
Hollow screw 4MM |
|
| 5 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 5 |
6.391-308.0 |
Hydraulic hose |
|
| 5 |
5.470-047.0 |
"""Coupler G 3/8"""" BSP """ |
|
| 5 |
6.368-106.0 |
Edge protection |
|
| 5 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 5 |
6.996-880.0 |
Coupler two-pole |
|
| 5 |
4.040-276.0 |
Switch SB r/L aisschalten |
|
| 5 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 5 |
6.996-475.0 |
Lock door |
|
| 5 |
6.996-470.0 |
Lock door |
|
| 5 |
6.996-511.0 |
Spacer sleeve |
|
| 5 |
6.996-446.0 |
Windshield |
|
| 5 |
5.058-549.0 |
Sheet metal component |
|
| 5 |
6.996-459.0 |
Lamp |
|
| 5 |
6.996-251.0 |
Oil level gauge |
|
| 5 |
6.996-258.0 |
Switch |
|
| 6 |
6.996-240.0 |
Housing turbine |
|
| 6 |
6.996-226.0 |
Plate fixing |
|
| 6 |
7.304-152.0 |
Hexagonal head screw M16x60-8.8-A2E ISO |
|
| 6 |
4.040-160.0 |
Assembly group pipe |
|
| 6 |
6.330-208.0 |
Spring TORSION |
|
| 6 |
6.996-837.0 |
Plug-in connection triple-pole |
|
| 6 |
6.996-138.0 |
Hydraulic hose 1190 |
|
| 6 |
6.996-189.0 |
Filter filling |
|
| 6 |
6.997-142.0 |
Screw connector E708.06-06 |
|
| 6 |
6.996-371.0 |
Hydraulic hose 1450 |
|
| 6 |
6.996-736.0 |
Coupler MESS |
|
| 6 |
6.997-150.0 |
Screw XHR3/4-A3C |
|
| 6 |
6.996-654.0 |
Valve Druckbegr. |
|
| 6 |
6.996-740.0 |
Magnet electrically |
|
| 6 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 6 |
6.996-697.0 |
Screw connector E237.15L |
|
| 6 |
6.997-094.0 |
Screw connector E287.15L |
|
| 6 |
6.997-124.0 |
Screw connector E302.06L |
|
| 6 |
6.996-312.0 |
Hydraulic cylinder |
|
| 6 |
6.997-118.0 |
Screw connector E237.06 |
|
| 6 |
5.128-851.0 |
Штанга |
|
| 6 |
6.996-886.0 |
Screw plug |
|
| 6 |
6.996-536.0 |
Handhold |
|
| 6 |
6.413-390.0 |
Valve heat protection |
|
| 6 |
5.310-136.0 |
Nut G 3/8 BSP |
|
| 6 |
6.997-222.0 |
Camera |
|
| 6 |
6.997-252.0 |
Колпак |
|
| 6 |
7.304-381.0 |
Hexagonal head screw M 6x10-8.8-A2E ISO |
|
| 6 |
7.304-040.0 |
Hexagonal head screw M12x100-A4-70 ISO 4 |
|
| 6 |
6.996-959.0 |
Countersunk screw M 8x40 |
|
| 6 |
6.368-217.0 |
Cap |
|
| 6 |
6.996-480.0 |
Frame cabin |
|
| 6 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 6 |
6.996-677.0 |
Roofliner |
|
| 6 |
6.996-252.0 |
Dynamo |
|
| 7 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 7 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 7 |
7.311-426.0 |
Hexagon nut M16-04-A2E ISO 10511 |
|
| 7 |
6.437-531.0 |
Bush 520895 |
|
| 7 |
5.128-612.0 |
Tube |
|
| 7 |
6.996-411.0 |
Holder |
|
| 7 |
6.997-096.0 |
Screw connector E211 |
|
| 7 |
6.996-575.0 |
Set of gaskets |
|
| 7 |
7.304-041.0 |
Hexagonal head screw M16x100-8.8-A3E IS |
|
| 7 |
6.997-118.0 |
Screw connector E237.06 |
|
| 7 |
6.362-411.0 |
O-Ring seal 25,0 X 2,0 -NBR 70 |
|
| 7 |
6.413-347.0 |
Valve Logik |
|
| 7 |
6.996-647.0 |
Valve LOGIK |
|
| 7 |
6.996-324.0 |
Plug valve |
|
| 7 |
7.304-414.0 |
Hexagonal head screw M10x20-8.8-A3E ISO |
|
| 7 |
6.996-971.0 |
Screw connector |
|
| 7 |
6.996-143.0 |
Double nipple |
|
| 7 |
6.996-697.0 |
Screw connector E237.15L |
|
| 7 |
6.996-339.0 |
Hydraulic hose 1320 |
|
| 7 |
6.996-313.0 |
Bolt lifting cylinder |
|
| 7 |
6.996-318.0 |
Hydraulic hose 1290 |
|
| 7 |
7.311-514.0 |
Hexagon nut M 8-A2-70 ISO 7040 |
|
| 7 |
6.996-887.0 |
Seal CU 8x12 |
|
| 7 |
6.996-539.0 |
Snap lock |
|
| 7 |
6.633-216.0 |
Relay 30A/12V |
|
| 7 |
5.409-511.0 |
"""Nipple 1/4""""-BSPT """ |
|
| 7 |
7.304-810.0 |
Hexagonal head screw M 8x45-A4-70 ISO 4 |
|
| 7 |
6.997-223.0 |
Monitor 5 ZOLL |
|
| 7 |
6.997-253.0 |
Tank |
|
| 7 |
6.996-062.0 |
Jumper socket |
|
| 7 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 7 |
6.321-142.0 |
Handhold |
|
| 7 |
7.305-639.0 |
Countersunk screw M8x20-A2-70 ISO 10642 |
|
| 7 |
6.997-285.0 |
Frontal covering |
|
| 7 |
6.996-481.0 |
Frontal covering |
|
| 7 |
6.996-447.0 |
Covering front yellow |
|
| 7 |
5.032-707.0 |
Фасонная деталь фасад RAL 2004 |
|
| 7 |
6.996-953.0 |
Covering front white |
|
| 7 |
6.996-794.0 |
Roofliner with cutting |
|
| 7 |
6.996-253.0 |
Toothed belt |
|
| 7 |
6.996-814.0 |
Seal |
|
| 8 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 8 |
5.365-253.0 |
Rubber lip |
|
| 8 |
5.365-260.0 |
Rubber lip |
|
| 8 |
6.997-120.0 |
Hinge top M16X2 IN |
|
| 8 |
7.462-023.0 |
Angle joint CS13 -A2E DIN 71802 |
|
| 8 |
7.306-146.0 |
Cylinder head screw M12x70 -A4-70 ISO 4 |
|
| 8 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 8 |
6.996-436.0 |
Tube hydraulic |
|
| 8 |
7.304-395.0 |
Hexagonal head screw M8x16-8.8-A2E ISO |
|
| 8 |
6.997-119.0 |
Bush |
|
| 8 |
6.997-134.0 |
Screw connector E212.106L |
|
| 8 |
6.996-765.0 |
Joint ring |
|
| 8 |
6.996-324.0 |
Plug valve |
|
| 8 |
6.996-741.0 |
Valve high-pressure Druckbegr. |
|
| 8 |
6.996-141.0 |
Elbow connector |
|
| 8 |
6.996-621.0 |
Hydraulic hose 1080 |
|
| 8 |
6.996-145.0 |
Hydraulic hose 1540 |
|
| 8 |
6.996-348.0 |
Screw connector |
|
| 8 |
7.304-363.0 |
Hexagonal head screw M 4X 20- 8.8-A2E I |
|
| 8 |
6.996-361.0 |
Rear reflector |
|
| 8 |
6.996-242.0 |
Hydraulic hose 1280 |
|
| 8 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 8 |
6.996-888.0 |
Seal CU 16X20 |
|
| 8 |
6.996-583.0 |
Closure |
|
| 8 |
6.504-073.0 |
Hydraulic cylinder |
|
| 8 |
5.310-134.0 |
Nut 1/4 BSPT 521364 |
|
| 8 |
7.312-268.0 |
Washer 8 -A2 ISO 7094 |
|
| 8 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 8 |
6.996-028.0 |
Steering wheel |
|
| 8 |
6.996-014.0 |
Retainer plate mirror |
|
| 8 |
6.996-482.0 |
Covering cap Lenkseite |
|
| 8 |
6.996-448.0 |
Light bulb |
|
| 8 |
6.996-954.0 |
Profile gasket |
|
| 8 |
6.996-247.0 |
Diesel engine |
|
| 8 |
5.032-422.0 |
Moulded part bottom lIMA |
|
| 9 |
6.996-982.0 |
Rubber buffer 30X30 M |
|
| 9 |
6.996-228.0 |
Rag fixing |
|
| 9 |
7.304-035.0 |
Hexagonal head screw M16X 50-A4-70 ISO |
|
| 9 |
5.625-427.0 |
Belt pulley 520879 |
|
| 9 |
7.304-406.0 |
Hexagonal head screw M 8x35-8.8-A2E IS |
|
| 9 |
6.997-097.0 |
Screw connector E261 |
|
| 9 |
6.996-190.0 |
Screw plug |
|
| 9 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 9 |
6.996-373.0 |
Hydraulic hose 1440 |
|
| 9 |
6.996-737.0 |
Screw plug |
|
| 9 |
6.997-151.0 |
O-Ring seal 70SHORE NBR |
|
| 9 |
6.996-650.0 |
Magnetic bobbin 17W |
|
| 9 |
6.996-742.0 |
Valve insert control device |
|
| 9 |
6.386-907.0 |
Screw connector |
|
| 9 |
6.997-137.0 |
Screw connector E721.06-02 |
|
| 9 |
6.996-965.0 |
Screw connector E212.112L |
|
| 9 |
6.996-296.0 |
Hydraulic hose 1130 |
|
| 9 |
6.996-162.0 |
Limit switch |
|
| 9 |
6.630-443.0 |
Switch with cable |
|
| 9 |
6.630-367.0 |
Switch Cobo |
|
| 9 |
6.386-714.0 |
Screw connector |
|
| 9 |
5.057-267.0 |
Деталь из листового металла |
|
| 9 |
6.996-584.0 |
Cover |
|
| 9 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 9 |
4.040-217.0 |
Coupler |
|
| 9 |
7.311-514.0 |
Hexagon nut M 8-A2-70 ISO 7040 |
|
| 9 |
7.306-057.0 |
Screw M4x10 -8.8-R2R (In6Rd) |
|
| 9 |
6.997-255.0 |
Поплавок |
|
| 9 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 9 |
6.996-465.0 |
Angle hinge |
|
| 9 |
6.996-029.0 |
Выключатель качалки |
|
| 9 |
6.996-483.0 |
Cover |
|
| 9 |
6.996-449.0 |
Headlight |
|
| 9 |
6.996-443.0 |
Roof OF 999 |
|
| 9 |
6.997-232.0 |
Plate roof aluminium |
|
| 9 |
6.996-254.0 |
Seal |
|
| 9 |
6.996-815.0 |
Housing thermostat |
|
| 10 |
6.996-984.0 |
Rubber buffer 30x20 |
|
| 10 |
6.996-229.0 |
Slide part |
|
| 10 |
6.996-216.0 |
Holder suction mouth |
|
| 10 |
6.996-054.0 |
Bowden wire |
|
| 10 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 10 |
6.996-162.0 |
Limit switch |
|
| 10 |
6.630-367.0 |
Switch Cobo |
|
| 10 |
6.997-098.0 |
Screw connector E237 |
|
| 10 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 10 |
6.996-671.0 |
Valve block complete right |
|
| 10 |
6.390-995.0 |
Tube complete |
|
| 10 |
6.996-971.0 |
Screw connector |
|
| 10 |
6.996-747.0 |
Valve Druckbegr. |
|
| 10 |
6.996-645.0 |
Valve insert 2/2 |
|
| 10 |
6.997-144.0 |
Screw connector E212.328L |
|
| 10 |
6.996-374.0 |
Hydraulic hose 1400 |
|
| 10 |
6.996-625.0 |
Hydraulic hose 1160 |
|
| 10 |
6.996-144.0 |
Hydraulic hose 1180 |
|
| 10 |
6.996-222.0 |
Filter |
|
| 10 |
7.311-424.0 |
Hexagon nut M4 -8-A2E ISO 7040 |
|
| 10 |
4.040-444.0 |
Sheet metal component ram protection rig |
|
| 10 |
6.386-197.0 |
Screw connector GE 6-LR1/2 |
|
| 10 |
7.304-264.0 |
Hexagonal head screw M 8x70-A4-70 ISO 4 |
|
| 10 |
6.996-889.0 |
Hose assembly |
|
| 10 |
6.996-538.0 |
Tube |
|
| 10 |
7.312-260.0 |
Washer 6 -100HV-A3E ISO 7094 |
|
| 10 |
4.040-216.0 |
Holder |
|
| 10 |
5.110-987.0 |
Sleeve |
|
| 10 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 10 |
6.996-861.0 |
Plug two-pole |
|
| 10 |
6.996-055.0 |
Throttle cable |
|
| 10 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 10 |
6.996-030.0 |
Выключатель качалки |
|
| 10 |
6.996-508.0 |
Holder |
|
| 10 |
6.996-802.0 |
Cover |
|
| 10 |
7.651-009.0 |
Lamp bulb C5W-12V 5W EN 60809 |
|
| 10 |
6.996-255.0 |
Screw discharge |
|
| 10 |
6.996-816.0 |
Plug green |
|
| 11 |
6.996-990.0 |
Nut M18 |
|
| 11 |
6.997-169.0 |
Blind rivet 6,4X16,7 |
|
| 11 |
7.311-213.0 |
Hexagon nut M16 -04-A2E ISO 4035 |
|
| 11 |
5.116-041.0 |
Bolt 520893 |
|
| 11 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 11 |
7.306-208.0 |
Screw M 4x16-A2-70 (IN6RD) |
|
| 11 |
6.997-099.0 |
Screw connector E701 |
|
| 11 |
6.996-982.0 |
Rubber buffer 30X30 M |
|
| 11 |
6.996-674.0 |
Magnetic bobbin |
|
| 11 |
6.996-738.0 |
Manifold block |
|
| 11 |
6.686-295.0 |
Coil 12V 02000.0122 |
|
| 11 |
6.996-748.0 |
Magnetic bobbin |
|
| 11 |
6.996-971.0 |
Screw connector |
|
| 11 |
6.997-145.0 |
Screw connector E707.28-22 |
|
| 11 |
6.996-375.0 |
Hydraulic hose 1390 |
|
| 11 |
6.996-622.0 |
Valve complete |
|
| 11 |
6.413-333.0 |
Valve 3/2 02000.0534 |
|
| 11 |
6.996-245.0 |
Hydraulic hose 1270 |
|
| 11 |
6.996-500.0 |
Coupler MESS |
|
| 11 |
6.996-325.0 |
Hydraulic hose 1310 |
|
| 11 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 11 |
4.040-445.0 |
Sheet metal component ram protection lef |
|
| 11 |
6.996-617.0 |
Holder |
|
| 11 |
7.311-226.0 |
Hexagon nut M12-A4-70 ISO 4035 |
|
| 11 |
6.996-890.0 |
Hose assembly 3AD |
|
| 11 |
6.996-651.0 |
Sealing profile |
|
| 11 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 11 |
5.470-045.0 |
Coupler 4 ZOLL 521351 |
|
| 11 |
7.306-215.0 |
Screw M5x45 -8.8-R2R (In6Rd) |
|
| 11 |
7.306-078.0 |
Screw M5x20 -8.8-R2R (In6Rd) |
|
| 11 |
7.306-129.0 |
Screw M6x40 -8.8-R3R (In6Rd) |
|
| 11 |
6.996-466.0 |
Hinge door |
|
| 11 |
6.996-033.0 |
Switch |
|
| 11 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 11 |
6.996-960.0 |
Tube plastics 8X6 |
|
| 11 |
6.996-450.0 |
Indicator complete |
|
| 11 |
6.997-236.0 |
Plate roof m.Aussch. |
|
| 11 |
6.996-684.0 |
Cover exhaust |
|
| 11 |
6.996-256.0 |
Control device dynamo |
|
| 12 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 12 |
6.996-217.0 |
Threaded rod |
|
| 12 |
5.116-044.0 |
Bolt 520892 |
|
| 12 |
7.343-014.0 |
Locking ring 8x0,8-FST-PHR DIN 471 |
|
| 12 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 12 |
6.373-656.0 |
Pipe clamp D40 |
|
| 12 |
6.273-239.0 |
Strap Zellopren |
|
| 12 |
6.996-324.0 |
Plug valve |
|
| 12 |
7.312-057.0 |
Washer 16 -A2 ISO 7090 |
|
| 12 |
6.997-156.0 |
Screw connector E212.120S |
|
| 12 |
6.996-749.0 |
Valve insert |
|
| 12 |
6.413-329.0 |
Valve 2/2 02000.0073 |
|
| 12 |
6.996-657.0 |
Hydraulic hose 1040 |
|
| 12 |
6.996-202.0 |
Hydraulic hose 1010 |
|
| 12 |
7.312-005.0 |
Washer 10-200HV-A3E ISO 7090 |
|
| 12 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 12 |
6.996-070.0 |
Hydraulic hose 1070 |
|
| 12 |
6.996-616.0 |
Hydraulic hose 1090 |
|
| 12 |
6.997-125.0 |
Pipe clamp 6X15 |
|
| 12 |
7.306-443.0 |
Винт с цилиндрической головкой М4х12 |
|
| 12 |
5.132-164.0 |
Threaded part 521357 |
|
| 12 |
6.996-891.0 |
Hose assembly 550 |
|
| 12 |
7.304-537.0 |
Hexagonal head screw M 8x30-A4-70 ISO 4 |
|
| 12 |
6.996-319.0 |
T-Screw connection |
|
| 12 |
6.996-543.0 |
Cover D305MM |
|
| 12 |
6.316-056.0 |
Bolt |
|
| 12 |
6.996-474.0 |
Fixing cylinder |
|
| 12 |
6.996-467.0 |
Fixing cylinder |
|
| 12 |
6.996-031.0 |
Instrument panel |
|
| 12 |
6.996-016.0 |
Cap |
|
| 12 |
6.996-284.0 |
Seal |
|
| 12 |
6.996-257.0 |
Belt |
|
| 13 |
6.997-102.0 |
"""Pipe fitting XGE 18 LR 1/2""""-ED """ |
|
| 13 |
6.996-230.0 |
Axle suction mouth flap |
|
| 13 |
6.996-218.0 |
Gallows |
|
| 13 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 13 |
6.431-219.0 |
Bowden wire bulk waste flap ICC 2 |
|
| 13 |
5.007-689.0 |
Plate |
|
| 13 |
6.996-098.0 |
Check valve |
|
| 13 |
6.997-104.0 |
Screw connector E212.115L |
|
| 13 |
6.997-120.0 |
Hinge top M16X2 IN |
|
| 13 |
6.996-139.0 |
Hydraulic hose 1200 |
|
| 13 |
6.996-750.0 |
Magnetic bobbin |
|
| 13 |
6.996-072.0 |
Hydraulic hose 1120 |
|
| 13 |
6.997-146.0 |
Screw connector E212.308L |
|
| 13 |
7.306-138.0 |
Screw M6x60 -8.8-R3R (In6Rd) |
|
| 13 |
6.386-193.0 |
Screw connector -ST-A3K DIN 2353 |
|
| 13 |
6.997-134.0 |
Screw connector E212.106L |
|
| 13 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 13 |
5.192-099.0 |
Плита |
|
| 13 |
6.996-348.0 |
Screw connector |
|
| 13 |
4.040-307.0 |
Assembly group holder LBS |
|
| 13 |
6.997-162.0 |
Cable bushing 27x22 |
|
| 13 |
6.997-229.0 |
Cable controller |
|
| 13 |
6.996-057.0 |
Switch 2-level |
|
| 13 |
7.462-012.0 |
Fork head G 6x24-ST-A2E DIN 71752 |
|
| 13 |
6.316-089.0 |
Bolt |
|
| 13 |
6.996-037.0 |
Switch |
|
| 13 |
6.996-017.0 |
Viewing hood |
|
| 13 |
6.996-469.0 |
Handhold |
|
| 13 |
6.996-660.0 |
Skylight complete |
|
| 13 |
7.311-027.0 |
Hexagon nut M 8-A4-70 ISO 7042 |
|
| 13 |
5.491-002.0 |
Starter Peugeot |
|
| 14 |
6.996-241.0 |
Hydraulic hose 1260 |
|
| 14 |
6.996-231.0 |
Flap suction mouth complete |
|
| 14 |
4.040-267.0 |
Sheet metal component suction mouth comp |
|
| 14 |
6.996-219.0 |
Extension spring -FHS 516857 |
|
| 14 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 14 |
5.128-539.0 |
Bolt pedal A3699 |
|
| 14 |
5.007-849.0 |
Plate blower |
|
| 14 |
6.996-412.0 |
Hydraulic hose 1100 |
|
| 14 |
6.390-993.0 |
Hydraulic hose |
|
| 14 |
6.996-374.0 |
Hydraulic hose 1400 |
|
| 14 |
7.311-213.0 |
Hexagon nut M16 -04-A2E ISO 4035 |
|
| 14 |
6.996-137.0 |
Hydraulic hose 1230 |
|
| 14 |
6.996-751.0 |
Solenoid valve 2/3 |
|
| 14 |
6.996-371.0 |
Hydraulic hose 1450 |
|
| 14 |
6.996-910.0 |
Shut off valve |
|
| 14 |
6.996-619.0 |
Temperature probe |
|
| 14 |
6.996-621.0 |
Hydraulic hose 1080 |
|
| 14 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 14 |
6.996-315.0 |
Hydraulic hose 1350 |
|
| 14 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 14 |
6.310-099.0 |
Заклепочная гайка M 8-VA |
|
| 14 |
6.996-893.0 |
Screw connector |
|
| 14 |
5.363-595.0 |
Seal 180/114/4 |
|
| 14 |
6.997-220.0 |
Connecting cable |
|
| 14 |
6.996-054.0 |
Bowden wire |
|
| 14 |
7.311-003.0 |
Hexagon nut M6 -8-A2E ISO 4032 |
|
| 14 |
7.462-006.0 |
Fork head G8x16 -St-A2E DIN71752 |
|
| 14 |
6.996-018.0 |
Windscreen wiper |
|
| 14 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 14 |
6.996-662.0 |
Operating lever |
|
| 14 |
6.996-259.0 |
Vacuum pump |
|
| 14 |
6.996-817.0 |
Plug blue |
|
| 15 |
6.996-245.0 |
Hydraulic hose 1270 |
|
| 15 |
6.996-054.0 |
Bowden wire |
|
| 15 |
6.431-219.0 |
Bowden wire bulk waste flap ICC 2 |
|
| 15 |
6.996-220.0 |
Hydraulic cylinder |
|
| 15 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 15 |
7.462-013.0 |
Fork head G8x32 -St-A2E DIN71752 |
|
| 15 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 15 |
6.996-050.0 |
Hydraulic hose |
|
| 15 |
6.996-375.0 |
Hydraulic hose 1390 |
|
| 15 |
6.401-275.0 |
Hinge top M16 |
|
| 15 |
6.996-138.0 |
Hydraulic hose 1190 |
|
| 15 |
6.997-129.0 |
Screw connector E212.122L |
|
| 15 |
6.997-104.0 |
Screw connector E212.115L |
|
| 15 |
6.997-147.0 |
Screw connector E707.08-06 |
|
| 15 |
6.390-993.0 |
Hydraulic hose |
|
| 15 |
6.996-398.0 |
Hydraulic hose 1530 |
|
| 15 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 15 |
6.996-316.0 |
Hydraulic hose 1330 |
|
| 15 |
6.996-414.0 |
Holder |
|
| 15 |
7.304-516.0 |
Hexagonal head screw M8x20-A4-70 ISO 40 |
|
| 15 |
6.996-894.0 |
Hose assembly 2AD |
|
| 15 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 15 |
6.654-174.0 |
Комплект кабеля |
|
| 15 |
6.641-464.0 |
Cable tie |
|
| 15 |
6.368-103.0 |
Cap 19 |
|
| 15 |
6.996-065.0 |
Threaded rod |
|
| 15 |
6.996-464.0 |
Gas spring |
|
| 15 |
6.996-034.0 |
Switch |
|
| 15 |
6.996-019.0 |
Wiper arm complete |
|
| 15 |
6.997-241.0 |
Washer 8.4X20X2 |
|
| 15 |
6.996-957.0 |
Sealing profile |
|
| 16 |
6.996-243.0 |
Hydraulic hose 1250 |
|
| 16 |
6.996-233.0 |
Clamping part |
|
| 16 |
7.311-429.0 |
Hexagon nut M12-04-A2E ISO 10511 |
|
| 16 |
5.116-042.0 |
Washer |
|
| 16 |
5.515-193.0 |
Roller A3677 |
|
| 16 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 16 |
6.996-548.0 |
Hydraulic hose 1150 |
|
| 16 |
6.996-193.0 |
Hydraulic hose 1020 |
|
| 16 |
6.996-658.0 |
Hydraulic hose 1370 |
|
| 16 |
6.996-348.0 |
Screw connector |
|
| 16 |
6.997-138.0 |
Screw connector E257.06L |
|
| 16 |
6.997-118.0 |
Screw connector E237.06 |
|
| 16 |
6.996-972.0 |
Drain plug |
|
| 16 |
6.996-623.0 |
Valve insert |
|
| 16 |
6.413-335.0 |
Valve 3/2 02000.0604 |
|
| 16 |
7.311-421.0 |
Hexagon nut M 5-04-A2E ISO 10511 |
|
| 16 |
6.996-317.0 |
Hydraulic hose 1360 |
|
| 16 |
6.996-415.0 |
Tube |
|
| 16 |
6.996-895.0 |
Tube red 4mm |
|
| 16 |
6.997-186.0 |
Elbow connector 8MM |
|
| 16 |
7.644-006.0 |
Fuse insert C 3 DIN 72581-3 |
|
| 16 |
6.385-896.0 |
Elbow screw connector |
|
| 16 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 16 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 16 |
6.996-039.0 |
Steering pillar |
|
| 16 |
6.996-020.0 |
Wiper motor |
|
| 16 |
7.305-011.0 |
Countersunk screw M10x40-A2-70 ISO 1064 |
|
| 16 |
7.306-071.0 |
Screw M5x10 -8.8-R2R (In6Rd) |
|
| 16 |
6.997-241.0 |
Washer 8.4X20X2 |
|
| 17 |
6.996-515.0 |
T-Piece |
|
| 17 |
7.304-143.0 |
Hexagonal head screw M12x60-8.8-A2E ISO |
|
| 17 |
4.040-188.0 |
Sheet metal component operation |
|
| 17 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 17 |
6.997-100.0 |
Screw connector E707 |
|
| 17 |
6.997-129.0 |
Screw connector E212.122L |
|
| 17 |
6.996-516.0 |
Hydraulic hose 1380 |
|
| 17 |
6.390-968.0 |
Hydraulic hose |
|
| 17 |
6.996-548.0 |
Hydraulic hose 1150 |
|
| 17 |
6.997-152.0 |
Screw connector E707.22-18 |
|
| 17 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 17 |
6.996-412.0 |
Hydraulic hose 1100 |
|
| 17 |
6.996-376.0 |
Hydraulic hose 1420 |
|
| 17 |
6.996-143.0 |
Double nipple |
|
| 17 |
6.996-913.0 |
Check valve |
|
| 17 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 17 |
6.996-318.0 |
Hydraulic hose 1290 |
|
| 17 |
6.996-896.0 |
Clamp |
|
| 17 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 17 |
6.996-034.0 |
Switch |
|
| 17 |
6.996-770.0 |
Bellows |
|
| 17 |
7.312-073.0 |
Washer 8 -CuZn ISO 7092 |
|
| 17 |
6.996-035.0 |
Covering left |
|
| 17 |
6.996-021.0 |
Tank complete |
|
| 17 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 17 |
6.997-238.0 |
Rosette |
|
| 17 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 18 |
6.996-242.0 |
Hydraulic hose 1280 |
|
| 18 |
6.997-170.0 |
Tube plastics D4 |
|
| 18 |
6.390-471.0 |
Hose |
|
| 18 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 18 |
6.316-089.0 |
Bolt |
|
| 18 |
7.311-029.0 |
Hexagon nut M 5-A4-70 ISO 7042 |
|
| 18 |
7.304-509.0 |
Hexagonal head screw M 6x25-A4-70 ISO 4 |
|
| 18 |
6.996-194.0 |
Hydraulic hose 1060 |
|
| 18 |
6.390-967.0 |
Hydraulic hose |
|
| 18 |
6.996-739.0 |
Screw connector |
|
| 18 |
6.996-241.0 |
Hydraulic hose 1260 |
|
| 18 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 18 |
6.996-744.0 |
Pressure valve SPEIS. |
|
| 18 |
6.996-377.0 |
Hydraulic hose 1410 |
|
| 18 |
6.996-141.0 |
Elbow connector |
|
| 18 |
6.996-319.0 |
T-Screw connection |
|
| 18 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 18 |
6.996-897.0 |
Swivel joint M8 |
|
| 18 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 18 |
7.303-072.0 |
Sheet metal screw ST4,2X13-ST-R2R (IN6R |
|
| 18 |
6.413-285.0 |
Ball valve |
|
| 18 |
6.996-066.0 |
Bowden wire |
|
| 18 |
6.996-040.0 |
Lever |
|
| 18 |
6.996-952.0 |
Countersunk screw M10X60 |
|
| 18 |
5.058-328.0 |
Sheet metal component 518865 |
|
| 18 |
6.996-274.0 |
Seal |
|
| 19 |
6.996-835.0 |
Air guide turbine |
|
| 19 |
6.996-925.0 |
Screw connector |
|
| 19 |
6.386-909.0 |
"""Screw connector 1/8"""" """ |
|
| 19 |
6.997-122.0 |
Screw connector E212.106L |
|
| 19 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 19 |
6.997-101.0 |
Screw connector E287.18L |
|
| 19 |
6.996-195.0 |
Hydraulic hose 1170 |
|
| 19 |
7.306-235.0 |
Cylinder head screw M10x120 -12.9-dac. |
|
| 19 |
6.997-148.0 |
Screw connector E212.318L |
|
| 19 |
6.996-220.0 |
Hydraulic cylinder |
|
| 19 |
6.996-320.0 |
Hydraulic hose 1340 |
|
| 19 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 19 |
6.997-282.0 |
Connecting piece M8 |
|
| 19 |
6.996-898.0 |
Connecting piece 6x1 |
|
| 19 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 19 |
6.997-260.0 |
Pressure switch |
|
| 19 |
6.996-635.0 |
Valve water |
|
| 19 |
7.304-363.0 |
Hexagonal head screw M 4X 20- 8.8-A2E I |
|
| 19 |
5.873-007.0 |
Key |
|
| 19 |
6.996-805.0 |
Switch |
|
| 19 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 19 |
6.996-488.0 |
Plate |
|
| 19 |
6.996-451.0 |
Nut |
|
| 19 |
6.996-719.0 |
Covering cap |
|
| 20 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 20 |
6.996-221.0 |
Hydraulic hose 1520 |
|
| 20 |
4.040-168.0 |
Sheet metal component |
|
| 20 |
6.997-102.0 |
"""Pipe fitting XGE 18 LR 1/2""""-ED """ |
|
| 20 |
7.306-075.0 |
Cylinder head screw M 8x 40-8.8-A2E ISO |
|
| 20 |
7.306-042.0 |
Cylinder head screw M8x25 -8.8-A2E ISO4 |
|
| 20 |
6.996-669.0 |
Tube hydraulic P-P |
|
| 20 |
6.997-123.0 |
Screw connector E231 .210L |
|
| 20 |
7.312-023.0 |
Serrated lock washer A10,5-1.4310 DIN 6 |
|
| 20 |
6.997-134.0 |
Screw connector E212.106L |
|
| 20 |
6.997-149.0 |
Cylinder head screw M14X30 |
|
| 20 |
7.304-446.0 |
Hexagonal head screw M12x70-8.8-A3E ISO |
|
| 20 |
6.413-330.0 |
Valve 2/2 02000.0501 |
|
| 20 |
6.996-901.0 |
Elbow 8X1 |
|
| 20 |
6.996-899.0 |
Elbow 6X1 |
|
| 20 |
6.996-544.0 |
Clamp |
|
| 20 |
6.997-261.0 |
Clamping ring 6mm |
|
| 20 |
6.996-636.0 |
Magnetic bobbin |
|
| 20 |
6.996-067.0 |
Lever valve |
|
| 20 |
6.439-163.0 |
Doorhandle external |
|
| 20 |
6.996-145.0 |
Hydraulic hose 1540 |
|
| 20 |
6.996-489.0 |
Plate |
|
| 20 |
6.997-235.0 |
Coupler complete |
|
| 20 |
6.996-661.0 |
Cover |
|
| 20 |
6.996-804.0 |
Form hose |
|
| 21 |
7.312-276.0 |
Washer 6 -200HV-A2E ISO7093-1 |
|
| 21 |
6.996-222.0 |
Filter |
|
| 21 |
6.996-194.0 |
Hydraulic hose 1060 |
|
| 21 |
6.996-196.0 |
Крышка |
|
| 21 |
6.997-118.0 |
Screw connector E237.06 |
|
| 21 |
6.996-398.0 |
Hydraulic hose 1530 |
|
| 21 |
6.390-906.0 |
Hydraulic hose POS. 1600 |
|
| 21 |
6.996-319.0 |
T-Screw connection |
|
| 21 |
7.386-804.0 |
Болтовое соединение SWEC-L18 -SS ISO843 |
|
| 21 |
6.997-126.0 |
Hexagonal head screw M12X50 |
|
| 21 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 21 |
6.996-900.0 |
Hose assembly |
|
| 21 |
4.040-218.0 |
Strap |
|
| 21 |
6.996-324.0 |
Plug valve |
|
| 21 |
6.996-068.0 |
Throttle |
|
| 21 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 21 |
6.996-182.0 |
Hydraulic hose 1560 |
|
| 21 |
6.996-490.0 |
Plate |
|
| 21 |
7.651-014.0 |
Lamp P21W-BA15s-12V EN 60809 |
|
| 22 |
6.996-989.0 |
"""Double nipple 3/8"""" """ |
|
| 22 |
6.997-240.0 |
Washer 8.4X20X1.2 |
|
| 22 |
5.115-711.0 |
Washer |
|
| 22 |
6.996-296.0 |
Hydraulic hose 1130 |
|
| 22 |
6.996-197.0 |
Filter cartridge |
|
| 22 |
6.996-672.0 |
Solenoid valve |
|
| 22 |
5.128-527.0 |
Bush A9199 |
|
| 22 |
6.390-907.0 |
Hydraulic hose POS. 1610 |
|
| 22 |
6.996-221.0 |
Hydraulic hose 1520 |
|
| 22 |
7.312-028.0 |
Washer 14-200HV-A3E ISO7090 |
|
| 22 |
6.996-838.0 |
Spacer sleeve |
|
| 22 |
6.997-127.0 |
Ball joint M12 |
|
| 22 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 22 |
6.996-545.0 |
Tube |
|
| 22 |
5.128-556.0 |
Tube |
|
| 22 |
7.304-509.0 |
Hexagonal head screw M 6x25-A4-70 ISO 4 |
|
| 22 |
7.306-056.0 |
Screw M4x8 -8.8-R2R (In6Rd) |
|
| 22 |
6.996-069.0 |
Holder valve |
|
| 22 |
7.304-382.0 |
Hexagonal head screw M 6x12-8.8-A2E ISO |
|
| 22 |
6.996-651.0 |
Sealing profile |
|
| 22 |
5.058-453.0 |
Sheet metal component A20G3 |
|
| 22 |
6.996-958.0 |
Blind rivet 6,5x16,5 |
|
| 23 |
6.997-089.0 |
Ball valve |
|
| 23 |
6.996-926.0 |
Elbow screw connector |
|
| 23 |
6.997-185.0 |
T-Piece 8-8MM |
|
| 23 |
6.997-130.0 |
Screw connector E212.115L |
|
| 23 |
6.996-198.0 |
Seal rubber |
|
| 23 |
6.996-673.0 |
Solenoid valve |
|
| 23 |
7.312-019.0 |
Washer 16-200HV-A3E ISO7090 |
|
| 23 |
6.996-629.0 |
Hydraulic hose 5000 |
|
| 23 |
6.996-319.0 |
T-Screw connection |
|
| 23 |
7.311-220.0 |
Hexagon nut M12-04-A2E ISO 4035 |
|
| 23 |
6.996-324.0 |
Plug valve |
|
| 23 |
6.996-840.0 |
Valve insert |
|
| 23 |
6.996-577.0 |
Valve insert |
|
| 23 |
6.996-902.0 |
Pipe clamp rubber |
|
| 23 |
5.058-485.0 |
Sheet metal component 521145 |
|
| 23 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 23 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 23 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 23 |
6.996-766.0 |
Sleeve complete |
|
| 23 |
6.996-476.0 |
Spacer sleeve |
|
| 23 |
6.996-041.0 |
Steering HYDRO |
|
| 23 |
6.996-022.0 |
Plate |
|
| 23 |
6.996-986.0 |
Connector 12-12 |
|
| 23 |
6.996-987.0 |
Connector 16-16 |
|
| 24 |
6.996-979.0 |
Pipe clamp 28X15 |
|
| 24 |
6.997-217.0 |
Pipe clamp 22X20 |
|
| 24 |
6.996-875.0 |
Обратный клапан |
|
| 24 |
6.997-104.0 |
Screw connector E212.115L |
|
| 24 |
6.996-199.0 |
O-Ring seal |
|
| 24 |
7.306-136.0 |
Cylinder head screw M 5x35-A4-70 ISO 47 |
|
| 24 |
6.996-243.0 |
Hydraulic hose 1250 |
|
| 24 |
6.996-625.0 |
Hydraulic hose 1160 |
|
| 24 |
6.997-122.0 |
Screw connector E212.106L |
|
| 24 |
6.996-576.0 |
Choker valve |
|
| 24 |
6.996-903.0 |
Joining piece |
|
| 24 |
6.996-543.0 |
Cover D305MM |
|
| 24 |
4.040-221.0 |
Sheet metal component |
|
| 24 |
6.997-262.0 |
Pressure pipe |
|
| 24 |
6.996-791.0 |
Hose plastics |
|
| 24 |
6.996-071.0 |
Connection nipple |
|
| 24 |
7.306-187.0 |
Screw M5x50 -A2-70 (In6Rd) |
|
| 24 |
6.996-184.0 |
Hydraulic hose 1570 |
|
| 24 |
7.306-207.0 |
Screw M4x12 -A2-70 (In6Rd) |
|
| 24 |
7.306-057.0 |
Screw M4x10 -8.8-R2R (In6Rd) |
|
| 24 |
6.996-453.0 |
Holder left |
|
| 24 |
6.996-732.0 |
Frame inside |
|
| 24 |
6.997-200.0 |
Hose D21 D15 |
|
| 25 |
6.997-106.0 |
Bulkhead screw connection 3/8 |
|
| 25 |
6.996-876.0 |
Reducing nipple |
|
| 25 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 25 |
6.996-697.0 |
Screw connector E237.15L |
|
| 25 |
6.997-102.0 |
"""Pipe fitting XGE 18 LR 1/2""""-ED """ |
|
| 25 |
6.996-630.0 |
Hydraulic hose 5010 |
|
| 25 |
6.996-325.0 |
Hydraulic hose 1310 |
|
| 25 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 25 |
7.304-509.0 |
Hexagonal head screw M 6x25-A4-70 ISO 4 |
|
| 25 |
6.996-582.0 |
Belt fixing |
|
| 25 |
6.997-263.0 |
Screw connector |
|
| 25 |
7.306-209.0 |
Screw M 4X 20-A2-70 (In6Rd) |
|
| 25 |
6.996-072.0 |
Hydraulic hose 1120 |
|
| 25 |
7.313-032.0 |
Spring washer A 5-Edelstahl DIN 128 |
|
| 25 |
7.303-072.0 |
Sheet metal screw ST4,2X13-ST-R2R (IN6R |
|
| 25 |
6.996-454.0 |
Holder right |
|
| 25 |
7.304-414.0 |
Hexagonal head screw M10x20-8.8-A3E ISO |
|
| 26 |
6.997-107.0 |
Double nipple E212 |
|
| 26 |
6.996-877.0 |
Choker valve |
|
| 26 |
6.413-344.0 |
"""Choker valve 1/4"""" """ |
|
| 26 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 26 |
6.504-052.0 |
Hydraulic cylinder |
|
| 26 |
6.997-118.0 |
Screw connector E237.06 |
|
| 26 |
6.996-631.0 |
Hydraulic hose 5030 |
|
| 26 |
6.996-326.0 |
Hydraulic hose 1300 |
|
| 26 |
6.437-543.0 |
Bellows |
|
| 26 |
7.306-089.0 |
Screw M6x12 -8.8-R2R (In6Rd) |
|
| 26 |
6.996-586.0 |
Nozzle |
|
| 26 |
6.310-089.0 |
Rivet nut M 5 |
|
| 26 |
7.306-075.0 |
Cylinder head screw M 8x 40-8.8-A2E ISO |
|
| 26 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 26 |
7.306-062.0 |
Cylinder head screw M10x25 -8.8-A3E DIN |
|
| 26 |
7.311-430.0 |
Hexagon nut M4 -04-A2E ISO 10511 |
|
| 26 |
6.996-678.0 |
Plate |
|
| 26 |
6.996-270.0 |
Seal valve D. |
|
| 27 |
7.306-058.0 |
Screw M 4X 12- 8.8-R2R K-IN6RD |
|
| 27 |
6.996-791.0 |
Hose plastics |
|
| 27 |
6.996-201.0 |
Hydraulic hose 1140 |
|
| 27 |
6.391-475.0 |
Protection hose |
|
| 27 |
6.997-104.0 |
Screw connector E212.115L |
|
| 27 |
6.996-141.0 |
Elbow connector |
|
| 27 |
6.386-908.0 |
Screw connector |
|
| 27 |
7.306-031.0 |
Screw M 6x16-A2-70 DIN 7984 |
|
| 27 |
6.997-189.0 |
Hose nozzle 8mm |
|
| 27 |
6.997-265.0 |
Бак чёрный |
|
| 27 |
6.997-187.0 |
Y-Piece 8-8MM |
|
| 27 |
7.303-367.0 |
Sheet metal screw ST4,2X19,0-ST-A2E ISO |
|
| 27 |
7.306-208.0 |
Screw M 4x16-A2-70 (IN6RD) |
|
| 27 |
6.996-468.0 |
Closure |
|
| 27 |
6.996-038.0 |
Covering bottom |
|
| 27 |
6.996-509.0 |
Plate |
|
| 27 |
6.315-055.0 |
Blind rivet 4x9,5 |
|
| 27 |
6.996-955.0 |
Countersunk screw M 5x20 |
|
| 27 |
6.996-271.0 |
ELBOW |
|
| 28 |
6.996-920.0 |
Ring 8mm, FHS 503071 |
|
| 28 |
5.064-115.0 |
Cover tank hydraulic |
|
| 28 |
7.311-426.0 |
Hexagon nut M16-04-A2E ISO 10511 |
|
| 28 |
6.996-656.0 |
Hydraulic hose 1110 |
|
| 28 |
6.996-071.0 |
Connection nipple |
|
| 28 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 28 |
6.997-190.0 |
Cable tie 775MM |
|
| 28 |
6.997-266.0 |
Fuel additive |
|
| 28 |
6.996-960.0 |
Tube plastics 8X6 |
|
| 28 |
6.996-073.0 |
Throttle pedal |
|
| 28 |
7.306-040.0 |
Cylinder head screw M8x16 -8.8-A2E ISO4 |
|
| 28 |
6.996-036.0 |
Covering right |
|
| 28 |
7.305-004.0 |
Countersunk screw M8x30-A2-70 ISO10642 |
|
| 28 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 28 |
7.312-005.0 |
Washer 10-200HV-A3E ISO 7090 |
|
| 28 |
6.996-272.0 |
Seal PEUGEOT |
|
| 29 |
6.997-108.0 |
"""Elbow connector 3/8"""" """ |
|
| 29 |
6.997-115.0 |
Support sleeve 8-5.5 |
|
| 29 |
6.996-202.0 |
Hydraulic hose 1010 |
|
| 29 |
6.996-145.0 |
Hydraulic hose 1540 |
|
| 29 |
6.996-841.0 |
Hydraulic hose 1220 |
|
| 29 |
6.996-580.0 |
Fuse burst pipe |
|
| 29 |
6.373-682.0 |
Holder for broom |
|
| 29 |
6.996-904.0 |
Holder |
|
| 29 |
6.390-218.0 |
Hose clip 13,8 |
|
| 29 |
6.996-027.0 |
Ignition key |
|
| 29 |
6.996-510.0 |
Spacer sleeve |
|
| 29 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 29 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 29 |
6.996-273.0 |
Elbow exhaust |
|
| 30 |
6.997-109.0 |
T-Screw connection 3/8 |
|
| 30 |
6.996-964.0 |
Screw nipple |
|
| 30 |
6.996-203.0 |
Inspection glass |
|
| 30 |
6.996-763.0 |
Screw connector |
|
| 30 |
6.365-509.0 |
Set of gaskets |
|
| 30 |
7.306-129.0 |
Screw M6x40 -8.8-R3R (In6Rd) |
|
| 30 |
6.321-160.0 |
Handhold foamed material |
|
| 30 |
7.304-397.0 |
Hexagonal head screw M8x20-8.8-A2E ISO |
|
| 30 |
6.388-192.0 |
Hose DN 6 |
|
| 30 |
6.996-516.0 |
Hydraulic hose 1380 |
|
| 30 |
6.996-961.0 |
Corrugated tube 10MM |
|
| 30 |
6.996-456.0 |
Slide part |
|
| 30 |
6.996-280.0 |
Piece of tube |
|
| 31 |
6.997-110.0 |
Elbow screw connector |
|
| 31 |
6.997-212.0 |
"""Plug nipple 4XG1/4"""" """ |
|
| 31 |
6.386-769.0 |
Screw connector straight |
|
| 31 |
6.996-204.0 |
Hydraulic hose 1030 |
|
| 31 |
6.997-154.0 |
Screw connector E722.16-12 |
|
| 31 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 31 |
7.304-400.0 |
Hexagonal head screw M 8x30-8.8-A2E ISO |
|
| 31 |
6.996-587.0 |
Nipple |
|
| 31 |
6.996-070.0 |
Hydraulic hose 1070 |
|
| 31 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 31 |
7.311-333.0 |
Cap nut M 8-1.4571 DIN 917 |
|
| 31 |
7.305-031.0 |
Countersunk screw M6x16-8.8-A2R (In6Rd) |
|
| 31 |
6.996-275.0 |
Piece of tube |
|
| 32 |
6.997-111.0 |
"""Double nipple 3/8"""" """ |
|
| 32 |
6.413-184.0 |
Check valve |
|
| 32 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 32 |
5.443-040.0 |
Hose stem |
|
| 32 |
6.997-174.0 |
Washer 28X0.5X0.5 |
|
| 32 |
6.996-588.0 |
Coupler |
|
| 32 |
6.996-515.0 |
T-Piece |
|
| 32 |
6.996-798.0 |
Bonding agent |
|
| 32 |
6.996-061.0 |
Switch |
|
| 32 |
6.273-220.0 |
Rubber mating 519383 |
|
| 32 |
6.273-238.0 |
Rubber mating |
|
| 32 |
6.654-153.0 |
Cable set covering front |
|
| 32 |
6.996-457.0 |
Cable harness |
|
| 32 |
6.389-507.0 |
Hose clip 20- 32 |
|
| 33 |
6.996-101.0 |
High pressure hose |
|
| 33 |
6.366-050.0 |
Sealing profile |
|
| 33 |
6.961-611.0 |
Hydraulic oil 20L |
|
| 33 |
6.996-193.0 |
Hydraulic hose 1020 |
|
| 33 |
5.112-702.0 |
Bush sweep tank lifting cylinder 521714 |
|
| 33 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 33 |
6.996-589.0 |
Screw connector |
|
| 33 |
6.997-085.0 |
Hose gasoline 8X14 |
|
| 33 |
6.996-514.0 |
Reduction |
|
| 33 |
6.869-035.0 |
Special cleansing agent |
|
| 33 |
6.996-767.0 |
Activator |
|
| 33 |
6.286-443.0 |
Silicon Primer 206G+P |
|
| 33 |
6.996-062.0 |
Jumper socket |
|
| 33 |
6.996-721.0 |
Plug |
|
| 33 |
6.373-656.0 |
Pipe clamp D40 |
|
| 34 |
6.368-075.0 |
Drain plug |
|
| 34 |
7.316-344.0 |
Cotter 2,5x28-St-A2E ISO 1234 |
|
| 34 |
4.070-306.0 |
Hydraulic oil 1,5 L |
|
| 34 |
6.401-381.0 |
SEALING SET |
|
| 34 |
6.996-905.0 |
Nipple metering 0.05 |
|
| 34 |
5.310-135.0 |
Nut G4 374 521353 |
|
| 34 |
6.997-267.0 |
Transmitter feeder plate |
|
| 34 |
6.996-923.0 |
Plate without threaded |
|
| 34 |
6.997-104.0 |
Screw connector E212.115L |
|
| 34 |
6.388-549.0 |
Hose clip |
|
| 35 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 35 |
6.996-763.0 |
Screw connector |
|
| 35 |
6.996-204.0 |
Hydraulic hose 1030 |
|
| 35 |
6.996-906.0 |
Nipple metering 0.20 |
|
| 35 |
6.996-847.0 |
Spacer rubber |
|
| 35 |
6.996-924.0 |
Plate with threaded |
|
| 35 |
6.996-973.0 |
Screw connector |
|
| 35 |
5.058-324.0 |
Sheet metal component |
|
| 35 |
6.996-988.0 |
Form hose |
|
| 35 |
6.996-299.0 |
Hose |
|
| 36 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 36 |
5.515-186.0 |
Roller |
|
| 36 |
5.409-504.0 |
Nipple 519994 |
|
| 36 |
6.996-324.0 |
Plug valve |
|
| 36 |
6.996-909.0 |
Screw plug |
|
| 36 |
7.304-399.0 |
Hexagonal head screw M 8x25-8.8-A2E ISO |
|
| 36 |
6.996-169.0 |
Switch |
|
| 36 |
5.058-325.0 |
Sheet metal component 520179 |
|
| 36 |
7.304-394.0 |
Hexagonal head screw M8x12 -8.8-A2E ISO |
|
| 36 |
6.996-278.0 |
Protection hose |
|
| 37 |
7.311-425.0 |
Hexagon nut M6 -04-A2E ISO 10511 |
|
| 37 |
4.040-127.0 |
Sheet metal component hinge GSK |
|
| 37 |
6.997-132.0 |
Screw connector E336.112 |
|
| 37 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 37 |
6.996-170.0 |
Switch |
|
| 37 |
7.311-001.0 |
Hexagon nut M4 -8-A2E ISO 4032 |
|
| 37 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 37 |
6.996-279.0 |
Piece of tube |
|
| 38 |
6.997-113.0 |
Spring washer 18 FORM B |
|
| 38 |
5.058-132.0 |
Sheet metal component flap 520873 |
|
| 38 |
6.996-640.0 |
Pressure ring |
|
| 38 |
6.997-298.0 |
Nipple connection |
|
| 38 |
6.996-848.0 |
Base |
|
| 38 |
6.996-171.0 |
Switch |
|
| 38 |
7.312-001.0 |
Washer 4 -200HV-A3E ISO 7089 |
|
| 38 |
7.303-367.0 |
Sheet metal screw ST4,2X19,0-ST-A2E ISO |
|
| 38 |
6.388-766.0 |
Hose clip |
|
| 39 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 39 |
5.100-405.0 |
Shaft 520883 |
|
| 39 |
6.997-284.0 |
O-Ring seal 85X4 70SHORE |
|
| 39 |
6.997-299.0 |
Screw connector adjustable |
|
| 39 |
6.641-458.0 |
Cable tape |
|
| 39 |
6.996-205.0 |
Cap of a tank |
|
| 39 |
7.303-138.0 |
Sheet metal screw ST4,2X9,5-A2-70-SCHW ( |
|
| 39 |
7.303-139.0 |
Saucer-head screw M6x20 -A2 DIN 603 |
|
| 39 |
6.996-307.0 |
Suction hose |
|
| 40 |
6.996-920.0 |
Ring 8mm, FHS 503071 |
|
| 40 |
7.304-521.0 |
Hexagonal head screw M 6x16-A4-70 ISO 4 |
|
| 40 |
5.363-597.0 |
Seal D40*27*2 NBR 70 |
|
| 40 |
6.964-093.0 |
Viscous oil 1kg |
|
| 40 |
5.132-164.0 |
Threaded part 521357 |
|
| 40 |
6.997-268.0 |
Level indicator |
|
| 40 |
6.996-172.0 |
Jumper socket |
|
| 40 |
6.996-682.0 |
Sheet metal component |
|
| 41 |
6.996-533.0 |
Serrated locking washer D6 |
|
| 41 |
5.363-598.0 |
Seal D32*21*2 NBR 70 |
|
| 41 |
6.996-932.0 |
Valve |
|
| 41 |
6.997-246.0 |
Поэзия датчик уровня |
|
| 41 |
6.996-774.0 |
Covering bottom right |
|
| 41 |
6.996-683.0 |
Plate |
|
| 42 |
6.996-873.0 |
Handhold Gekroepft |
|
| 42 |
5.409-503.0 |
Nipple 519993 |
|
| 42 |
6.286-442.0 |
Adhesiv cloth tape Cellopren 50mm x 10m |
|
| 42 |
6.997-269.0 |
Seal level indicator |
|
| 42 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 42 |
6.273-071.0 |
Strap cellularrubber 19X5 |
|
| 42 |
6.997-247.0 |
Формовочный шланг |
|
| 43 |
6.997-114.0 |
Elbow screw connector |
|
| 43 |
5.007-767.0 |
Plate suction mouth |
|
| 43 |
6.286-448.0 |
Silicon seal |
|
| 43 |
5.409-512.0 |
"""Screw connector 8-3/8"""" """ |
|
| 43 |
6.997-270.0 |
Плита |
|
| 43 |
7.303-367.0 |
Sheet metal screw ST4,2X19,0-ST-A2E ISO |
|
| 43 |
6.996-963.0 |
Signal horn HELLA |
|
| 44 |
6.996-874.0 |
Pressure controller |
|
| 44 |
6.997-311.0 |
Vacuum filter barrel recoil |
|
| 44 |
6.996-791.0 |
Hose plastics |
|
| 44 |
7.312-293.0 |
Washer 4-A2 ISO 7093-1 |
|
| 44 |
7.304-395.0 |
Hexagonal head screw M8x16-8.8-A2E ISO |
|
| 45 |
6.997-115.0 |
Support sleeve 8-5.5 |
|
| 45 |
2.882-568.0 |
Conversion kit flap ICC2 |
|
| 45 |
6.997-312.0 |
Filter element |
|
| 45 |
7.312-073.0 |
Washer 8 -CuZn ISO 7092 |
|
| 45 |
7.311-235.0 |
Castle nut M12X1,5-8-A3E DIN 935 |
|
| 45 |
6.996-530.0 |
Serrated locking washer D8 |
|
| 46 |
6.997-116.0 |
"""Armature 8-3/8"""" """ |
|
| 46 |
6.431-219.0 |
Bowden wire bulk waste flap ICC 2 |
|
| 46 |
7.462-023.0 |
Angle joint CS13 -A2E DIN 71802 |
|
| 46 |
6.997-313.0 |
Set of gaskets |
|
| 46 |
6.996-989.0 |
"""Double nipple 3/8"""" """ |
|
| 46 |
6.997-271.0 |
Screw connector |
|
| 46 |
6.996-634.0 |
Cable harness VORDERW. |
|
| 46 |
6.654-152.0 |
Cable set front carriage |
|
| 47 |
6.996-791.0 |
Hose plastics |
|
| 47 |
6.997-315.0 |
Screw connector |
|
| 47 |
4.040-222.0 |
Tube |
|
| 47 |
6.996-799.0 |
Cover |
|
| 48 |
6.997-117.0 |
Plug nipple 8MM |
|
| 48 |
6.997-130.0 |
Screw connector E212.115L |
|
| 48 |
5.007-723.0 |
Sheet metal component |
|
| 48 |
6.996-518.0 |
Potentiometer |
|
| 48 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 49 |
6.997-214.0 |
Elbow screw connector |
|
| 49 |
6.273-260.0 |
Sealing tape 7mmx2,5mm |
|
| 49 |
5.470-046.0 |
Coupler 4 ZOLL 521355 |
|
| 49 |
6.997-294.0 |
Flat gasket |
|
| 49 |
6.996-526.0 |
Serrated locking washer d.10 |
|
| 49 |
6.996-635.0 |
Valve water |
|
| 50 |
5.007-768.0 |
Plate turbine |
|
| 50 |
6.997-259.0 |
Манометрический выключатель |
|
| 50 |
7.311-423.0 |
Hexagon nut M10 -04-A2E ISO 10511 |
|
| 50 |
6.996-636.0 |
Magnetic bobbin |
|
| 51 |
6.997-216.0 |
Strap PVC 15x4,5 |
|
| 51 |
6.997-295.0 |
T-Piece |
|
| 51 |
7.304-415.0 |
Hexagonal head screw M10x25-8.8-A3E ISO |
|
| 51 |
6.996-964.0 |
Screw nipple |
|
| 52 |
6.997-296.0 |
Hose assembly |
|
| 52 |
5.058-526.0 |
Sheet metal component |
|
| 53 |
7.311-512.0 |
Hexagon nut M 6-8-A2E ISO 7040 |
|
| 53 |
6.996-791.0 |
Hose plastics |
|
| 54 |
7.303-046.0 |
Screw M6x12 -St-R3R (In6Rd) |
|
| 54 |
6.996-642.0 |
Plug valve |
|
| 55 |
6.997-274.0 |
Dosing pump |
|
| 55 |
5.384-966.0 |
Inscription windscreen wiper |
|
| 55 |
6.997-289.0 |
Bottom plate |
|
| 55 |
6.315-055.0 |
Blind rivet 4x9,5 |
|
| 56 |
6.997-290.0 |
Bottom plate |
|
| 56 |
6.996-795.0 |
Molding |
|
| 57 |
7.304-536.0 |
Hexagonal head screw M 6x20-A4-70 ISO 4 |
|
| 57 |
6.996-796.0 |
Spacer little |
|
| 57 |
5.058-548.0 |
Sheet metal component |
|
| 58 |
6.996-797.0 |
Spacer large |
|
| 58 |
5.058-454.0 |
Sheet metal component A20F9 |
|
| 59 |
6.664-044.0 |
Диод ICC2 |
|
| 59 |
6.286-392.0 |
Sealing material black Sikaflex 222 |
|
| 59 |
6.996-798.0 |
Bonding agent |
|
| 61 |
6.286-443.0 |
Silicon Primer 206G+P |
|
| 61 |
6.996-767.0 |
Activator |
|
| 61 |
6.869-035.0 |
Special cleansing agent |
|
| 62 |
6.996-758.0 |
Serrated locking washer d.12 |
|
| 63 |
7.311-055.0 |
Шестигранная гайка M12x1,0-8-A3E ISO |
|
