Karcher (Керхер) Всасывающие губки (0.208-386.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

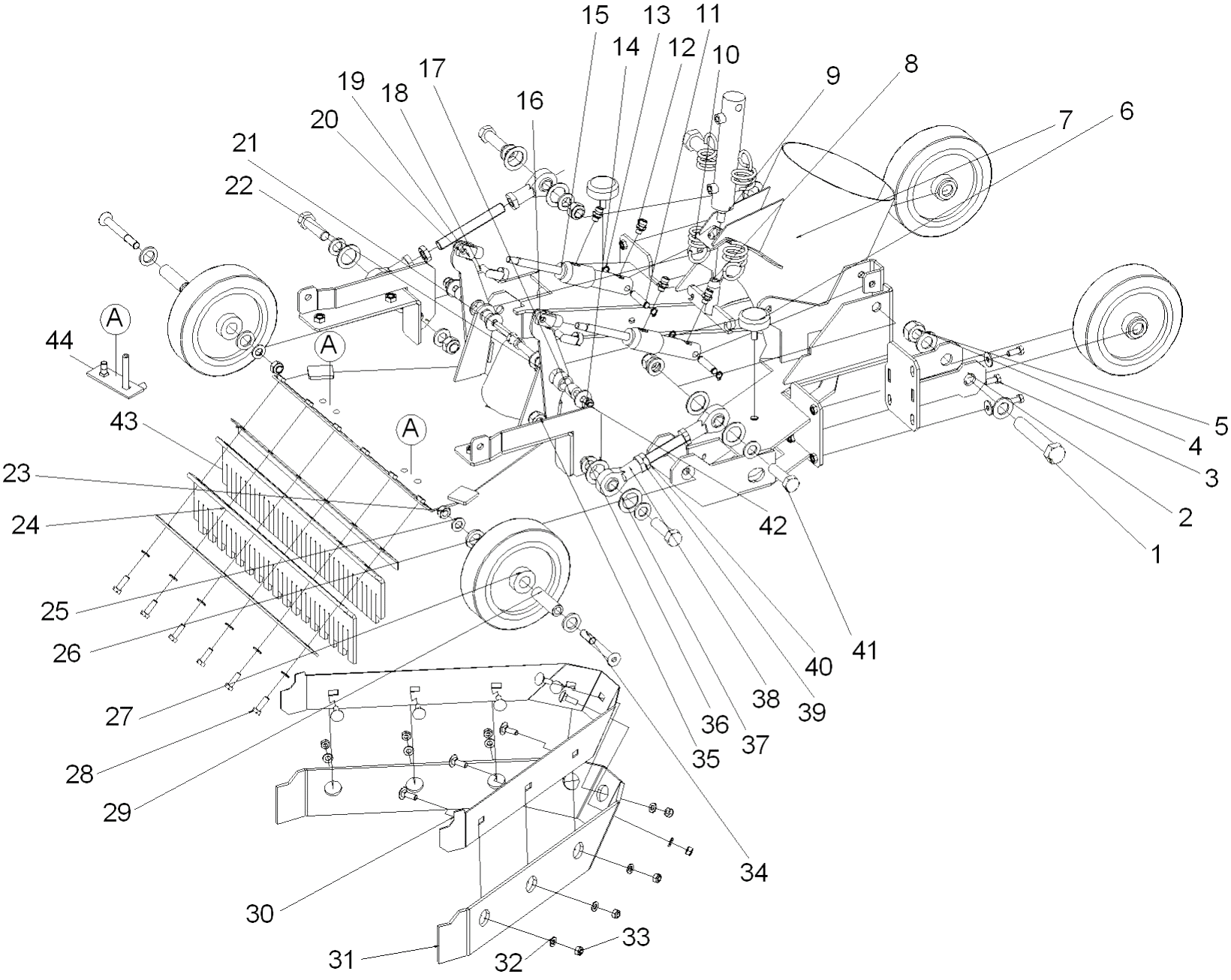

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.040-187.0	Sheet metal component pedal
1	6.996-236.0	Hydraulic motor
1	6.474-050.0	Pump triple
2	4.040-511.0	Sheet metal component
2	7.304-435.0	Hexagonal head screw M12x30-8.8-A3E ISO
2	6.996-237.0	Flange
2	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
2	7.306-062.0	Cylinder head screw M10x25 -8.8-A3E DIN
3	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
3	7.312-008.0	Washer 12-200HV-A3E ISO 7090
3	6.996-238.0	Fixing motor
3	6.996-530.0	Serrated locking washer D8
3	6.996-526.0	Serrated locking washer d.10
4	7.312-018.0	Washer 20-200HV-A3E ISO 7090
4	7.311-429.0	Hexagon nut M12-04-A2E ISO 10511
4	7.314-943.0	Spring pin 4x18-St ISO 8752
4	6.997-105.0	Countersunk screw M8-45
4	6.413-367.0	Valve control system blower
5	7.311-034.0	Hexagon nut M20-A2-70 ISO 7040
5	5.007-848.0	Plate
5	6.996-239.0	Wheel turbine
5	6.997-104.0	Screw connector E212.115L
6	6.339-233.0	Rubber buffer
6	6.330-208.0	Spring TORSION
6	4.040-405.0	Housing turbine
6	6.996-697.0	Screw connector E237.15L
7	4.040-579.0	Sheet metal component suction mouth
7	5.128-612.0	Tube
7	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
8	6.996-218.0	Gallows
8	7.306-146.0	Cylinder head screw M12x70 -A4-70 ISO 4
8	6.996-530.0	Serrated locking washer D8
8	6.391-214.0	Hydraulic hose
9	6.996-220.0	Hydraulic cylinder
9	7.304-406.0	Hexagonal head screw M 8x35-8.8-A2E IS
9	6.996-982.0	Rubber buffer 30X30 M
9	6.996-965.0	Screw connector E212.112L
10	6.996-219.0	Extension spring -FHS 516857
10	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
10	6.996-984.0	Rubber buffer 30x20
10	6.996-144.0	Hydraulic hose 1180
10	6.996-747.0	Valve Druckbegr.
11	5.116-229.0	Axle
11	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
11	6.996-990.0	Nut M18
11	6.391-229.0	Hydraulic hose
11	6.686-295.0	Coil 12V 02000.0122
12	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
12	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
12	6.996-070.0	Hydraulic hose 1070
13	7.343-001.0	Locking ring 10x1-Rf-St DIN 471
13	6.431-219.0	Bowden wire bulk waste flap ICC 2
13	6.997-102.0	"""Pipe fitting XGE 18 LR 1/2""""-ED """
14	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
14	5.128-539.0	Bolt pedal A3699
14	6.391-228.0	Hydraulic hose
14	6.996-619.0	Temperature probe
15	6.504-089.0	Hydraulic cylinder lift 50mm
15	7.462-013.0	Fork head G8x32 -St-A2E DIN71752
15	6.391-229.0	Hydraulic hose
15	6.391-206.0	Hydraulic hose
15	6.997-129.0	Screw connector E212.122L
16	5.515-193.0	Roller A3677
16	6.391-227.0	Hydraulic hose
16	6.996-972.0	Drain plug
17	5.112-799.0	Bush
17	4.040-188.0	Sheet metal component operation
17	6.996-515.0	T-Piece
17	6.996-143.0	Double nipple
17	6.997-152.0	Screw connector E707.22-18
18	6.997-179.0	Bolt M10X20
18	6.316-089.0	Bolt
18	6.391-230.0	Hydraulic hose
18	6.996-141.0	Elbow connector
18	6.391-228.0	Hydraulic hose
19	6.997-180.0	Fork head 10X20
19	6.391-222.0	Hydraulic hose
20	4.040-578.0	Bracket suction mouth
20	6.997-134.0	Screw connector E212.106L
21	7.304-514.0	Hexagonal head screw M10x50-A2-70 ISO 4
21	6.996-319.0	T-Screw connection
22	5.112-704.0	Bush
22	6.996-989.0	"""Double nipple 3/8"""" """
22	6.391-199.0	Hydraulic hose
23	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
23	6.997-089.0	Ball valve
23	6.391-203.0	Hydraulic hose
24	5.365-287.0	Rubber lip
24	6.997-217.0	Pipe clamp 22X20
24	6.391-227.0	Hydraulic hose
25	7.312-008.0	Washer 12-200HV-A3E ISO 7090
25	6.997-106.0	Bulkhead screw connection 3/8
25	6.997-102.0	"""Pipe fitting XGE 18 LR 1/2""""-ED """
26	7.312-143.0	Washer 20-160HV-A3E ISO 8738
26	6.997-107.0	Double nipple E212
26	6.997-118.0	Screw connector E237.06
27	6.997-320.0	Wheel D 180mm
27	6.997-104.0	Screw connector E212.115L
28	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
28	6.391-218.0	Hydraulic hose
29	5.116-228.0	Wheel axle
29	6.997-108.0	"""Elbow connector 3/8"""" """
29	6.391-217.0	Hydraulic hose
30	5.057-574.0	Sheet metal component
30	6.997-109.0	T-Screw connection 3/8
30	6.387-178.0	"""Elbow D4-1""""-ZN-A EN 10242 """
31	5.364-231.0	Rubber lip
31	6.997-110.0	Elbow screw connector
31	6.997-154.0	Screw connector E722.16-12
32	7.312-017.0	Washer 8-A2 ISO 7089
32	6.997-111.0	"""Double nipple 3/8"""" """
32	6.390-093.0	"""Hose stem 1"""" / D32 CuZn """
33	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
33	6.996-101.0	High pressure hose
33	6.391-208.0	Hydraulic hose
34	6.368-075.0	Drain plug
35	7.311-523.0	Hexagon nut M16 -8-A2E ISO 7040
35	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
35	6.391-209.0	Hydraulic hose
36	7.312-089.0	Washer 16-200HV ISO 7089
36	6.996-533.0	Serrated locking washer D6
36	6.996-324.0	Plug valve
37	5.115-924.0	Washer rhomboid SM
37	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
37	6.465-025.0	Coupler
38	6.997-000.0	Threaded rod DIN 976
38	6.997-113.0	Spring washer 18 FORM B
38	6.391-319.0	Hydraulic hose 1620
39	7.304-536.0	Hexagonal head screw M 6x20-A4-70 ISO 4
39	6.386-983.0	Screw connector XEW 22 L
40	7.311-010.0	Hexagon nut M16-8-A3E ISO 4032
40	6.996-920.0	Ring 8mm, FHS 503071
40	6.996-763.0	Screw connector
41	5.443-040.0	Hose stem
42	7.312-269.0	Washer 10-A2 ISO 7094
42	6.996-873.0	Handhold Gekroepft
43	5.365-288.0	Support lip
43	6.997-114.0	Elbow screw connector
44	4.130-426.0	Nozzle complete
44	6.996-874.0	Pressure controller
45	6.997-115.0	Support sleeve 8-5.5
46	6.997-116.0	"""Armature 8-3/8"""" """
47	6.996-791.0	Hose plastics
48	6.997-117.0	Plug nipple 8MM
49	6.997-214.0	Elbow screw connector
51	6.997-216.0	Strap PVC 15x4,5
52	5.008-419.0	Plate cleaning
53	4.040-428.0	Sheet metal component canal blower
54	5.057-080.0	Sheet metal component cover exhaust air
