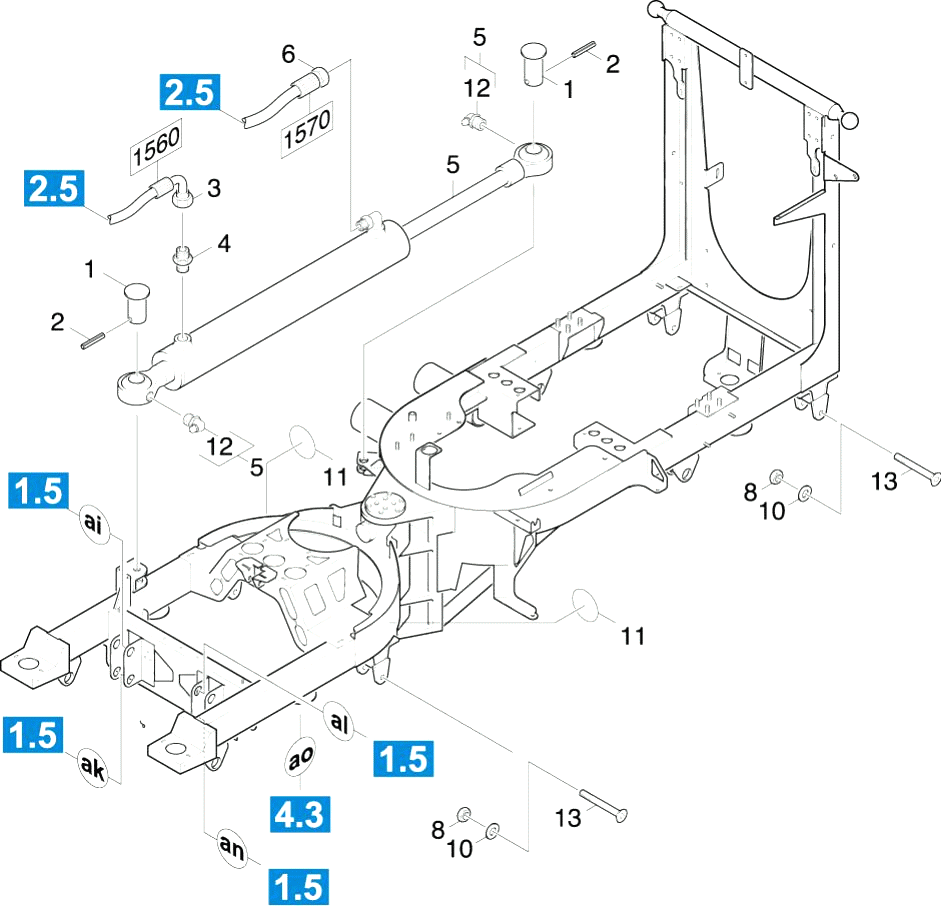

Karcher (Керхер) Цилиндр управление (0.207-888.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.996-181.0	Bolt
1	7.644-013.0	Fuse insert C 5 DIN 72581-3
1	7.304-417.0	Hexagonal head screw M10x30-8.8-A3E ISO
2	7.314-956.0	Spring pin 6x40-St ISO 8752
2	7.644-017.0	Fuse insert C10 DIN 72581-3
2	6.996-174.0	Plate
3	6.996-182.0	Hydraulic hose 1560
3	7.644-018.0	Fuse insert C15 DIN 72581-3
3	6.996-175.0	Ring
4	6.996-971.0	Screw connector
4	7.644-007.0	Fuse insert C 7,5 DIN 72581-3
4	6.996-176.0	Flange
5	6.996-183.0	Cylinder steering
5	6.996-784.0	Bearing joint above
6	6.996-184.0	Hydraulic hose 1570
6	6.996-178.0	Bolt
7	6.996-976.0	O-Ring seal
8	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
8	6.996-179.0	Bolt
9	6.996-977.0	O-Ring seal
10	7.312-008.0	Washer 12-200HV-A3E ISO 7090
10	6.996-785.0	Bearing joint bottom
11	6.996-180.0	Fixing bottom
12	6.417-014.0	Grease-nipple M8X1
13	7.305-090.0	Countersunk screw M12x100-8.8-A3R ISO10
31	6.996-120.0	Brake hose -FHS 516249
32	6.996-121.0	Double nipple -FHS 516801
34	6.996-556.0	Pipeline brake left -FHS 516253
35	7.305-090.0	Countersunk screw M12x100-8.8-A3R ISO10
35	7.304-040.0	Hexagonal head screw M12x100-A4-70 ISO 4
36	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
40	7.304-434.0	Hexagonal head screw M12x90-8.8-A3E ISO
42	6.996-557.0	Pipeline brake right -FHS 516252
43	6.996-079.0	Pipeline brake
44	6.996-078.0	Pipeline brake
45	7.312-008.0	Washer 12-200HV-A3E ISO 7090
