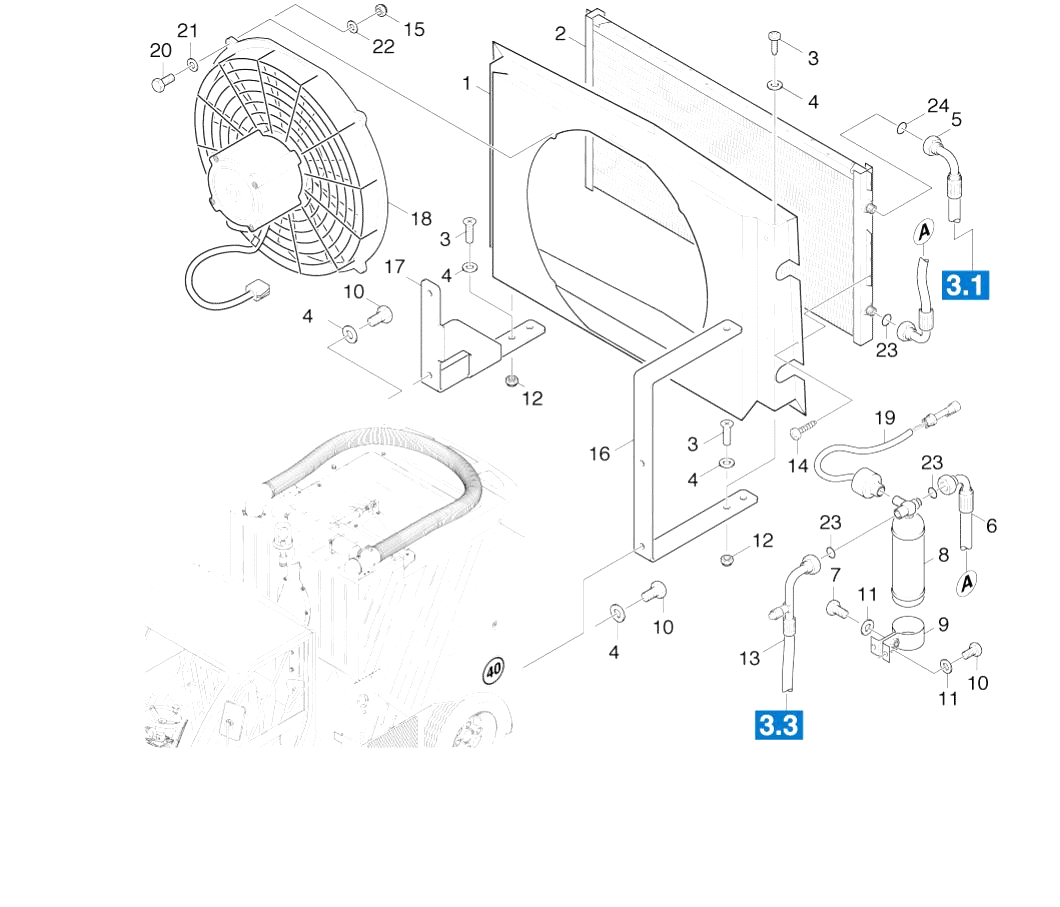

Karcher (Керхер) Кондиционер (0.207-226.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.996-594.0	Covering
2	6.996-595.0	Heat exchanger
3	7.305-031.0	Countersunk screw M6x16-8.8-A2R (In6Rd)
5	6.996-593.0	Hose Klima
6	6.996-596.0	Hose Klima
7	7.304-536.0	Hexagonal head screw M 6x20-A4-70 ISO 4
8	6.996-597.0	Filter dryer
9	6.996-598.0	Holder
10	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
11	6.996-533.0	Serrated locking washer D6
12	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
13	6.996-599.0	Hose Klima
14	6.997-198.0	Self-drilling screw 4.2X16
15	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
16	6.996-600.0	Holder
17	6.996-601.0	Holder
18	6.996-602.0	Blower ELEKTRO
19	6.996-603.0	Switch
20	7.304-383.0	Hexagonal head screw M 6X 16-8.8-A2E IS
21	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
35	6.996-276.0	Piece of tube
37	6.996-212.0	Hose
38	6.388-546.0	Hose clip
41	6.996-530.0	Serrated locking washer D8
43	7.312-005.0	Washer 10-200HV-A3E ISO 7090
44	6.996-526.0	Serrated locking washer d.10
45	6.273-239.0	Strap Zellopren
46	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
47	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
