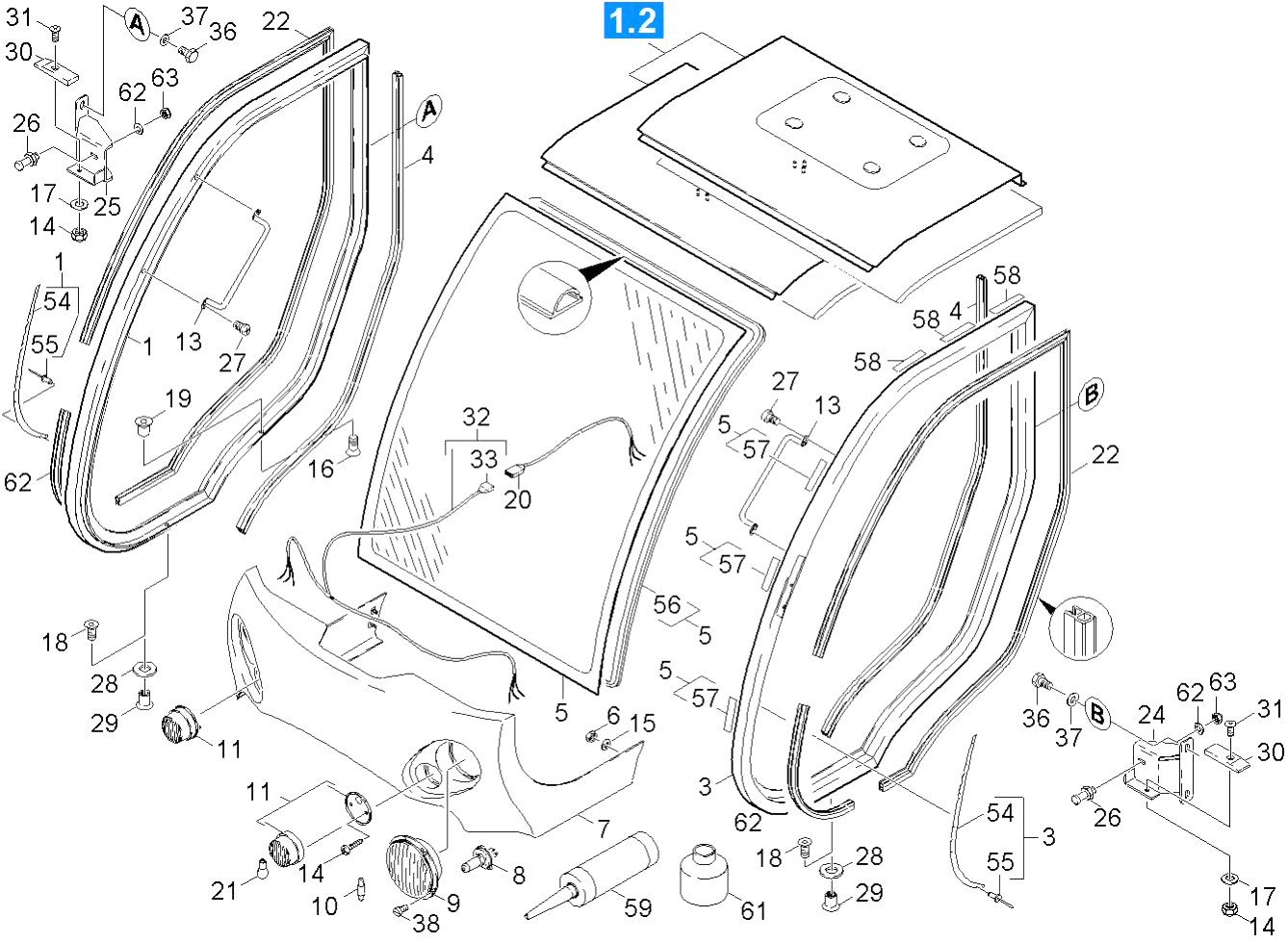

Karcher (Керхер) Кабина (0.207-973.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.996-442.0	Frame cabin right
1	6.630-130.0	Switch
2	5.057-140.0	Sheet metal component
3	6.996-444.0	Frame cabin left
3	6.996-066.0	Bowden wire
4	6.996-233.0	Clamping part
5	6.996-446.0	Windshield
5	6.996-822.0	Spring
6	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
6	6.996-770.0	Bellows
7	6.996-953.0	Covering front white
7	6.996-447.0	Covering front yellow
8	6.996-448.0	Light bulb
8	7.312-066.0	Washer 10 -A2 ISO 7090
9	6.996-449.0	Headlight
9	6.996-055.0	Throttle cable
10	7.651-009.0	Lamp bulb C5W-12V 5W EN 60809
10	6.996-819.0	Hook
11	6.996-450.0	Indicator complete
11	7.306-208.0	Screw M 4x16-A2-70 (IN6RD)
12	5.116-143.0	Sleeve throttle cable Euro 3
13	6.996-469.0	Handhold
14	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
15	6.997-241.0	Washer 8.4X20X2
16	7.305-011.0	Countersunk screw M10x40-A2-70 ISO 1064
17	6.996-533.0	Serrated locking washer D6
18	6.996-952.0	Countersunk screw M10X60
19	6.996-451.0	Nut
20	6.997-235.0	Coupler complete
21	7.651-014.0	Lamp P21W-BA15s-12V EN 60809
22	6.996-651.0	Sealing profile
24	6.996-453.0	Holder left
25	6.996-454.0	Holder right
27	6.996-955.0	Countersunk screw M 5x20
28	7.312-005.0	Washer 10-200HV-A3E ISO 7090
29	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
30	6.996-456.0	Slide part
31	7.305-031.0	Countersunk screw M6x16-8.8-A2R (In6Rd)
32	6.654-153.0	Cable set covering front
32	6.996-457.0	Cable harness
33	6.996-721.0	Plug
36	7.304-394.0	Hexagonal head screw M8x12 -8.8-A2E ISO
37	6.996-530.0	Serrated locking washer D8
55	6.315-055.0	Blind rivet 4x9,5
56	6.996-795.0	Molding
57	6.996-796.0	Spacer little
