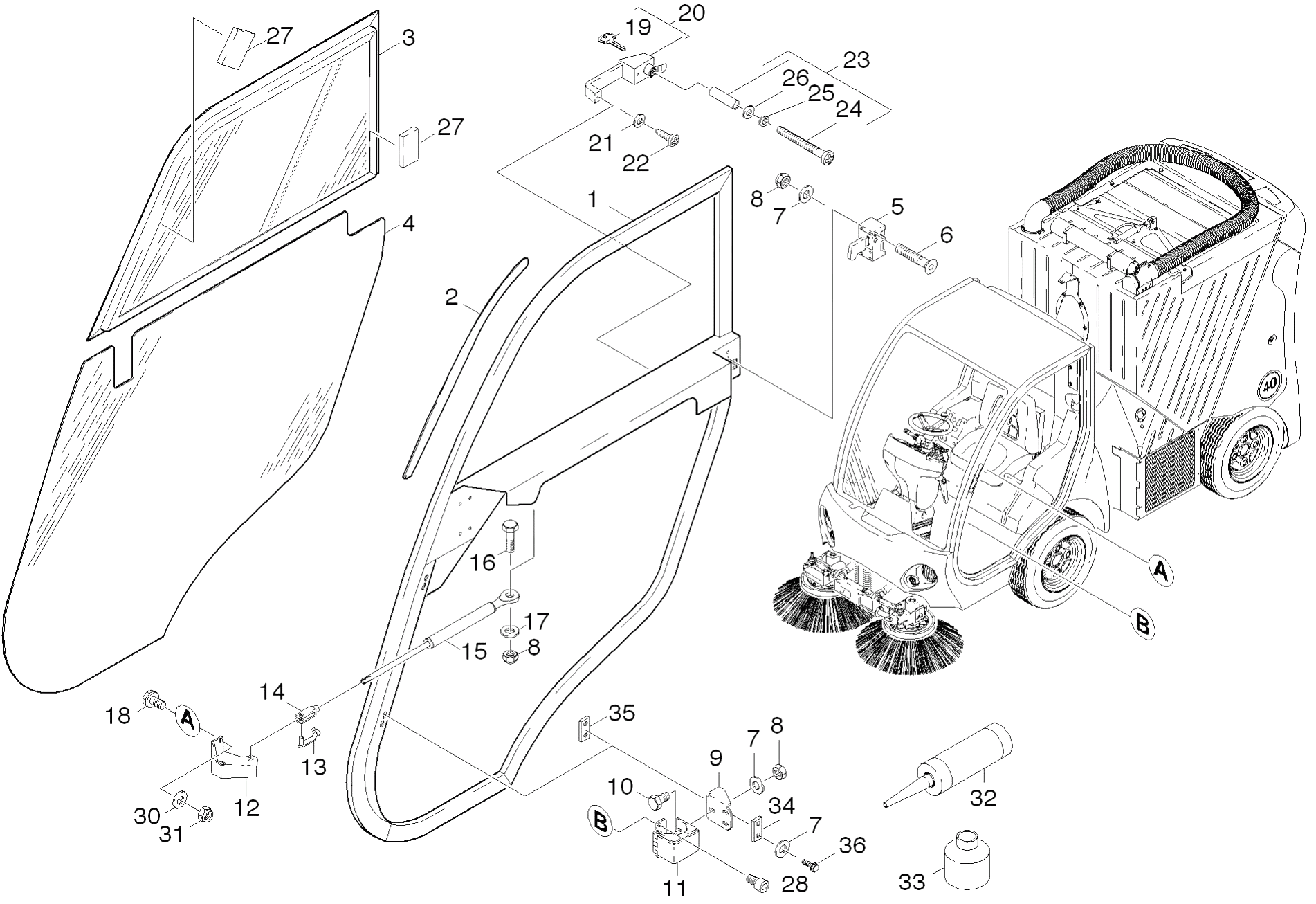

Karcher (Керхер) Дверь справа (0.103-793.0)

Karcher (Керхер) Дверь справа (0.103-793.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 6.996-471.0 Frame
2 6.996-462.0 Covering cap
3 6.996-472.0 Sliding window left
4 6.996-473.0 Glass pane bottom -FHS 518226
5 6.996-475.0 Lock door
6 6.996-959.0 Countersunk screw M 8x40
7 6.996-530.0 Serrated locking washer D8
8 7.311-427.0 Hexagon nut M8 -04-A2E ISO 10511
9 6.996-465.0 Angle hinge
10 7.304-397.0 Hexagonal head screw M8x20-8.8-A2E ISO
11 6.996-466.0 Hinge door
12 6.996-467.0 Fixing cylinder
12 6.996-474.0 Fixing cylinder
13 6.316-089.0 Bolt
14 7.462-006.0 Fork head G8x16 -St-A2E DIN71752
15 6.996-464.0 Gas spring
16 7.304-400.0 Hexagonal head screw M 8x30-8.8-A2E ISO
17 7.312-073.0 Washer 8 -CuZn ISO 7092
18 7.304-521.0 Hexagonal head screw M 6x16-A4-70 ISO 4
19 5.873-007.0 Key
20 6.439-163.0 Doorhandle external
21 6.996-533.0 Serrated locking washer D6
22 7.304-382.0 Hexagonal head screw M 6x12-8.8-A2E ISO
23 6.996-766.0 Sleeve complete
23 6.996-476.0 Spacer sleeve
24 7.306-187.0 Screw M5x50 -A2-70 (In6Rd)
25 7.313-032.0 Spring washer A 5-Edelstahl DIN 128
26 7.312-278.0 Washer 5-200HV-A2E ISO7093-1
27 6.996-468.0 Closure
28 7.306-040.0 Cylinder head screw M8x16 -8.8-A2E ISO4
29 6.996-027.0 Ignition key
31 7.311-425.0 Hexagon nut M6 -04-A2E ISO 10511
32 6.996-061.0 Switch
32 6.996-798.0 Bonding agent
33 6.996-062.0 Jumper socket
33 6.996-789.0 Очиститель
33 6.996-767.0 Activator
33 6.869-035.0 Special cleansing agent
33 6.286-443.0 Silicon Primer 206G+P
34 6.997-104.0 Screw connector E212.115L
34 6.996-923.0 Plate without threaded
35 6.996-973.0 Screw connector
35 6.996-924.0 Plate with threaded
36 6.996-169.0 Switch
36 7.304-399.0 Hexagonal head screw M 8x25-8.8-A2E ISO
37 6.996-170.0 Switch
38 6.996-171.0 Switch
40 6.996-172.0 Jumper socket
41 6.996-774.0 Covering bottom right
42 7.312-003.0 Washer 6 -200HV-A3E ISO 7090
43 7.303-367.0 Sheet metal screw ST4,2X19,0-ST-A2E ISO
44 7.312-293.0 Washer 4-A2 ISO 7093-1
48 6.996-518.0 Potentiometer
49 6.996-526.0 Serrated locking washer d.10
50 7.311-423.0 Hexagon nut M10 -04-A2E ISO 10511
51 7.304-415.0 Hexagonal head screw M10x25-8.8-A3E ISO
52 5.058-526.0 Sheet metal component
53 7.311-512.0 Hexagon nut M 6-8-A2E ISO 7040
54 7.303-046.0 Screw M6x12 -St-R3R (In6Rd)
55 5.384-966.0 Inscription windscreen wiper
56 6.391-202.0 Hydraulic hose
