Karcher (Керхер) Боковая щетка слева (0.206-923.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

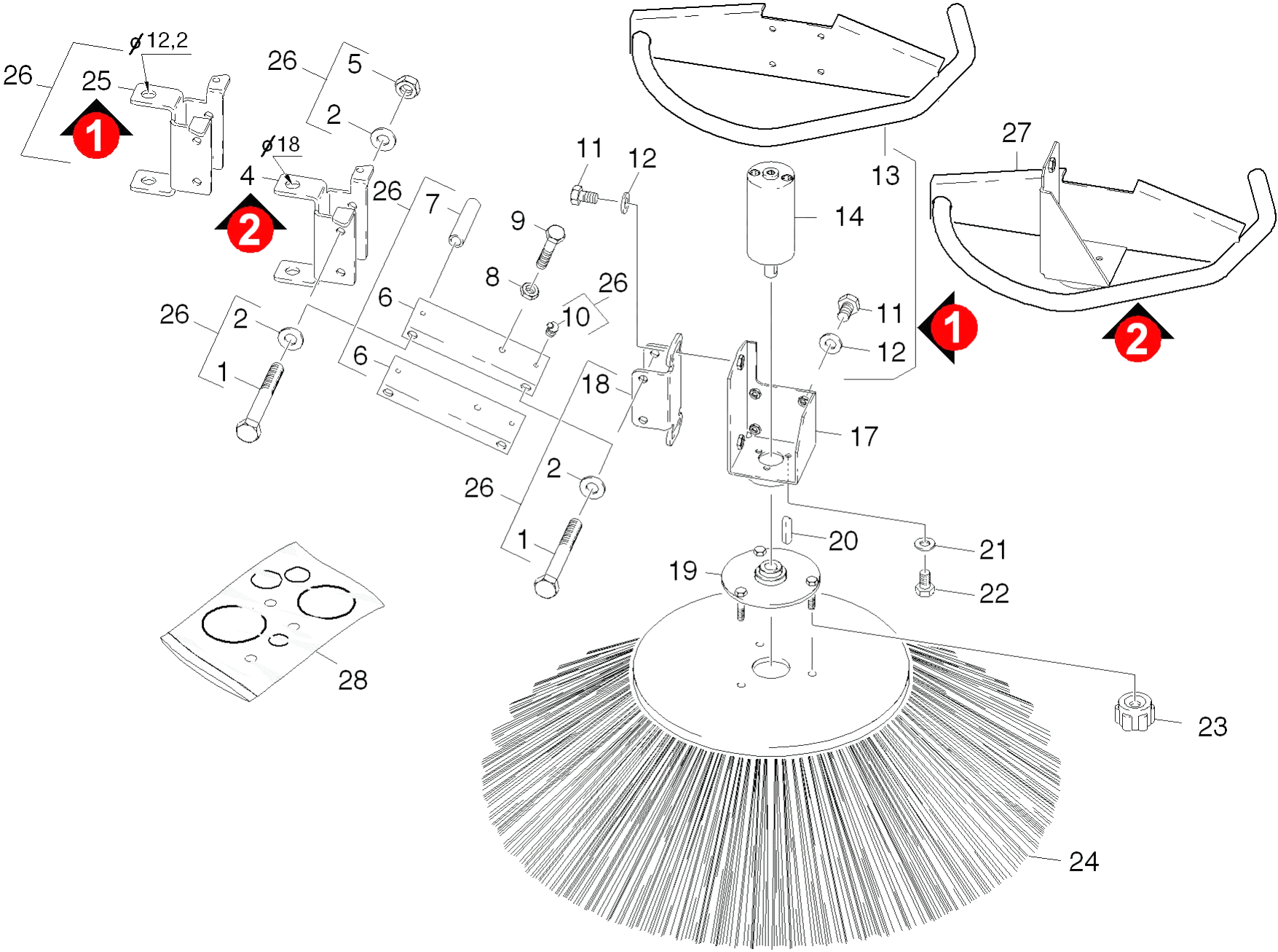

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.304-249.0	Hexagonal head screw M10x80-A2-70 ISO 4
1	4.058-126.0	Carrier
1	5.017-063.0	Angle
1	5.029-299.0	Lever
2	7.312-269.0	Washer 10-A2 ISO 7094
2	5.515-122.0	Deflection pulley
2	4.038-644.0	Sheet metal component complete
2	7.304-407.0	Hexagonal head screw M 8x45-8.8-A2E ISO
2	5.112-615.0	Bush
3	6.310-066.0	Star grip M 8
3	5.029-444.0	Tube holder spare wheel
3	7.312-005.0	Washer 10-200HV-A3E ISO 7090
3	6.390-521.0	Hose blower
4	5.058-506.0	Sheet metal component left
4	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
4	5.048-783.0	Sheet metal component roller chain
4	5.048-019.0	Sheet metal component
4	5.049-716.0	Sheet metal component maintenance flap p
4	6.373-707.0	Clamp
5	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
5	5.481-300.0	Lever rhomboid SB
5	6.432-180.0	Chain sweep unit SM/SB
6	5.481-300.0	Lever rhomboid SB
6	5.049-541.0	Sheet metal component
6	6.339-167.0	Gas spring side broom 700N
6	6.372-073.0	Hinge
6	5.029-299.0	Lever
6	5.442-954.0	Hose
7	5.112-703.0	Bearing bush
7	4.025-648.0	Canal helical housing
7	5.112-615.0	Bush
7	7.316-333.0	Cotter 2x20-St-A2E ISO 1234
8	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
8	5.058-507.0	Sheet metal component right
8	6.347-057.0	Flanged bushing
8	6.375-257.0	Snap fastener
8	7.316-009.0	Bolt B 8,0X 45-ST-A2E ISO 2341
8	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
9	7.304-422.0	Hexagonal head screw M10x65-8.8-A3E ISO
9	5.048-702.0	Sheet metal component
9	4.610-076.0	Blower wheel wear resistant ICC1
9	4.610-072.0	Blower wheel wear resistant
9	6.906-169.0	Brush strip
9	7.316-009.0	Bolt B 8,0X 45-ST-A2E ISO 2341
10	7.417-010.0	Grease-nipple B M8x1-5.8-A3F DIN71412
10	7.311-006.0	Hexagon nut M10 -8-A3E ISO 4032
10	5.105-346.0	Axle
10	5.048-014.0	Sheet metal component
10	5.058-015.0	Sheet metal component
10	5.001-978.0	Plate holder brush
10	5.049-468.0	Sheet metal component wheel suspension l
11	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
11	4.393-025.0	Защитная труба справа боковая щетка
11	6.961-536.0	Flashing lamp
11	7.305-627.0	Countersunk screw M8x25-A2-70 ISO 10642
11	5.442-954.0	Hose
11	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
12	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
12	7.417-010.0	Grease-nipple B M8x1-5.8-A3F DIN71412
12	7.651-014.0	Lamp P21W-BA15s-12V EN 60809
12	5.048-042.0	Sheet metal component
12	5.058-017.0	Sheet metal component
12	6.432-180.0	Chain sweep unit SM/SB
12	6.431-188.0	Bowden wire bulk waste flap
12	6.431-206.0	Bowden wire
13	6.503-010.0	Hydraulic motor SB
13	4.038-701.0	Sheet metal component complete bumper
13	4.038-798.0	Sheet metal component complete
13	4.040-095.0	Sheet metal component complete
13	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
14	6.503-010.0	Hydraulic motor SB
14	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
14	5.048-017.0	Sheet metal component
14	6.435-360.0	Castor suction mouth D100
15	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
15	7.304-435.0	Hexagonal head screw M12x30-8.8-A3E ISO
15	6.339-094.0	Rubber buffer
15	4.038-650.0	Sheet metal component complete suction m
15	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
16	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
16	5.115-814.0	Washer
16	6.373-707.0	Clamp
17	4.043-128.0	Holder left
17	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
17	6.390-274.0	Hose 180
18	5.049-541.0	Sheet metal component
18	7.318-002.0	Parallel key 5x5x16 -C45R DIN 6885-1
18	7.304-414.0	Hexagonal head screw M10x20-8.8-A3E ISO
18	7.316-333.0	Cotter 2x20-St-A2E ISO 1234
19	4.120-183.0	Hub retainer SB
19	7.312-005.0	Washer 10-200HV-A3E ISO 7090
19	6.373-706.0	Clamp suction hose SM
19	6.373-834.0	Clamp 162-174
19	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
20	7.318-002.0	Parallel key 5x5x16 -C45R DIN 6885-1
20	4.043-129.0	Holder right SB-MOT
20	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
21	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
21	5.049-279.0	Nozzle holder
21	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
21	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
22	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
22	4.120-183.0	Hub retainer SB
22	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
22	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
23	6.310-066.0	Star grip M 8
23	6.339-060.0	Rubber buffer M8
23	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
23	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
24	6.906-194.0	Боковая щетка жесткая (сталь / полипропи
24	6.906-129.0	Боковая щетка
24	6.906-201.0	Боковая щетка
24	6.906-085.0	Боковая щетка стандартная полипропиленов
24	6.339-157.0	Rubber buffer
24	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
24	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
25	5.049-539.0	Sheet metal component left
25	5.049-762.0	Sheet metal component
25	7.312-002.0	Washer 5-200HV-A3E ISO 7090
25	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
26	2.882-490.0	Spare parts set rhomboid sweep unit ICC1
26	5.128-053.0	Tube deflection pulley
26	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
26	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
27	4.040-046.0	Sheet metal component retaining bracket
27	6.906-085.0	Боковая щетка стандартная полипропиленов
27	6.906-194.0	Боковая щетка жесткая (сталь / полипропи
27	6.906-129.0	Боковая щетка
27	6.906-201.0	Боковая щетка
27	5.515-175.0	Deflection pulley
27	7.305-048.0	Countersunk screw M5x12 -A2-70 (In6Rd)
27	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
28	6.365-462.0	Set of gaskets OMM50
28	5.049-540.0	Sheet metal component
28	5.049-812.0	Sheet metal component left
28	7.306-207.0	Screw M4x12 -A2-70 (In6Rd)
29	2.882-490.0	Spare parts set rhomboid sweep unit ICC1
29	5.049-811.0	Sheet metal component right holder Magne
29	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
30	6.365-462.0	Set of gaskets OMM50
30	6.686-186.0	4/2-way solenoid valve side brush change
30	7.312-067.0	Washer 4-A2 ISO 7089
31	4.040-047.0	Sheet metal component retaining bracket
31	6.432-180.0	Chain sweep unit SM/SB
31	6.432-234.0	Chain
31	7.304-435.0	Hexagonal head screw M12x30-8.8-A3E ISO
32	7.373-001.0	Зажим 1-12-W1-2 DIN 72571
32	6.273-042.0	Sealing tape 19x4
33	7.312-002.0	Washer 5-200HV-A3E ISO 7090
34	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
35	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
36	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
37	5.515-045.0	Roller
38	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
39	7.303-165.0	Saucer-head screw M8x55-ST-A0P DIN 603
40	4.040-419.0	Sheet metal component complete
