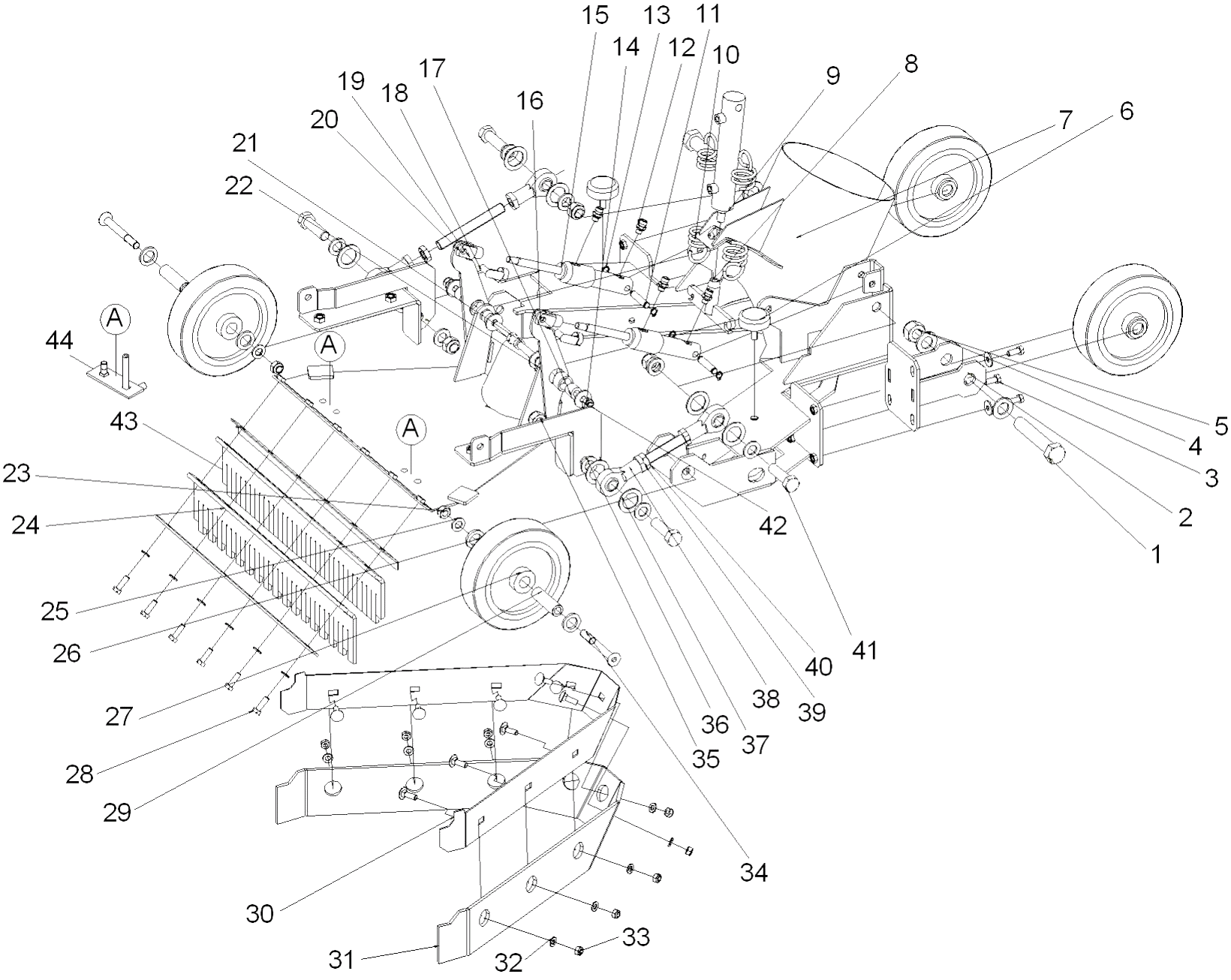

Karcher (Керхер) Всасывающие губки (0.208-386.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
2	4.040-511.0	Sheet metal component
3	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
4	7.312-018.0	Washer 20-200HV-A3E ISO 7090
5	7.311-034.0	Hexagon nut M20-A2-70 ISO 7040
6	6.339-233.0	Rubber buffer
7	4.040-579.0	Sheet metal component suction mouth
8	6.996-218.0	Gallows
9	6.996-220.0	Hydraulic cylinder
10	6.996-219.0	Extension spring -FHS 516857
11	5.116-229.0	Axle
13	7.343-001.0	Locking ring 10x1-Rf-St DIN 471
14	7.311-511.0	Hexagon nut M10-8-A2E ISO 7040
15	6.504-089.0	Hydraulic cylinder lift 50mm
17	6.996-515.0	T-Piece
17	5.112-799.0	Bush
18	6.391-230.0	Hydraulic hose
18	6.997-179.0	Bolt M10X20
19	6.997-180.0	Fork head 10X20
20	4.040-578.0	Bracket suction mouth
21	7.304-514.0	Hexagonal head screw M10x50-A2-70 ISO 4
22	6.996-989.0	"""Double nipple 3/8"""" """
22	5.112-704.0	Bush
23	6.997-089.0	Ball valve
23	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
24	6.997-217.0	Pipe clamp 22X20
24	5.365-287.0	Rubber lip
25	6.997-106.0	Bulkhead screw connection 3/8
25	7.312-008.0	Washer 12-200HV-A3E ISO 7090
26	6.997-107.0	Double nipple E212
26	7.312-143.0	Washer 20-160HV-A3E ISO 8738
27	6.997-320.0	Wheel D 180mm
28	7.304-399.0	Hexagonal head screw M 8x25-8.8-A2E ISO
29	6.997-108.0	"""Elbow connector 3/8"""" """
29	5.116-228.0	Wheel axle
30	6.997-109.0	T-Screw connection 3/8
30	5.057-574.0	Sheet metal component
31	6.997-110.0	Elbow screw connector
31	5.364-231.0	Rubber lip
32	6.997-111.0	"""Double nipple 3/8"""" """
32	7.312-017.0	Washer 8-A2 ISO 7089
33	6.996-101.0	High pressure hose
33	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
34	6.368-075.0	Drain plug
35	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
35	7.311-523.0	Hexagon nut M16 -8-A2E ISO 7040
36	6.996-533.0	Serrated locking washer D6
36	7.312-089.0	Washer 16-200HV ISO 7089
37	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
37	5.115-924.0	Washer rhomboid SM
38	6.997-113.0	Spring washer 18 FORM B
38	6.997-000.0	Threaded rod DIN 976
39	7.304-536.0	Hexagonal head screw M 6x20-A4-70 ISO 4
40	6.996-920.0	Ring 8mm, FHS 503071
40	7.311-010.0	Hexagon nut M16-8-A3E ISO 4032
42	6.996-873.0	Handhold Gekroepft
42	7.312-269.0	Washer 10-A2 ISO 7094
43	6.997-114.0	Elbow screw connector
43	5.365-288.0	Support lip
44	6.996-874.0	Pressure controller
44	4.130-426.0	Nozzle complete
45	6.997-115.0	Support sleeve 8-5.5
46	6.997-116.0	"""Armature 8-3/8"""" """
47	6.996-791.0	Hose plastics
48	6.997-117.0	Plug nipple 8MM
49	6.997-214.0	Elbow screw connector
51	6.997-216.0	Strap PVC 15x4,5
52	5.008-419.0	Plate cleaning
53	4.040-428.0	Sheet metal component canal blower
54	5.057-080.0	Sheet metal component cover exhaust air
