Karcher (Керхер) Всасывающая планка (0.103-905.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

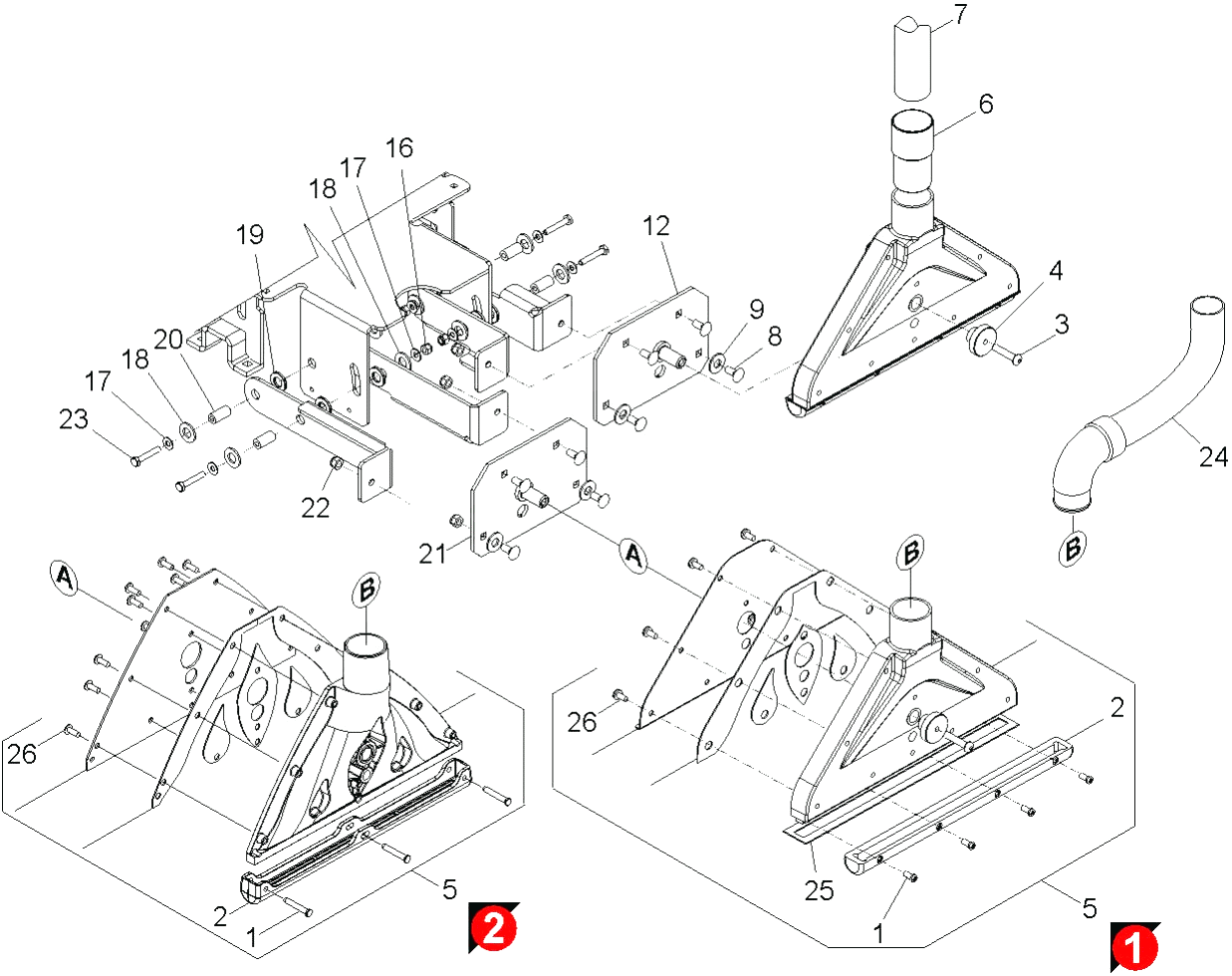

| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.629-319.0 |
PIN, CLEVIS |
|
| 1 |
8.627-595.0 |
SCR, 10-24 X 3/8 TORX SS |
|
| 2 |
8.600-201.0 |
BOOT, 3/8 CIRCUIT BREAKER |
|
| 2 |
8.629-652.0 |
WIPER, 13IN W/ GASKET |
|
| 2 |
8.625-998.0 |
WIPER, VAC SHOE |
|
| 3 |
8.600-890.0 |
BOOT, SEAL-PUSH BUTTON 7/16-28 |
|
| 3 |
8.627-665.0 |
Screw 5/16-18 X 1.5 BSHCS SS |
|
| 4 |
8.622-977.0 |
BLOCK, SHUNT MOUNT |
|
| 4 |
8.621-969.0 |
KNOB, 1.5 OD X 5/16-18 |
|
| 5 |
8.629-654.0 |
VACSHOE, 13IN W/ WIPER |
|
| 5 |
8.630-640.0 |
Вытяжной модуль комплектный |
|
| 6 |
8.627-388.0 |
SCR, 8-32 X 1.25 PPHMS |
|
| 6 |
8.600-301.0 |
"""CUFF, HOSE 1.5"""" BLK A 2161 """ |
|
| 7 |
8.630-632.0 |
CONTROLLER, I-DRIVE, GEL BATT |
|
| 7 |
8.623-988.0 |
"""HOSE, 1.5 BLK VAC X 22"""" """ |
|
| 8 |
8.627-085.0 |
NUT, 8-32 HEX NYLOCK SS |
|
| 8 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 9 |
8.625-590.0 |
STANDOFF, 6-32 X 5/8 HEX NYL |
|
| 9 |
8.601-077.0 |
Washer 7/16ID X1DX.08 FLT SS |
|
| 10 |
8.601-499.0 |
SCR, M5X20, SHCS, ISO4762, SS |
|
| 10 |
8.623-790.0 |
GASKET, .125T X .37W X 23L |
|
| 11 |
8.621-587.0 |
BRKT, TENSIONER ARM |
|
| 11 |
8.625-136.0 |
Relay 36VDC 100A |
|
| 12 |
8.601-278.0 |
PULLEY ASM, 5MM HTD 22T |
|
| 12 |
8.600-719.0 |
Switch KEY DPST |
|
| 13 |
8.623-068.0 |
"""BRUSH, EXTRACTOR 20"""" """ |
|
| 13 |
8.600-200.0 |
BREAKER, 3 AMP 1681-090-300 |
|
| 14 |
8.622-349.0 |
RING, 10MM EXT SNAP, DIN 471 |
|
| 14 |
8.600-192.0 |
BREAKER, 25A 50VDC CIRCUIT |
|
| 15 |
8.622-413.0 |
SHAFT, TENSIONER |
|
| 15 |
8.600-191.0 |
BREAKER, 30A 50VDC CIRCUIT |
|
| 16 |
8.634-387.0 |
HOUSING ASM, BRUSH DRIVE |
|
| 16 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 16 |
8.600-581.0 |
Nut 1/4-20 HEX NYLOCK SS |
|
| 17 |
8.622-332.0 |
PULLEY, 32T, 5MM HTD |
|
| 17 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 17 |
8.623-008.0 |
BREAKER, 22A 250VAC, 50VDC |
|
| 18 |
8.601-279.0 |
SHAFT ASM, BRUSH DRIVE |
|
| 18 |
8.625-942.0 |
WASHER, THRUST .51ID X 1 ODBRO |
|
| 18 |
8.600-718.0 |
Switch EMERGENCY STOP |
|
| 19 |
8.617-297.0 |
SCR,M5X12,PHLP FHMS,ISO7046,SS |
|
| 19 |
8.625-940.0 |
Washer THRUST.51 ID X 1 ODBRO |
|
| 19 |
8.629-610.0 |
ASM, DC CONVERTER |
|
| 20 |
8.622-892.0 |
BEARING,.252 ID X.503 ODX.1.0 |
|
| 20 |
8.607-050.0 |
BRKT, BATTERY ALARM |
|
| 21 |
8.609-362.0 |
PLATE, VAC MOUNT RH |
|
| 21 |
8.625-464.0 |
SPACER, .25 OD X .171 ID X .25 |
|
| 22 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 22 |
8.623-150.0 |
BUZZER, PIEZO 6-28VDC |
|
| 23 |
8.617-335.0 |
WASHER, M5, FLAT, ISO7089, SS |
|
| 23 |
8.627-374.0 |
Screw 1/4-20 x 1.5 HHCS SS |
|
| 23 |
8.600-649.0 |
Screw 8-32 X 3/4 PPHMS SS |
|
| 24 |
8.617-298.0 |
SCR, KA50X10,PT OHS,WN1412,PLTD |
|
| 24 |
8.621-914.0 |
"""HOSE ASM, 1.5 BLK VAC X 23"""" """ |
|
| 25 |
8.622-463.0 |
SPRING, BRUSH CLIP |
|
| 25 |
8.623-795.0 |
GASKET, VAC SHOE WIPER |
|
| 26 |
8.627-713.0 |
Screw 5/16-18X1.00 CARRIAGE SS |
|
| 26 |
8.627-787.0 |
SCREW, M6-1.0 X 20 LG BHSCS SS |
|
| 26 |
8.622-374.0 |
SCREW, 1/4-20 X .59 PHPNHMS SS |
|
| 27 |
8.635-049.0 |
PLUG, HOLE, 5MM DIA X 12MM L |
|
