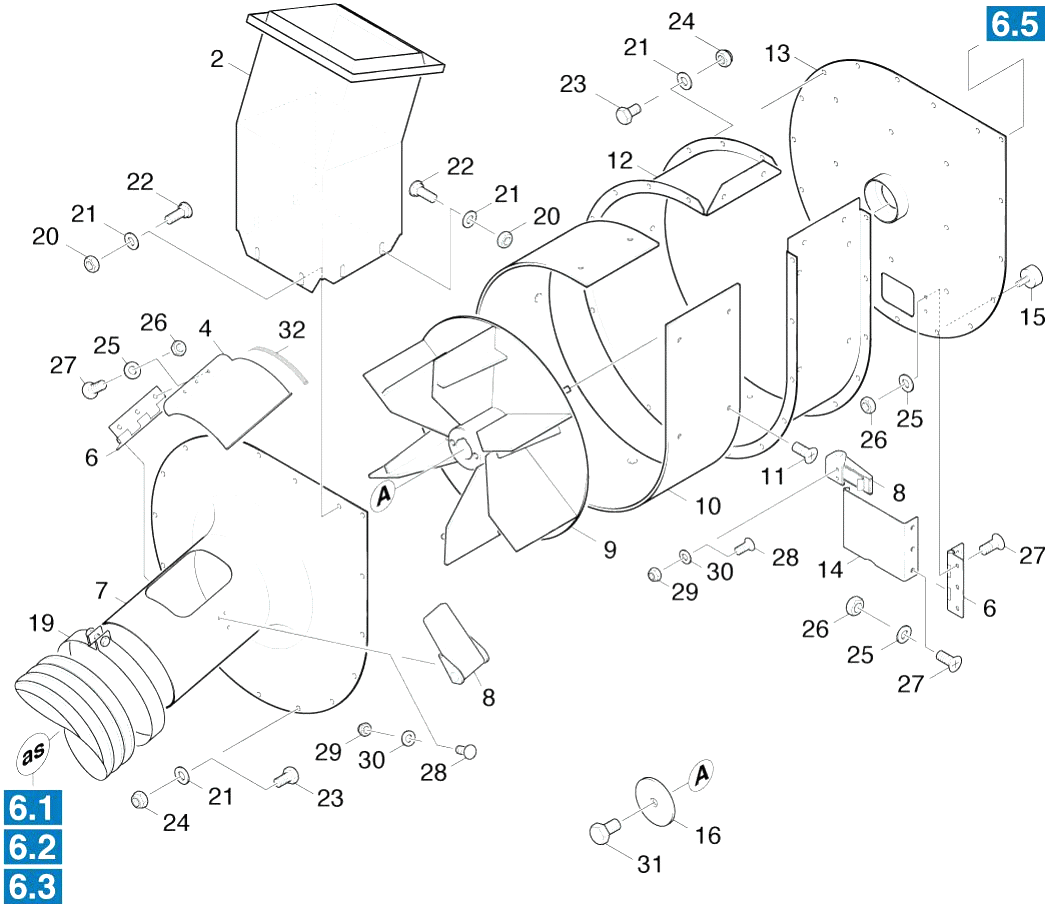

Karcher (Керхер) Воздуходувка (0.206-927.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
2	4.038-644.0	Sheet metal component complete
4	5.048-019.0	Sheet metal component
6	6.372-073.0	Hinge
7	4.025-648.0	Canal helical housing
8	6.375-257.0	Snap fastener
9	4.610-076.0	Blower wheel wear resistant ICC1
10	5.048-014.0	Sheet metal component
11	7.305-627.0	Countersunk screw M8x25-A2-70 ISO 10642
12	5.048-042.0	Sheet metal component
13	4.038-798.0	Sheet metal component complete
14	5.048-017.0	Sheet metal component
15	6.339-094.0	Rubber buffer
16	5.115-814.0	Washer
19	6.373-706.0	Clamp suction hose SM
20	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
21	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
22	7.303-204.0	Saucer-head screw M8x20 -St-A2R DIN 603
23	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
24	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
25	7.312-002.0	Washer 5-200HV-A3E ISO 7090
26	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
27	7.305-048.0	Countersunk screw M5x12 -A2-70 (In6Rd)
28	7.306-207.0	Screw M4x12 -A2-70 (In6Rd)
29	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
30	7.312-067.0	Washer 4-A2 ISO 7089
31	7.304-435.0	Hexagonal head screw M12x30-8.8-A3E ISO
32	6.273-042.0	Sealing tape 19x4
