Karcher (Керхер) Система управления (0.207-016.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

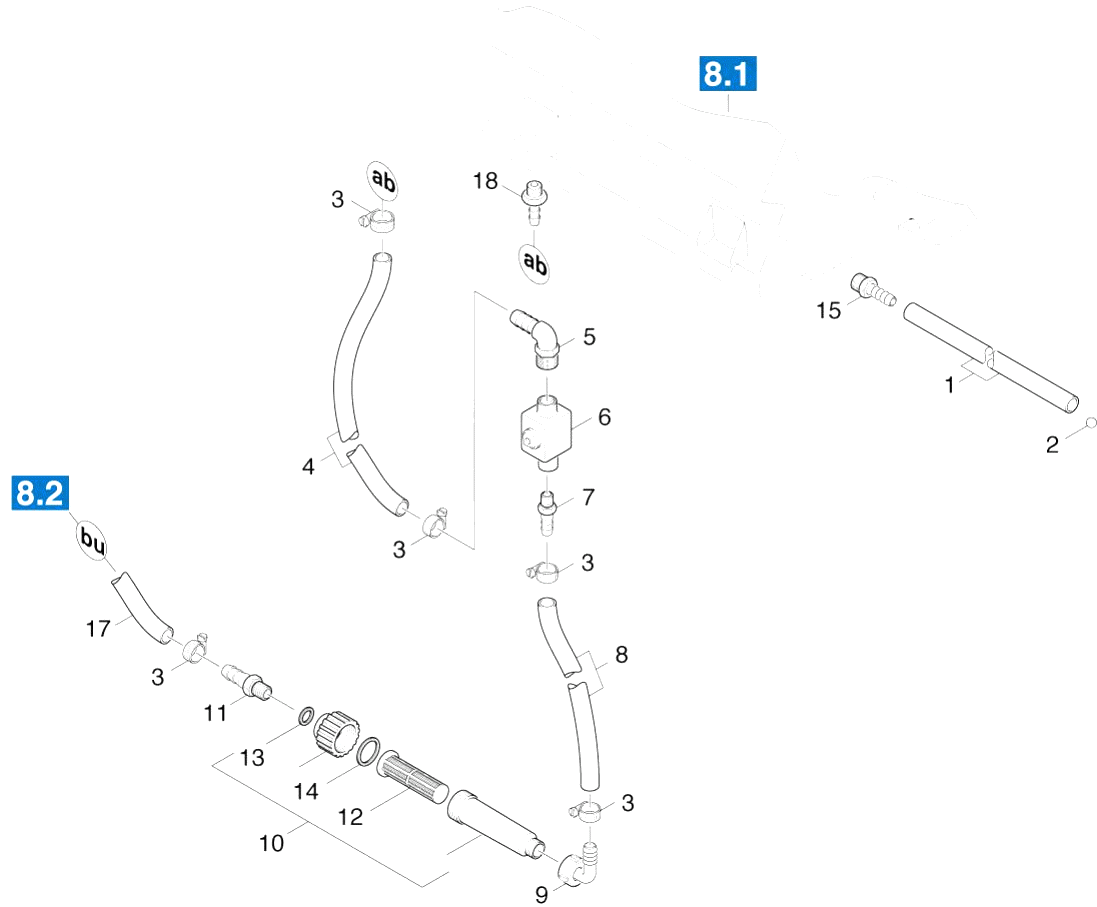

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.442-956.0	Hose DN 6
1	2.860-166.0	Toolkit steering wheel blower ICC1/ICC2
2	6.906-170.0	Sphere water level green 5MM PP
3	6.388-546.0	Hose clip
4	5.440-146.0	Hose valve T-piece
5	6.390-002.0	Angle bushing
6	6.412-289.0	Ball valve
7	6.389-898.0	Hose stem
8	6.388-249.0	Hose DN15
9	6.389-408.0	"""Elbow screw connector G 3/4"""" """
10	4.730-100.0	Filter complete
11	6.365-374.0	Sealing profile
11	6.389-255.0	Hose stem 3/4 - d1/2
12	5.048-398.0	Sheet metal component
13	5.363-337.0	Seal
14	6.365-463.0	Sealing profile
14	5.363-336.0	Seal
15	5.115-303.0	Washer
15	6.388-708.0	Hose stem DN 6
16	5.048-404.0	Sheet metal component
17	5.001-970.0	Plate
17	5.442-954.0	Hose
18	7.316-450.0	Spring clip 3,2-DR-vz DIN11024
18	5.443-304.0	Hose stem
19	5.058-621.0	Cover plate sweep tank
20	6.401-206.0	Pedestal bearing
21	5.110-696.0	Sleeve
22	5.105-379.0	Axle sweep tank
23	4.038-647.0	Sheet metal component complete
24	4.040-114.0	Swivel arm complete sweep tank
25	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
26	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
27	7.312-289.0	Washer 8 -A2 ISO 7093-1
28	5.058-040.0	Sheet metal component short support
29	5.316-859.0	Bolt cylinder high emptying
30	7.304-537.0	Hexagonal head screw M 8x30-A4-70 ISO 4
31	7.304-528.0	Hexagonal head screw M10x20-A4-70 ISO 4
32	7.312-066.0	Washer 10 -A2 ISO 7090
33	7.311-441.0	Hexagon nut M10-1.4305 ISO 10511
34	4.480-014.0	Leverage sweep tank
