Karcher (Керхер) Система управления (0.207-812.0)

Karcher (Керхер) Система управления (0.207-812.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

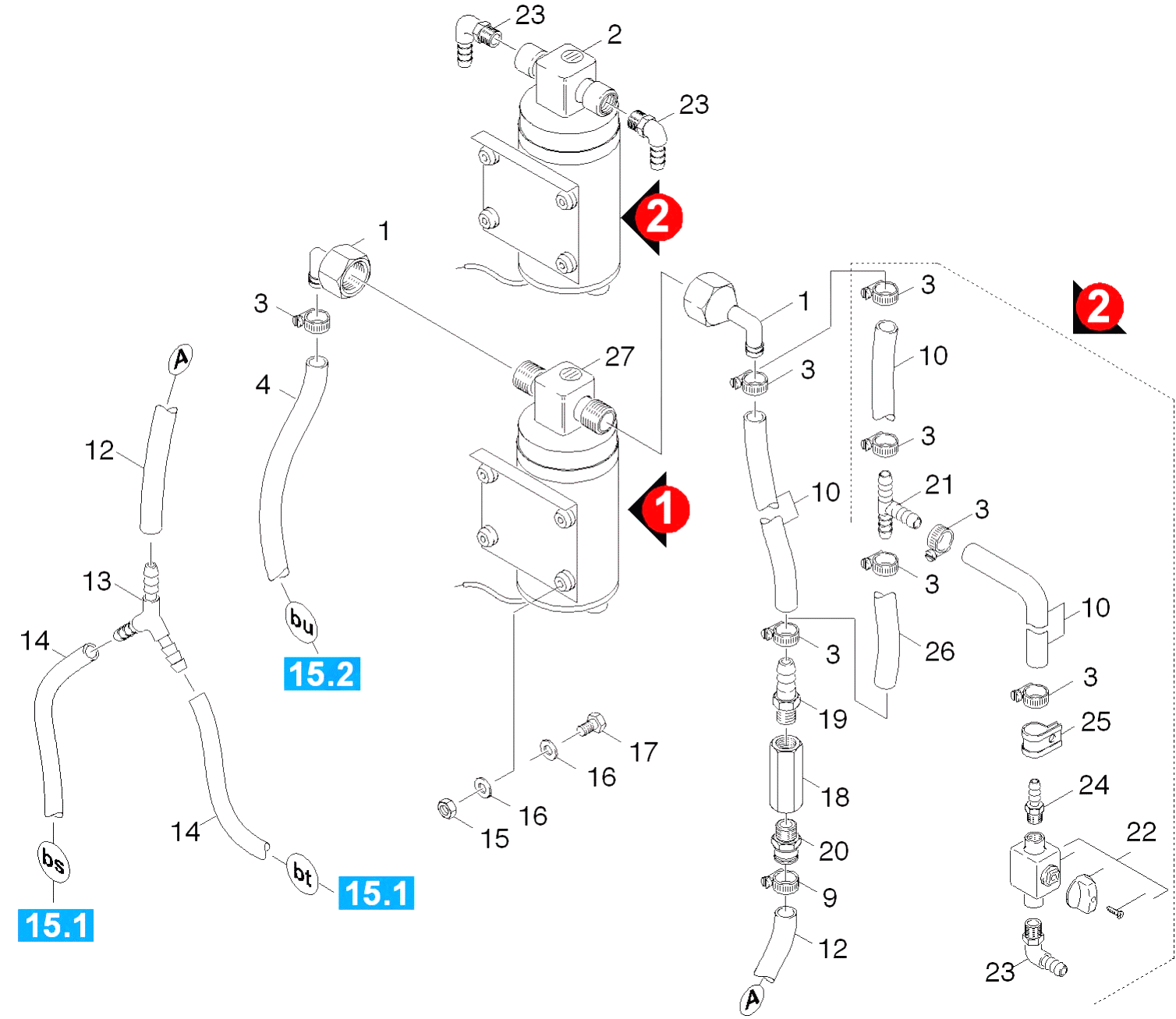

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 5.048-366.0 Sheet metal component sweep tank
2 6.470-187.0 Водяной насос
2 5.363-474.0 Seal chimney
3 6.651-395.0 Rear reflector
3 6.388-546.0 Hose clip
3 7.311-427.0 Hexagon nut M8 -04-A2E ISO 10511
4 6.651-502.0 Rear light right
4 5.441-034.0 Hose
4 5.767-011.0 Backscattering body
5 6.651-501.0 Rear light left
5 7.303-194.0 Saucer-head screw M8x25-St-A0P DIN 603
6 7.651-014.0 Lamp P21W-BA15s-12V EN 60809
6 7.312-004.0 Washer 8 -200HV-A3E ISO 7090
7 7.651-006.0 Lamp R10W-BA15s-12V EN 60809
7 4.038-705.0 Sheet metal component complete
8 7.303-138.0 Sheet metal screw ST4,2X9,5-A2-70-SCHW (
8 7.304-535.0 Hexagonal head screw M8x25-A4-70 ISO 40
9 6.388-522.0 Hose clip
9 7.311-430.0 Hexagon nut M4 -04-A2E ISO 10511
10 5.440-129.0 Hose
10 7.312-001.0 Washer 4 -200HV-A3E ISO 7089
10 7.304-395.0 Hexagonal head screw M8x16-8.8-A2E ISO
11 7.303-063.0 Sheet metal screw ST3,5X16-ST-A2R (IN6R
11 4.038-898.0 Sheet metal component holder seal
12 5.442-962.0 Hose
12 5.443-304.0 Hose stem
13 6.395-073.0 Y-Piece
13 5.364-225.0 Edge protection holder rear light
14 5.442-963.0 Hose
14 7.306-058.0 Screw M 4X 12- 8.8-R2R K-IN6RD
15 7.311-421.0 Hexagon nut M 5-04-A2E ISO 10511
15 6.431-007.0 Rope D 1x260 mm
16 7.312-002.0 Washer 5-200HV-A3E ISO 7090
17 7.306-079.0 Screw M5x25 -8.8-R2R (In6Rd)
17 7.306-077.0 Screw M5x16 -8.8-R2R (In6Rd)
18 6.413-184.0 Check valve
18 5.058-277.0 Sheet metal component holder Ruecklicht
19 6.389-257.0 """Hose nozzle G 1/4"""" """
19 7.311-421.0 Hexagon nut M 5-04-A2E ISO 10511
20 6.386-769.0 Screw connector straight
20 7.312-002.0 Washer 5-200HV-A3E ISO 7090
21 6.388-408.0 """T-Hose nozzle 1/2"""" """
21 6.651-208.0 Licence plate lamp
22 6.412-289.0 Ball valve
22 6.391-555.0 """Hose stem 3/8"""" / DN 6 """
23 6.390-002.0 Angle bushing
23 6.506-015.0 O-Ring seal 21,0 X 2,0
24 6.389-898.0 Hose stem
24 6.362-153.0 O-Ring seal 15,3 X 2,4-NBR 70
25 6.373-422.0 Pipe clamp 22
26 6.388-249.0 Hose DN15
