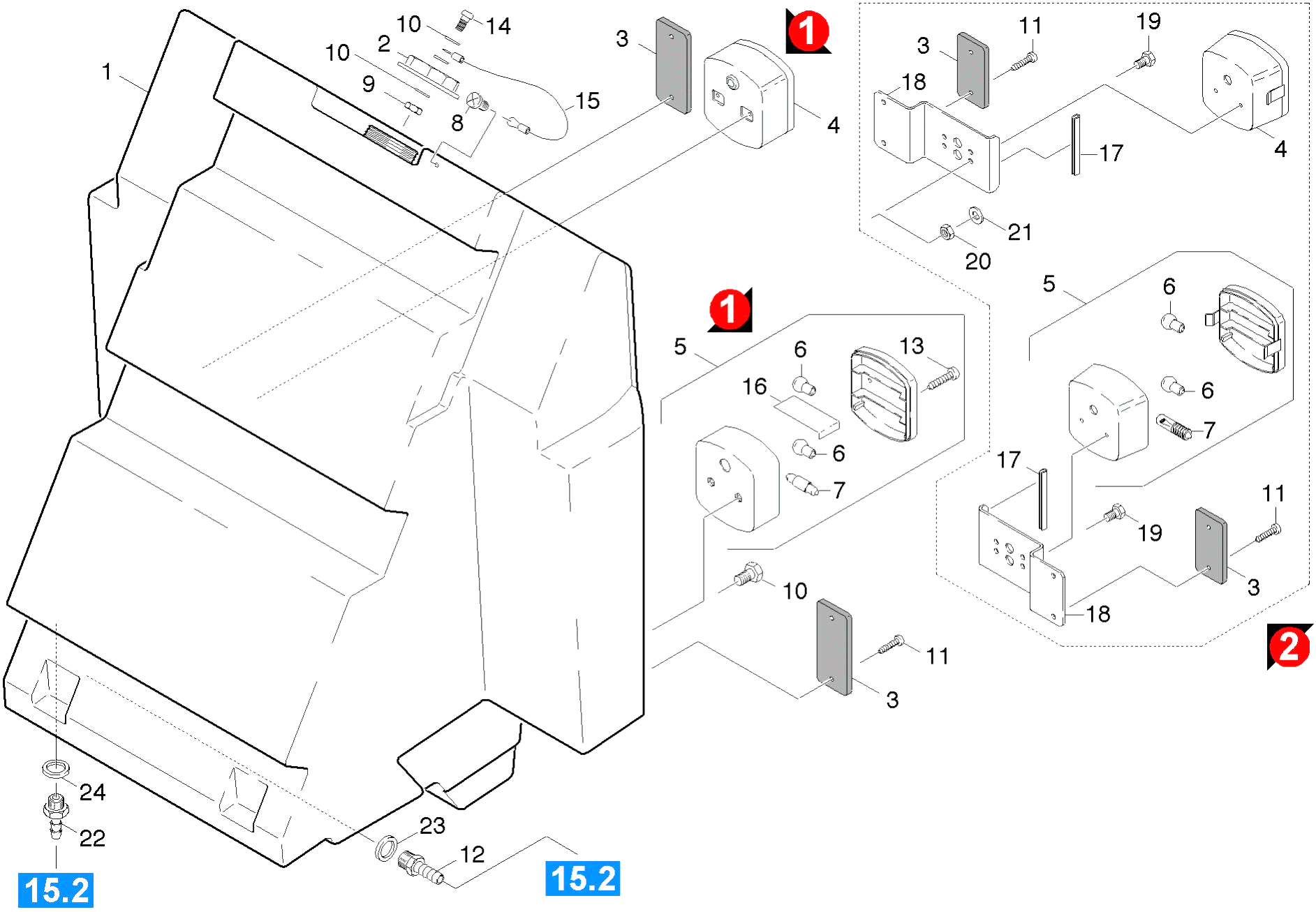

Karcher (Керхер) Резервуар для воды (0.206-933.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.071-109.0	Water tank
2	6.392-103.0	Closure cap water tank
3	6.651-395.0	Rear reflector
4	6.388-248.0	Hose DN12,5
4	6.651-393.0	Rear light right
4	6.651-502.0	Rear light right
5	6.651-394.0	Rear light left
5	6.651-501.0	Rear light left
6	7.651-014.0	Lamp P21W-BA15s-12V EN 60809
7	7.651-009.0	Lamp bulb C5W-12V 5W EN 60809
7	7.651-006.0	Lamp R10W-BA15s-12V EN 60809
8	7.303-138.0	Sheet metal screw ST4,2X9,5-A2-70-SCHW (
9	6.388-522.0	Hose clip
9	7.311-430.0	Hexagon nut M4 -04-A2E ISO 10511
10	5.440-129.0	Hose
10	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
11	6.686-125.0	Solenoid valve
11	7.303-063.0	Sheet metal screw ST3,5X16-ST-A2R (IN6R
12	5.442-962.0	Hose
12	5.443-304.0	Hose stem
13	6.385-073.0	"""Elbow G4/45°-1""""-ZN-B EN 10242 """
13	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
14	5.442-963.0	Hose
14	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
15	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
15	6.431-007.0	Rope D 1x260 mm
16	7.312-002.0	Washer 5-200HV-A3E ISO 7090
16	5.049-685.0	Sheet metal component Ruecklichtgehaeuse
17	7.306-079.0	Screw M5x25 -8.8-R2R (In6Rd)
17	5.364-225.0	Edge protection holder rear light
18	6.413-184.0	Check valve
18	5.058-277.0	Sheet metal component holder Ruecklicht
19	6.389-257.0	"""Hose nozzle G 1/4"""" """
19	7.306-079.0	Screw M5x25 -8.8-R2R (In6Rd)
20	6.386-769.0	Screw connector straight
20	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
21	6.388-408.0	"""T-Hose nozzle 1/2"""" """
21	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
22	6.388-249.0	Hose DN15
22	6.391-555.0	"""Hose stem 3/8"""" / DN 6 """
23	6.412-289.0	Ball valve
23	6.506-015.0	O-Ring seal 21,0 X 2,0
24	6.390-002.0	Angle bushing
24	6.362-153.0	O-Ring seal 15,3 X 2,4-NBR 70
25	6.389-898.0	Hose stem
26	6.373-422.0	Pipe clamp 22
